Exploded View Legend
For Replacement of components listed below, see Repair Procedure
| *1: 2 types *2: With AWD |
| *1: 2 types *2: Without AWD |

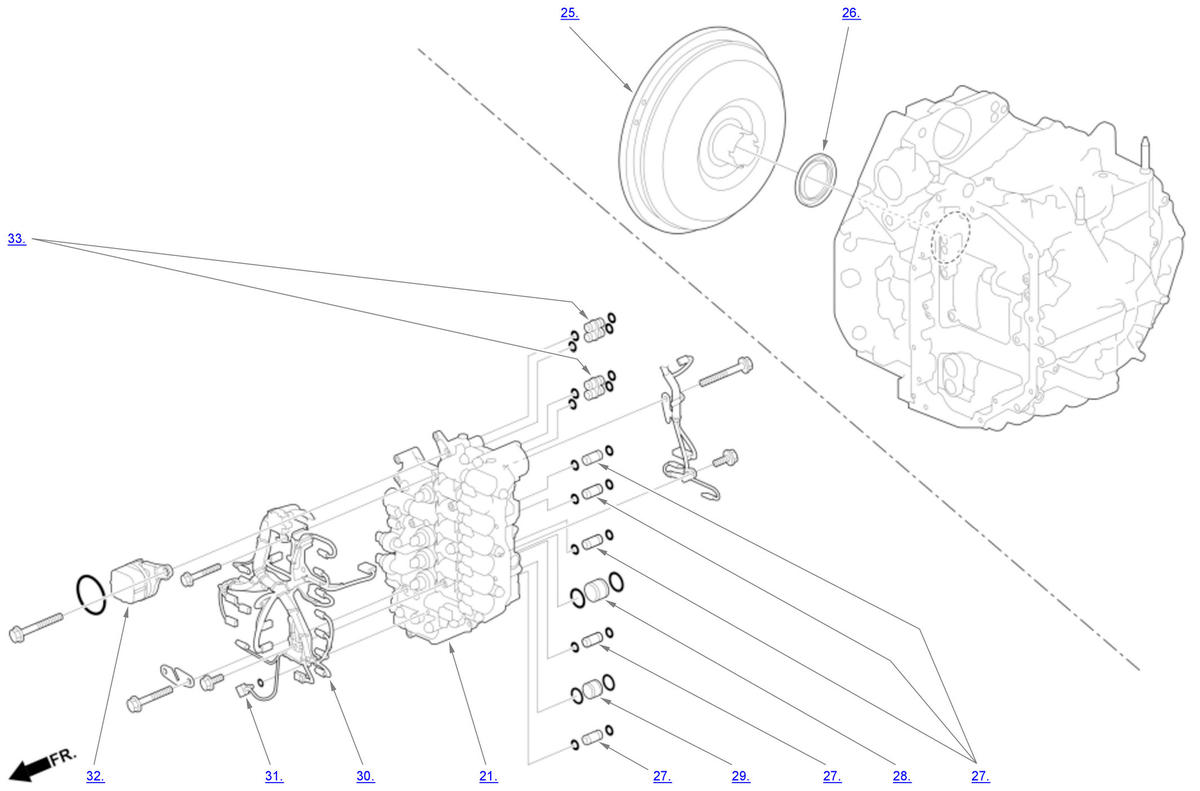

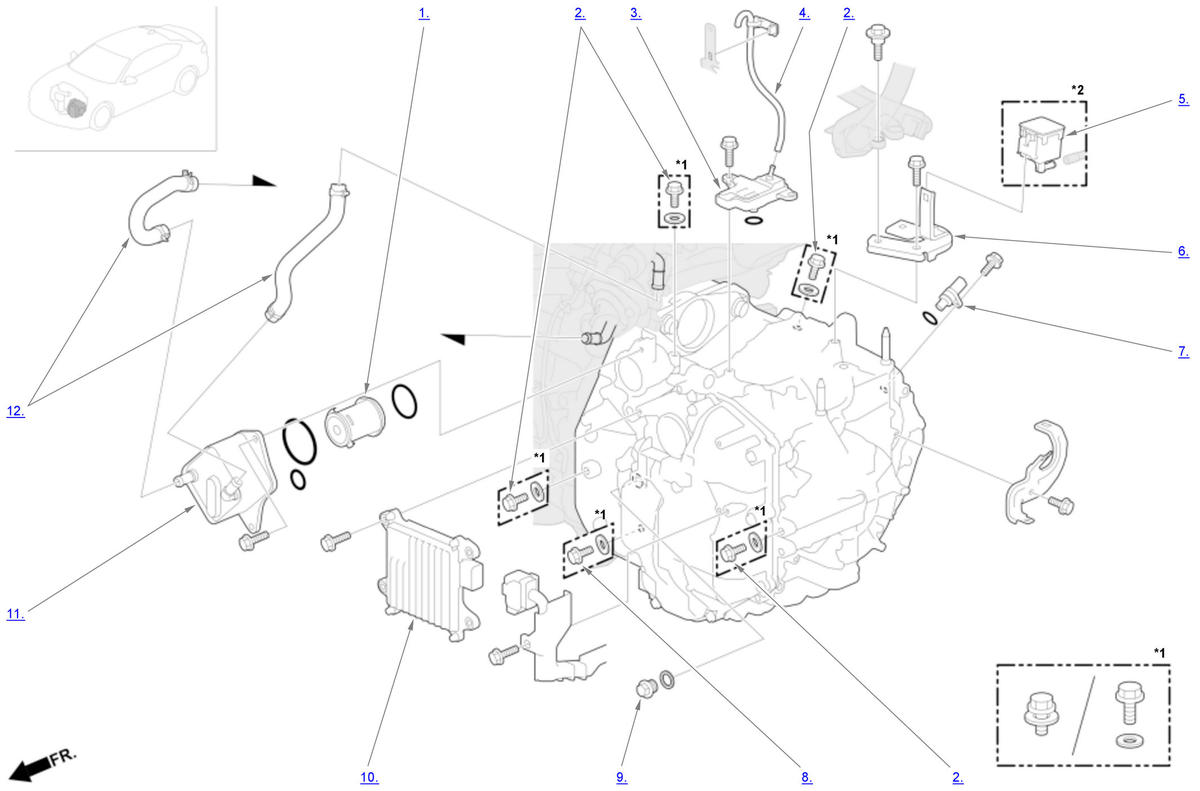

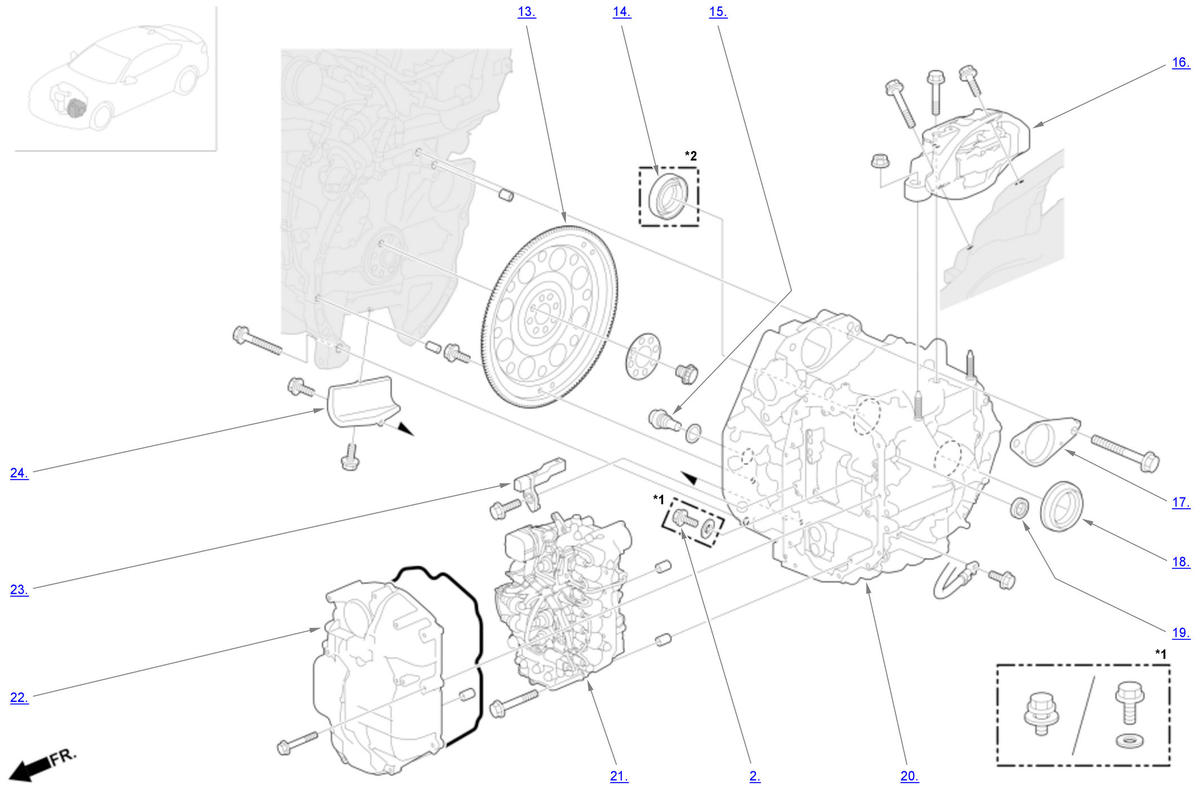

Transmission Area Components
| Component Name | Callout |
|---|---|
| ATF Warmer Strainer | 1 |
| Sealing Bolt | 2 |
| Breather Box | 3 |
| Breather Tube | 4 |
| Transfer Breather Box | 5 |
| Alternator Harness Bracket | 6 |
| Countershaft Speed Sensor | 7 |
| Level Plug | 8 |
| Filler Plug | 9 |
| Transmission Control Module (TCM) | 10 |
| ATF Warmer | 11 |
| Water Bypass Hose | 12 |
| Drive Plate | 13 |
| Differential Oil Seal (Torque Converter Housing Side) | 14 |
| Drain Plug | 15 |
| Transmission Mount | 16 |
| Torque Converter Housing Cover | 17 |
| Differential Oil Seal (Transmission Housing Side) | 18 |
| Control Shaft Oil Seal | 19 |
| Transmission | 20 |
| Valve Body Assembly | 21 |
| Front Cover | 22 |
| Mainshaft Speed Sensor | 23 |
| Torque Converter Cover | 24 |
| Torque Converter | 25 |
| Torque Converter Oil Seal | 26 |
| 11 x 27 mm Pipe | 27 |
| 25.4 x 19 mm Pipe | 28 |
| 20.4 x 19 mm Pipe | 29 |
| Solenoid Wire Harness | 30 |
| ATF Temperature Sensor (Integrated with Solenoid Wire Harness) | 31 |
| Solenoid Wire Harness Connector | 32 |
| 11 x 24.5 mm Pipe | 33 |
