Exploded View Legend

For Replacement of components listed below, see Repair Procedure

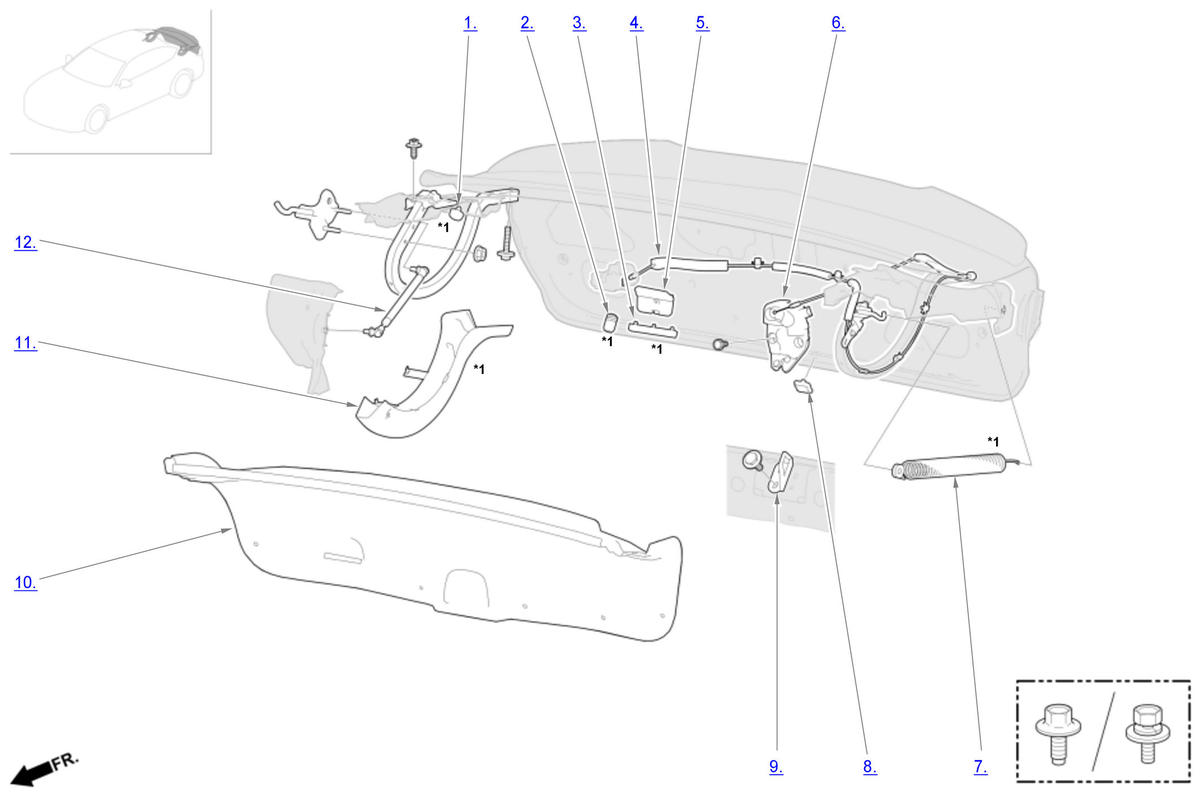

GHH563334Courtesy of HONDA, U.S.A., INC.
*1: Part(s) are shown for one side only as the procedure is the same for both sides.
Trunk Lid

Component Name Callout
Trunk Lid Hinge Stopper 1
Trunk Lid Edge Cushion 2
Trunk Lid Cushion 3
Trunk Lid Opener Cable 4
Trunk Lid Handle 5
Trunk Lid Latch 6
Trunk Open Coil Spring 7
Drain Plug 8
Trunk Lid Striker 9
Trunk Lid Lining 10
Trunk Lid Hinge Cover 11
Trunk Lid Support Strut 12
