Exploded View

For replacement of components listed below, see Repair Procedure

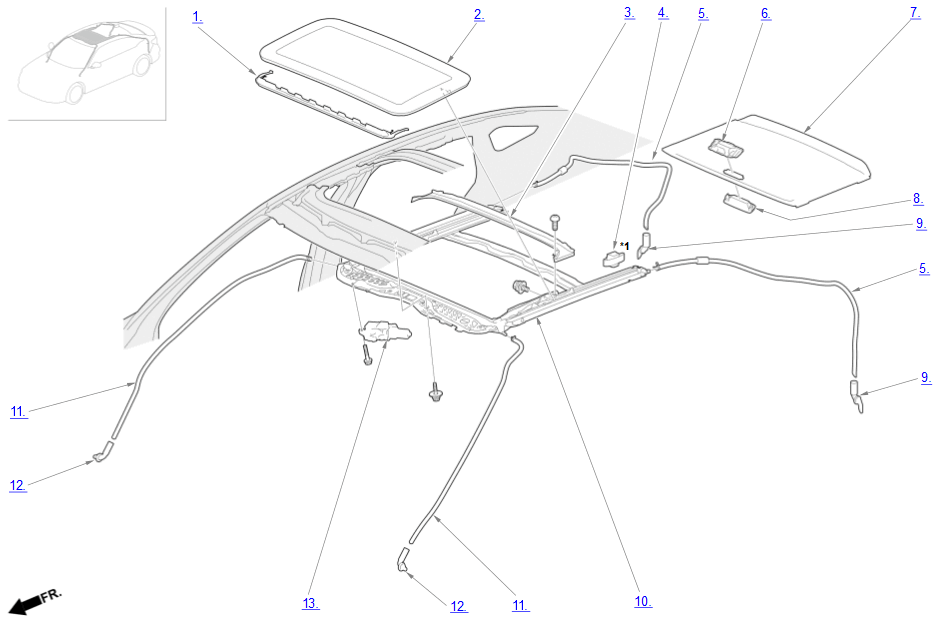

GHH655941Courtesy of HONDA, U.S.A., INC.

*1: Part(s) are shown for one side only as the procedure is the same for both sides.

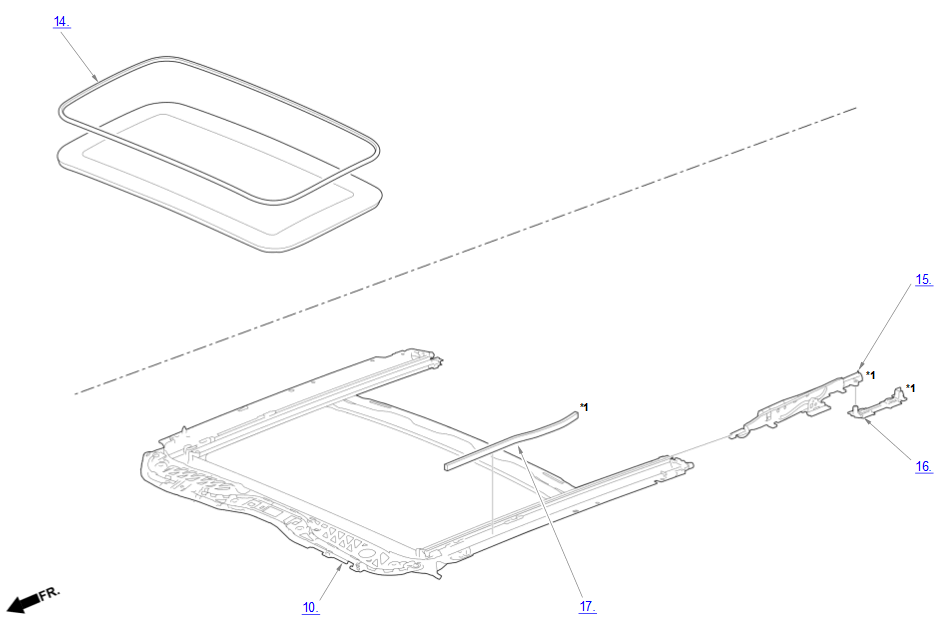

GHH655942Courtesy of HONDA, U.S.A., INC.

*1: Part(s) are shown for one side only as the procedure is the same for both sides.

Moonroof Area Components

Component Name Callout
Wind Deflector 1
Moonroof Glass 2
Drain Channel 3
Stopper 4
Rear Drain Tube 5
Sunshade Handle Bracket 6
Sunshade 7
Sunshade Handle 8
Rear Drain Valve 9
Moonroof Frame 10
Front Drain Tube 11
Front Drain Valve 12
Moonroof Motor-Control Unit 13
Glass Roof Seal 14
Moonroof Link Assembly 15
Drain Channel Slider 16
Frame Seal 17
