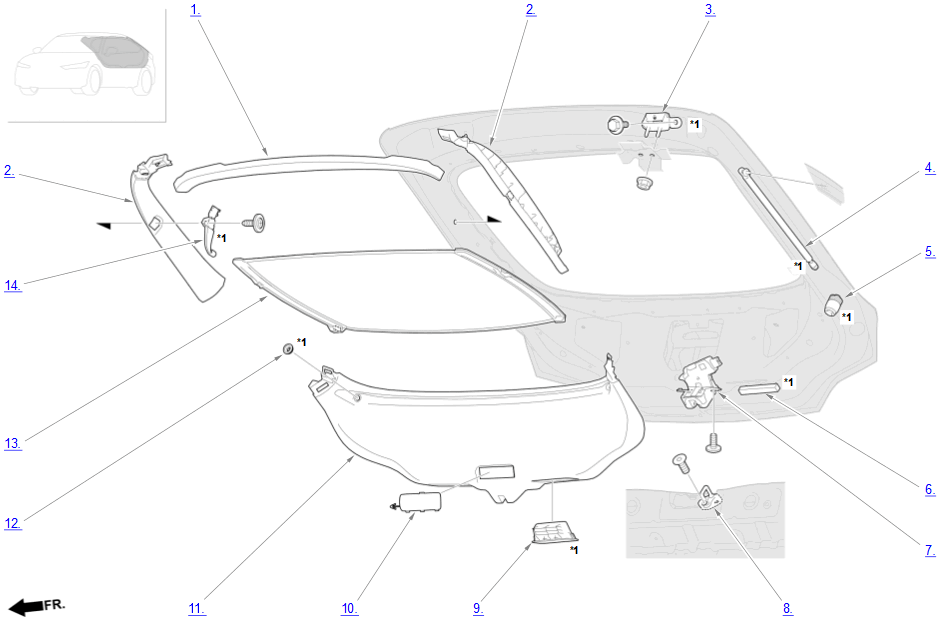

Exploded View
For replacement of components listed below, see Repair Procedure
*1: Part(s) are shown for one side only as the procedure is the same for both sides.
Tailgate - Inner Side Area Components
| Component Name | Callout |
|---|---|
| Tailgate Upper Trim | 1 |
| Tailgate Side Trim | 2 |
| Tailgate Hinge | 3 |
| Tailgate Support Strut | 4 |
| Tailgate Edge Cushion | 5 |
| Tailgate Cushion | 6 |
| Tailgate Latch | 7 |
| Tailgate Striker | 8 |
| Tailgate Pull Pocket | 9 |
| Tailgate Maintenance Lid B | 10 |
| Tailgate Lower Trim Panel | 11 |
| Rubber | 12 |
| Tonneau Cover | 13 |
| Rear Shelf Lock | 14 |
