Exploded View

For replacement of components listed below, see Repair Procedure

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

*1: 2 types

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

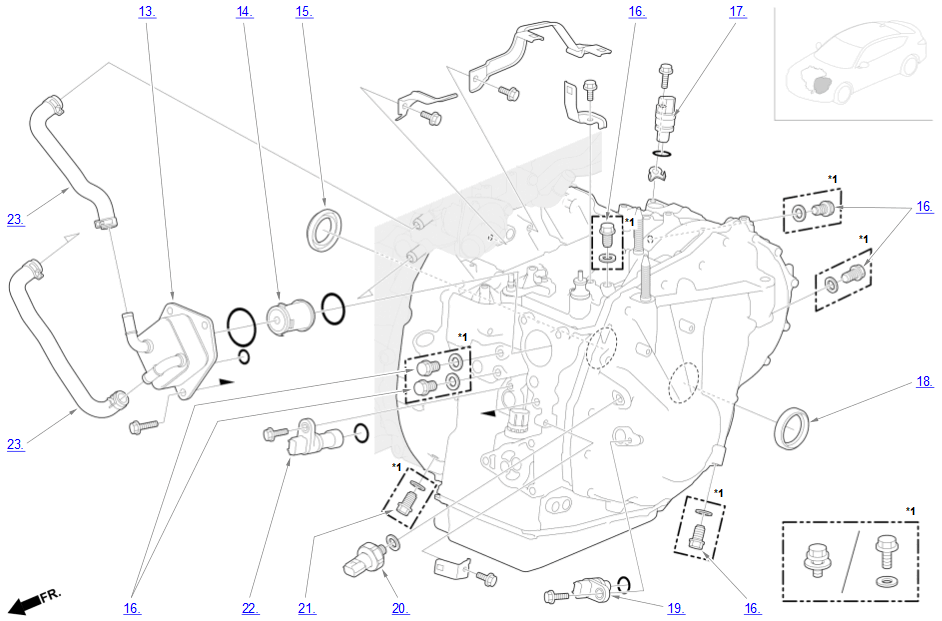

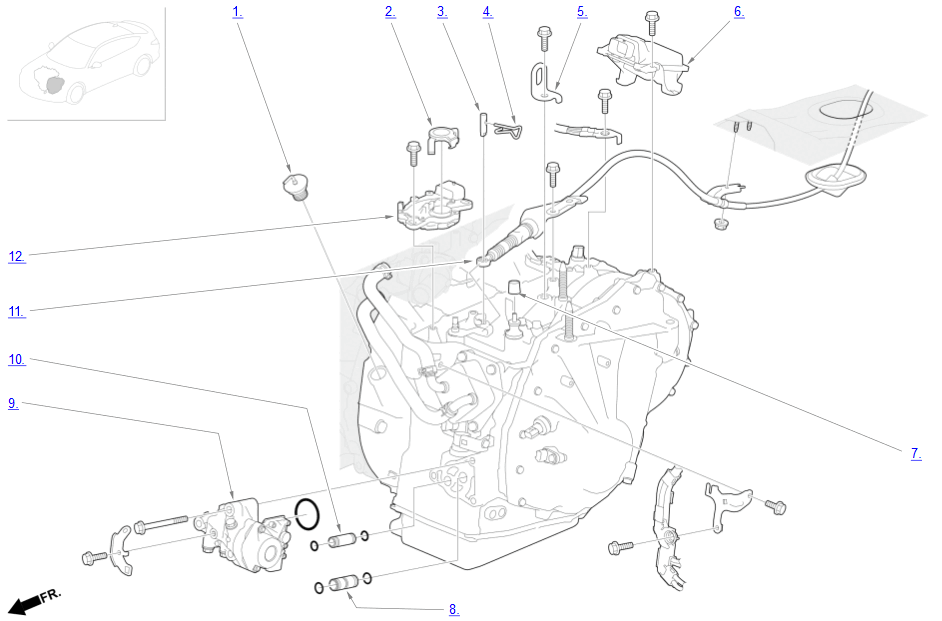

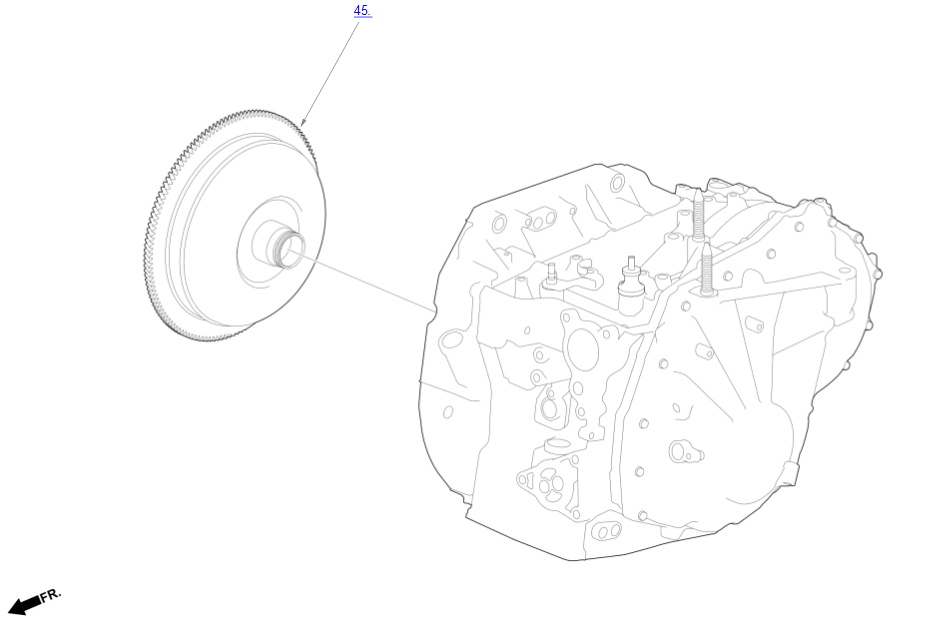

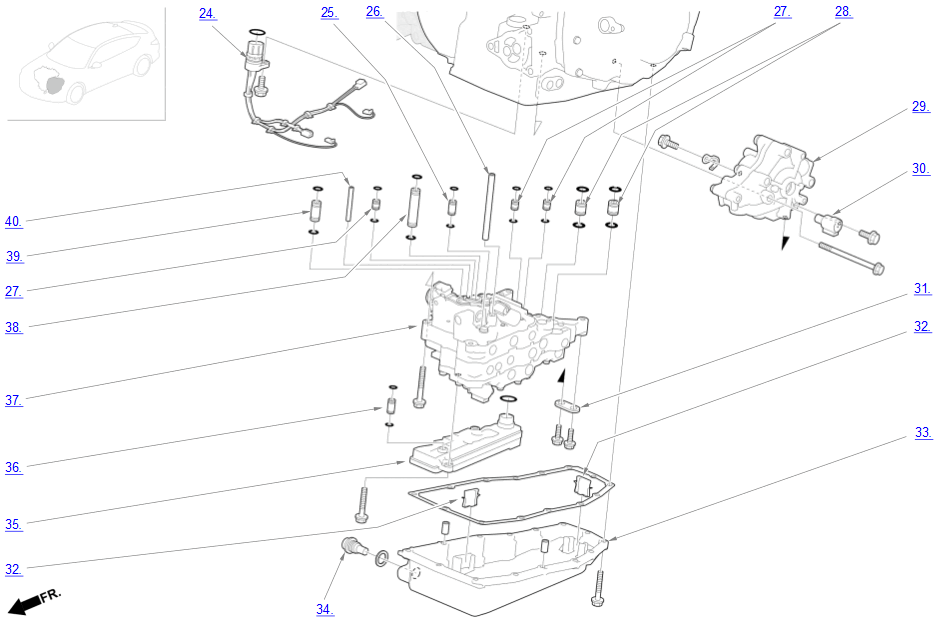

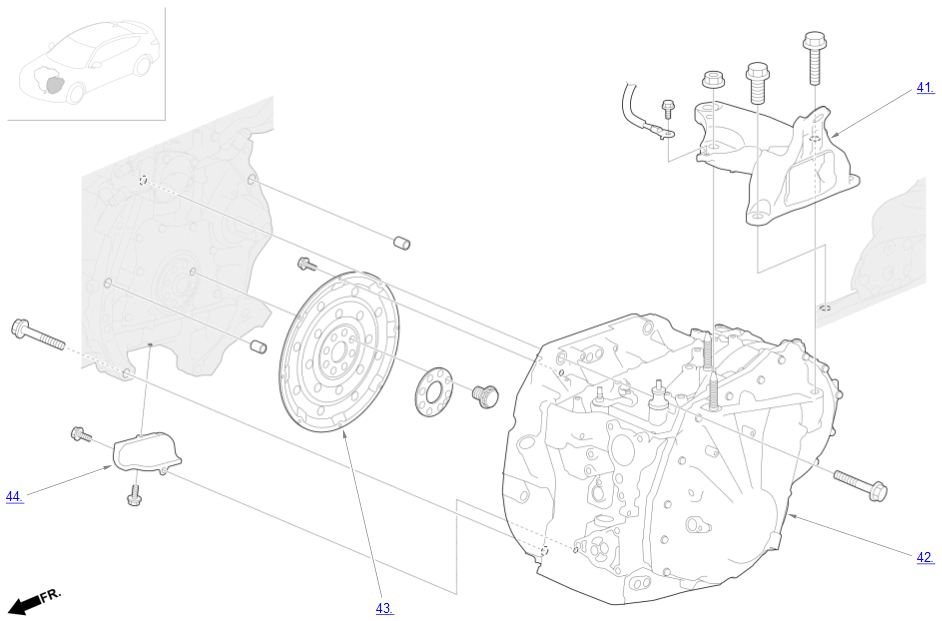

Transmission Area (CVT) Components

Component Name	Callout
Filler Cap	1
Control Shaft Cover	2
Control Pin	3
Lock Pin	4
Transmission Hanger	5
Transmission Control Module (TCM)	6
Breather Cap	7
Delivery Pipe	8
Electric Oil Pump	9
10.9 x 31.5 mm Pipe	10
Shift Cable (Transmission Side)	11
Transmission Range Switch	12
CVTF Warmer	13
CVTF Warmer Strainer	14
Right Differential Oil Seal	15
Sealing Bolt	16
CVT Speed Sensor	17
Left Differential Oil Seal	18
CVT Drive Pulley Speed Sensor	19
CVT Driven Pulley Pressure Sensor	20
Check Bolt	21
Torque Converter Turbine Speed Sensor	22
CVTF Warmer Hose	23
Solenoid Wire Harness A	24
10.9 x 26 mm Pipe	25
8 x 133.5 mm Pipe	26
10.9 x 18.5 mm Pipe	27
18 x 18 mm Pipe	28
Transmission Fluid Pump	29
Shift Solenoid Valve O/P	30
Guide Plate	31
Magnet	32
Transmission Fluid Pan	33
Drain Plug	34
Transmission Fluid Strainer	35
11 x 27.2 mm Pipe	36
Valve Body Assembly	37
12 x 56.7 mm Pipe	38
14.3 x 36.2 mm Pipe	39
Joint Pipe	40
Transmission Mount	41
Transmission	42
Drive Plate	43
Torque Converter Cover	44
Torque Converter	45
