Exploded View

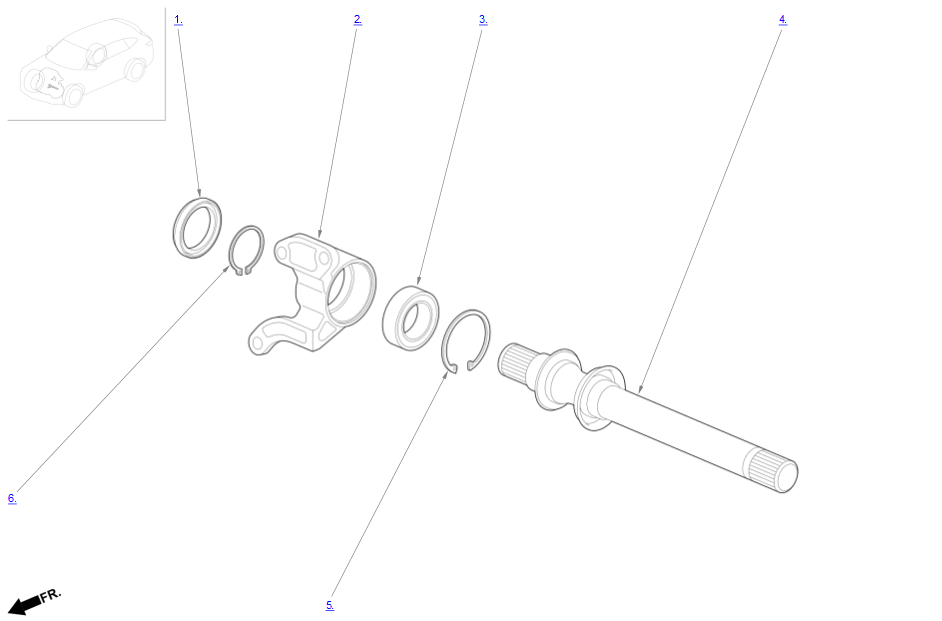

3.0 L Engine

GHH664095Courtesy of HONDA, U.S.A., INC.

3.5 L Engine

GHH664096Courtesy of HONDA, U.S.A., INC.

*1: Without AWD

*2: With AWD

  1. Outer Seal
  2. Bearing Support
  3. Intermediate Shaft Bearing
  4. Intermediate Shaft
  5. Internal Snap Ring
  6. External Snap Ring
