Exploded View
For replacement of components listed below, see Repair Procedure
*1: 3.0 L engine
*2: 3.5 L engine

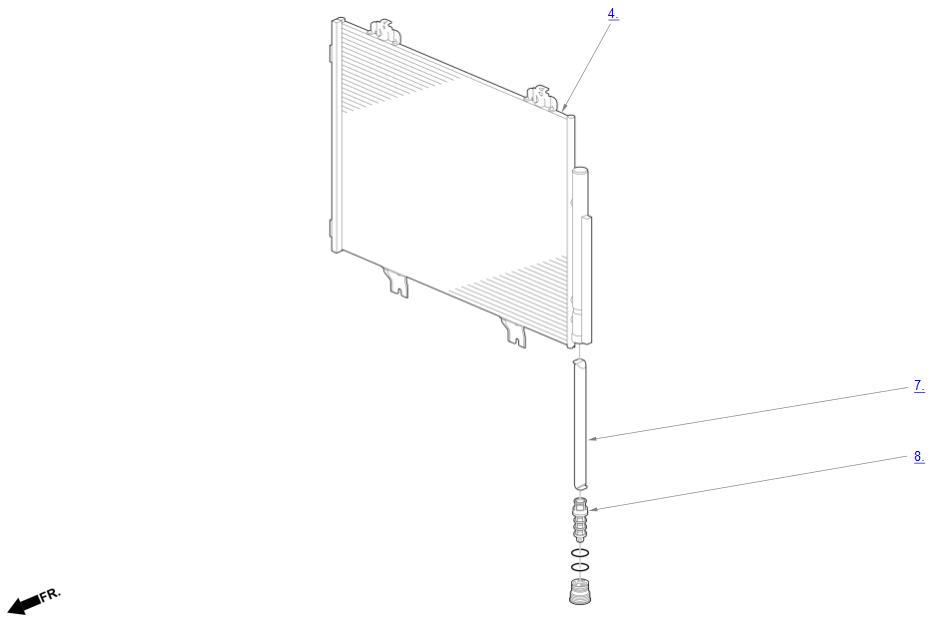

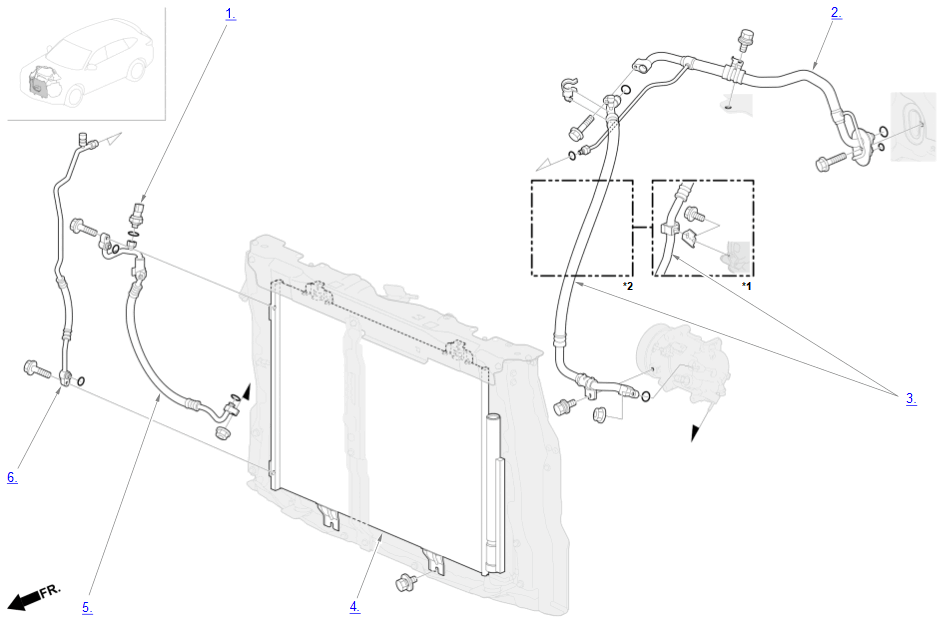

A-C_Condenser_Area Components
| Component Name | Callout |
|---|---|
| A/C Pressure Sensor | 1 |
| A/C Line | 2 |
| Suction Hose | 3 |
| A/C Condenser | 4 |
| Discharge Hose | 5 |
| Receiver Pipe | 6 |
| Desiccant | 7 |
| Filter | 8 |
