Repair Procedure

How to use this Service Information .

NOTICE:

When working with a vehicle equipped with the electronic air suspension, be sure to set it to the leveling off mode to prevent unexpected operation. Refer to the Electronic Air Suspension System Service Precautions - Refer to: Electronic Air Suspension System Connector Fitting Precautions or Electronic Air Suspension System Service Precautions for the procedure.

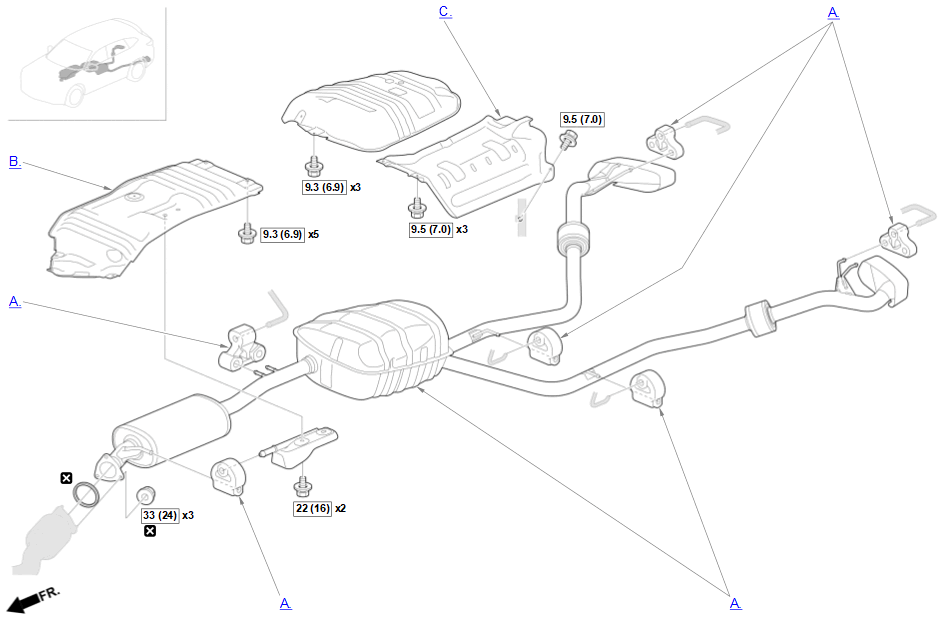

3.5 L Engine

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

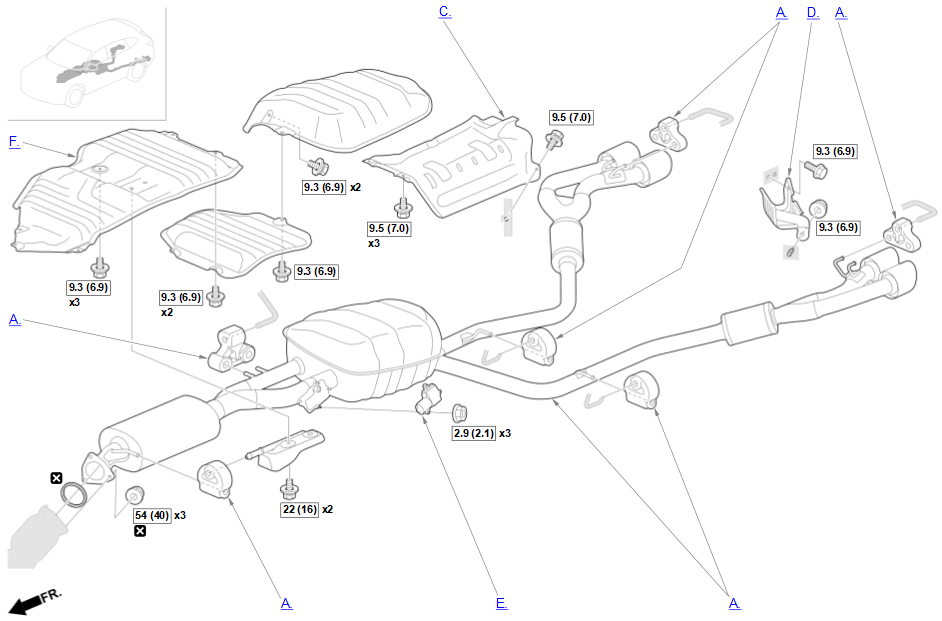

3.0 L Engine

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

1. A.-

   Sub-Procedure

   Installation

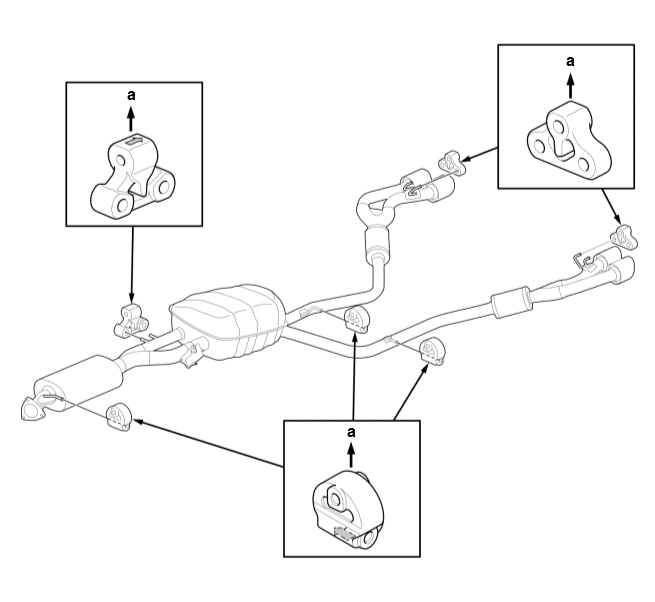

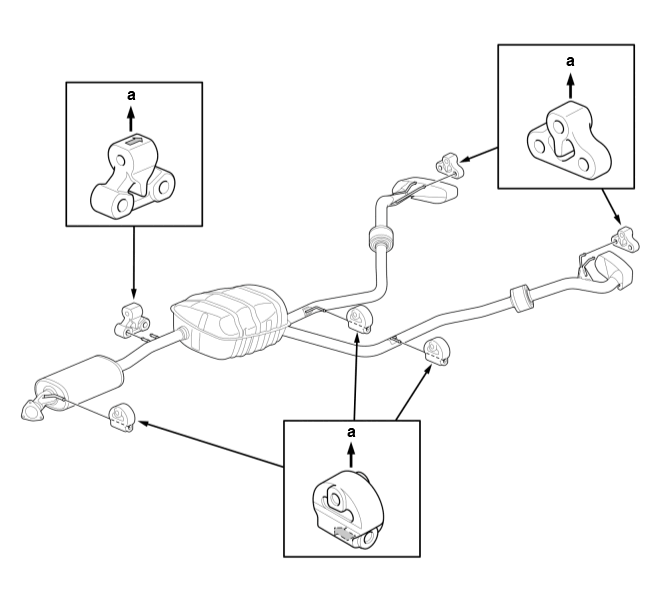

   Installation Directions (Figure 1 and 2)

   Position	Direction
   a	Up

   Figure 1 (3.5 L Engine)

   Courtesy of HONDA, U.S.A., INC.

   Figure 2 (3.0 L Engine)

   Courtesy of HONDA, U.S.A., INC.

2. B.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Rear Engine Undercover
3. C.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Propeller Shaft (With AWD)

   Sub-Procedure

   Installation

   • Installing the fuel tank protector in the following procedure.

   Installation Directions

   Position	Direction
   a	Front

   Tightening Procedure

   Step	Operation	Object	Detail
   1	Temporarily Tighten		-
   2	Tighten	All Bolts	-> -> ->

   Courtesy of HONDA, U.S.A., INC.

4. D.-

   Sub-Procedure

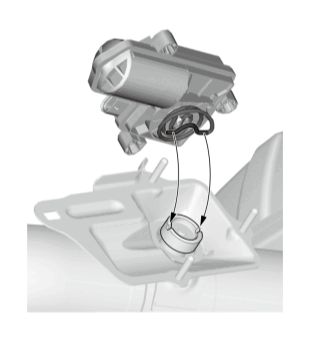

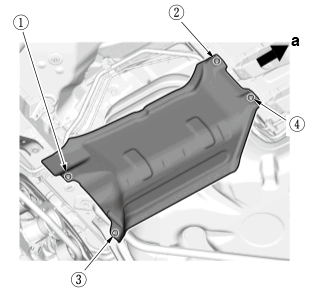

   Courtesy of HONDA, U.S.A., INC.

   Installation

   • Refer to the figure.
5. E.-

   Sub-Procedure

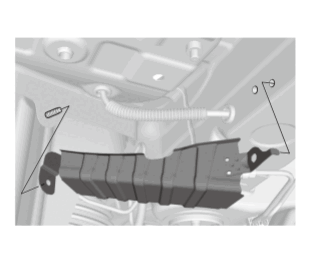

   Courtesy of HONDA, U.S.A., INC.

   Installation

   • Refer to the figure.
6. F.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Rear Engine Undercover
   • Oxygen Sensor Bracket
