Exploded View
WARNING: This page is about a different variant/trim than selected.
For replacement of components listed below, see Repair Procedure
*1: Part(s) are shown for one side only as the procedure is the same for both sides.
*1: Part(s) are shown for one side only as the procedure is the same for both sides.

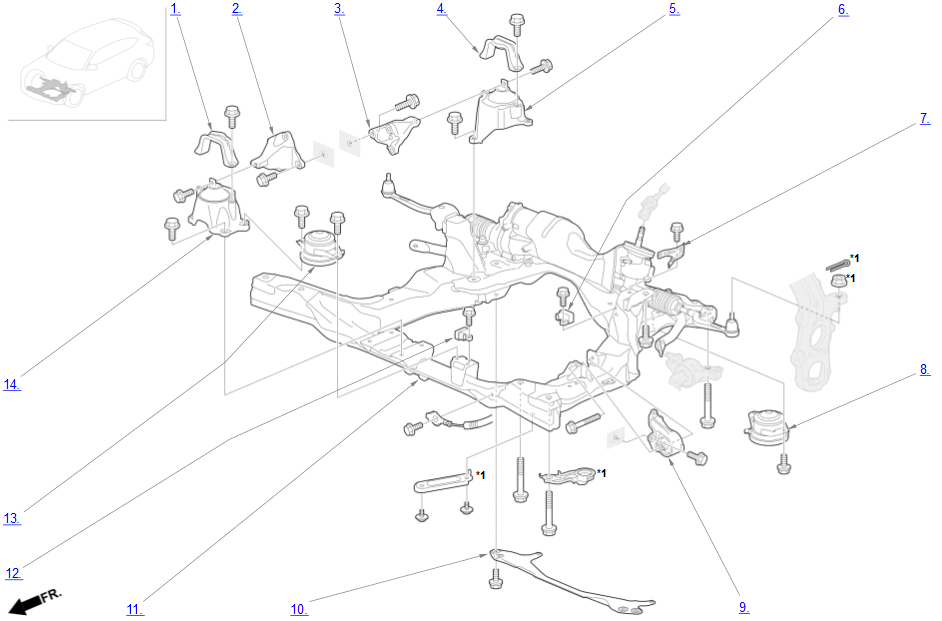

Front_Subframe-Steering_Gearbox_Area(3.0L_Engine) Components
| Component Name | Callout |
|---|---|
| Front Engine Mount Stop | 1 |
| Front Engine Mount Bracket | 2 |
| Rear Engine Mount Bracket | 3 |
| Rear Engine Mount Stop | 4 |
| Rear Engine Mount | 5 |
| Rear Acceleration Sensor (AVC) | 6 |
| EPS Harness Bracket | 7 |
| Rear Active Dynamic Damper | 8 |
| Lower Transmission Mount | 9 |
| Front Subframe Stiffener | 10 |
| Front Subframe/Steering Gearbox Assembly | 11 |
| Front Acceleration Sensor (AVC) | 12 |
| Front Active Dynamic Damper | 13 |
| Front Engine Mount | 14 |

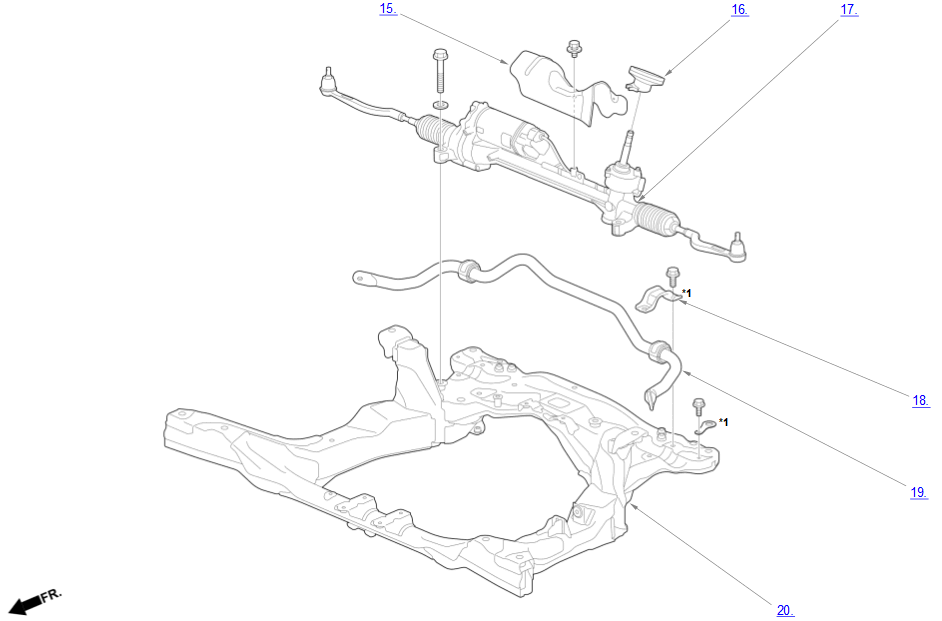

| Steering Gearbox Heat Baffle | 15 |
| Pinion Shaft Grommet | 16 |
| Steering Gearbox | 17 |
| Bushing Holder | 18 |
| Front Stabilizer Bar | 19 |
| Front Subframe | 20 |
