Exploded View
For replacement of components listed below, see Repair Procedure .
| *1: With 17 speakers *2: With 17 speakers/13 speakers *3: Part(s) are shown for one side only as the procedure is the same for both sides. |

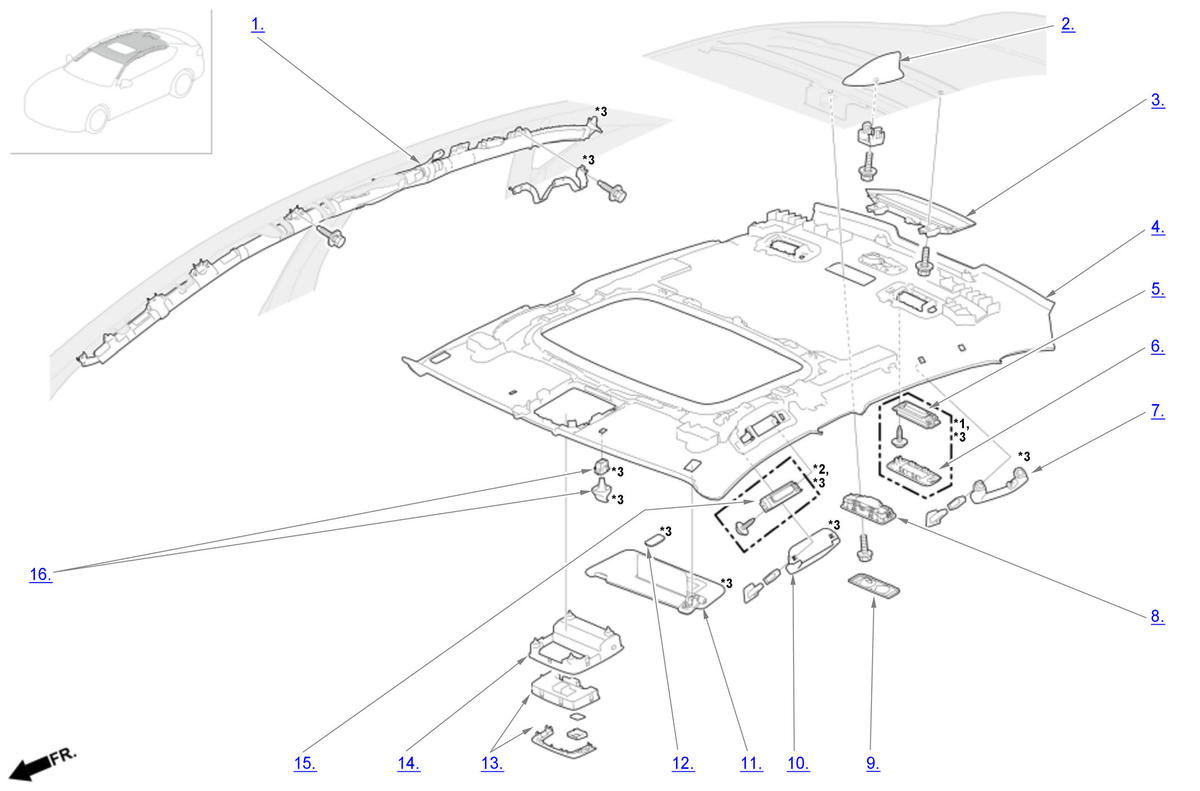

Headliner Area Components
| Component Name | Callout |
|---|---|
| Side Curtain Airbag | 1 |
| Roof Antenna | 2 |
| High Mount Brake Light | 3 |
| Headliner | 4 |
| Rear Roof Speaker | 5 |
| Rear Roof Speaker Cover | 6 |
| Rear Grab Handle | 7 |
| Rear Individual Map Light | 8 |
| Rear Individual Map Light Lens | 9 |
| Front Grab Handle | 10 |
| Sunvisor/Vanity Mirror Light | 11 |
| Vanity Mirror Light Lens | 12 |
| Front Individual Map Light/Roof Module | 13 |
| Roof Console | 14 |
| Front Roof Speaker | 15 |
| Sunvisor Holder | 16 |

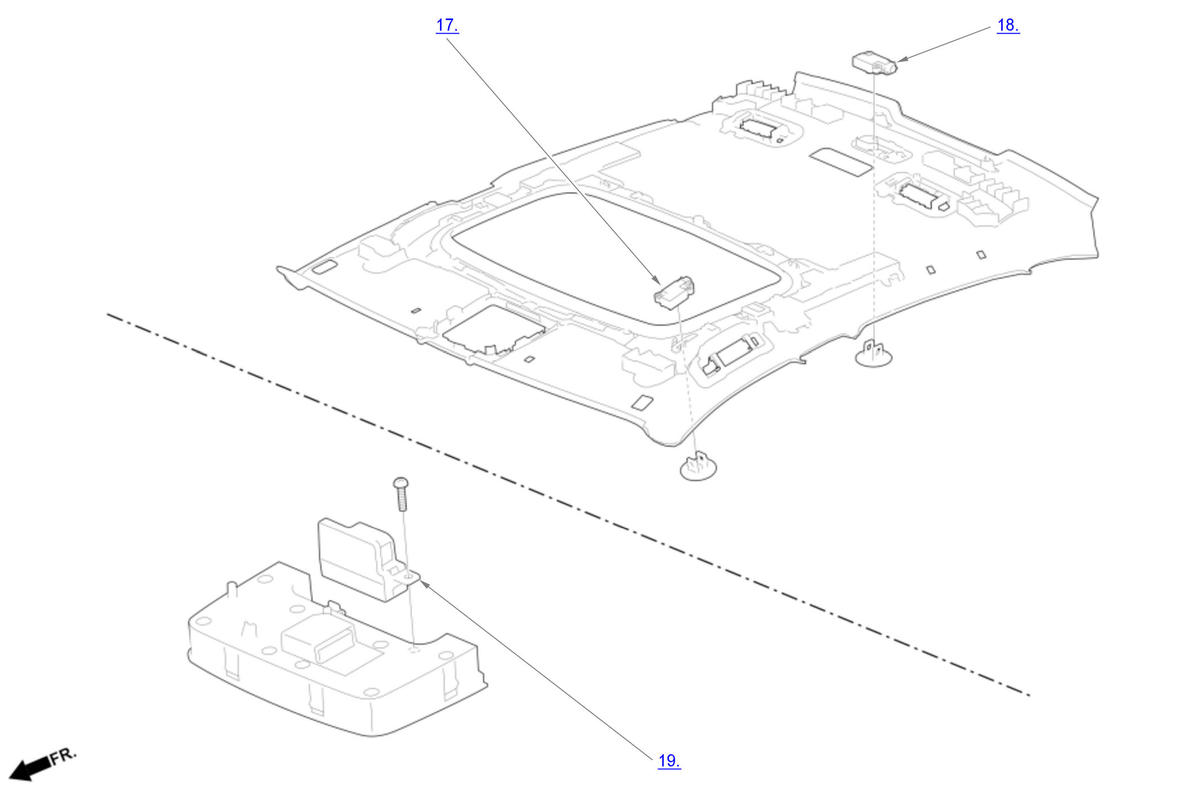

| Middle ANC/Active Sound Control Microphone | 17 |
| Rear ANC/Active Sound Control Microphone | 18 |
| Front HFT-ANC/Active Sound Control Microphone | 19 |
