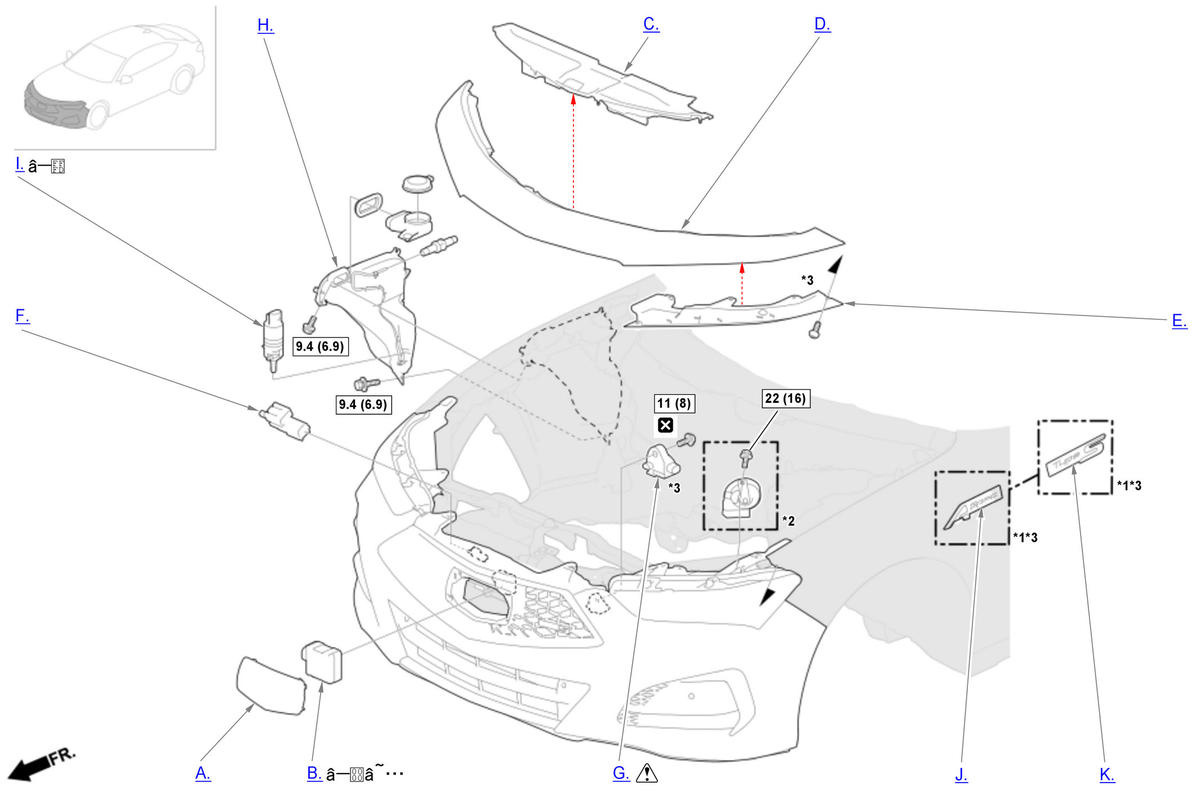

Repair Procedure

How to use this manual .

NOTE:

SRS components are located in this area. Before doing repairs or service:
1. -
  Review the SRS component locations .
2. -
  Review the precautions and procedures .

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

*1: For some models

*2: 2.0 L Engine

*3: Part(s) are shown for one side only as the procedure is the same for both sides.

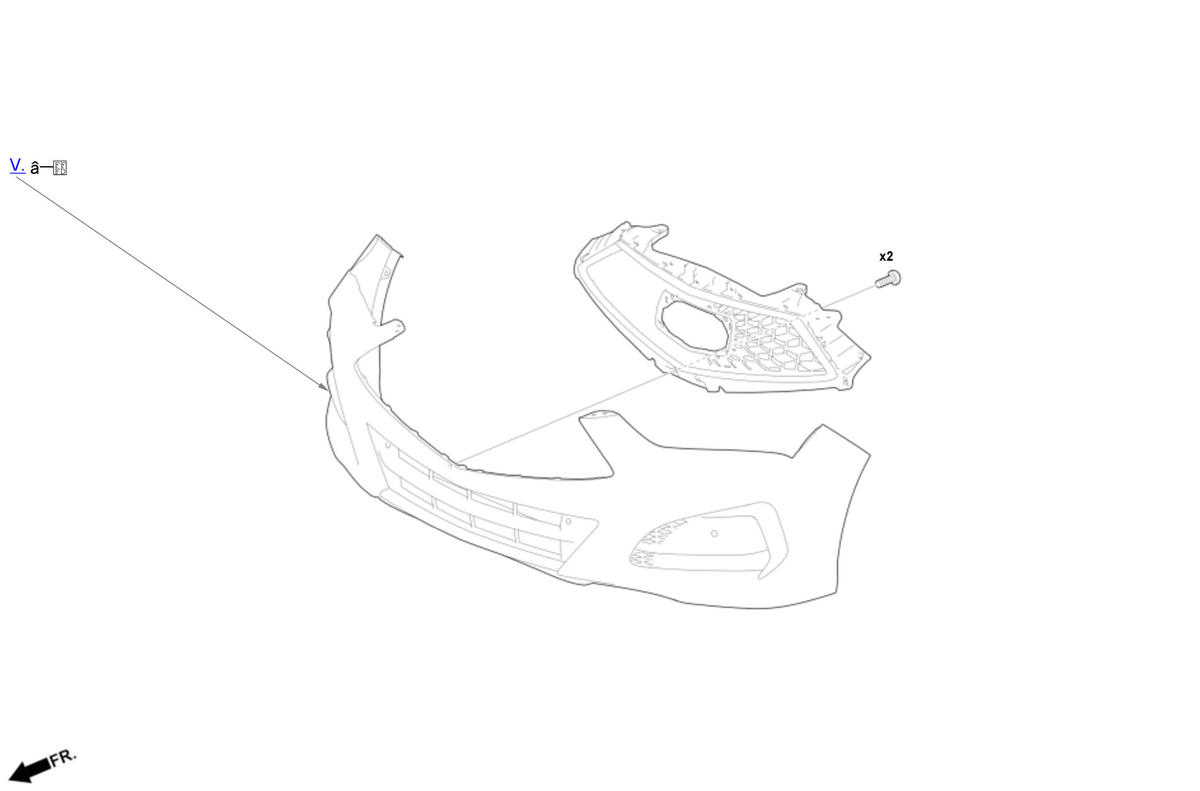

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

*1: 2.0 L Engine

*2: 3.0 L Engine

*3: Part(s) are shown for one side only as the procedure is the same for both sides.

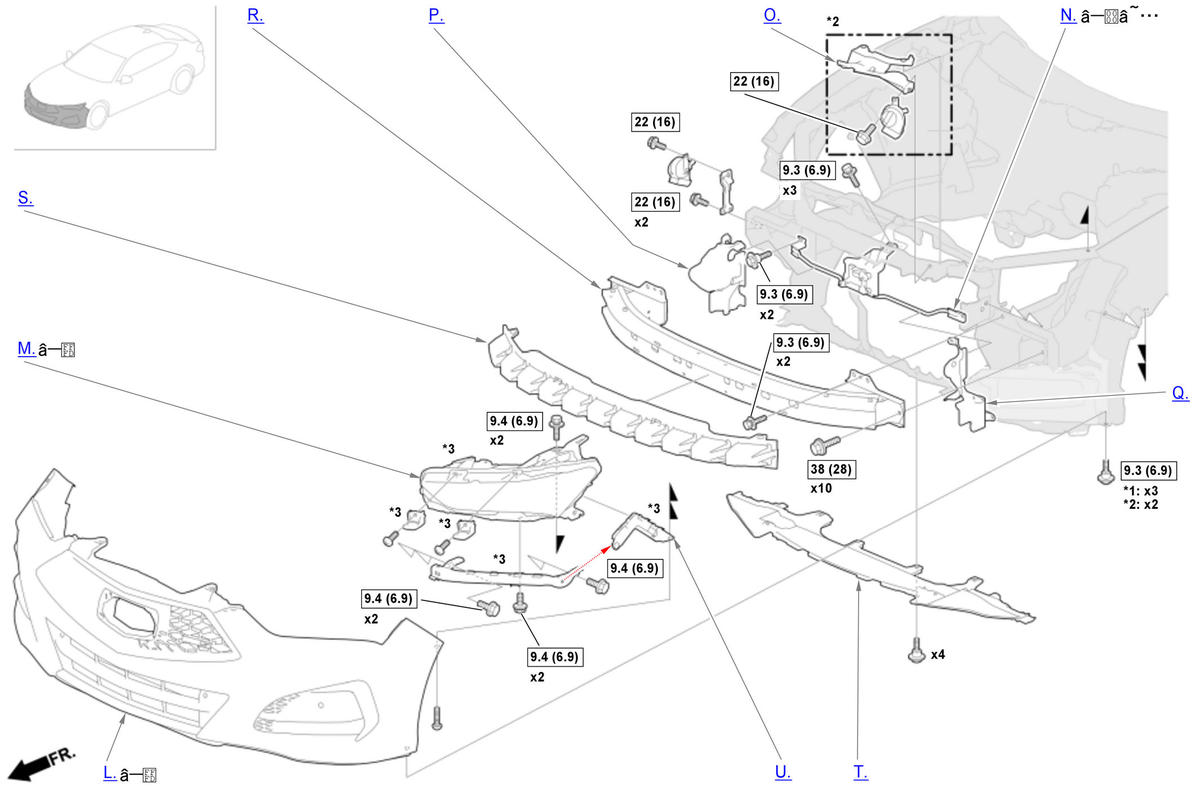

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

*1: Part(s) are shown for one side only as the procedure is the same for both sides.

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

*1: Canada and Mexico Models

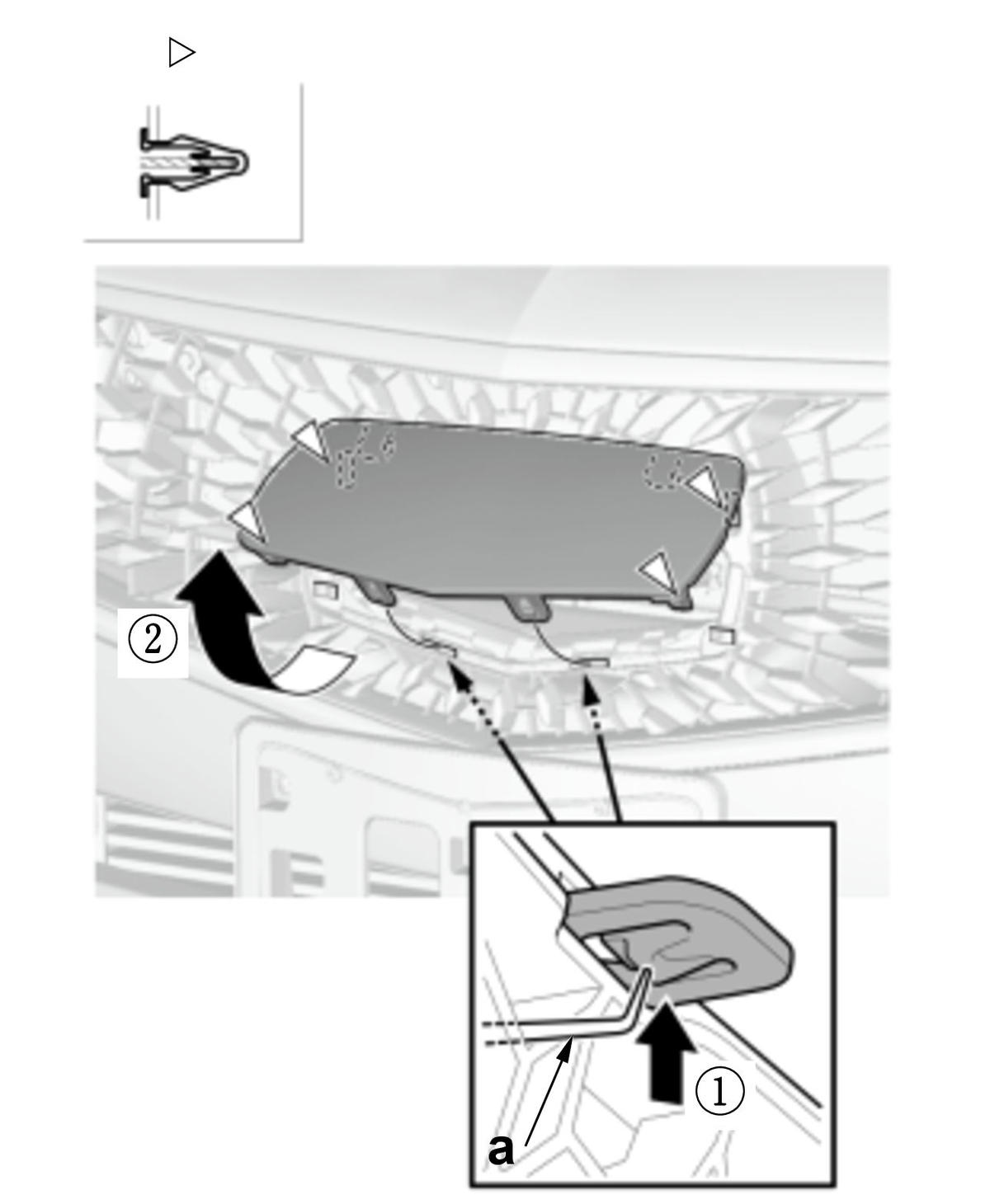

A.-

Sub-Procedure

Courtesy of HONDA, U.S.A., INC.

Removal

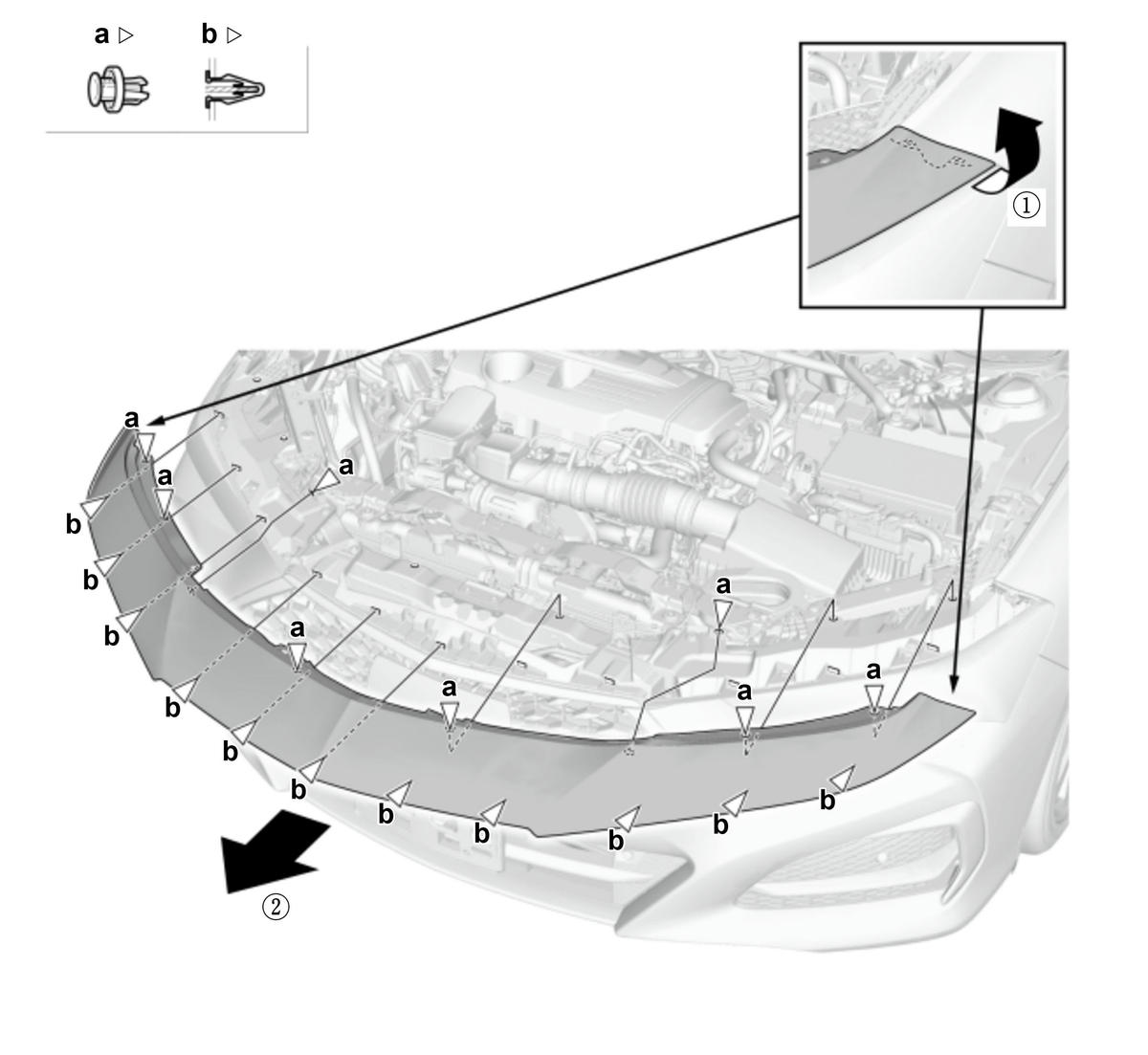

Refer to the figure.

Tool Details

Name
a	90 degree pick (Commercially available tool)

B.-

Sub-Procedure

Removal

Refer to the figure.

Tool Details

Name
a	Flat-tip screwdriver (Commercially available tool)

Courtesy of HONDA, U.S.A., INC.

After Installation

Millimeter Wave Radar Update - Refer to: Millimeter Wave Radar Update
Millimeter Wave Radar Aiming - Refer to: Millimeter Wave Radar Aiming

C.-
Sub-Procedure

Removal

1. Refer to the figure 1.

Figure 1

Courtesy of HONDA, U.S.A., INC.

2. Refer to the figure 2.

Figure 2

Courtesy of HONDA, U.S.A., INC.

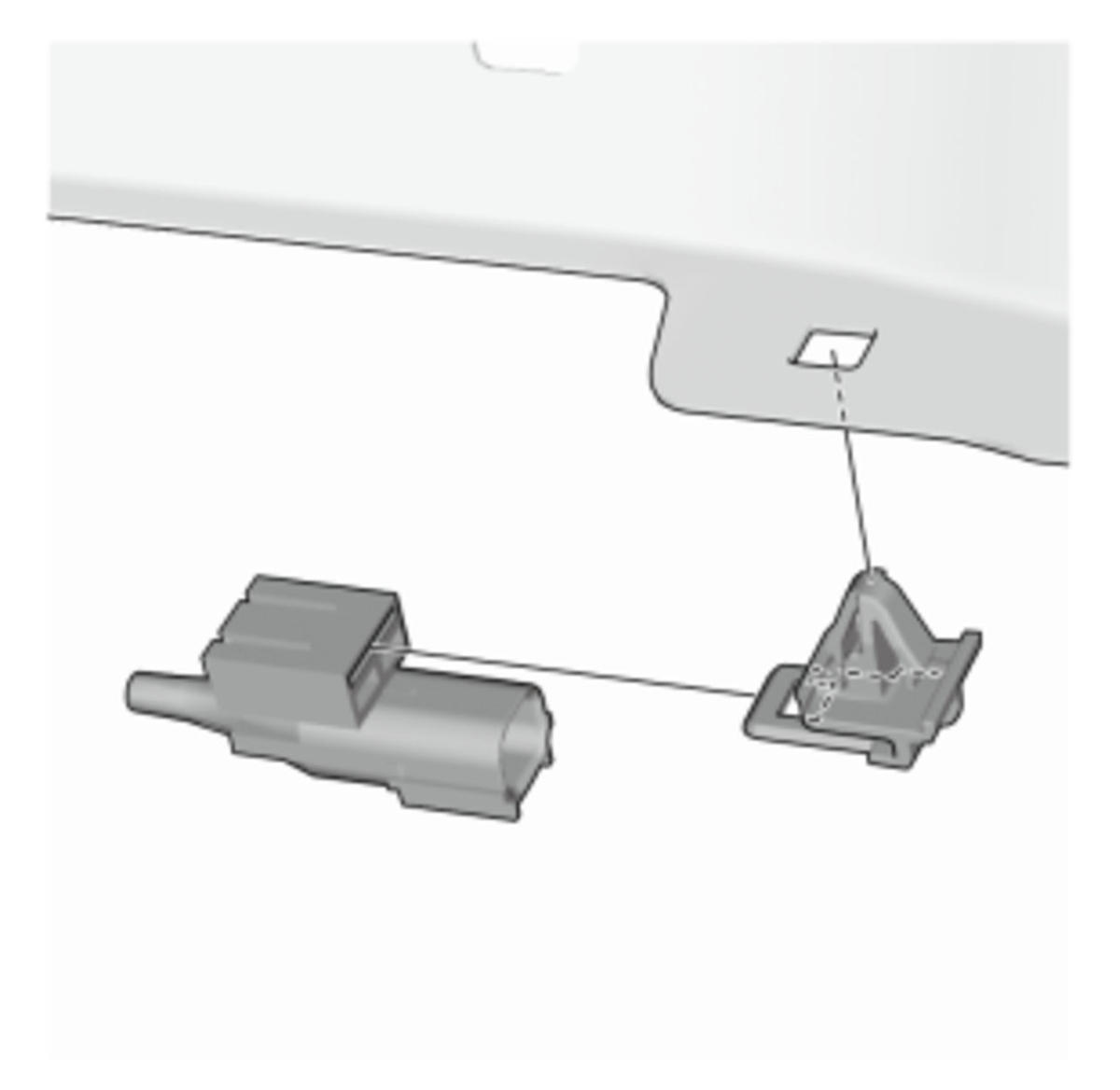

D.-
Sub-Procedure

Removal

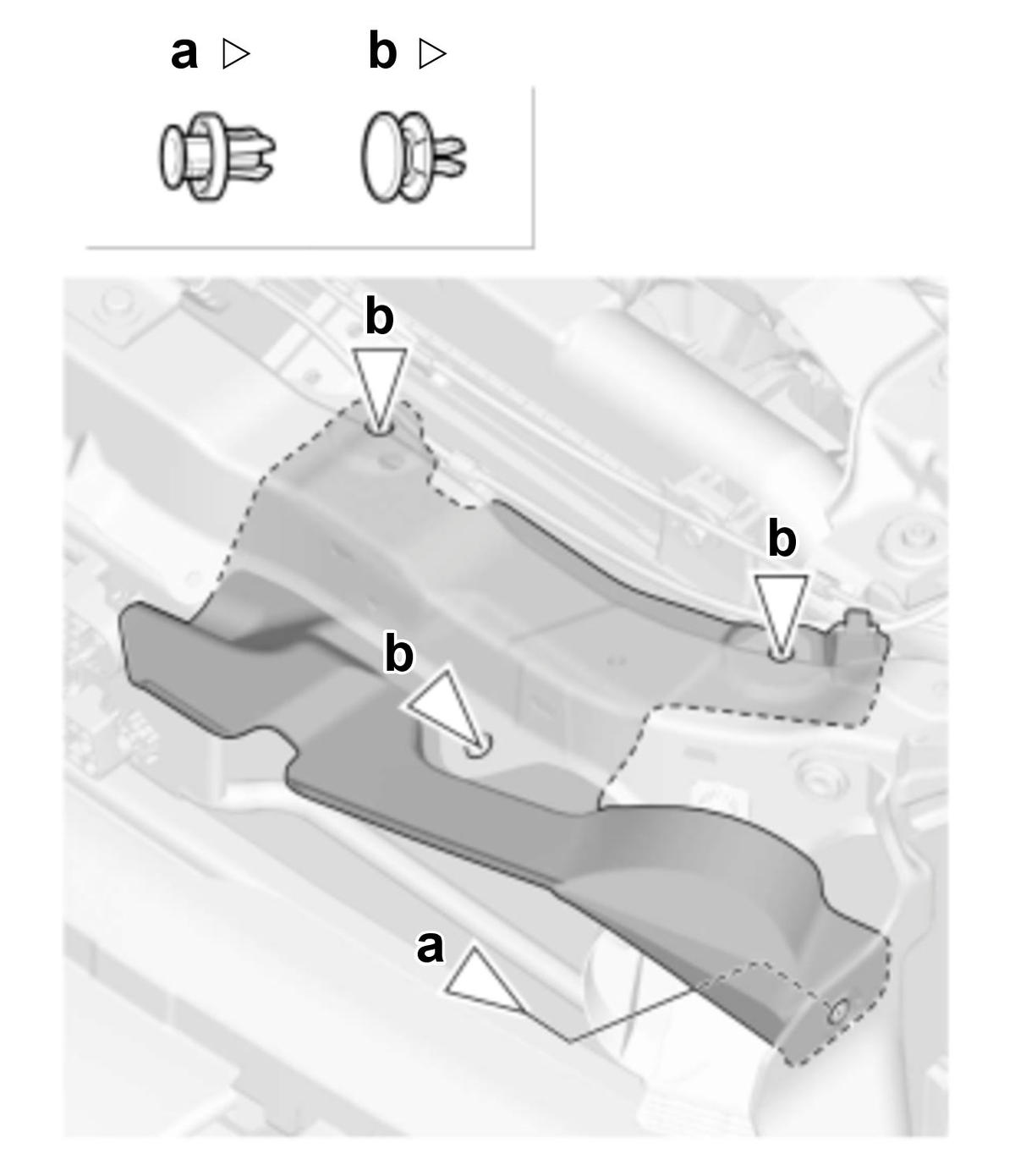

- Refer to the figure.
Courtesy of HONDA, U.S.A., INC.
E.-
Sub-Procedure

Removal

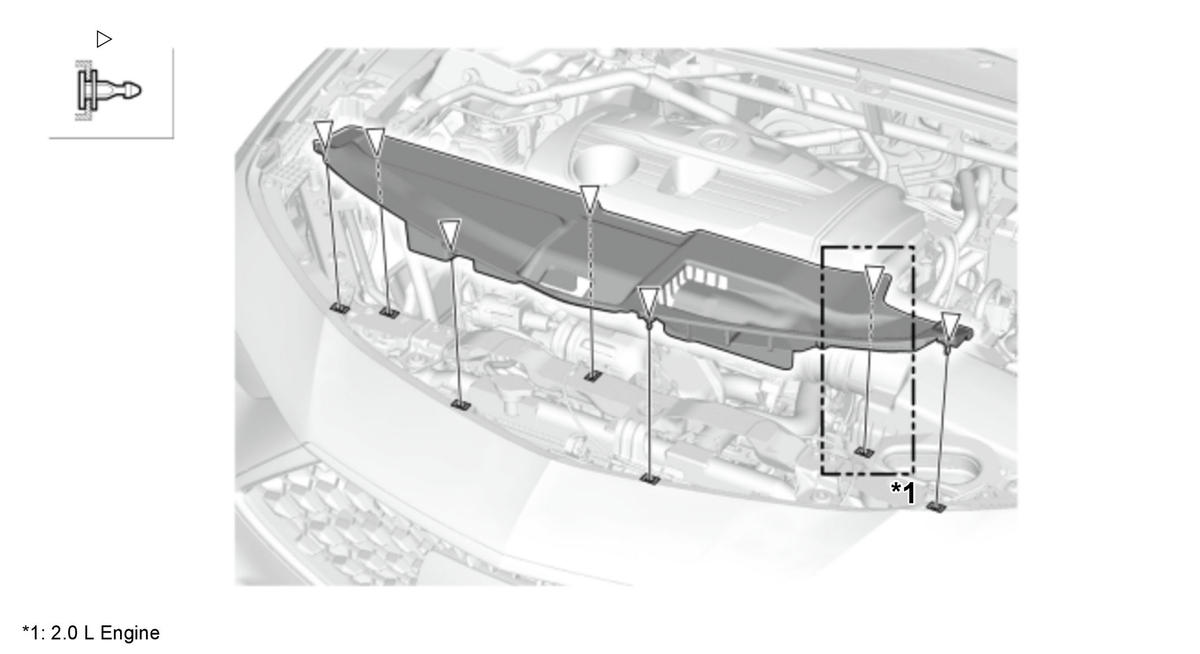

- Refer to the figure.
Courtesy of HONDA, U.S.A., INC.

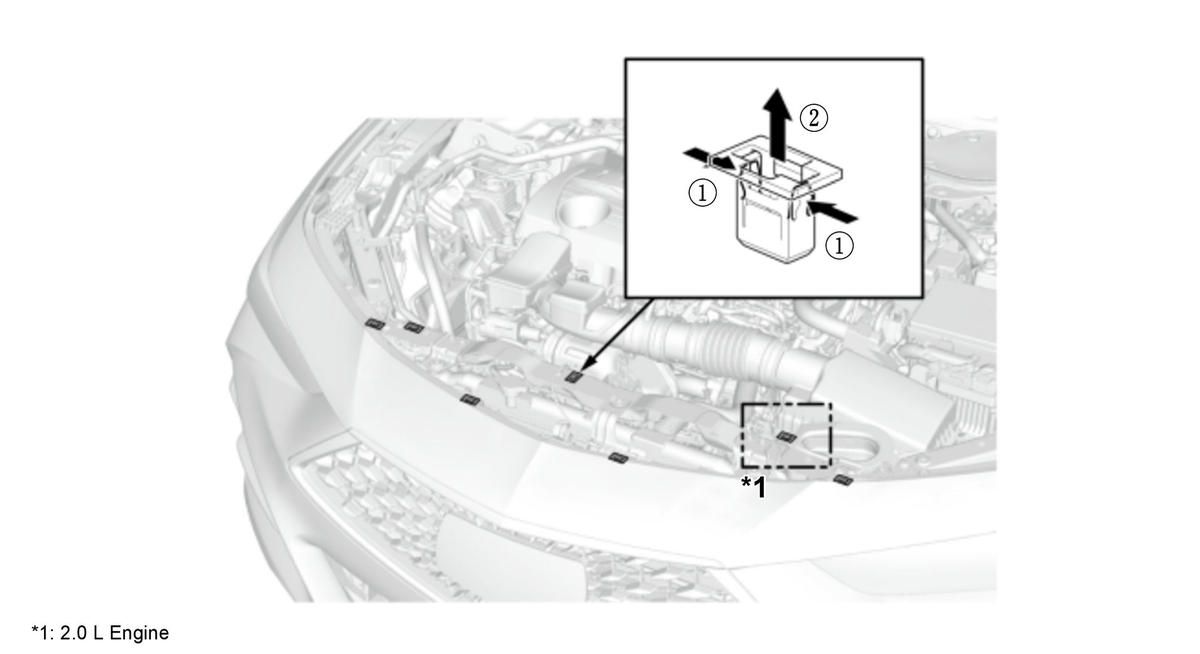

F.-
Key Information

Do the following before starting your work.

Remove:
- Front Grille Cover
- Front Bumper Upper Trim
Sub-Procedure

Courtesy of HONDA, U.S.A., INC.

Removal

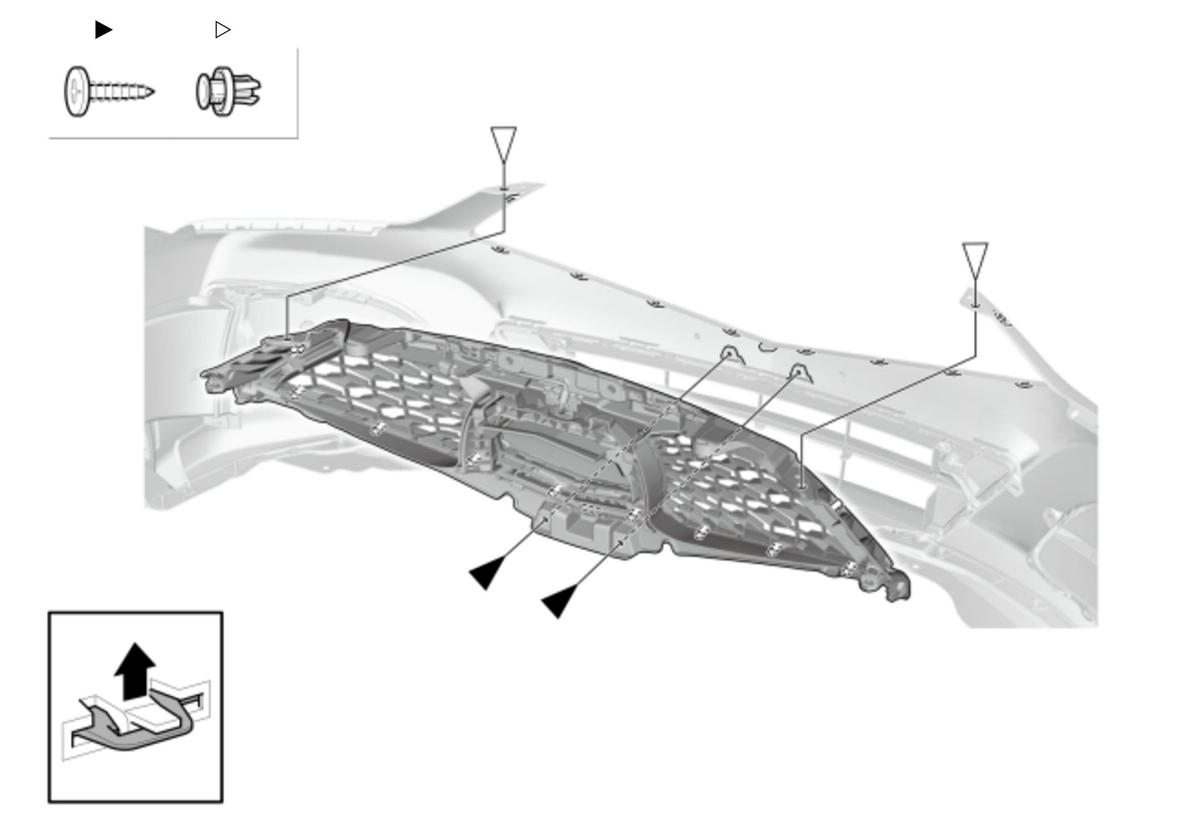

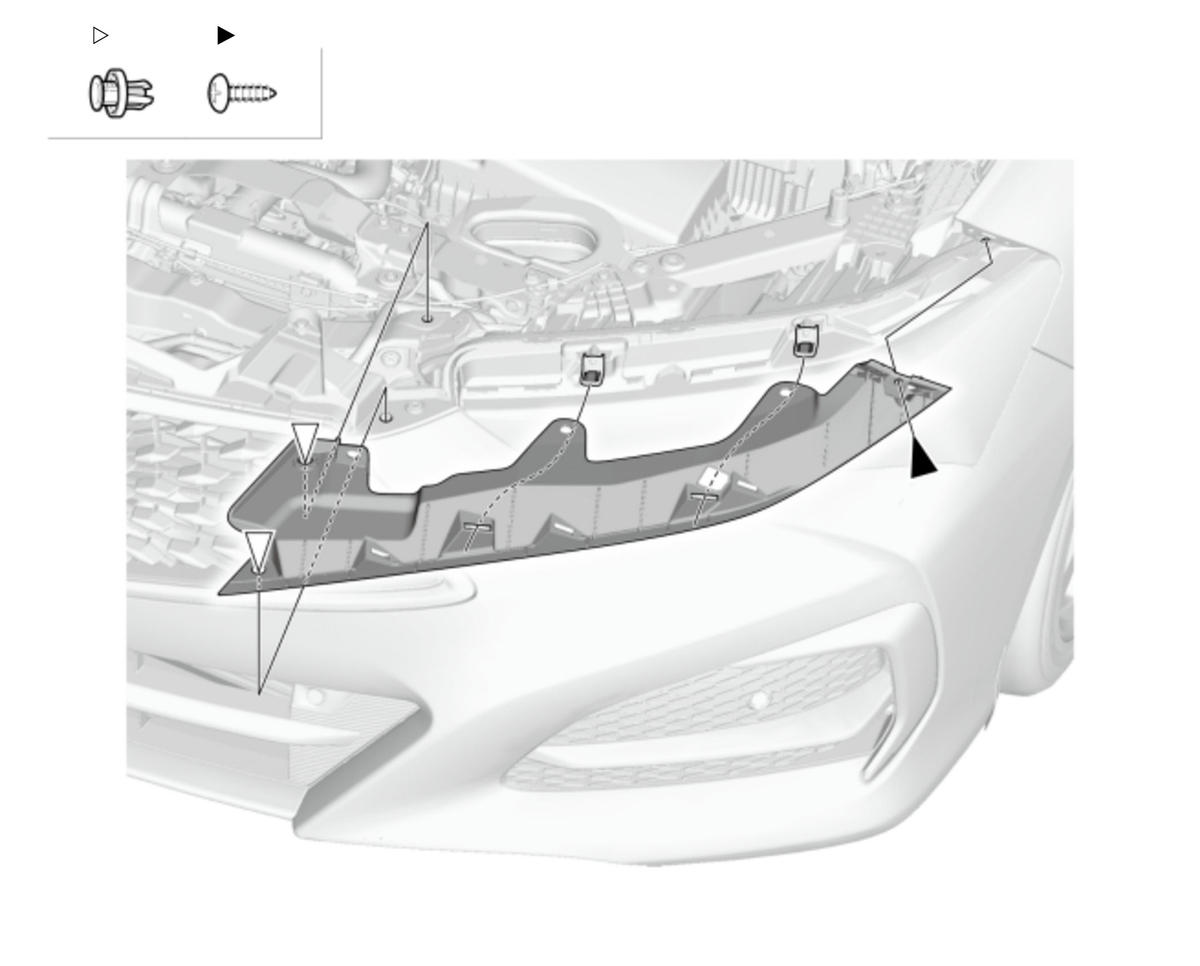

Refer to the figure.
G.-
NOTE:
- Review the precautions and procedures before doing repairs or service .
- Wait at least 3 minutes, after disconnecting the 12 volt battery terminal.
NOTE:
If you are replacing the front impact sensor after a deployment, refer to Component Replacement/Inspection After Deployment - Refer to: SRS Component Replacement/Inspection After Deployment for a complete list of other parts that must also be replaced.

Preconditions
- 12 Volt Battery Negative Terminal Disconnected
Key Information

Do the following before starting your work.

2.0 L Engine

Remove:
- Front Grille Cover
- Air Intake Tube B - Refer to: Air Cleaner Area(2.0L Engine)
3.0 L Engine

Remove:
- Front Grille Cover
- Air Intake Duct - Refer to: Air Cleaner Area(3.0L Engine)
Sub-Procedure

Installation

NOTE:
Be careful not to bump (by impact wrench, hammer, etc.) the area around the front impact sensor.
NOTE:
- Before installing the front bumper, make sure the SRS indicator works normally.
After Installation
- 12 Volt Battery Negative Terminal Reconnect
- Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.

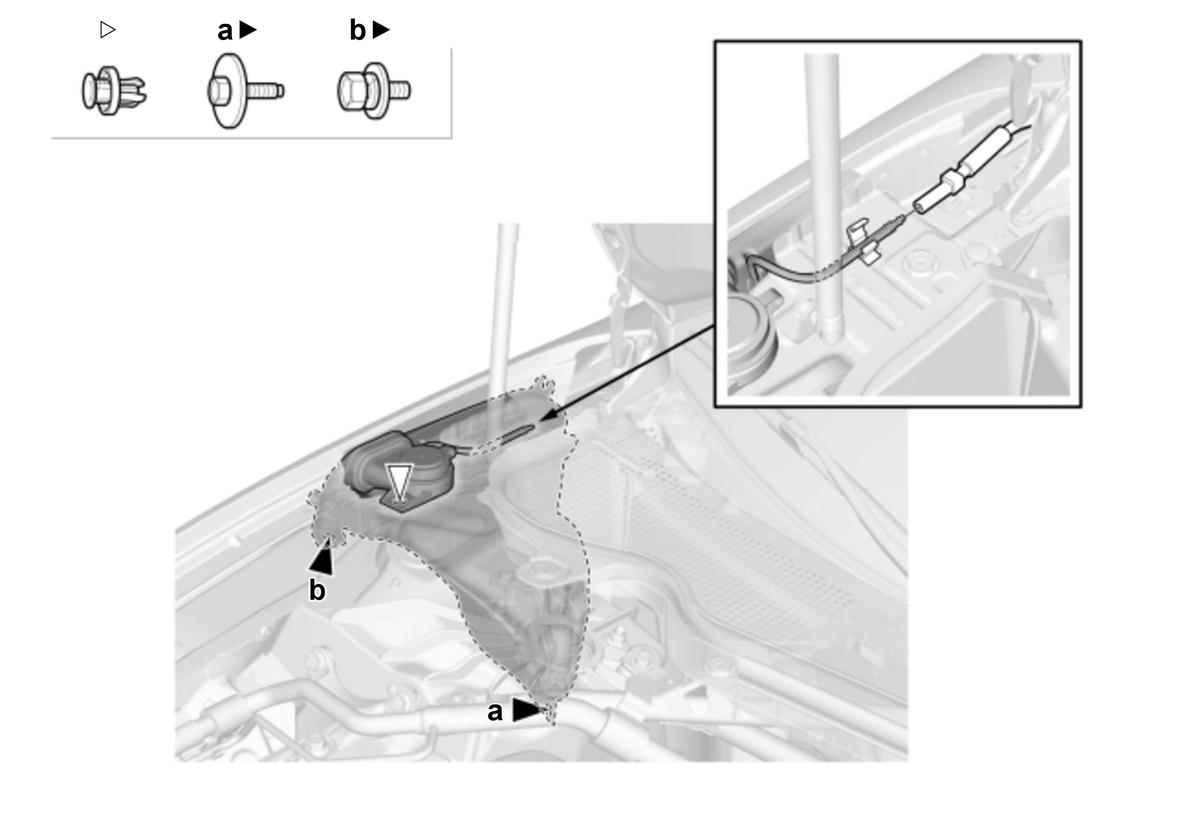

H.-

Key Information

Do the following before starting your work.

Remove:

Right Front Inner Fender (as needed)

Sub-Procedure

Removal

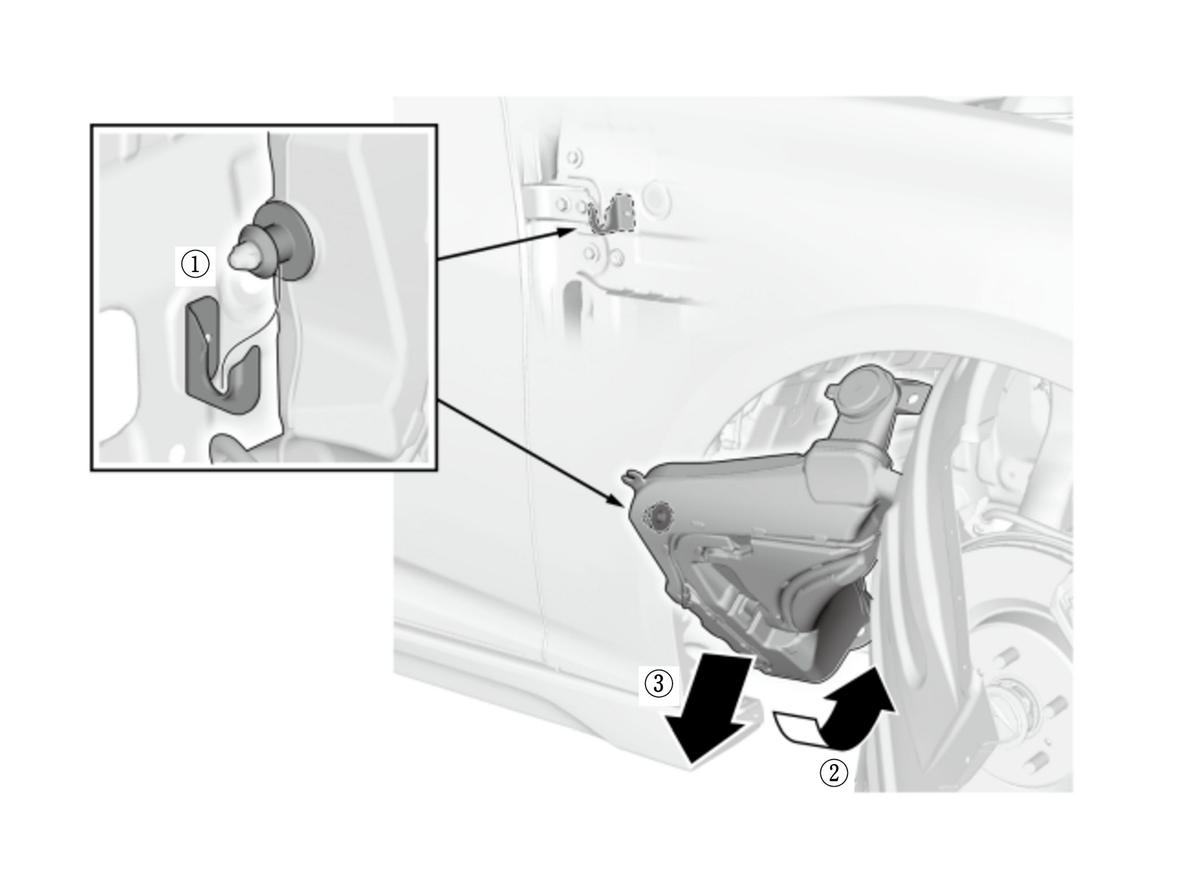

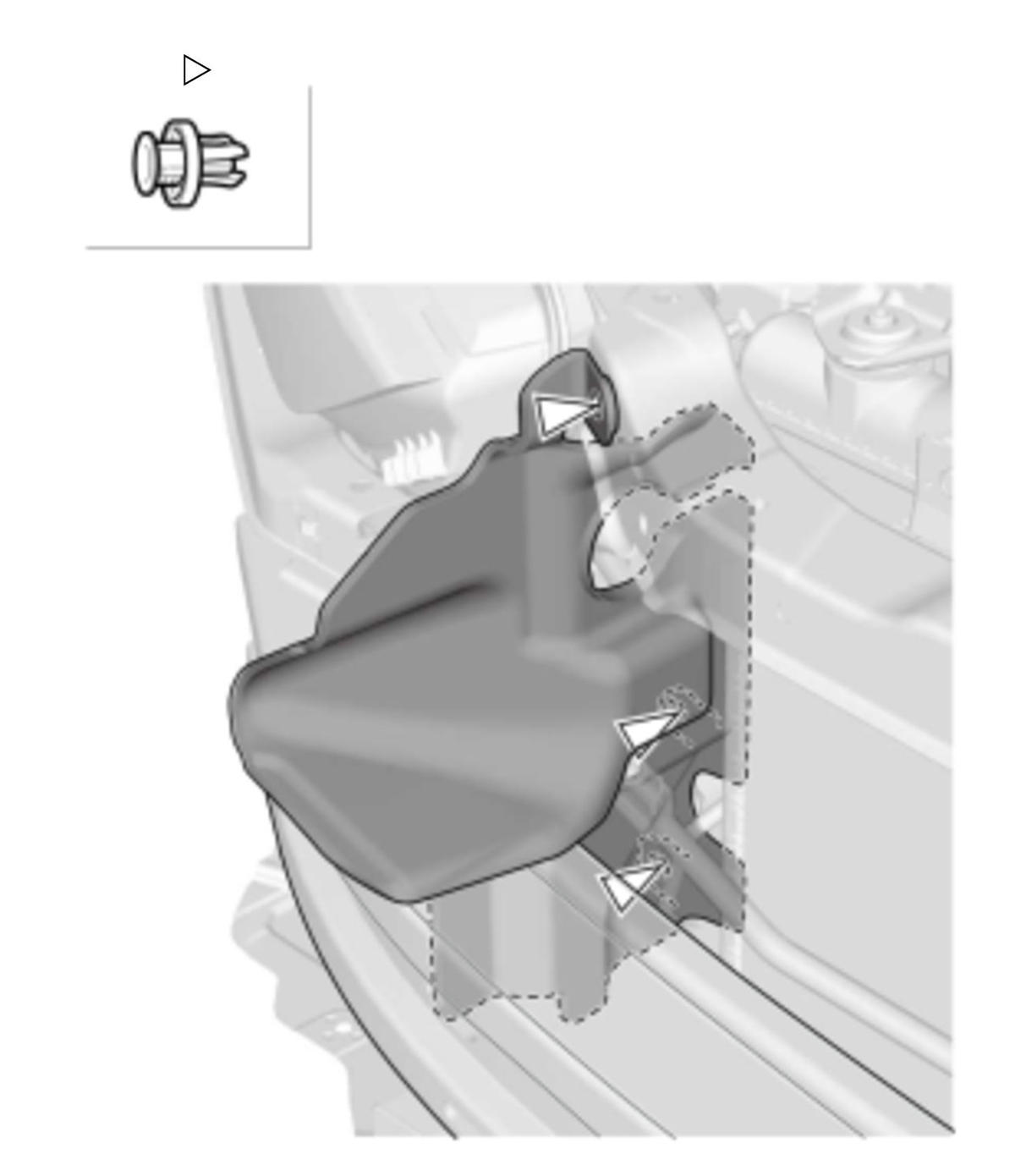

1. Refer to the figure 1.

Figure 1

Courtesy of HONDA, U.S.A., INC.

2. Refer to the figure 2.

Figure 2

Courtesy of HONDA, U.S.A., INC.

Installation

Washer Reservoir Specifications

Applicable Area	Capacity
USA models	2.5 L (2.6 Us qt)
Canada and Mexico models	5.5 L (5.8 Us qt)

I.-

Key Information

Do the following before starting your work.

Remove:

Right Front Inner Fender (as needed)

Sub-Procedure

Courtesy of HONDA, U.S.A., INC.

Removal

1. Refer to the figure.

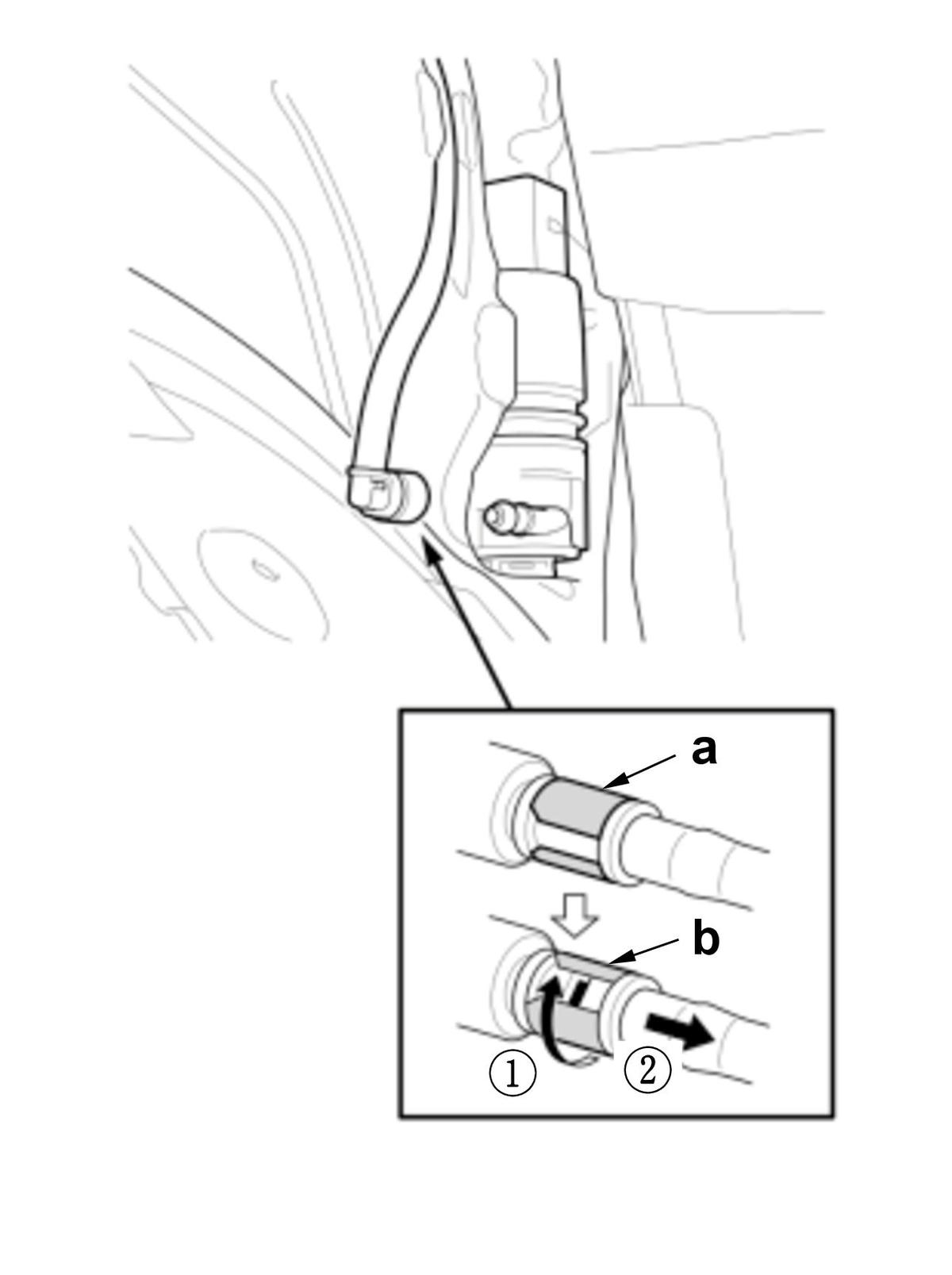

Tube Joint Details

Position	Condition
a	Lock

Position	Condition
b	Unlock

J.-

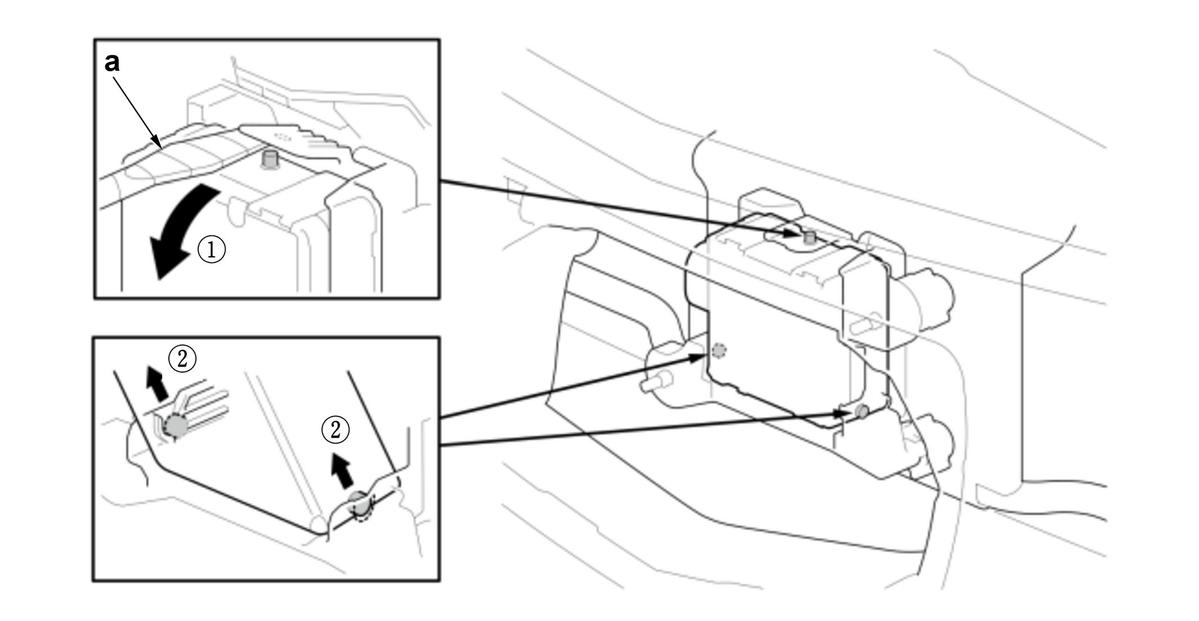

Sub-Procedure

Installation

Refer to the figure.
NOTE:
After cleaning, keep oil, grease, and water from getting on the surface.

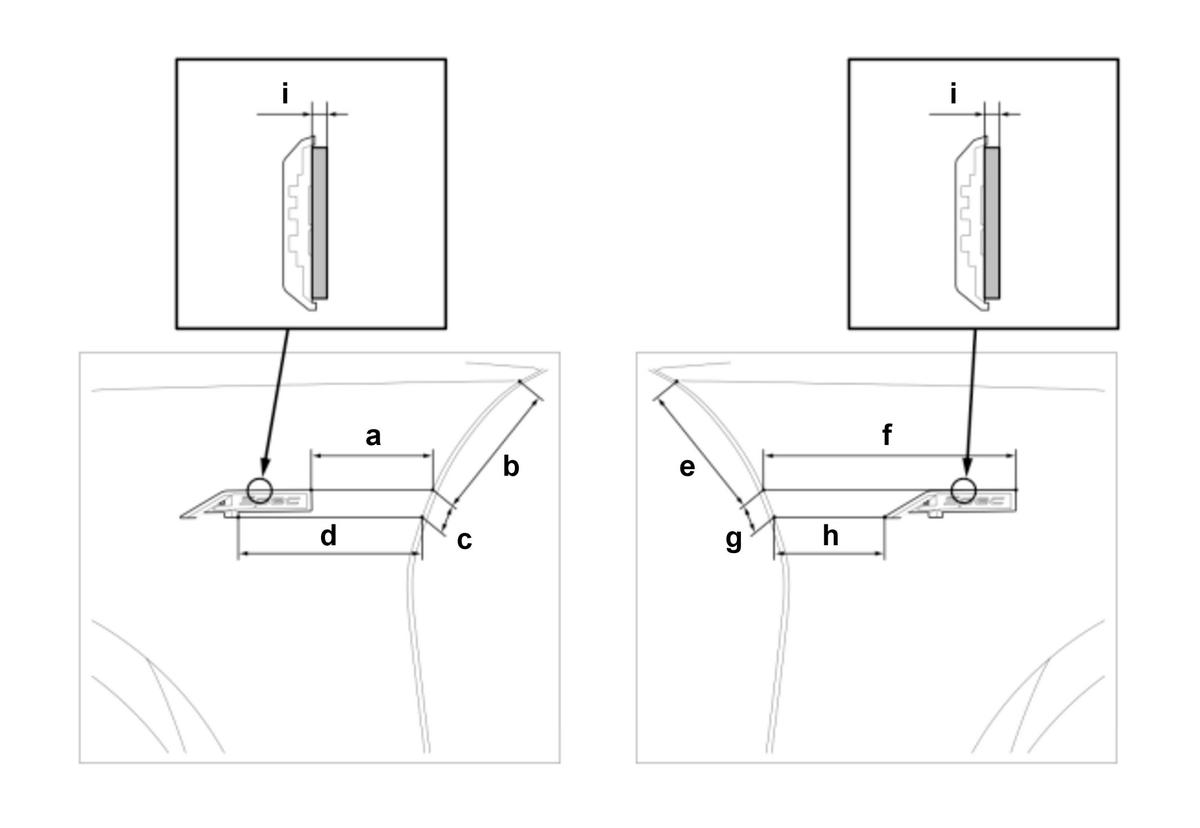

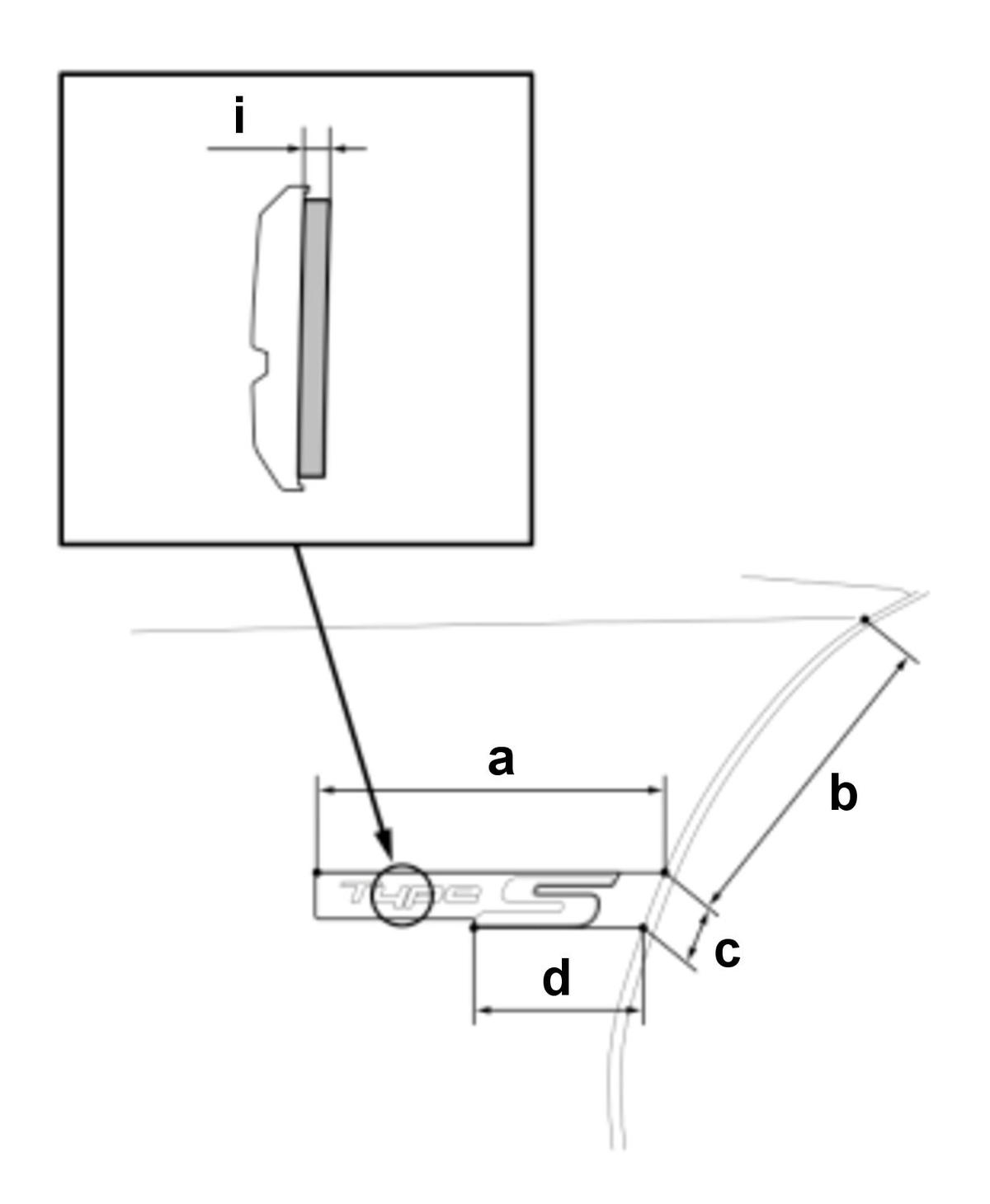

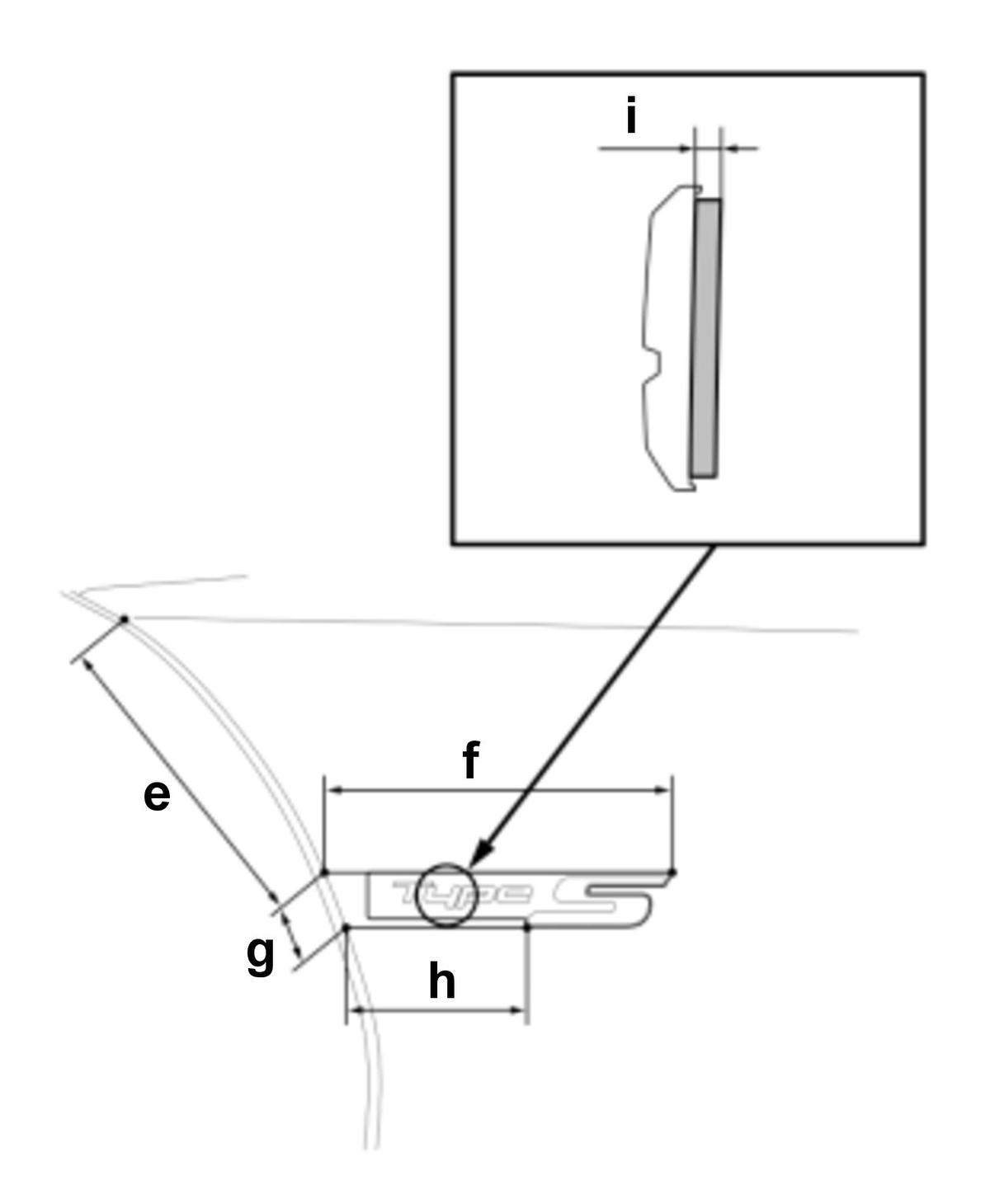

Specifications

Standard Value
a	141.4 mm (5.570 in)
b	196.2 mm (7.724 in)
c	28.7 mm (1.130 in)
d	209.8 mm (8.260 in)
e	196.2 mm (7.724 in)
f	274.1 mm (10.791 in)
g	28.7 mm (1.130 in)
h	141.4 mm (5.570 in)
i	0.8 mm (0.031 in)

Courtesy of HONDA, U.S.A., INC.

K.-

Sub-Procedure

Installation

Refer to the figure. (Figure 1 and 2)
NOTE:
After cleaning, keep oil, grease, and water from getting on the surface.

Specifications (Figure 1 and 2)

Standard Value
a	161.5 mm (6.358 in)
b	145 mm (5.71 in)
c	29 mm (1.14 in)
d	73 mm (2.87 in)
e	145 mm (5.71 in)
f	169 mm (6.65 in)
g	29 mm (1.14 in)
h	88 mm (3.46 in)
i	0.8 mm (0.031 in)

Figure 1

Courtesy of HONDA, U.S.A., INC.

Figure 2

Courtesy of HONDA, U.S.A., INC.

L.-
NOTE: The front bumper can be removed without removing the front "A" emblem/radar cover.

Sub-Procedure

Removal

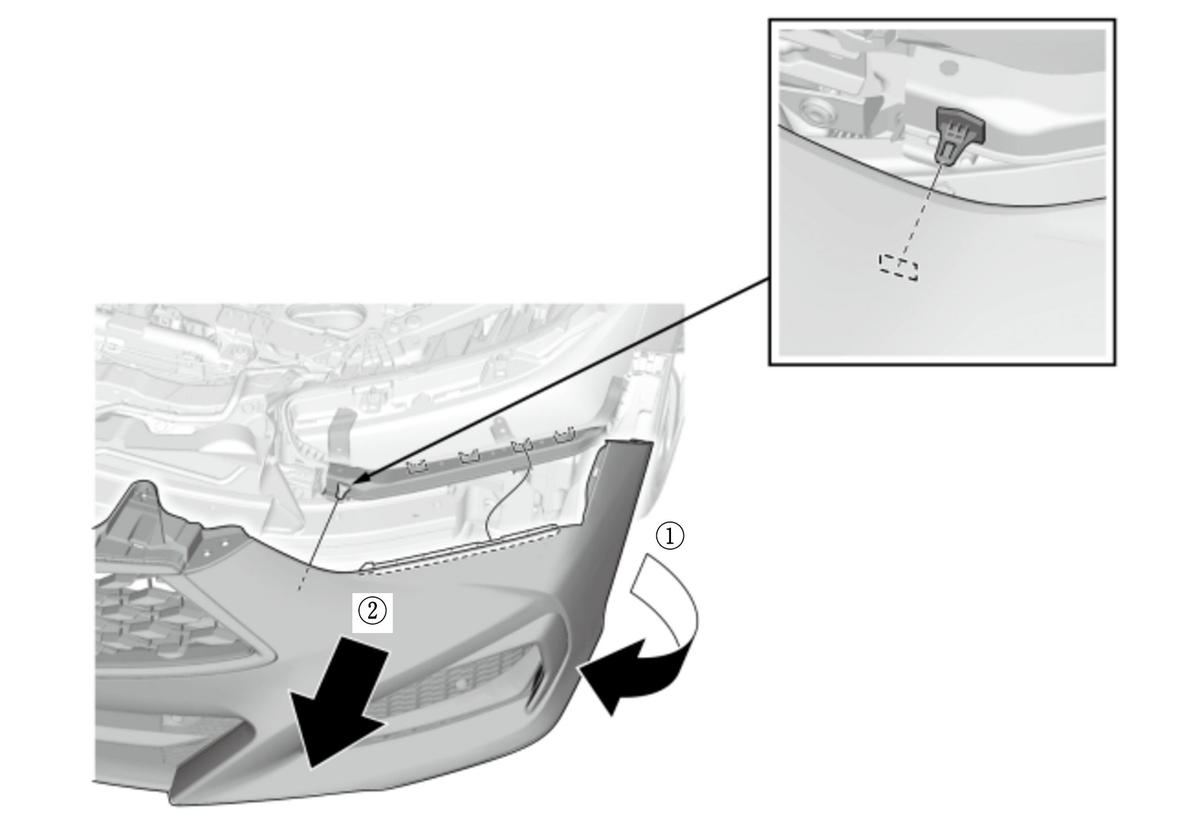

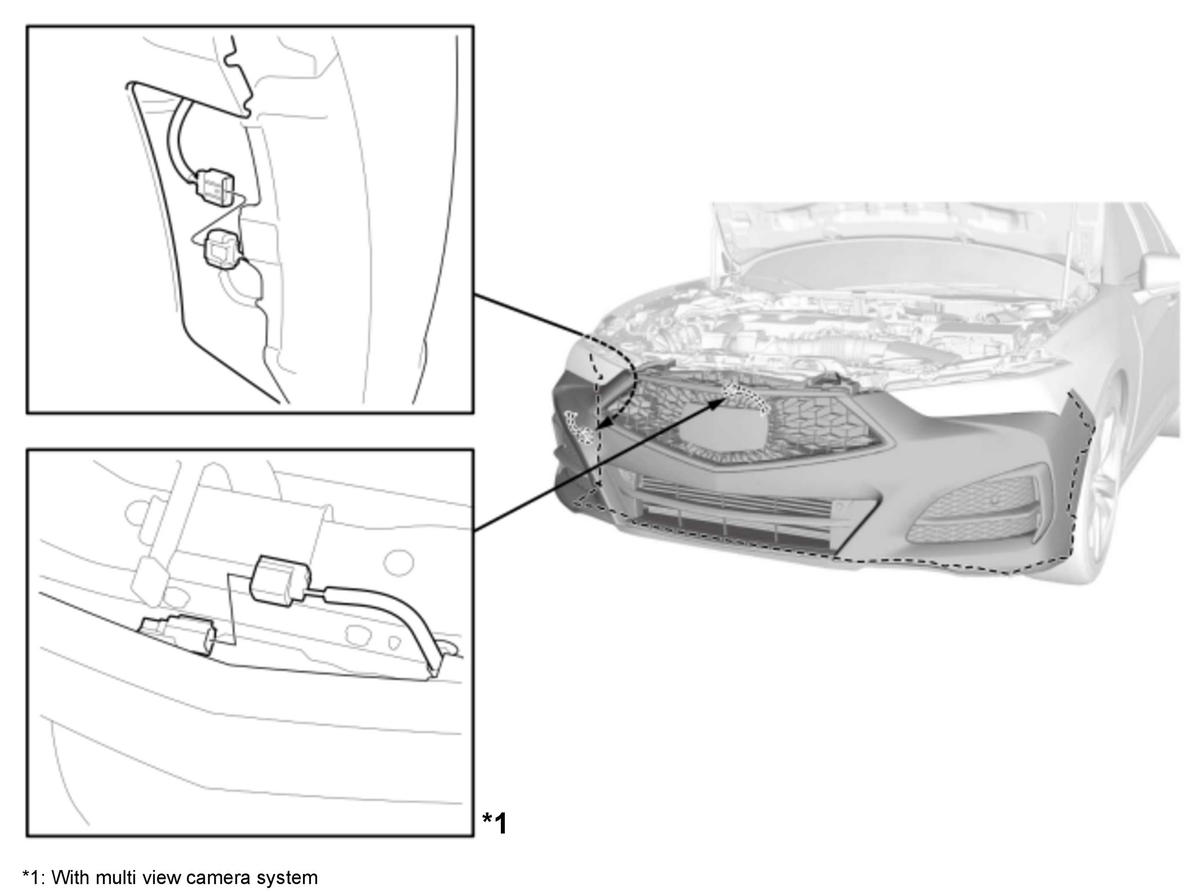

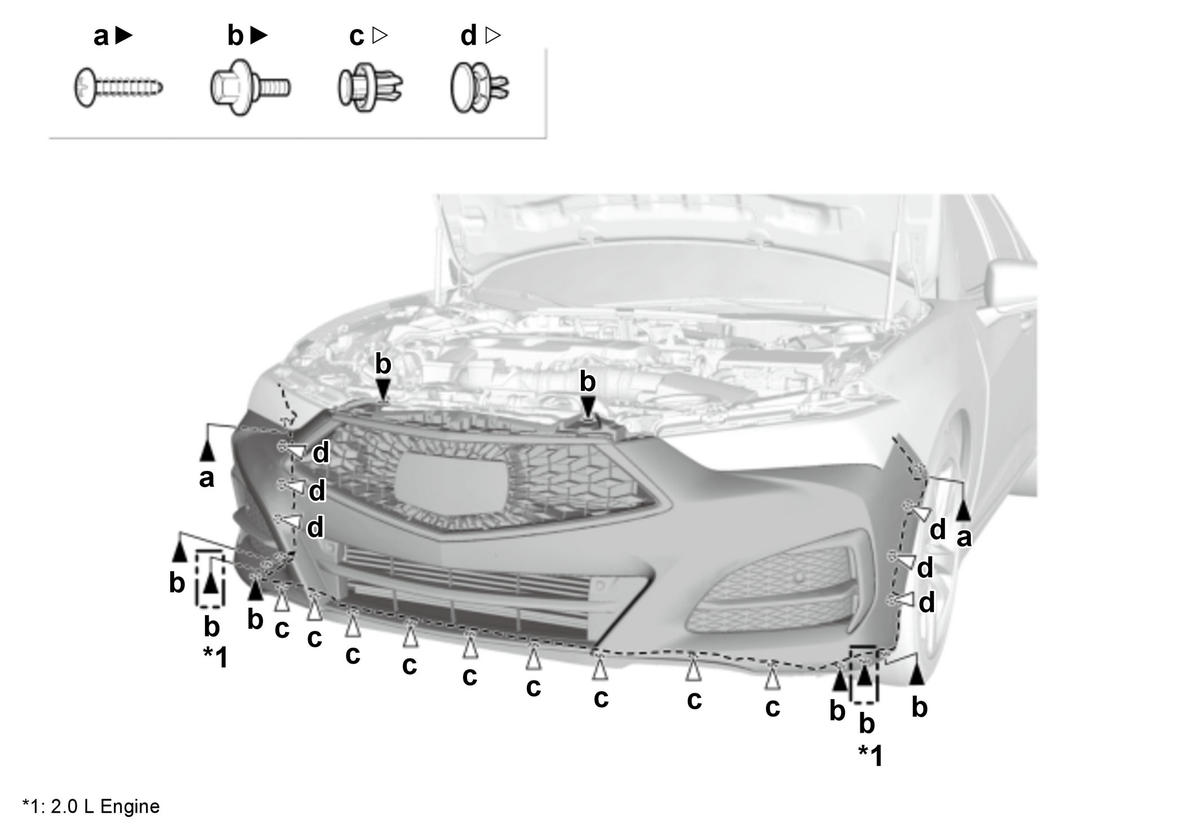

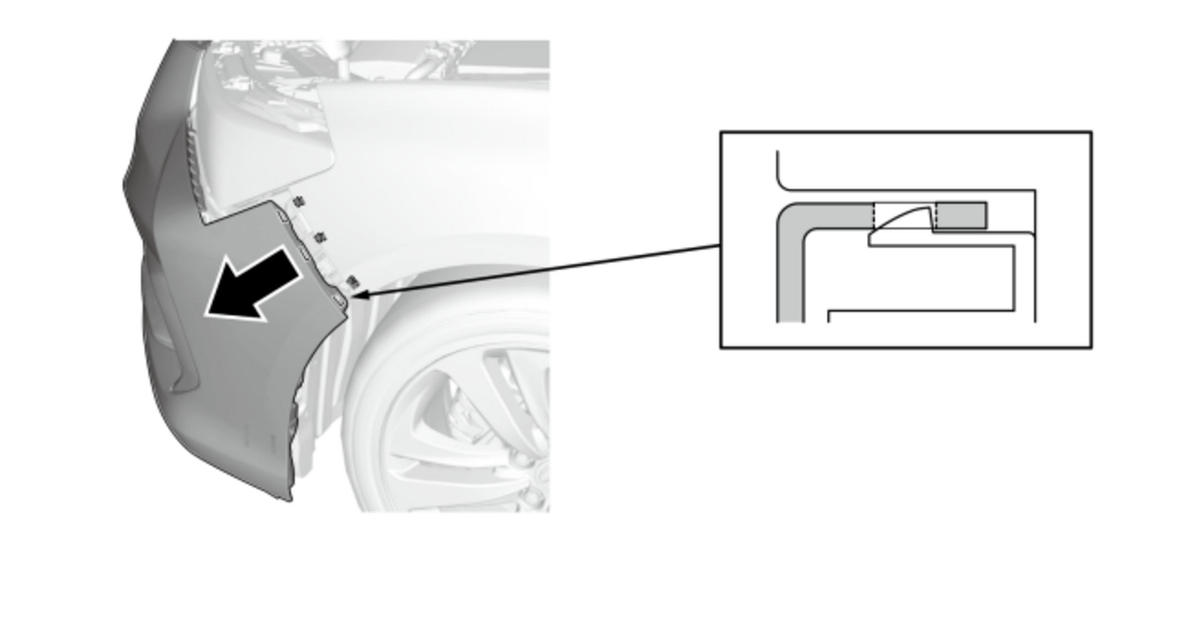

1. Refer to the figure. (Figure 1, 2, 3, and 4)

Figure 1

Courtesy of HONDA, U.S.A., INC.

Figure 2

Courtesy of HONDA, U.S.A., INC.

Figure 3

Courtesy of HONDA, U.S.A., INC.

Figure 4

Courtesy of HONDA, U.S.A., INC.

After Installation
- With Multi View Camera System: Multi View Front Camera Aiming - Refer to: Multi View Camera Aiming
M.-
After Installation
- Headlight Adjustment
N.-
After Installation
- Millimeter Wave Radar Update - Refer to: Millimeter Wave Radar Update
- Millimeter Wave Radar Aiming - Refer to: Millimeter Wave Radar Aiming
O.-

Courtesy of HONDA, U.S.A., INC.
P.-

Courtesy of HONDA, U.S.A., INC.

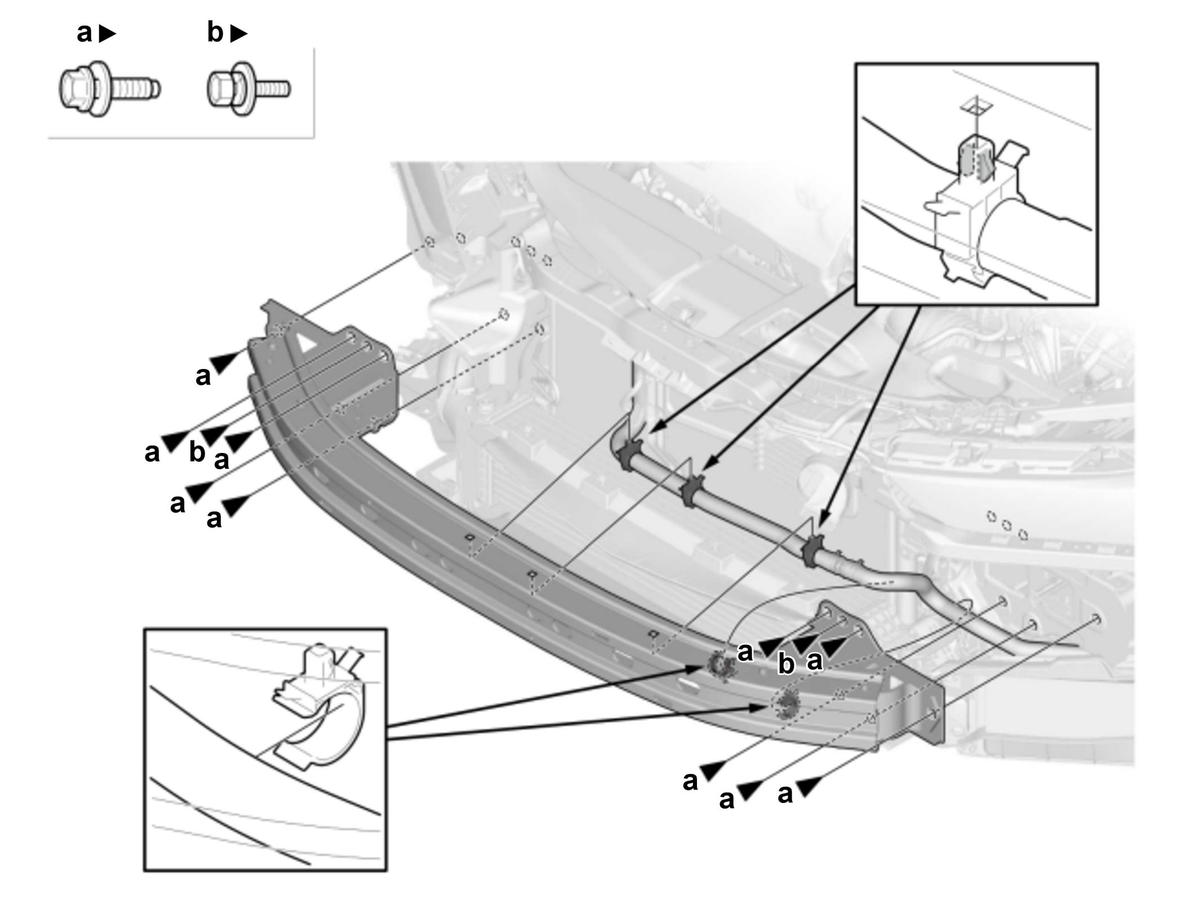

Q.-
Key Information

Do the following before starting your work.

Remove:
- Front Bumper Beam (3.0 L engine)
Sub-Procedure

Figure 1 (2.0 L Engine)

Courtesy of HONDA, U.S.A., INC.

Figure 2 (3.0 L Engine)

Courtesy of HONDA, U.S.A., INC.

Removal
- Refer to the figure 1 and 2.

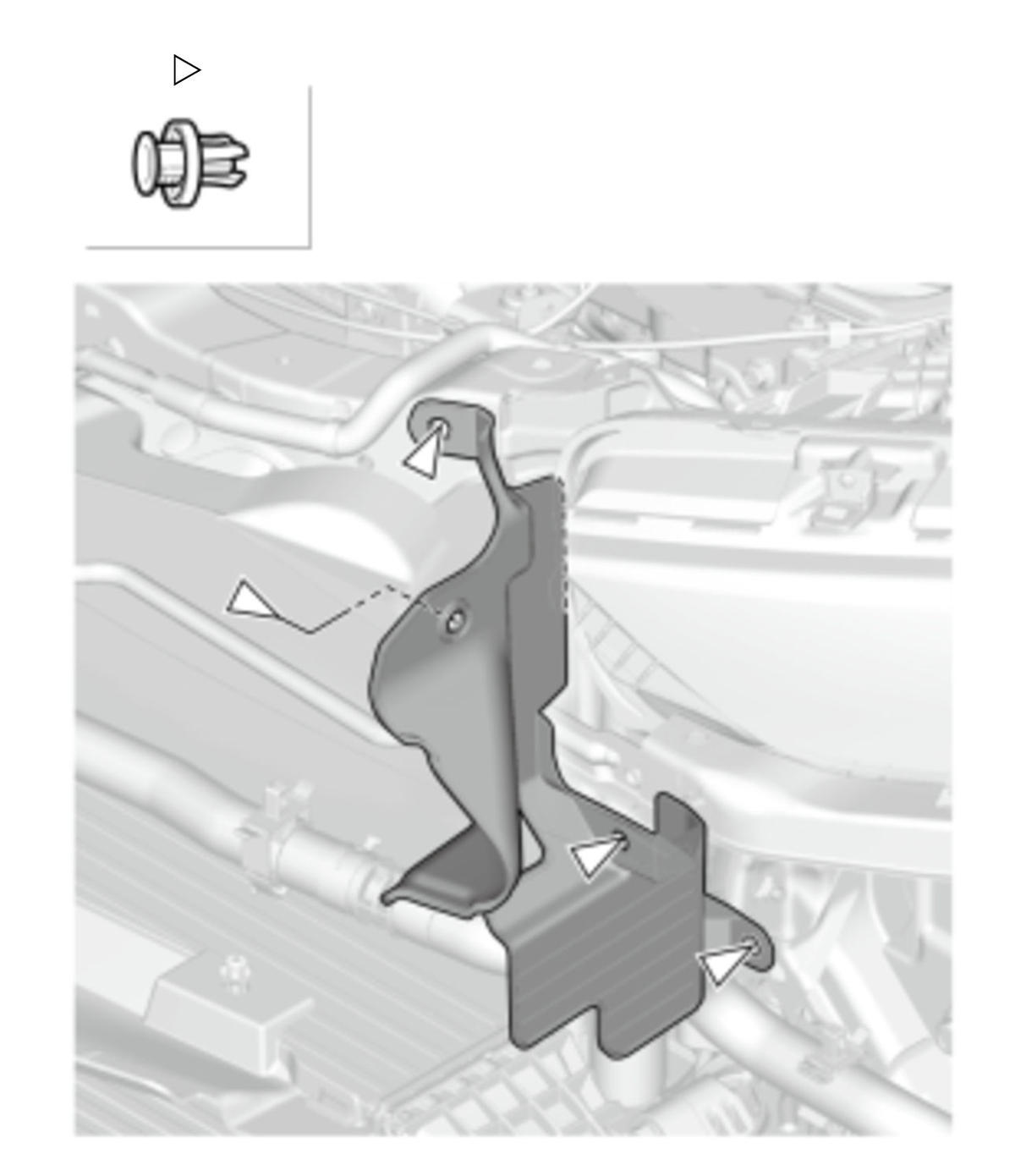

R.-
Sub-Procedure

Removal

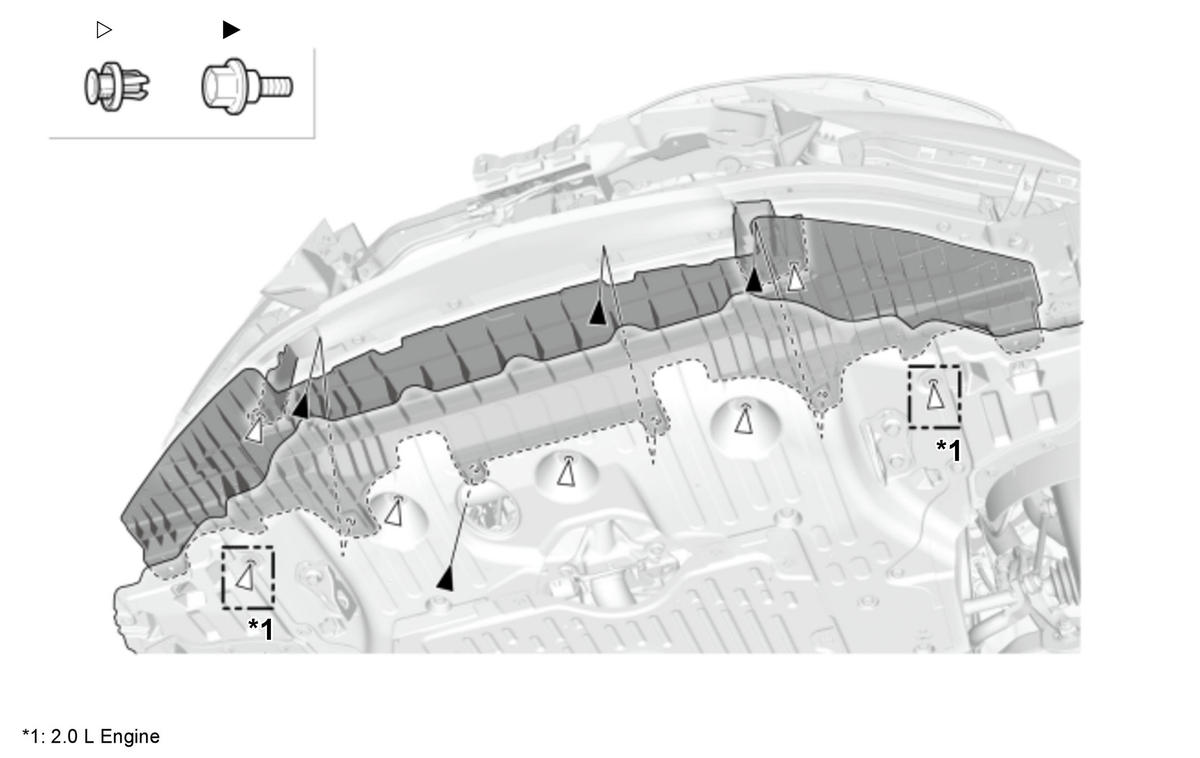

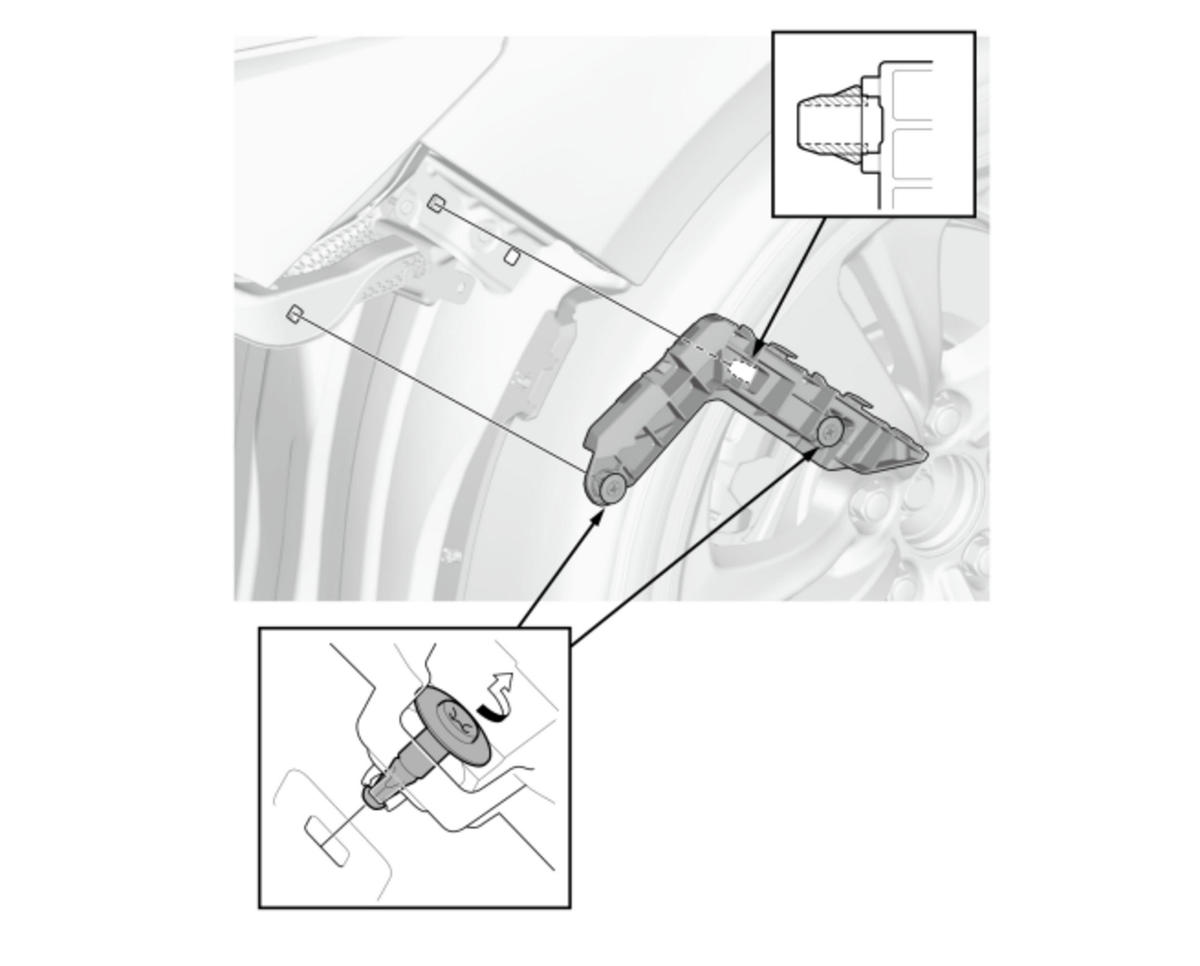

- Refer to the figure.
Courtesy of HONDA, U.S.A., INC.
S.-
Sub-Procedure

Removal

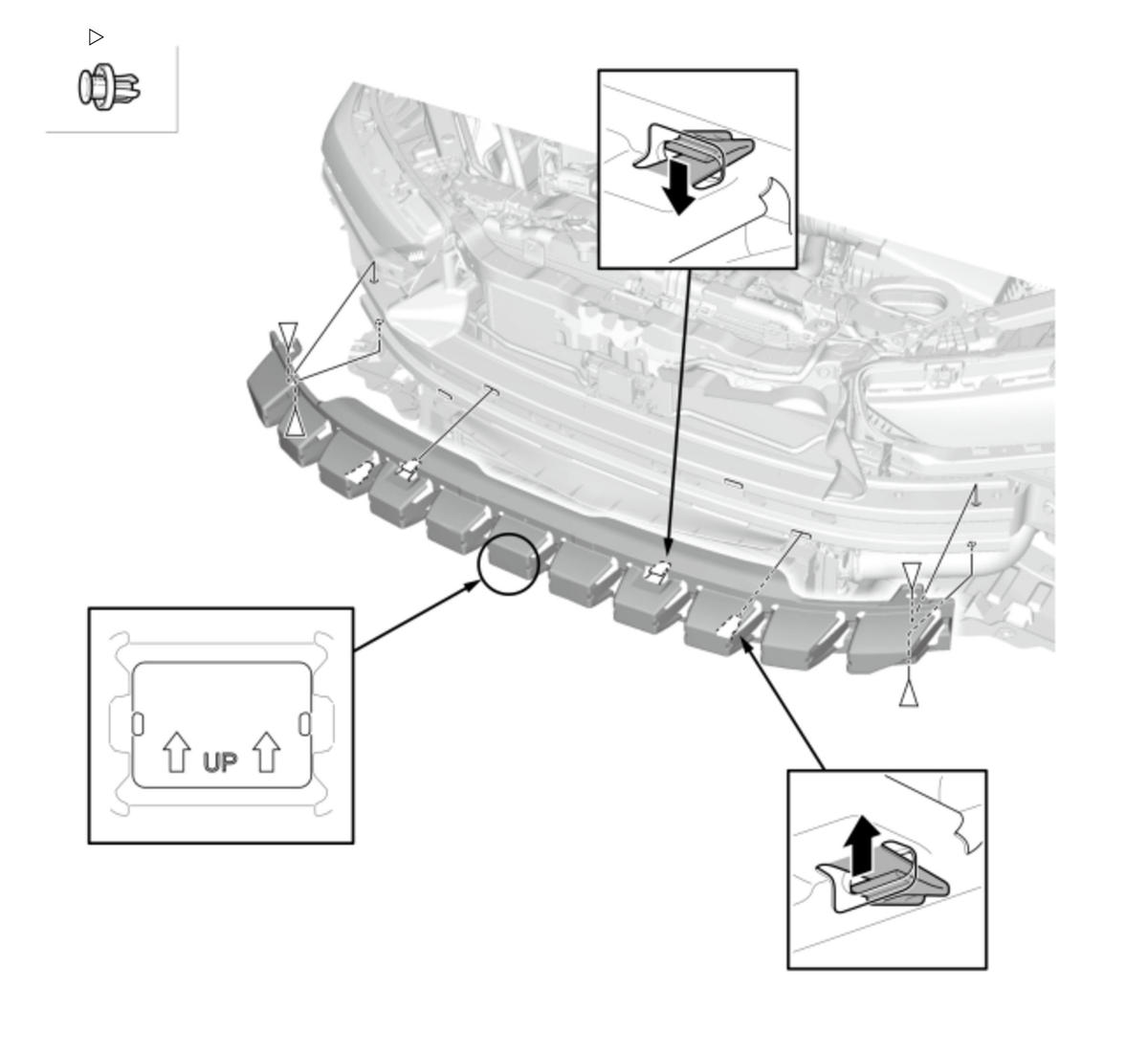

- Refer to the figure.
Courtesy of HONDA, U.S.A., INC.
T.-
Sub-Procedure

Removal
- Refer to the figure.
Courtesy of HONDA, U.S.A., INC.
U.-
Sub-Procedure

Removal
- Refer to the figure.
Courtesy of HONDA, U.S.A., INC.
V.-
Sub-Procedure

Removal
- Refer to the figure.
Courtesy of HONDA, U.S.A., INC.

After Installation
- With Multi View Camera System: Multi View Front Camera Aiming - Refer to: Multi View Camera Aiming

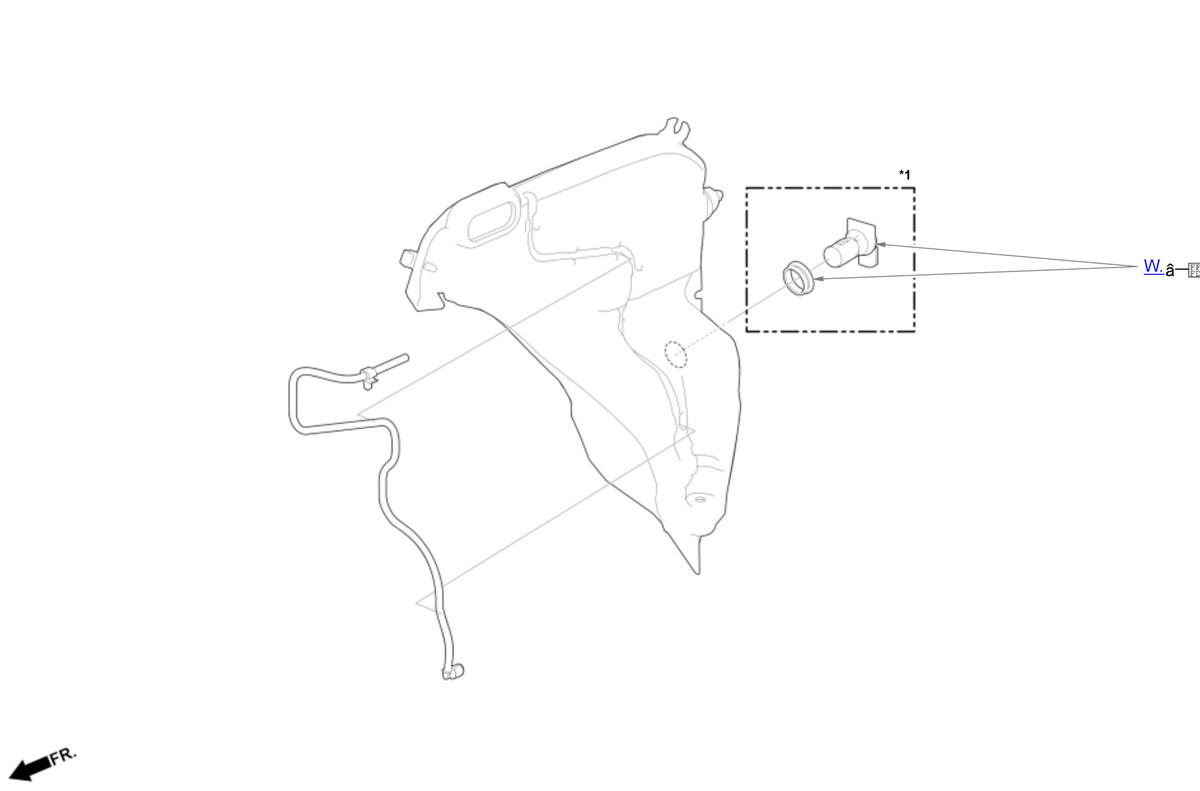

W.-
Sub-Procedure

Installation

NOTE:
Inspect the grommet for damage. If damaged, replace it.
