System Warning/Indicator Index

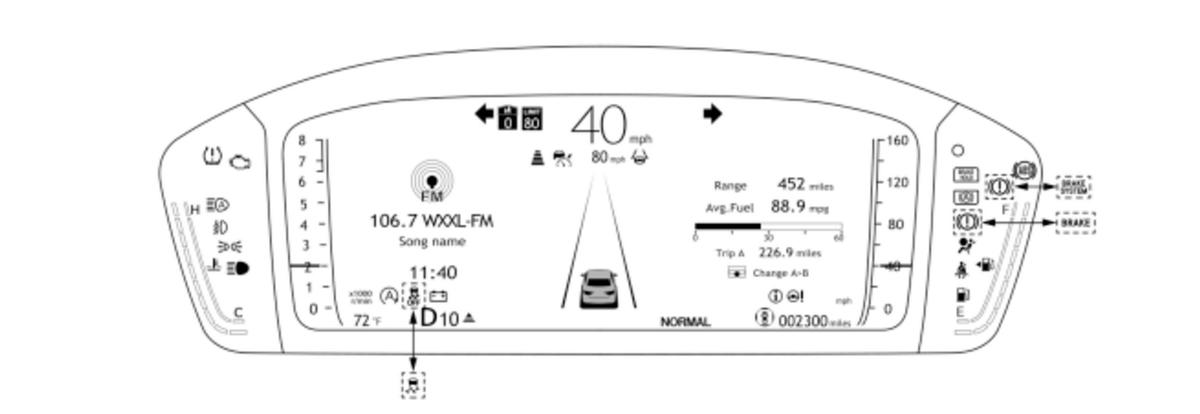

GHH531679Courtesy of HONDA, U.S.A., INC.

NOTE:

Indicator Indicator Name Fault Detection Unit HDS System Menu (DTC Check) Diagnostic Procedure
GHH531680Courtesy of HONDA, U.S.A., INC.
 IMMOBILIZER/SECURITY INDICATOR (Red) BODY CONTROL MODULE One-Push Start Backup Control Unit System Information System Check

One-Push Start Backup Control Unit System Information Status Log

One-Push Start Keyless Access Control Unit System Information System Check 1

One-Push Start Keyless Access Control Unit System Information System Check 2
GHH531693Courtesy of HONDA, U.S.A., INC.
 KEYLESSACCESSINDICATOR BODY CONTROL MODULE One-Push Start Power Control Unit DTCs

One-Push Start Backup Control Unit DTCs

One-Push Start Keyless Access Control Unit DTCs
GHH531700Courtesy of HONDA, U.S.A., INC.
 12 VOLTCHARGING SYSTEM INDICATOR (Red) PCM PGM-FI DTCs/Freeze Data
Indicator Indicator Name Fault Detection Unit HDS System Menu (DTC Check) Diagnostic Procedure
GHH531702Courtesy of HONDA, U.S.A., INC.
 MALFUNCTION INDICATOR LAMP (MIL) (Amber) PCM PGM-FI DTCs/Freeze Data
GHH531704Courtesy of HONDA, U.S.A., INC.
 STARTER SYSTEM INDICATOR PCM PGM-FI DTCs/Freeze Data
GHH531706Courtesy of HONDA, U.S.A., INC.
GHH531707Courtesy of HONDA, U.S.A., INC.
 AUTO IDLE STOPSYSTEM INDICATOR (Amber) PCM PGM-FI DTCs/Freeze Data
GHH531709Courtesy of HONDA, U.S.A., INC.
 HIGH TEMPERATURE INDICATOR PCM PGM-FI DTCs/Freeze Data
GHH531711Courtesy of HONDA, U.S.A., INC.
 SHIFT POSITIONINDICATOR TCM AT DTCs/Freeze Data
GHH531713Courtesy of HONDA, U.S.A., INC.
 EPS INDICATOR (Amber) EPS CONTROL UNIT EPS DTCs/Freeze Data
GHH531715Courtesy of HONDA, U.S.A., INC.
 LOW TIRE PRESSURE/TPMS INDICATOR (Amber) BODY CONTROL MODULE TPMS DTCs
GHH531717Courtesy of HONDA, U.S.A., INC.
 ADAPTIVE DAMPER SYSTEM WARNING ADAPTIVE DAMPER CONTROL UNIT Active Damper System/Adaptive Damper System DTCs
GHH531719Courtesy of HONDA, U.S.A., INC.
 BRAKE SYSTEM INDICATOR (Red)
  • VSA MODULATOR- CONTROL UNIT
  • ELECTRIC SERVO BRAKE CONTROL UNIT
 ABS/VSA DTCs

Brake System Electric Servo

Brake System DTCs/Freeze Data
GHH531723Courtesy of HONDA, U.S.A., INC.
Indicator Indicator Name Fault Detection Unit HDS System Menu (DTC Check) Diagnostic Procedure
GHH531724Courtesy of HONDA, U.S.A., INC.
 BRAKE SYSTEM INDICATOR (Amber)
  • VSA MODULATOR- CONTROL UNIT
  • ELECTRIC SERVO BRAKE CONTROL UNIT
  • MULTIPURPOSE CAMERA UNIT
  • PCM
 ABS/VSA DTCs

Brake System Electric Servo

Brake System DTCs/Freeze Data

Driving Support Integrated Driver Support DTCs

PGM-FI DTCs/Freeze Data
GHH531731Courtesy of HONDA, U.S.A., INC.
GHH531732Courtesy of HONDA, U.S.A., INC.
 ABS INDICATOR (Amber) VSA MODULATOR- CONTROL UNIT ABS/VSA DTCs
GHH531734Courtesy of HONDA, U.S.A., INC.
 VSA INDICATOR (Amber) VSA MODULATOR- CONTROL UNIT ABS/VSA DTCs
GHH531736Courtesy of HONDA, U.S.A., INC.
 VSA OFF INDICATOR (Amber) VSA MODULATOR- CONTROL UNIT ABS/VSA DTCs
GHH531738Courtesy of HONDA, U.S.A., INC.
 LIGHT CONTROLINDICATOR BODY CONTROL MODULE Body Electrical Lighting DTCs
GHH531741Courtesy of HONDA, U.S.A., INC.
 AUTO HIGH-BEAM INDICATOR MULTIPURPOSE CAMERA UNIT Driving Support Integrated Driver Support DTCs
GHH531744Courtesy of HONDA, U.S.A., INC.
 SRS INDICATOR (Red) SRS UNIT SRS DTCs
GHH531746Courtesy of HONDA, U.S.A., INC.
 ACC INDICATOR (Amber) MULTIPURPOSE CAMERA UNIT Driving Support Integrated Driver Support DTCs
GHH531749Courtesy of HONDA, U.S.A., INC.
 LKAS INDICATOR (Amber) MULTIPURPOSE CAMERA UNIT Driving Support Integrated Driver Support DTCs
Indicator Indicator Name Fault Detection Unit HDS System Menu (DTC Check) Diagnostic Procedure
GHH531752Courtesy of HONDA, U.S.A., INC.
 SAFETY SUPPORT INDICATOR (Amber)
  • MULTIPURPOSE CAMERA UNIT
  • LEFT SIDE BSI RADAR UNIT
  • RIGHT SIDE BSI RADAR UNIT
 Driving Support Monocular Camera Driver Support System DTCs

Driving Support Blind Spot Information DTCs
