Blind Spot Information (BSI) System Component Location Index (With Integrated Driver Support System (Camera and Five Radars)) (2025)

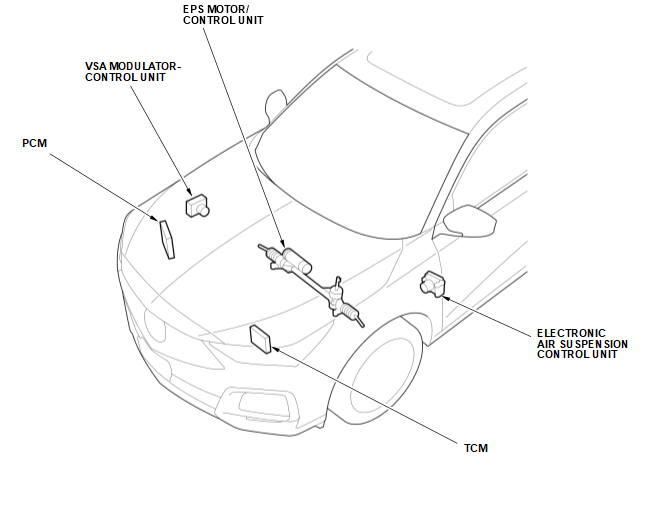

GHH665463Courtesy of HONDA, U.S.A., INC.

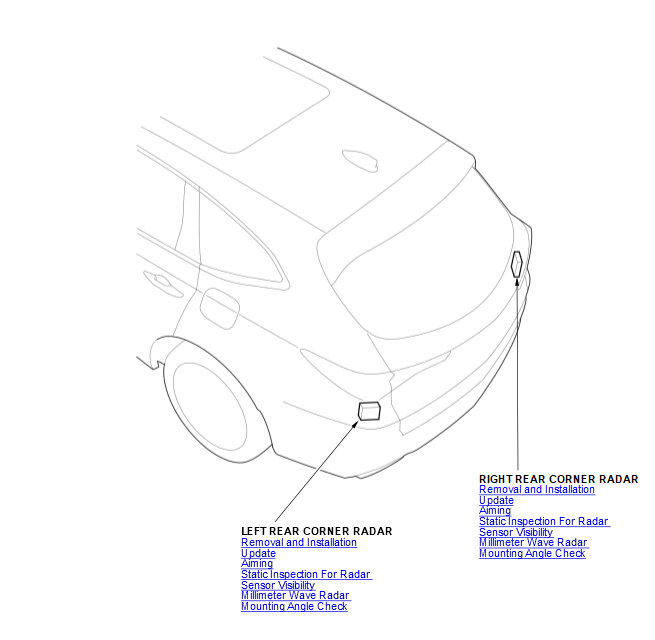

GHH665464Courtesy of HONDA, U.S.A., INC.

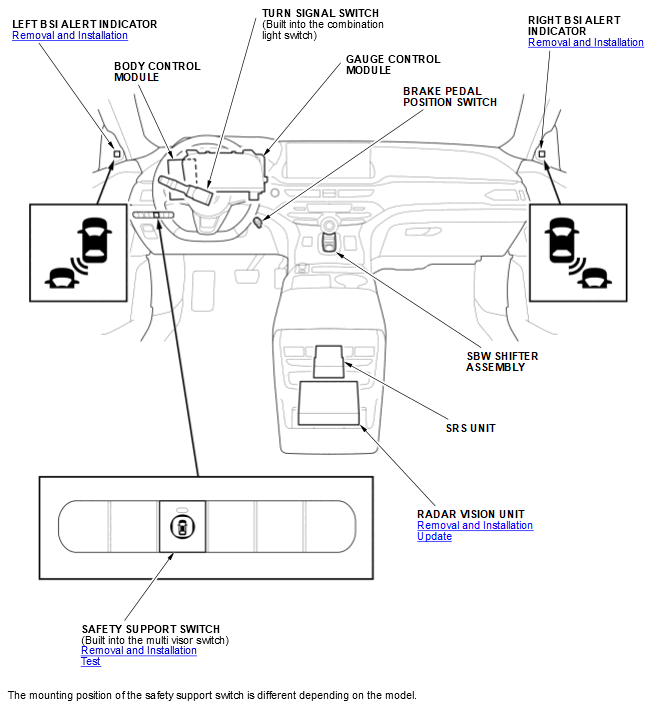

GHH665465Courtesy of HONDA, U.S.A., INC.
