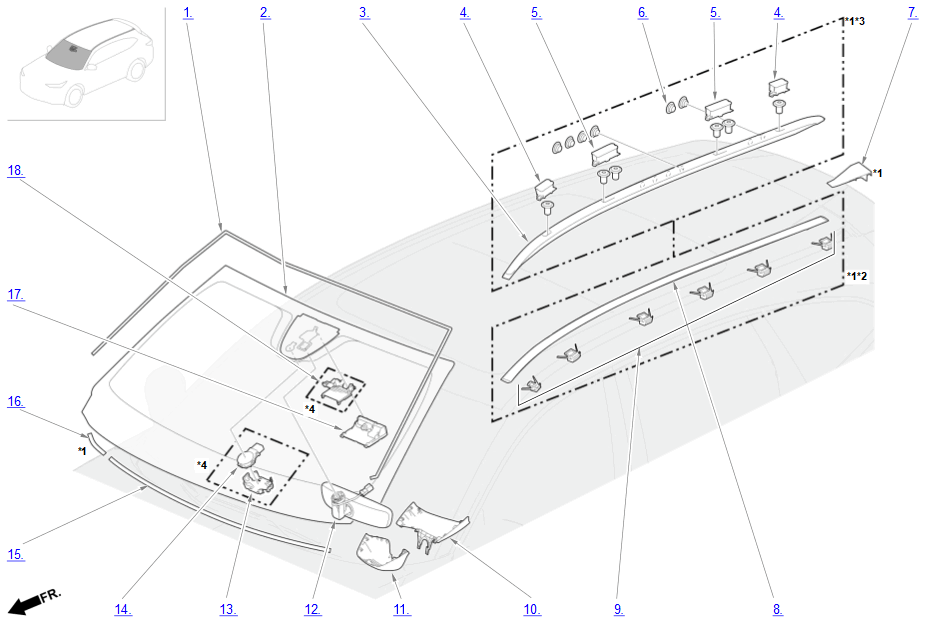

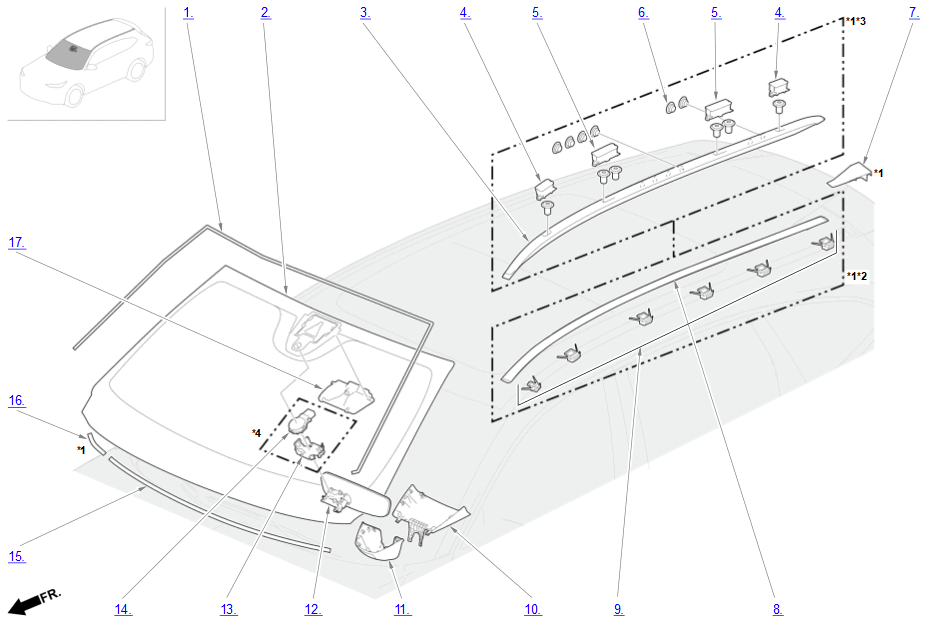

Exploded View
For replacement of components listed below, see Repair Procedure
22-24
*1: Part(s) are shown for one side only as the procedure is the same for both sides.
*2: Without roof rail
*3: With roof rail
*4: For some models
25
*1: Part(s) are shown for one side only as the procedure is the same for both sides.
*2: Without roof rail
*3: With roof rail
*4: For some models

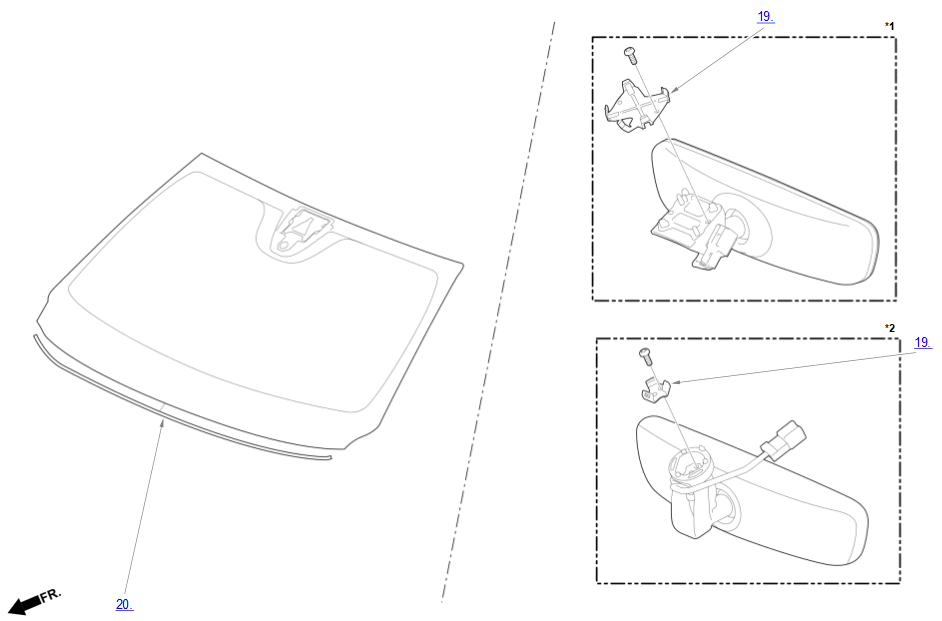

*1: 22-24
*2: 25
Windshield_Area Components
| Component Name | Callout |
|---|---|
| Windshield Molding | 1 |
| Windshield | 2 |
| Roof Rail | 3 |
| Roof Rail Cap A | 4 |
| Roof Rail Cap B | 5 |
| Cap | 6 |
| Tailgate Hinge Cover | 7 |
| Roof Molding | 8 |
| Retainer | 9 |
| Camera Cover | 10 |
| Camera Cover Lid | 11 |
| Rearview Mirror | 12 |
| Automatic Lighting/Rain Sensor Clip | 13 |
| Automatic Lighting/Rain Sensor | 14 |
| Dashboard Seal | 15 |
| EPT Foam | 16 |
| Multipurpose Camera Unit | 17 |
| Camera Heater and Camera Heater Bracket | 18 |
| Mount Spring | 19 |
| Windshield Lower Molding | 20 |
