Repair Procedure

How to use this service information .

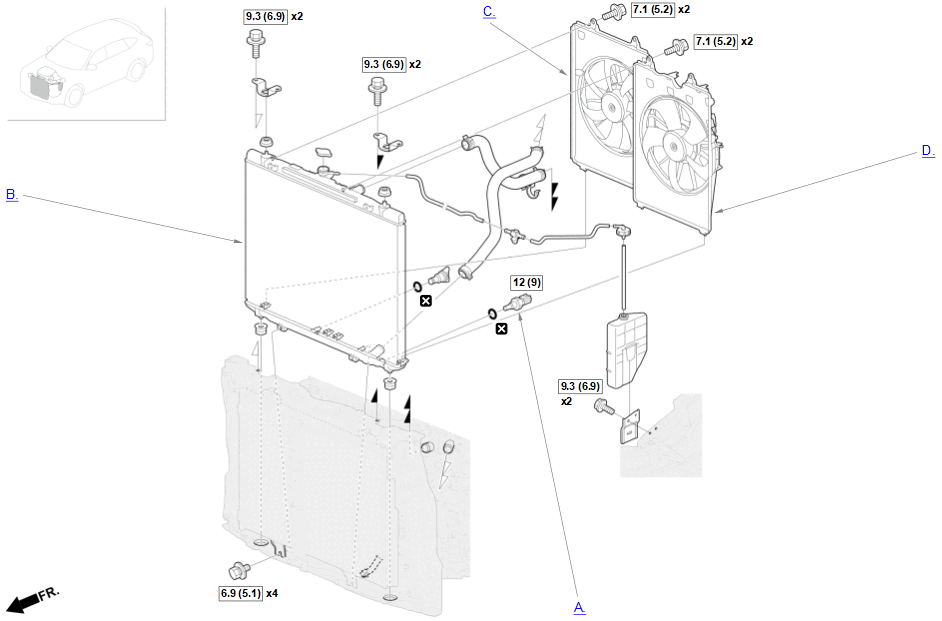

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

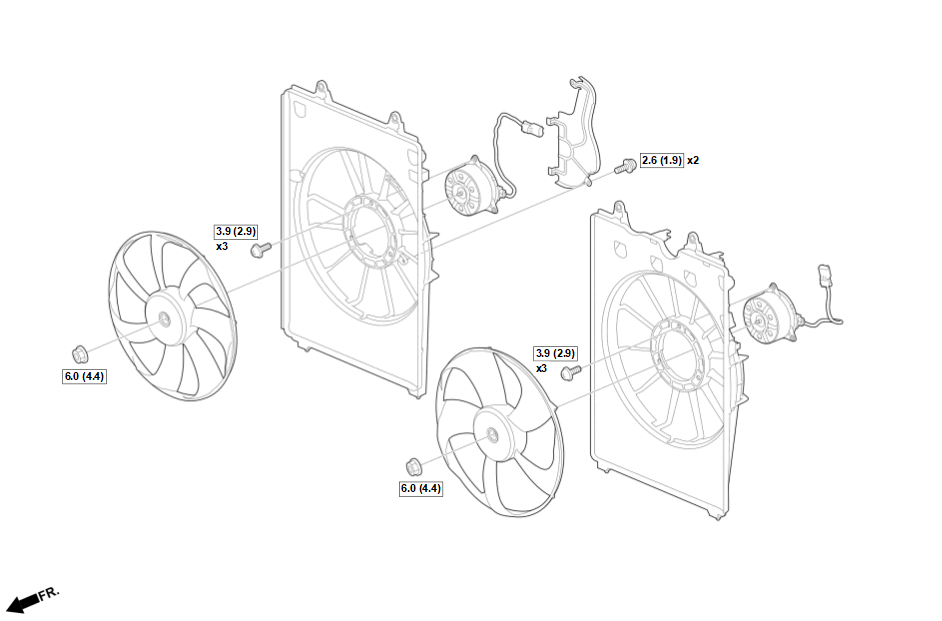

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

1. A.-

   Preconditions

   • Engine Coolant Drained - Refer to: Coolant Check (3.5L Engine) or Coolant Replacement (3.5L Engine) or Coolant Replacement (3.0L Engine) or Coolant Check (3.0L Engine)

   Key Information

   Do the following before starting your work.

   Remove:

   • Undercover Area Parts
   • • -

       Engine Undercover

     • -

       Splash Shield

   After Installation

   • Engine Coolant Refill - Refer to: Coolant Check (3.5L Engine) or Coolant Replacement (3.5L Engine) or Coolant Replacement (3.0L Engine) or Coolant Check (3.0L Engine)
2. B.-

   Preconditions

   • Engine Coolant Drained - Refer to: Coolant Check (3.5L Engine) or Coolant Replacement (3.5L Engine) or Coolant Replacement (3.0L Engine) or Coolant Check (3.0L Engine)

   Key Information

   Do the following before starting your work.

   Remove:

   • Undercover Area Parts
   • • -

       Engine Undercover

     • -

       Splash Shield

   • Air Intake Tube - Refer to: Air Cleaner Area (3.0L Engine) or Air Cleaner Area (3.5L Engine)

   Sub-Procedure

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

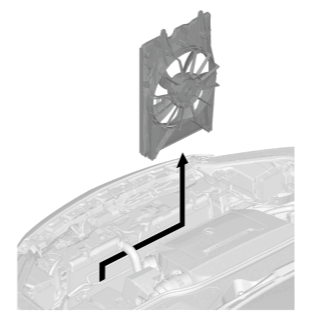

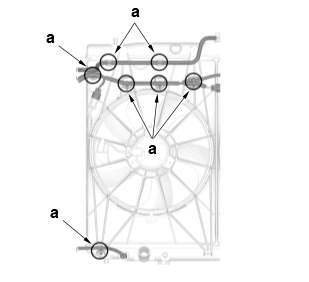

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure 1 and 2.

   Location Details (Figure 1)

   Position	Object
   a	Clip

   After Installation

   • Engine Coolant Refill - Refer to: Coolant Check (3.5L Engine) or Coolant Replacement (3.5L Engine) or Coolant Replacement (3.0L Engine) or Coolant Check (3.0L Engine)
3. C.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Front Grille Cover - Refer to: Front Bumper Area (2025) or Front Bumper Area (2022 2023 2024)

   Sub-Procedure

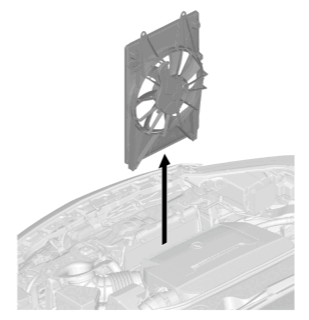

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

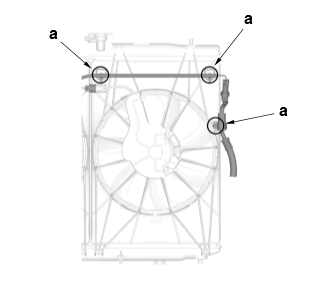

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure 1 and 2.

   Location Details (Figure 1)

   Position	Object
   a	Clip

4. D.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Air Intake Tube - Refer to: Air Cleaner Area (3.0L Engine) or Air Cleaner Area (3.5L Engine)
   • A/C Condenser Fan Shroud

   Sub-Procedure

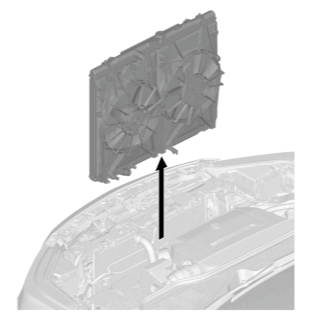

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

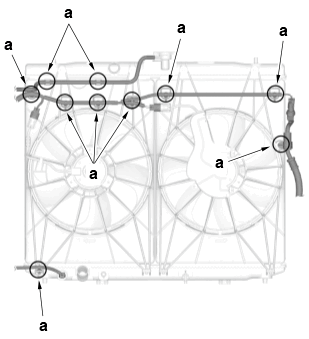

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure 1 and 2.

   Location Details (Figure 1)

   Position	Object
   a	Clip
