Repair Procedure

How to use this Service Information .

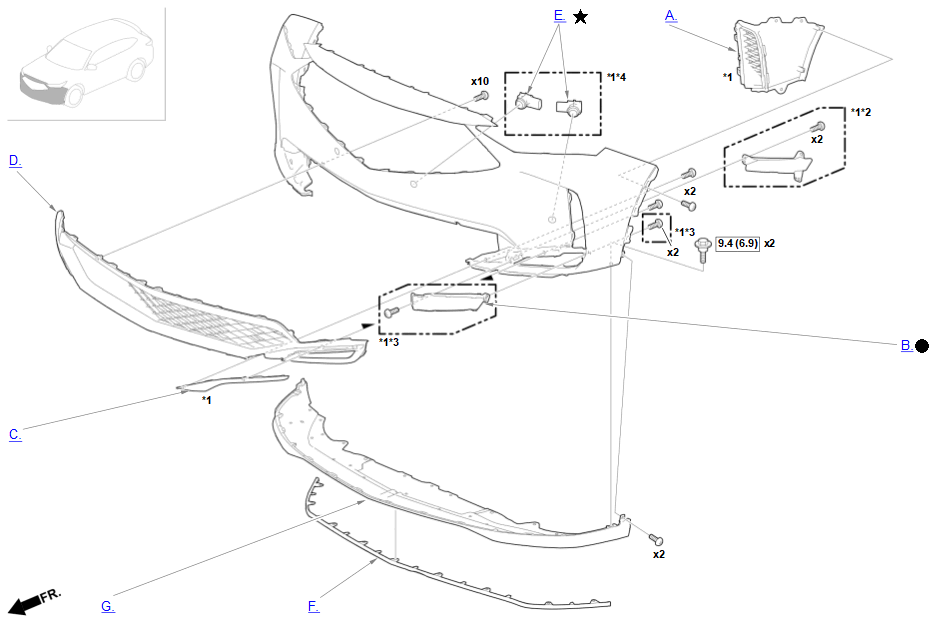

Except A Spec Type

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

*1: Part(s) are shown for one side only as the procedure is the same for both sides.

*2: Without fog light

*3: With fog light

*4: For some models

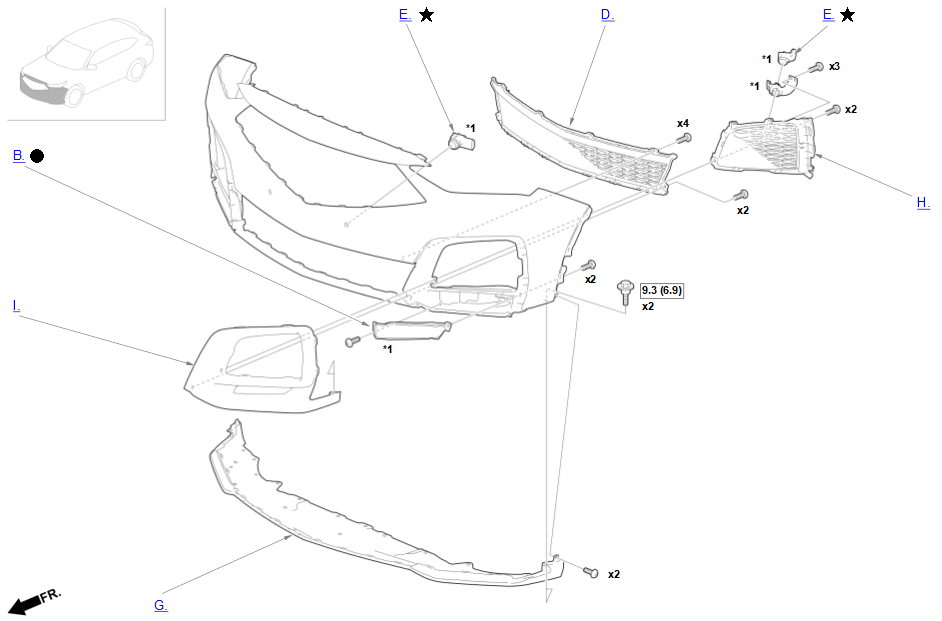

A Spec Type

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

: SPL Tool

: Required Removal

*1: Part(s) are shown for one side only as the procedure is the same for both sides.

1. A.-

   Sub-Procedure

   Removal

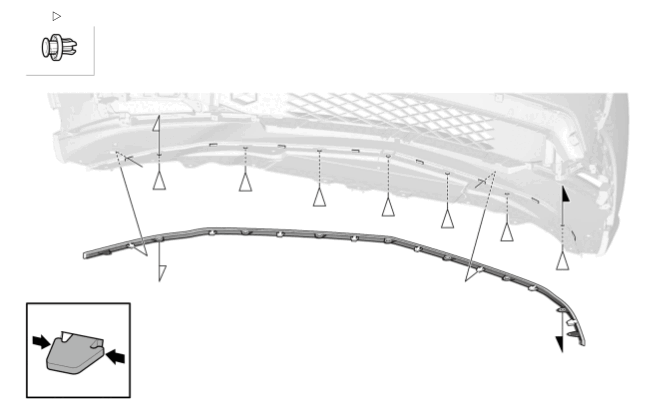

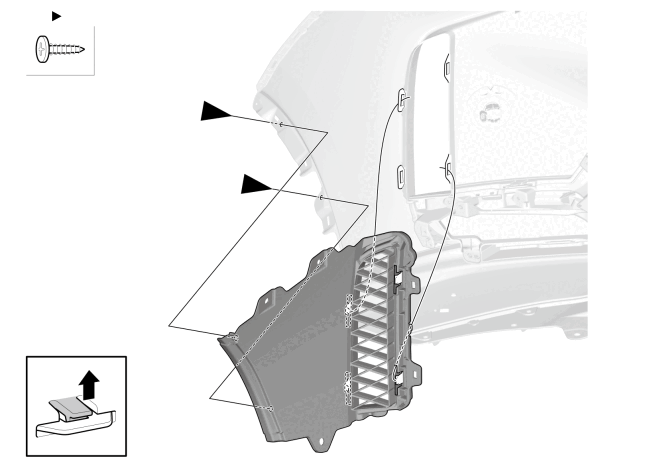

   • Refer to the figure.

   Courtesy of HONDA, U.S.A., INC.

2. B.-

   After Installation

   • Fog Light Adjustment
3. C.-

   Sub-Procedure

   Removal

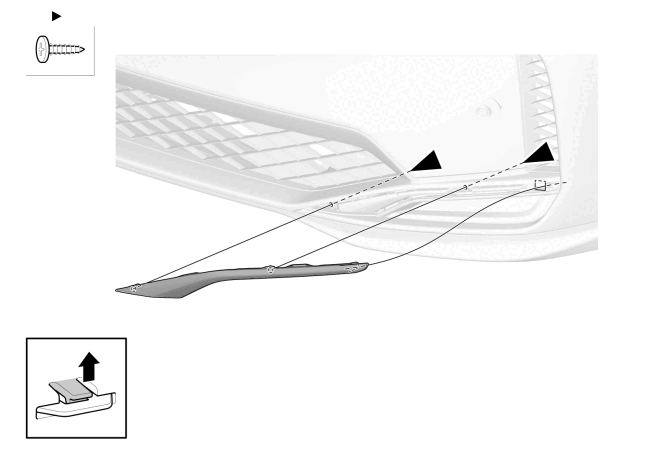

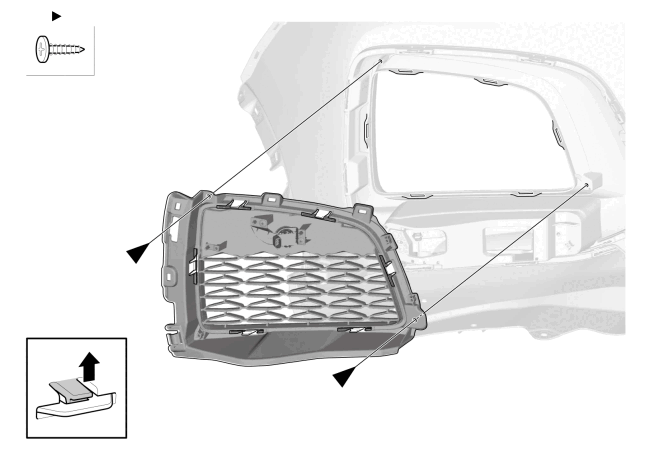

   • Refer to the figure.

   Courtesy of HONDA, U.S.A., INC.

4. D.-

   Sub-Procedure

   Removal

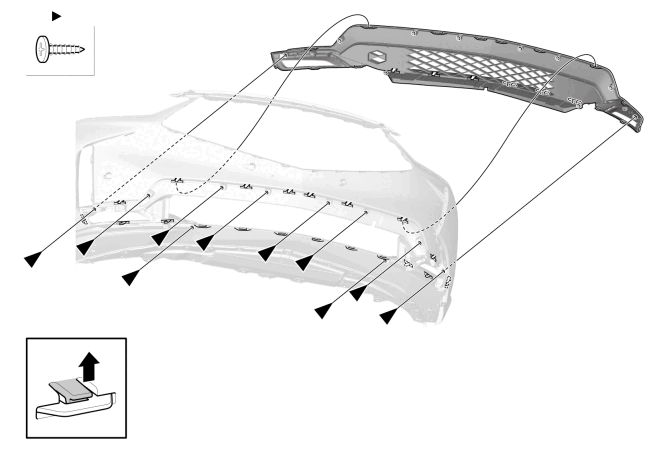

   • Refer to the figure.

   Courtesy of HONDA, U.S.A., INC.

5. E.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Removal

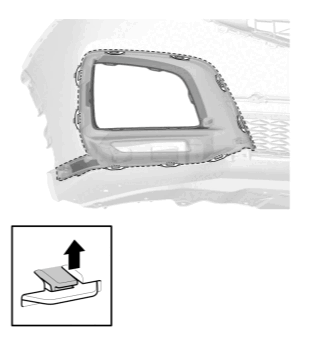

   • Refer to the figure.

   After Installation

   NOTE:  With low speed braking control system: Reset the parking and back-up sensor control unit after doing any of the following actions - Refer to: Parking and Back-Up Sensor Control Unit Update or Resetting the Parking and Back-Up Sensor Control Unit (With Low Speed Brake Control) (2025) .

   • When you replace the parking and back-up sensor.
   • When you change the parking and back-up sensor mounting location from the original location.
6. F.-

   Sub-Procedure

   Removal

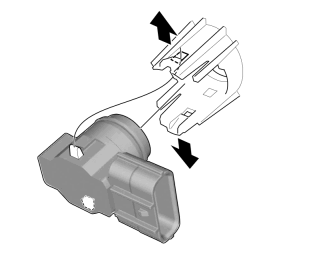

   • Refer to the figure.

   Courtesy of HONDA, U.S.A., INC.

7. G.-

   Sub-Procedure

   Removal

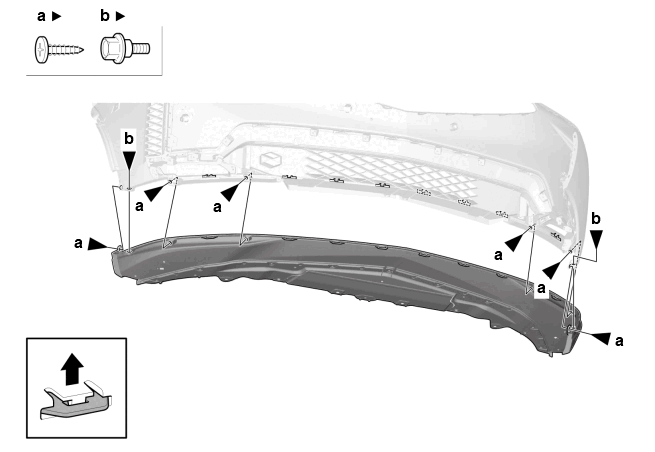

   • Refer to the figure.

   Courtesy of HONDA, U.S.A., INC.

8. H.-

   Sub-Procedure

   Removal

   • Refer to the figure.

   Courtesy of HONDA, U.S.A., INC.

9. I.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure.
