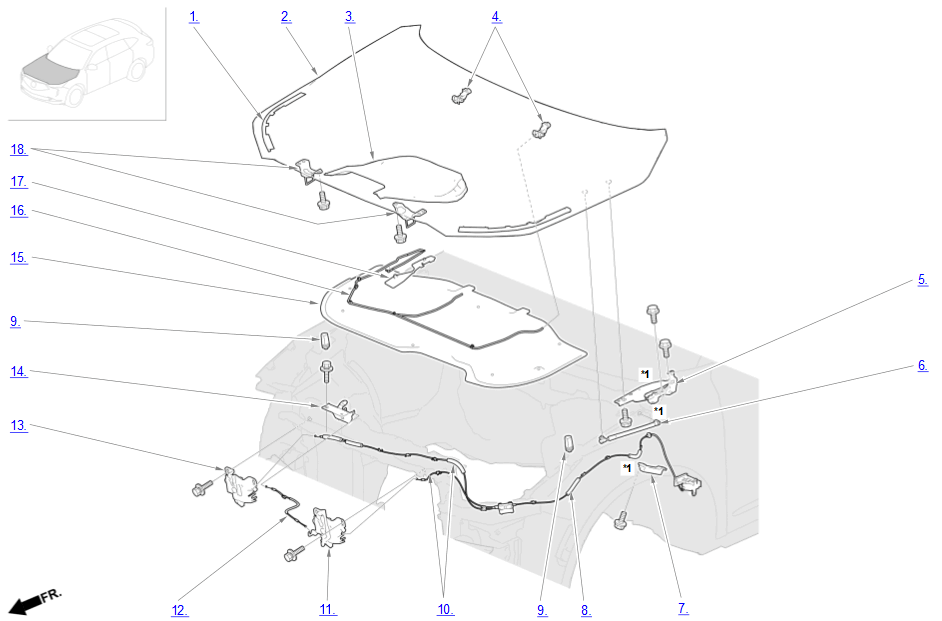

Exploded View
For replacement of components listed below, see Repair Procedure
*1: Part(s) are shown for one side only as the procedure is the same for both sides.
Hood Area Components
| Component Name | Callout |
|---|---|
| Hood Seal | 1 |
| Hood | 2 |
| Intake Rubber Seal | 3 |
| Windshield Washer Nozzle | 4 |
| Hood Hinge | 5 |
| Hood Support Strut | 6 |
| Front LF Antenna | 7 |
| Rear Hood Opener Cable | 8 |
| Hood Edge Cushion | 9 |
| Front Hood Opener Cable | 10 |
| Left Hood Latch | 11 |
| Hood Remote Opener Cable | 12 |
| Right Hood Latch | 13 |
| Remote Latch | 14 |
| Hood Insulator | 15 |
| Windshield Washer Tube | 16 |
| Washer Tube Hood Hinge Guide | 17 |
| Hood Lock Striker | 18 |
