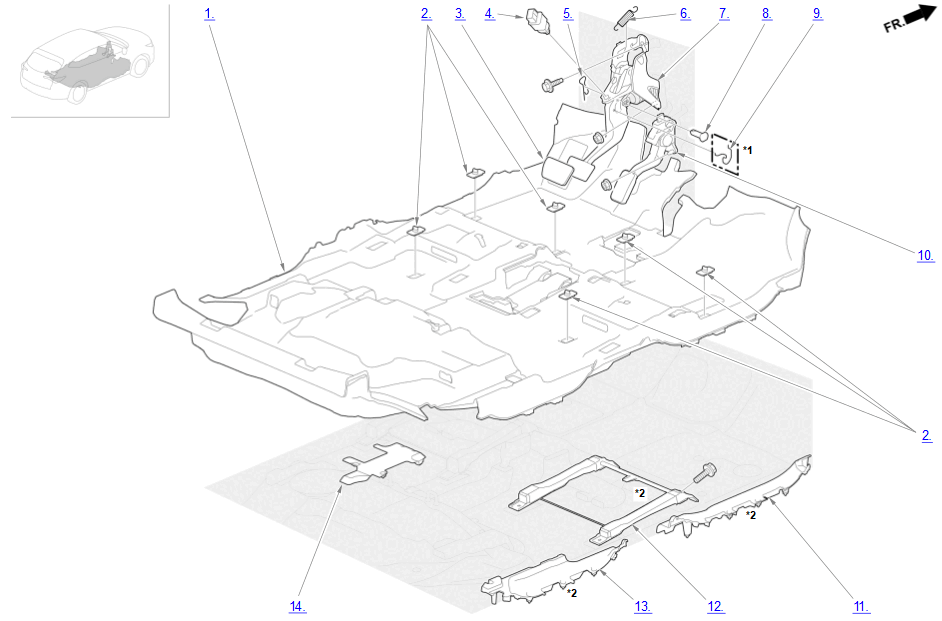

Exploded View
For replacement of components listed below, see Repair Procedure
*1: 3.0 L engine*2: Part(s) are shown for one side only as the procedure is the same for both sides.
Pedals_Area Components
| Component Name | Callout |
|---|---|
| Carpet | 1 |
| Floor Mat Holder | 2 |
| Brake Pedal Cover | 3 |
| Brake Pedal Position Switch | 4 |
| Lock Pin | 5 |
| Return Spring | 6 |
| Brake Pedal | 7 |
| Yoke Pin | 8 |
| Yoke Spring | 9 |
| Accelerator Pedal Module | 10 |
| Front Side Lower Garnish | 11 |
| Front Seat Riser | 12 |
| Rear Side Lower Garnish | 13 |
| Mid Carpet Stiffener | 14 |
