Exploded View
For replacement of components listed below, see:
*1: Part(s) are shown above for one side only as the procedure is the same for both sides.
*1: 3.0 L Engine

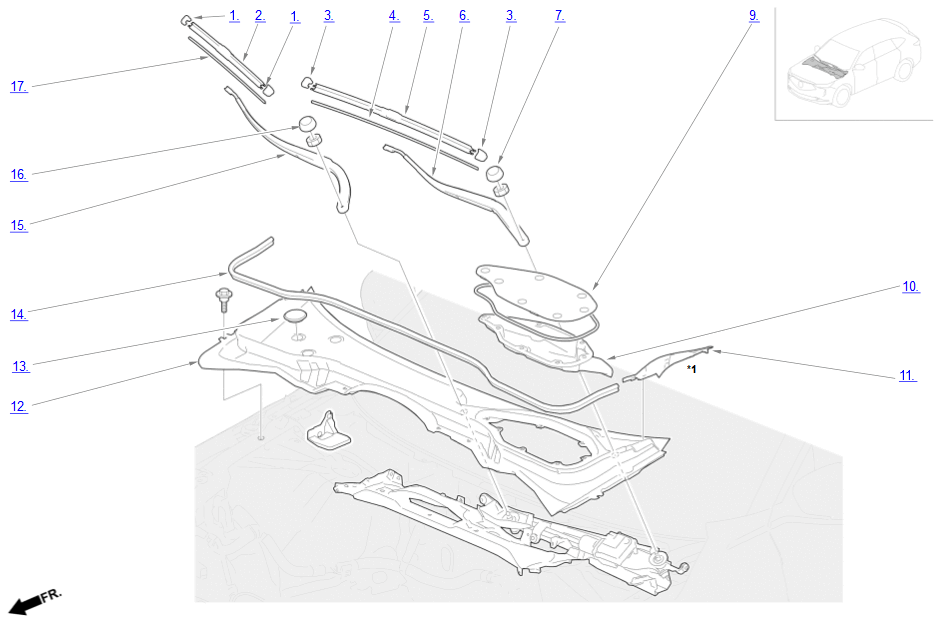

Windshield_Wiper_Area Components
| Component Name | Callout |
|---|---|
| Passenger's End Cap | 1 |
| Passenger's Wiper Blade Holder | 2 |
| Driver's End Cap | 3 |
| Driver's Wiper Blade | 4 |
| Driver's Wiper Blade Holder | 5 |
| Driver's Wiper Arm | 6 |
| Driver's Wiper Arm Cap | 7 |
| Dashboard Upper Guide | 8 |
| Cowl Cover Lid | 9 |
| HVAC Intake Duct | 10 |
| Front Fender Cover | 11 |
| Cowl Cover | 12 |
| Blind Plug | 13 |
| Hood Rear Seal | 14 |
| Passenger's Wiper Arm | 15 |
| Passenger's Wiper Arm Cap | 16 |
| Passenger's Wiper Blade | 17 |

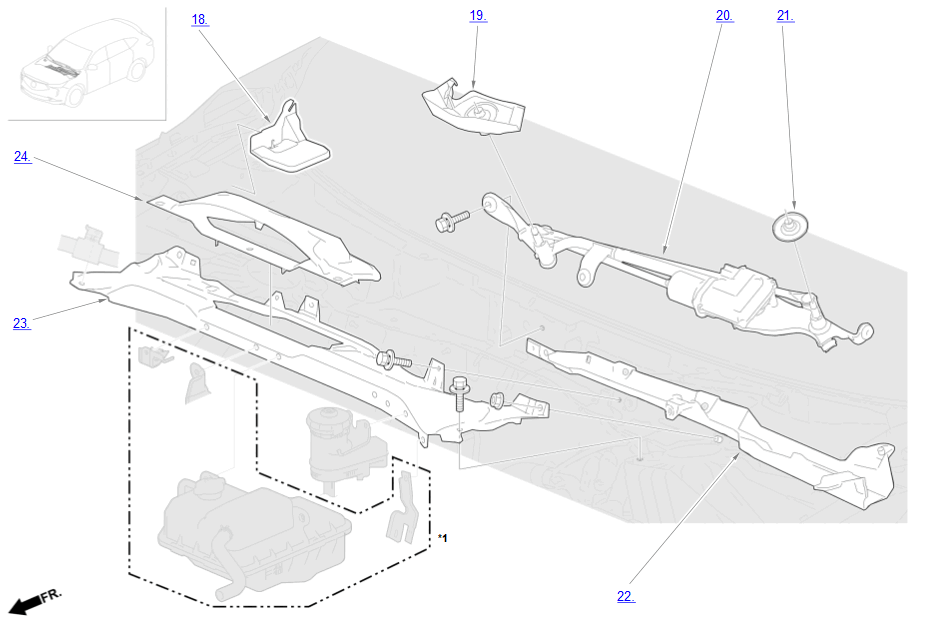

| HVAC Shield | 18 |
| Windshield Wiper Cover | 19 |
| Windshield Wiper Linkage Assembly | 20 |
| Pivot Cap | 21 |
| Dashboard Upper Guide | 22 |
| Dashboard Upper Cover Extension | 23 |
| Dashboard Upper Cover Extension Duct | 24 |

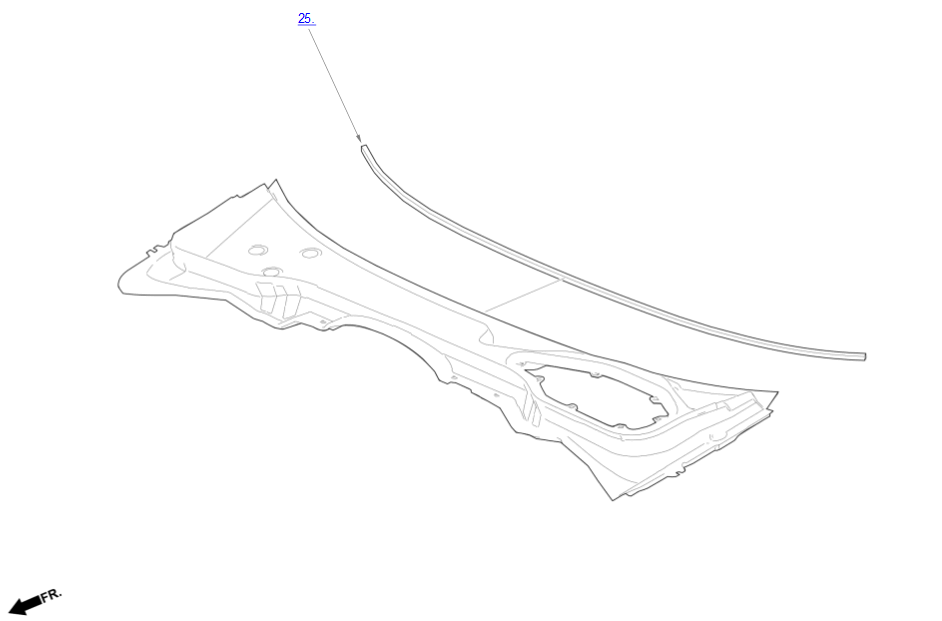

| Seal C | 25 |

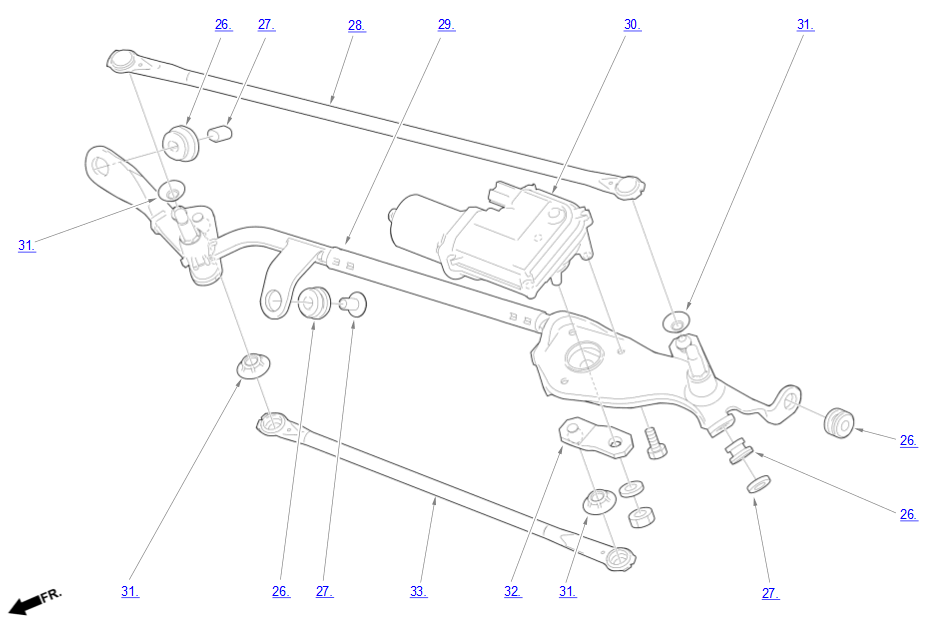

| Mount Rubber | 26 |
| Collar | 27 |
| Rod B | 28 |
| Wiper Linkage Frame | 29 |
| Windshield Wiper Control Unit/Motor | 30 |
| Dust Seal | 31 |
| Wiper Link A | 32 |
| Rod A | 33 |
