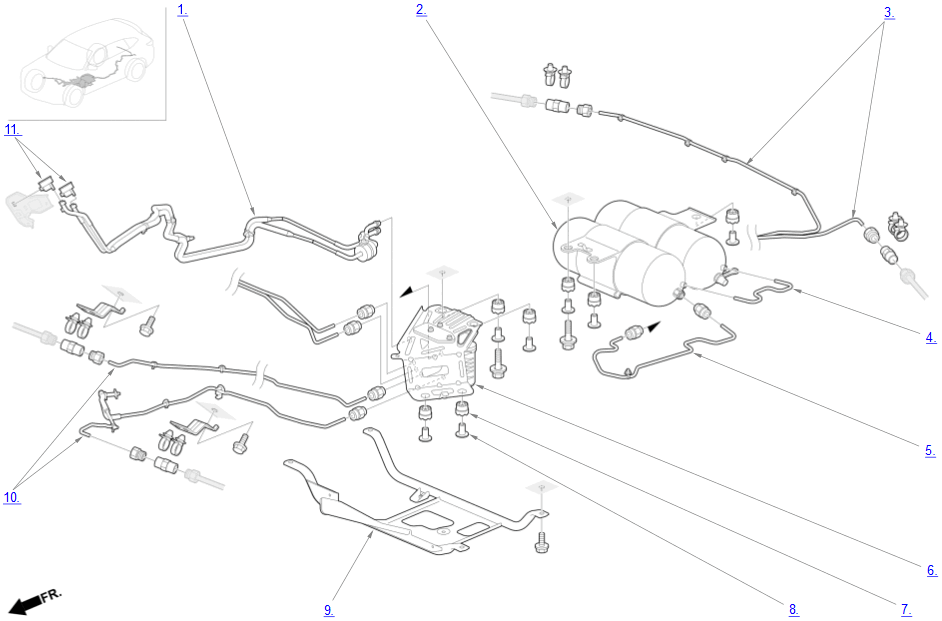

Exploded View
For replacement of components listed below, see Repair Procedure
Air_Compressor-Tank_Area Components
| Component Name | Callout |
|---|---|
| Intake/Exhaust Hose | 1 |
| Air Reservoir Tank | 2 |
| Air Tube C | 3 |
| Reservoir Tank Air Tube B | 4 |
| Reservoir Tank Air Tube A | 5 |
| Electronic Air Suspension Control Unit | 6 |
| Bushing Rubber | 7 |
| Bushing Collar | 8 |
| Electronic Air Suspension Control Unit Cover | 9 |
| Air Tube B | 10 |
| Vent Box | 11 |
