Exploded View

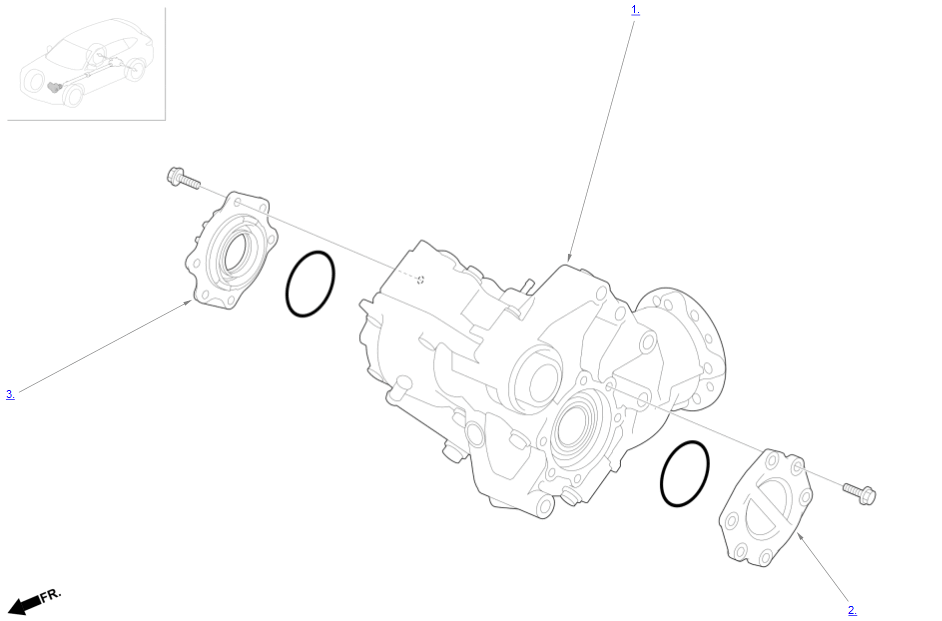

GHH666405Courtesy of HONDA, U.S.A., INC.

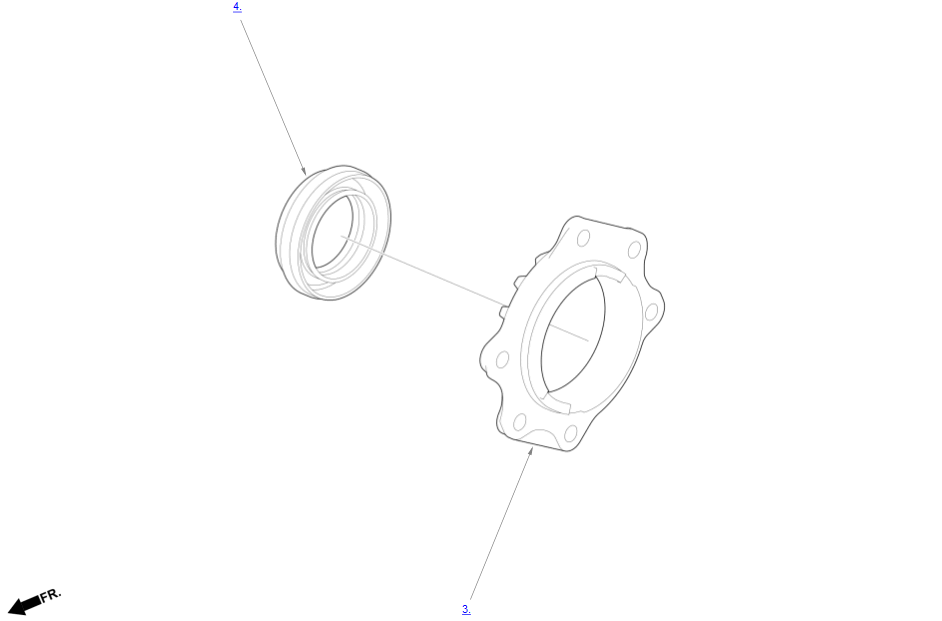

GHH666406Courtesy of HONDA, U.S.A., INC.
  1. Transfer Assembly
  2. Left Side Cap
  3. Right Side Cap
  4. Transfer Oil Seal
