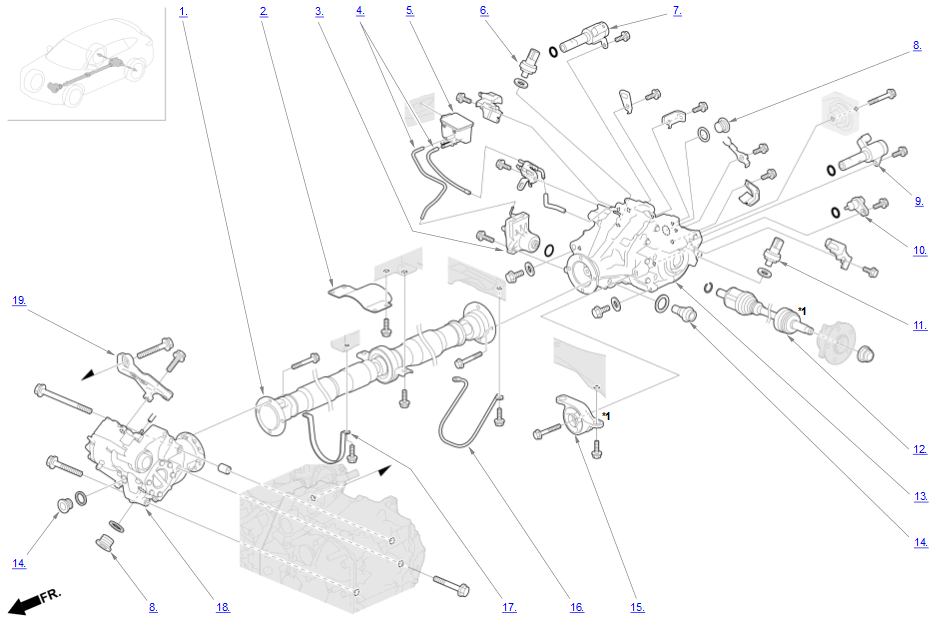

Exploded View
For replacement of components listed below, see Repair Procedure
*1: Part(s) are shown for one side only as the procedure is the same for both sides.
Transfer-Rear_Differential_Area Components
| Component Name | Callout |
|---|---|
| Propeller Shaft | 1 |
| Front Floor Propeller Shaft Protector | 2 |
| Rear Differential Pump Motor | 3 |
| Breather Tube | 4 |
| Rear Differential Breather Box | 5 |
| Right Rear Differential Fluid Pressure Sensor | 6 |
| Right Rear Differential Solenoid Valve | 7 |
| Filler Plug | 8 |
| Left Rear Differential Solenoid Valve | 9 |
| Rear Differential Fluid Temperature Sensor | 10 |
| Left Rear Differential Fluid Pressure Sensor | 11 |
| Rear Driveshaft | 12 |
| Rear Differential Assembly | 13 |
| Drain Plug | 14 |
| Rear Differential Front Mount | 15 |
| Propeller Shaft Protector N0.2 | 16 |
| Propeller Shaft Protector N0.1 | 17 |
| Transfer Assembly | 18 |
| Transfer Bracket | 19 |
