The MID Segment Check

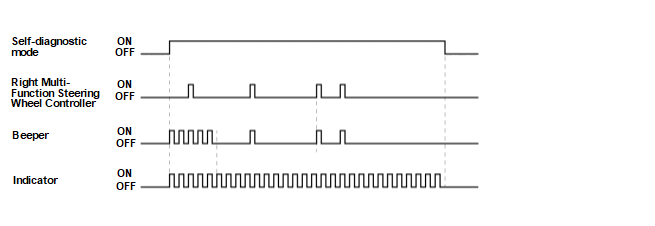

When entering the self-diagnostic mode, all the segments blink five times.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
