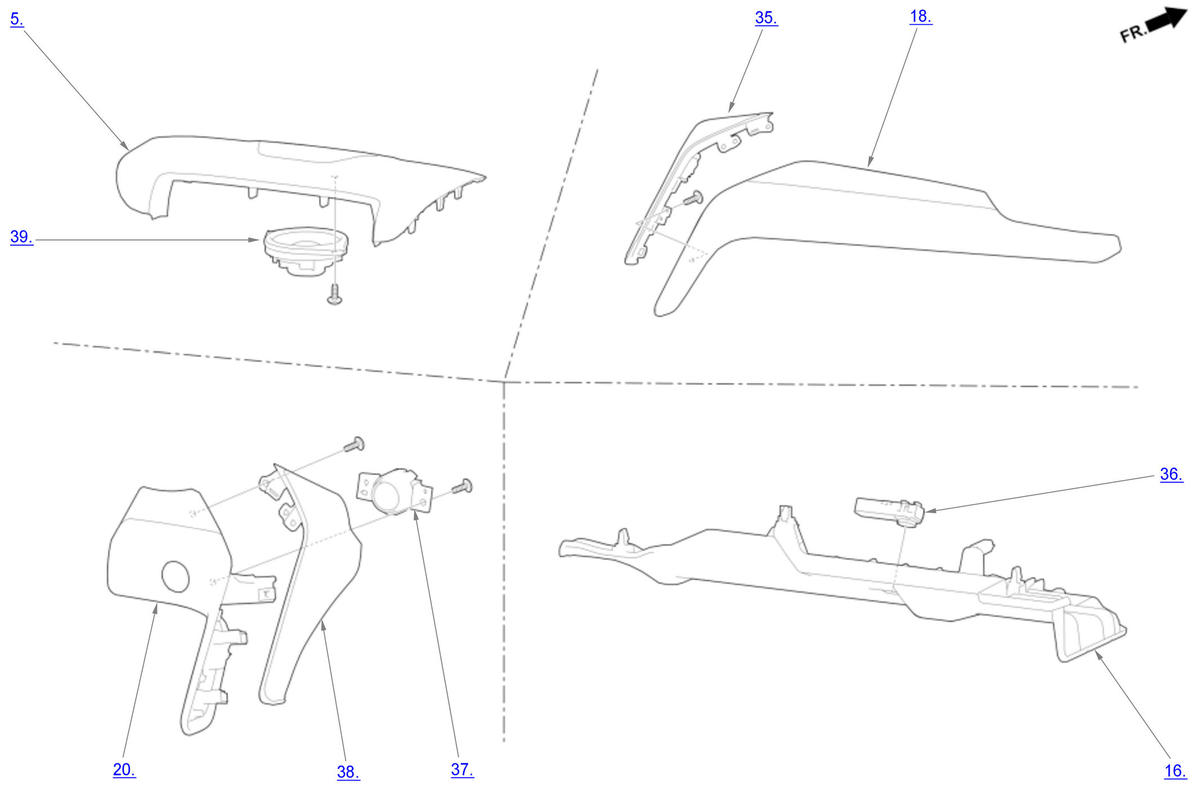

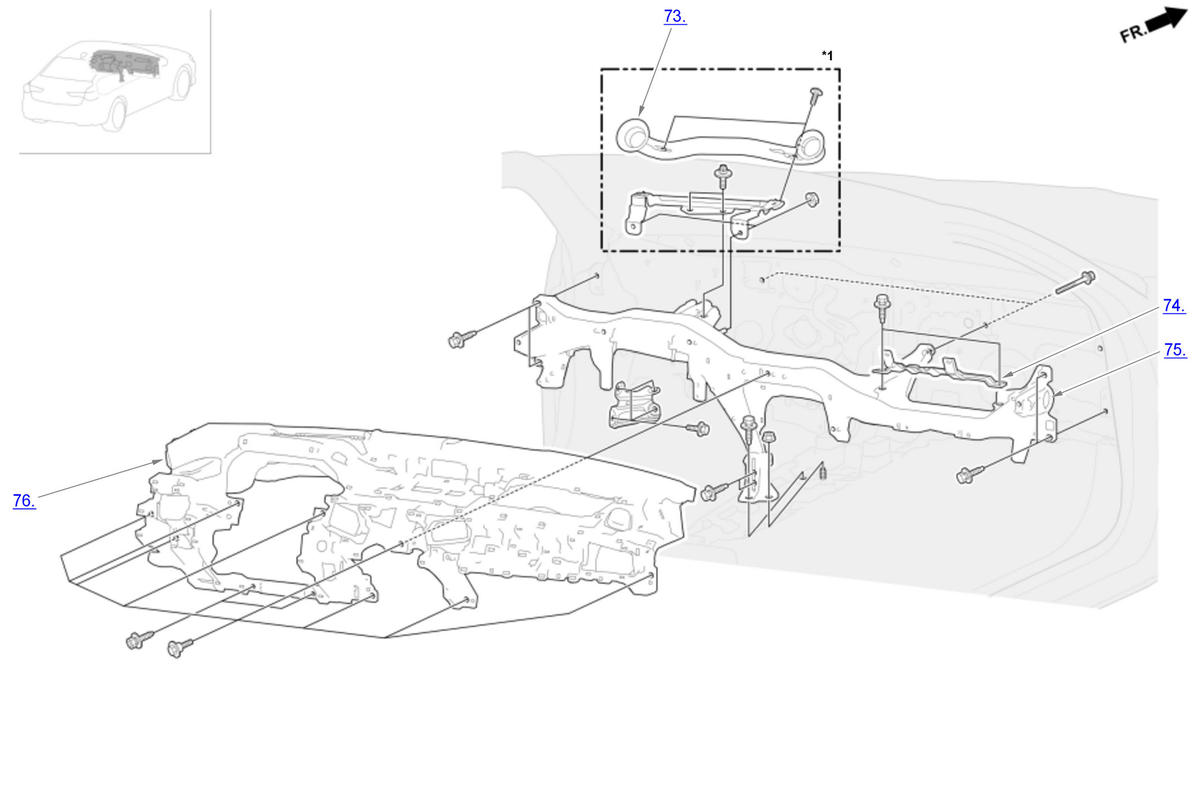

Exploded View
For replacement of components listed below, see Repair Procedure .
| *1: With head up display *2: With heated steering wheel *3: With acceleration sensor |
| *1: With AcuraLink *2: With master lighting control unit *3: With multi view camera system *4: With active vibration control unit |
| *1: With AcuraLink |
| *1: With head up display |

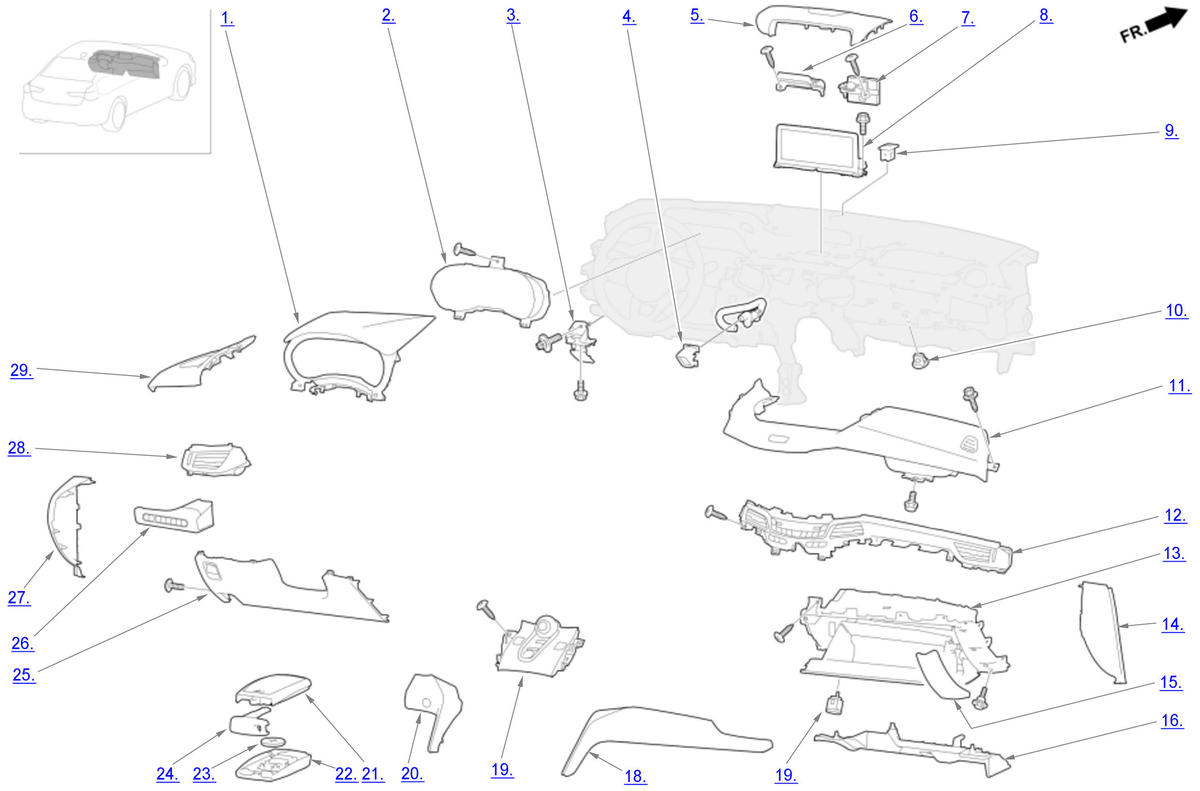

Dashboard/Steering Hanger Beam Area Components
| Component Name | Callout |
|---|---|
| Meter Visor | 1 |
| Gauge Control Module | 2 |
| Hood Opener | 3 |
| Humidity/In-Car Temperature Sensor Assembly | 4 |
| Center Speaker Lid | 5 |
| TEL Antenna (Primary) | 6 |
| TEL Antenna (Secondary) | 7 |
| Center Display Unit | 8 |
| Automatic Lighting Control Unit-Sensor/Sunlight Sensor | 9 |
| Glove Box Light | 10 |
| Passenger's Upper Panel | 11 |
| Passenger's Trim | 12 |
| Glove Box | 13 |
| Passenger's Dashboard Side Lid | 14 |
| Glove Box Trim | 15 |
| Passenger's Dashboard Undercover | 16 |
| Glove Box Key Cylinder | 17 |
| Passenger's Center Trim | 18 |
| Center Console Center Panel | 19 |
| Driver's Center Trim | 20 |
| Top Shell | 21 |
| Bottom Shell | 22 |
| Remote Battery | 23 |
| Emergency Key | 24 |
| Driver's Dashboard Lower Cover | 25 |
| Driver's Outer Trim | 26 |
| Driver's Dashboard Side Lid | 27 |
| Driver's Side Vent | 28 |
| Driver's Upper Trim | 29 |

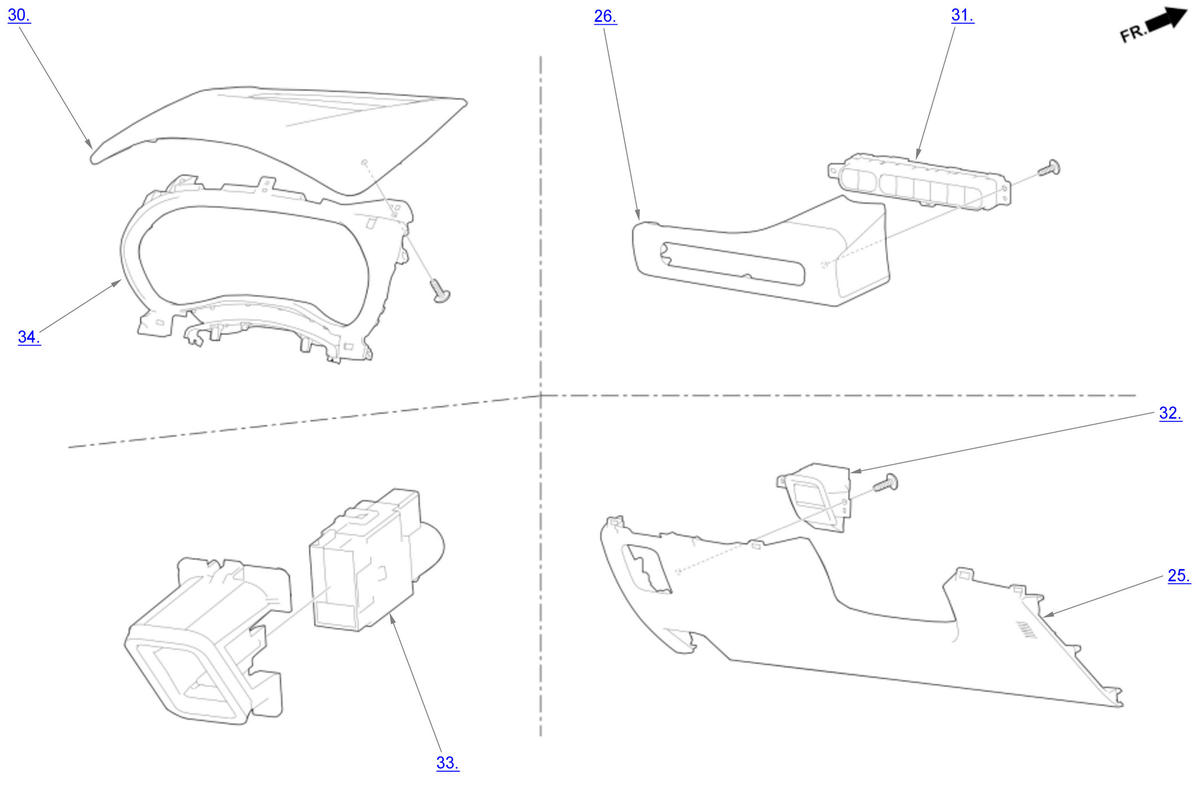

| Meter Visor Hood | 30 |
| Multi Visor Switch | 31 |
| Electric Parking Brake Switch | 32 |
| Humidity/In-Car Temperature Sensor | 33 |
| Meter Visor Panel | 34 |
| Passenger's Instrument Panel Ambient Light | 35 |
| Passenger's Footwell Light | 36 |
| Engine Start/Stop Switch | 37 |
| Driver's Instrument Panel Ambient Light | 38 |
| Front Center Speaker | 39 |

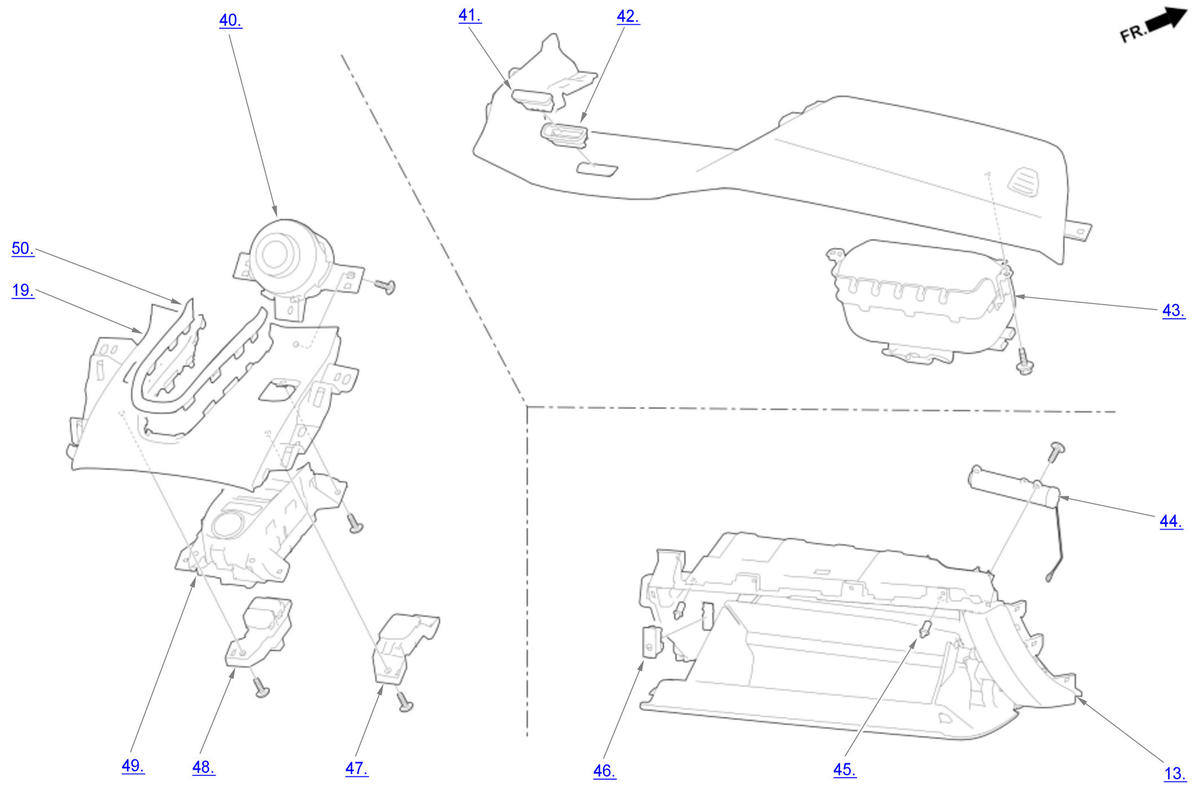

| Integrated Dynamics System Switch | 40 |
| Hazard Warning Switch | 41 |
| Hazard Warning Switch Trim | 42 |
| Front Passenger's Airbag | 43 |
| Glove Box Damper | 44 |
| Glove Box Stopper | 45 |
| Trunk Lid Opener Main Switch | 46 |
| Front Passenger's Airbag Cutoff Indicator | 47 |
| Idle Stop OFF Switch/Automatic Brake Hold Switch | 48 |
| SBW Shifter Assembly | 49 |
| Center Trim | 50 |

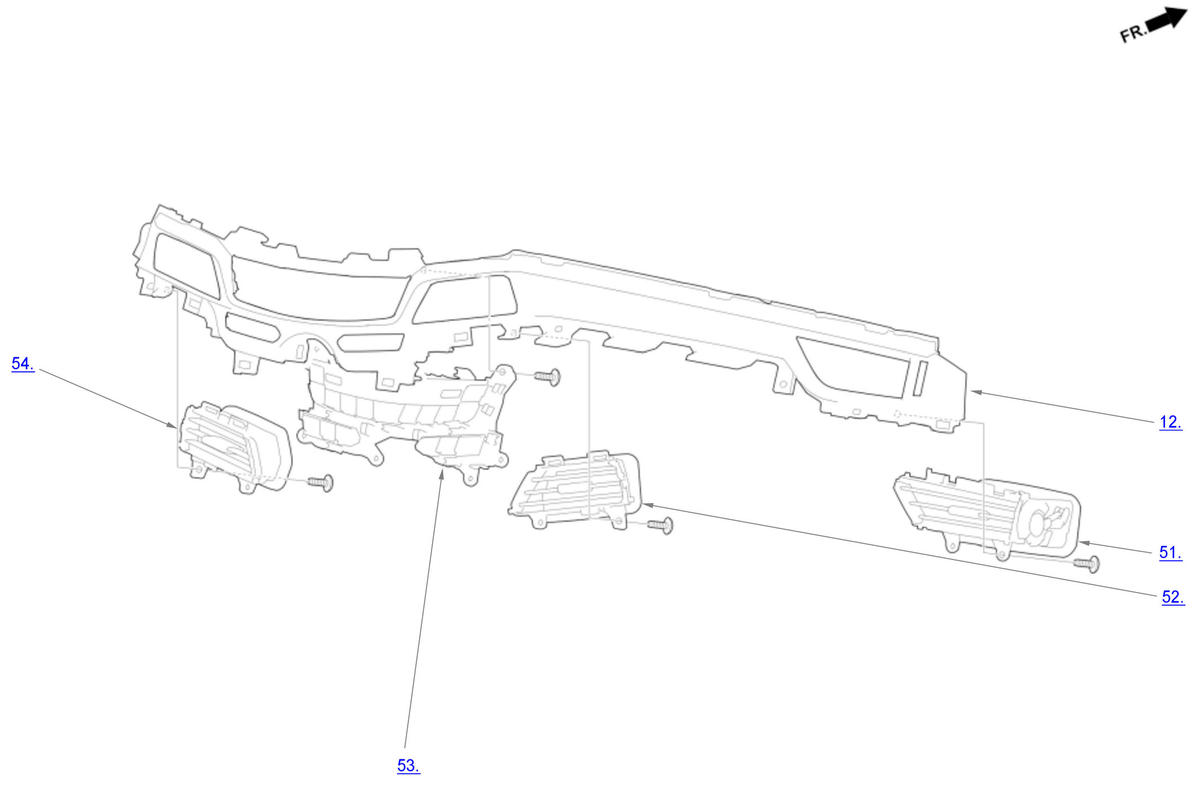

| Passenger's Side Vent | 51 |
| Passenger's Center Vent | 52 |
| Climate Control Switch | 53 |
| Driver's Center Vent | 54 |

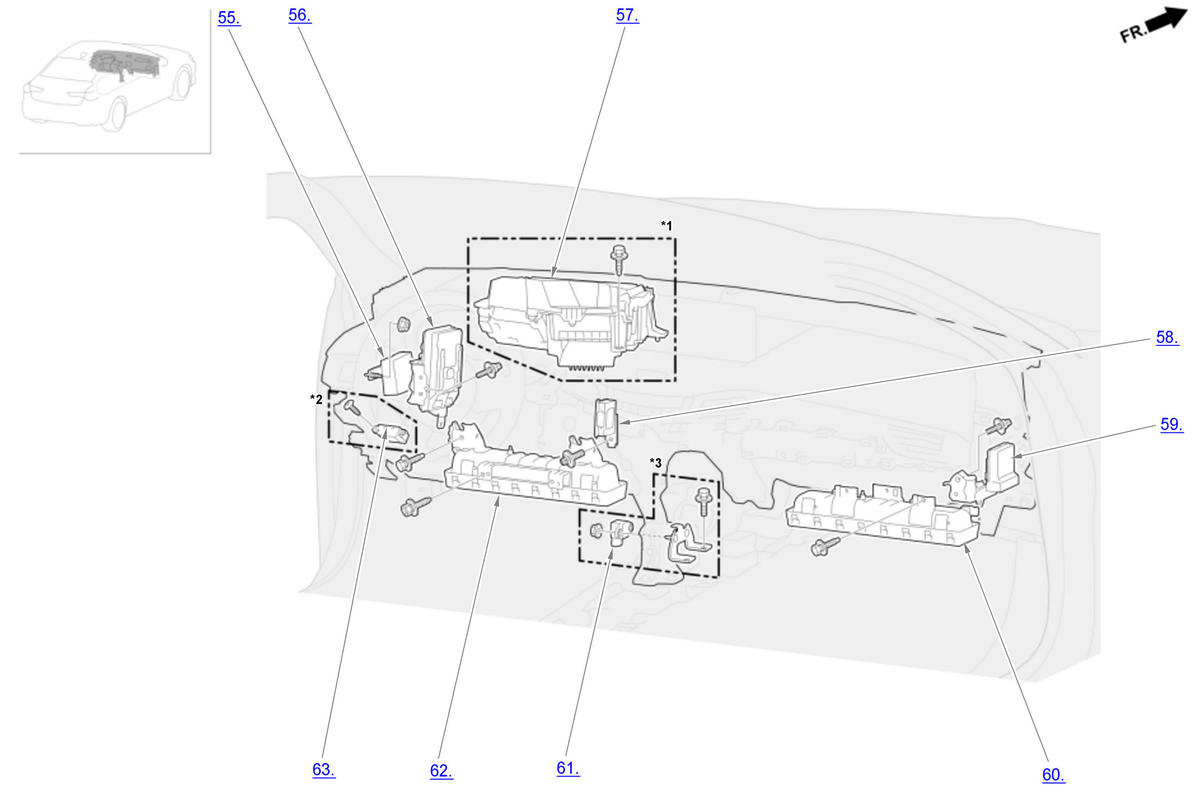

| Parking and Back-Up Sensor Control Unit | 55 |
| Body Control Module | 56 |
| Head Up Display | 57 |
| ANC/Active Sound Control Unit | 58 |
| CAN Gateway | 59 |
| Front Passenger's Knee Airbag | 60 |
| Front Acceleration Sensor | 61 |
| Driver's Knee Airbag | 62 |
| Heated Steering Wheel Unit | 63 |

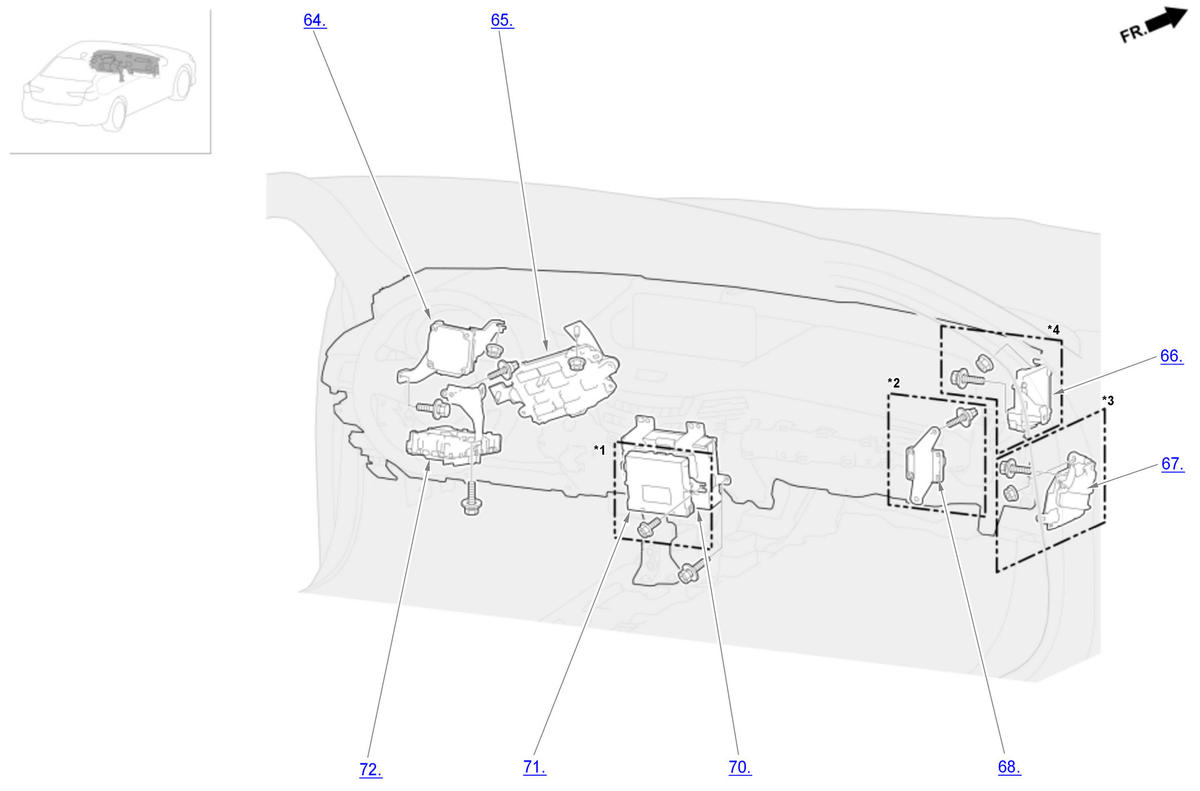

| DC-DC Converter | 64 |

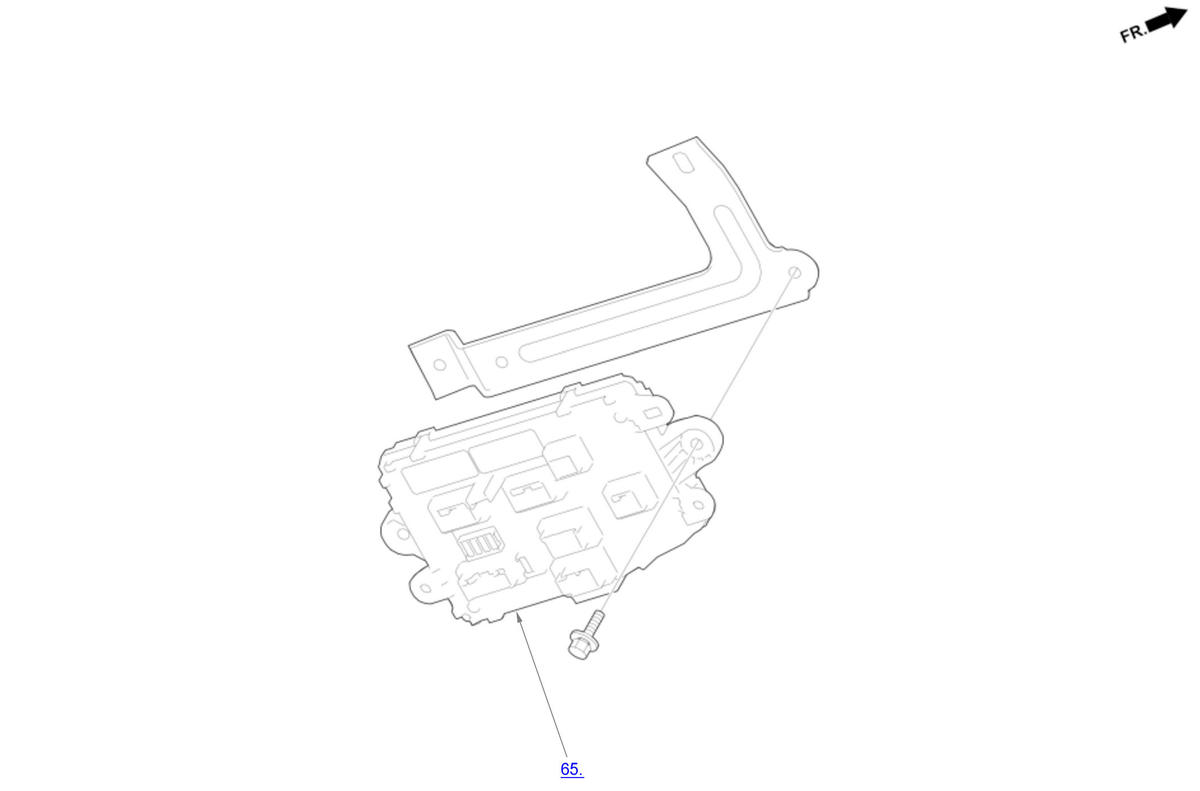

| Power Distribution Module | 65 |
| Active Vibration Control Unit | 66 |
| Multi View Camera Unit | 67 |
| Master Lighting Control Unit | 68 |
| Front Interior LF Antenna | 69 |

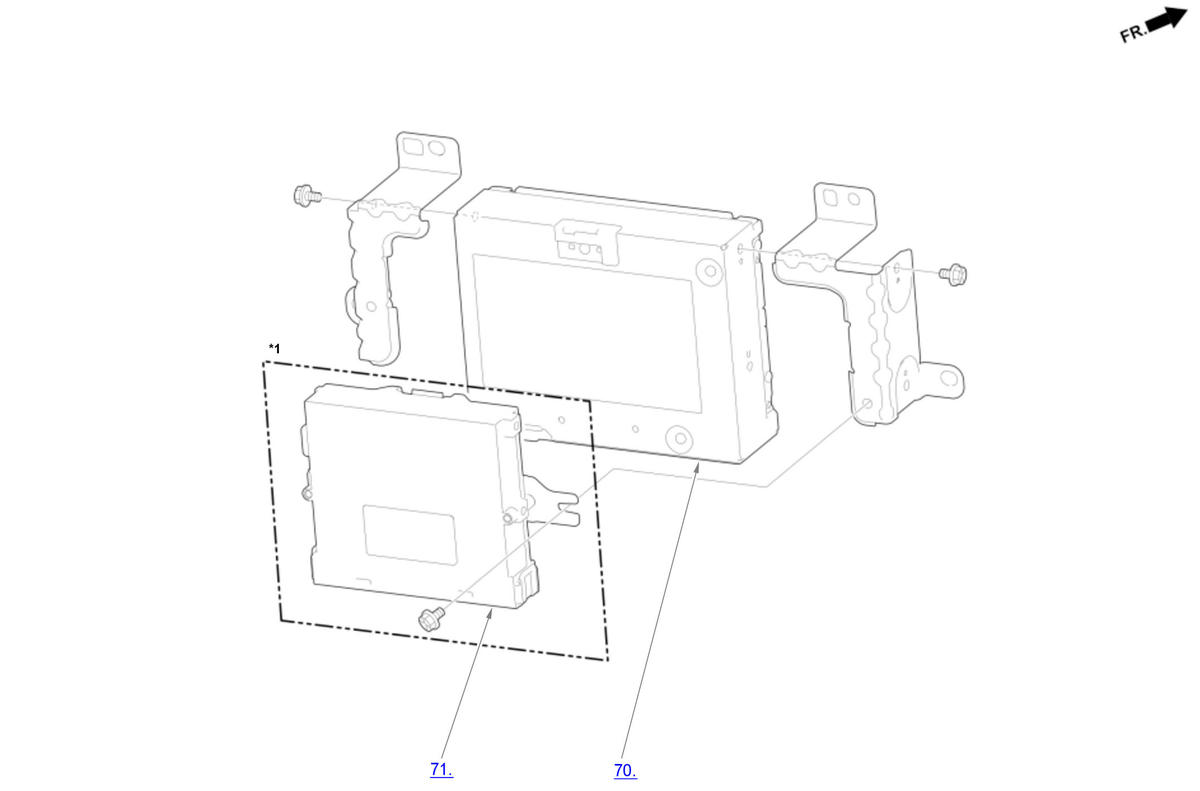

| Infotainment Control Unit | 70 |
| Telematics Control Unit | 71 |
| Under-Dash Fuse/Relay Box | 72 |
| Driver's Side Defogger Joint | 73 |
| Front Passenger's Airbag Bracket | 74 |
| Steering Hanger Beam | 75 |
| Dashboard | 76 |
