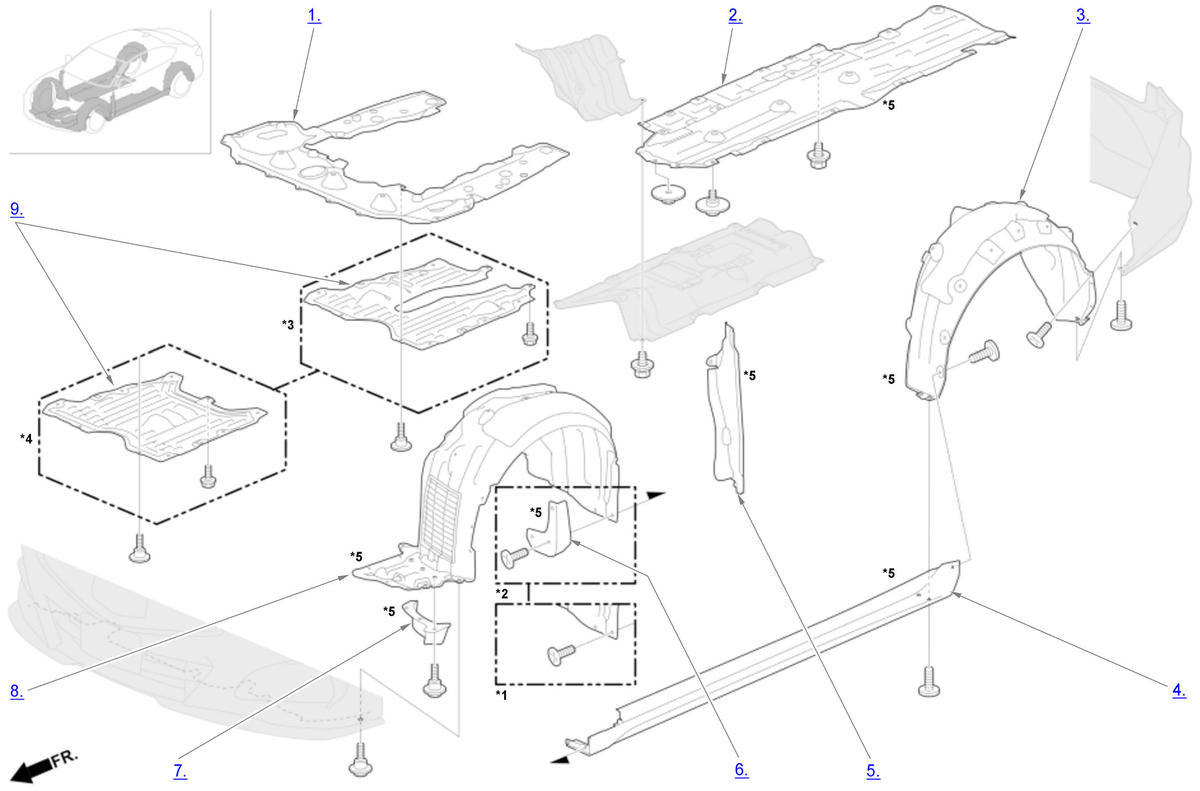

Exploded View Legend
For Replacement of components listed below, see Repair Procedure
| *1: Without front mud guard *2: With front mud guard *3: 2.0 L Engine *4: 3.0 L Engine *5: Part(s) are shown for one side only as the procedure is the same for both sides. |
Undercover Area Components
| Component Name | Callout |
|---|---|
| Engine Undercover | 1 |
| Front Floor Undercover | 2 |
| Rear Inner Fender | 3 |
| Side Sill Garnish | 4 |
| Front Fender Fairing | 5 |
| Front Mud Guard | 6 |
| Front Strake | 7 |
| Front Inner Fender | 8 |
| Engine Undercover Plate | 9 |
