Wiring Diagrams

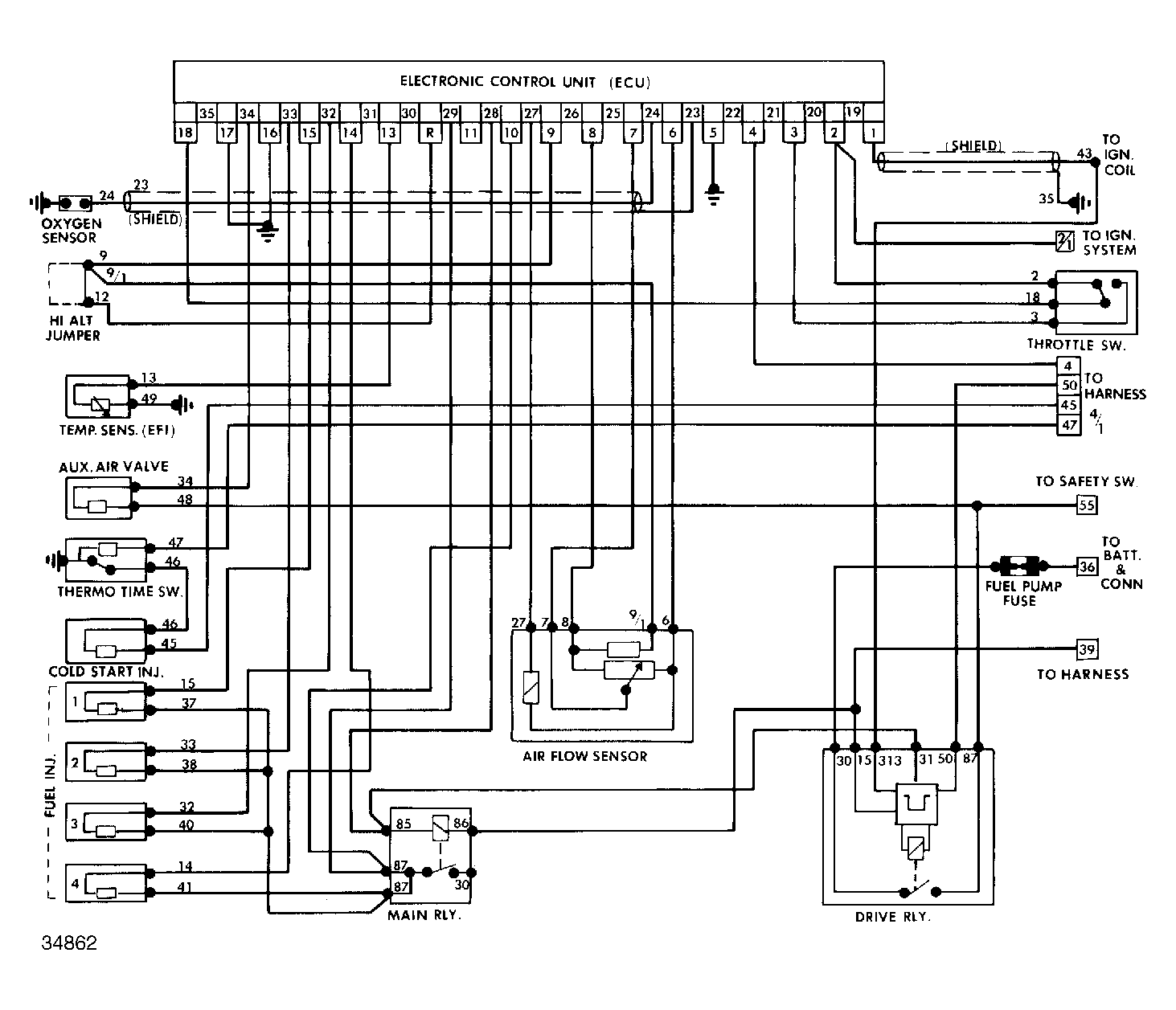

Fig 1: AFC Fuel Injection Wiring Diagram (Spider 2.0)
G34862

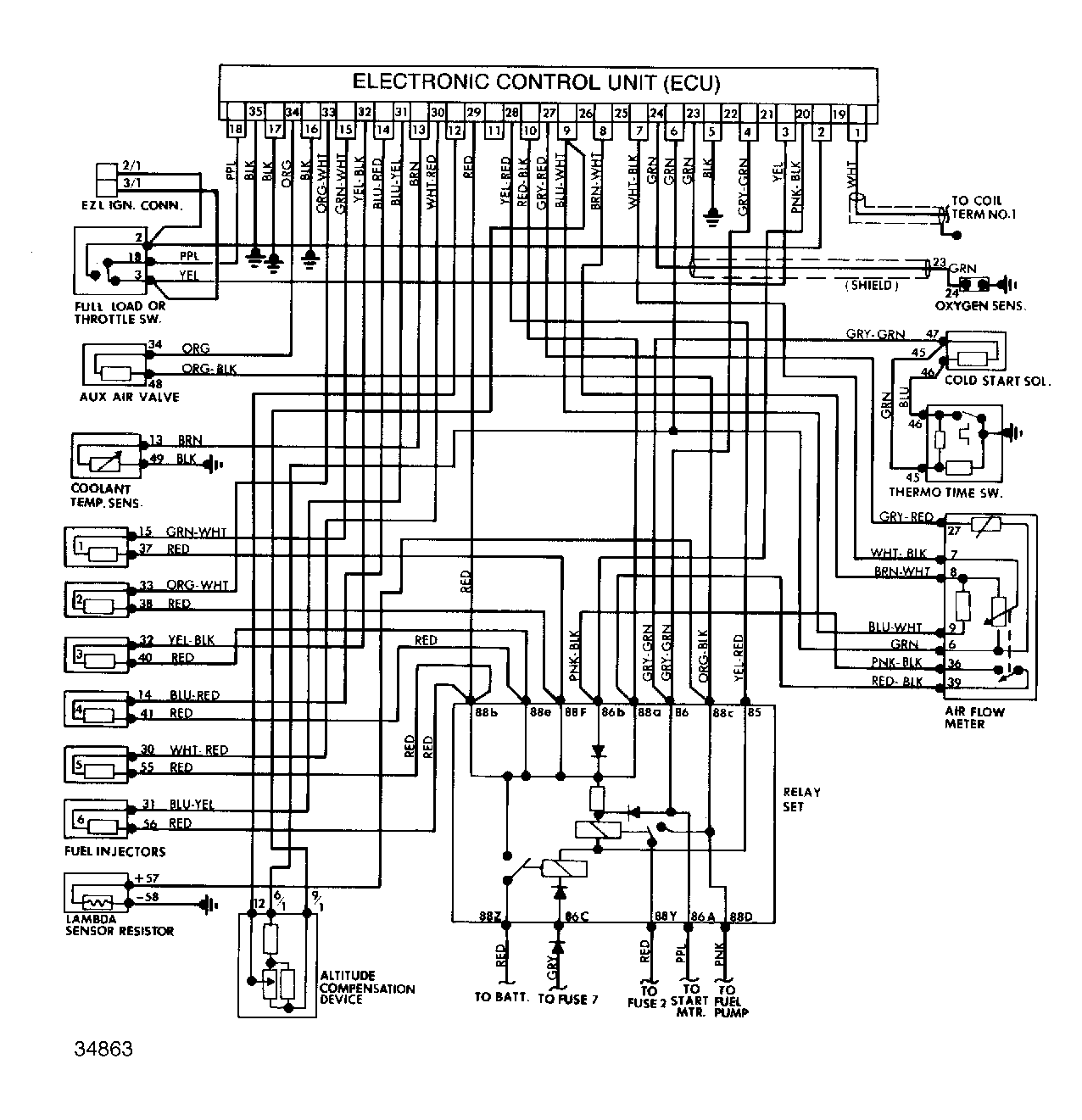

Fig 2: AFC Fuel Injection Wiring Diagram (GTV-6 2.5)
G34863
