Torque Specifications
 Courtesy of CHRYSLER GROUP, LLC
|
 Courtesy of CHRYSLER GROUP, LLC
|
| Component |
Fixing |
Size |
Value (Nm) |

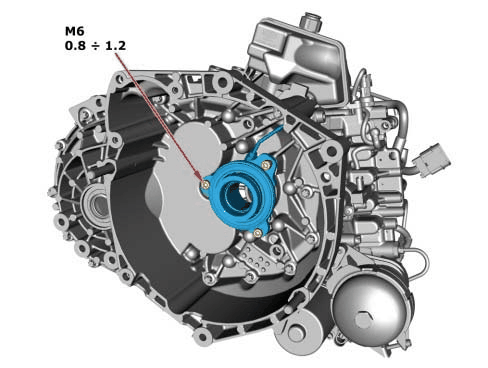

| Even speed clutch control hydraulic coaxial actuator |
Screw |
M6 |
10 |

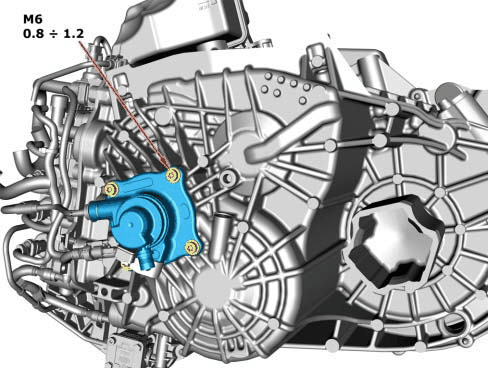

| Odd speed clutch control hydraulic actuator |
Screw |
M6 |
10 |
 Courtesy of CHRYSLER GROUP, LLC
|
| Component |
Fixing |
Size |
Value (Nm) |

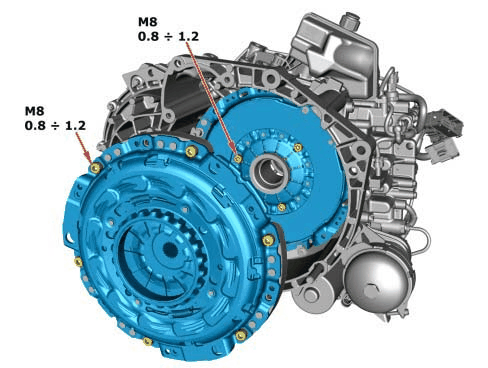

| Even speed clutch mechanism |
Screw |
M8 |
25 |
| Odd speed clutch mechanism |
Screw |
M8 |
25 |
