Switch - Driver Front

Courtesy of CHRYSLER GROUP, LLC

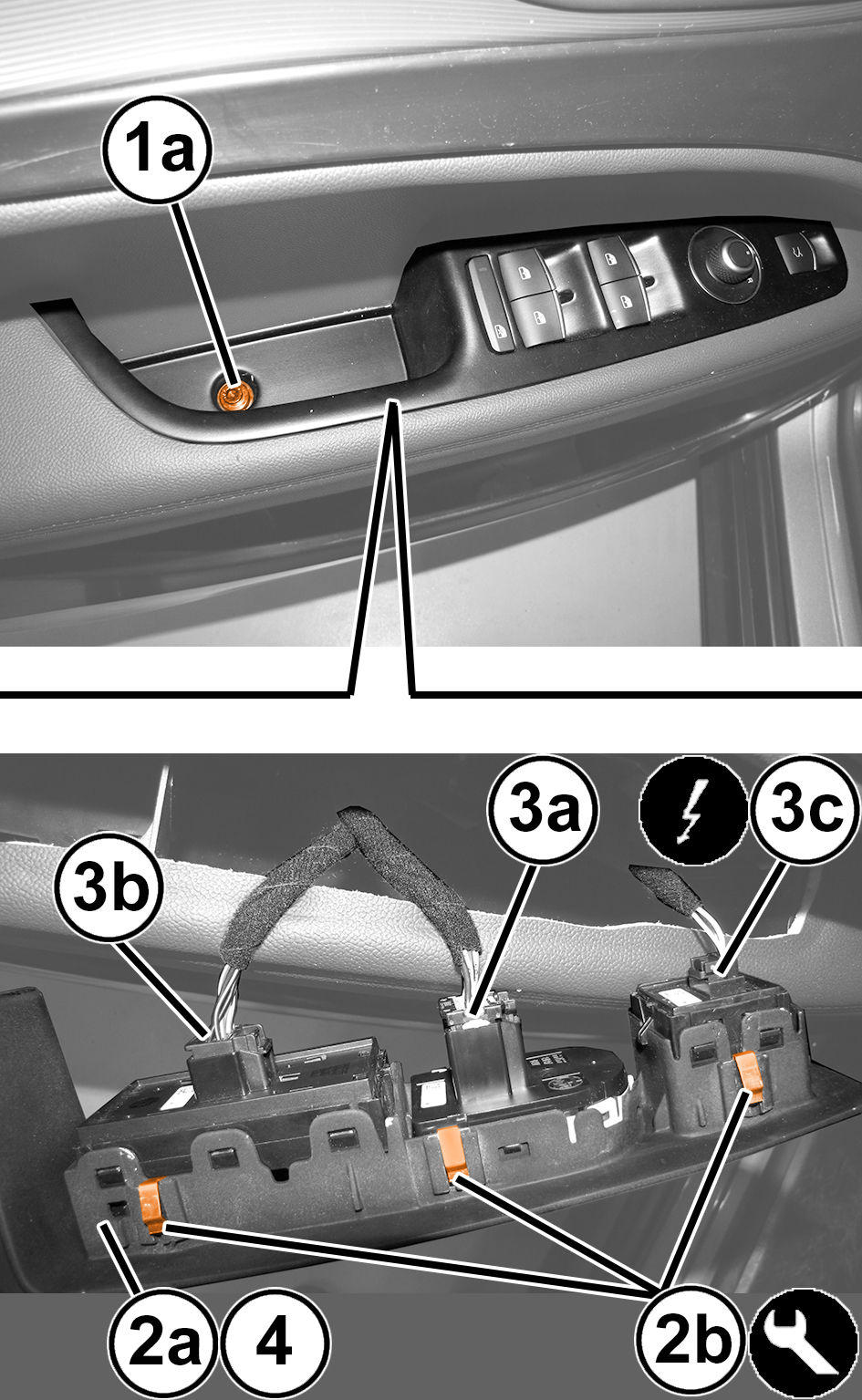

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Release the cover and remove the screw (1a).
3. Using a trim stick or suitable tool, lift up the power switch unit (2a) and release the retainers (2b).
4. Disconnect the wiring harness connectors (3a, 3b, 3c).
5. Remove the power switch unit from the vehicle.

Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

1. Position the power switch unit to the panel for installation.
2. Connect the wiring harness connectors (1a, 1b, 1c) to the power switch unit.
3. Install the power switch unit (2a) and secure the switch unit retainers (2b).
4. Connect the negative battery cable.
