Distributor Reference

The distributor reference line provides ECM with engine RPM data. The M/C solenoid is de-energized until voltage is equal to 200 RPM. This results in a rich air/fuel mixture for engine starting.

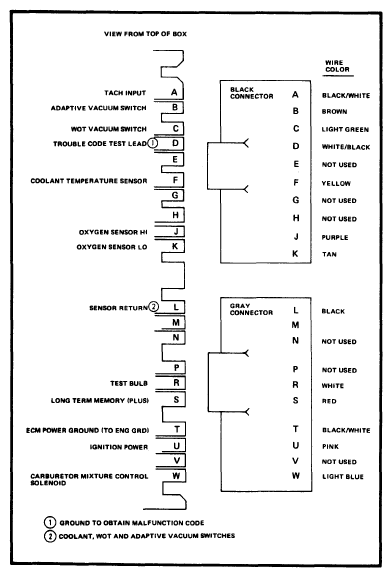

Fig 1: American Motors C-4 ECM Terminal Identification

Courtesy of AMERICAN MOTORS/RENAULT CORP.
