Man. Trans. Upshift Test

This test checks the up-shift indicator lamp function on vehicles with manual transmissions.

NOTE: To avoid replacing a good ECU, take it to an AMC/Renault dealer and have it tested.

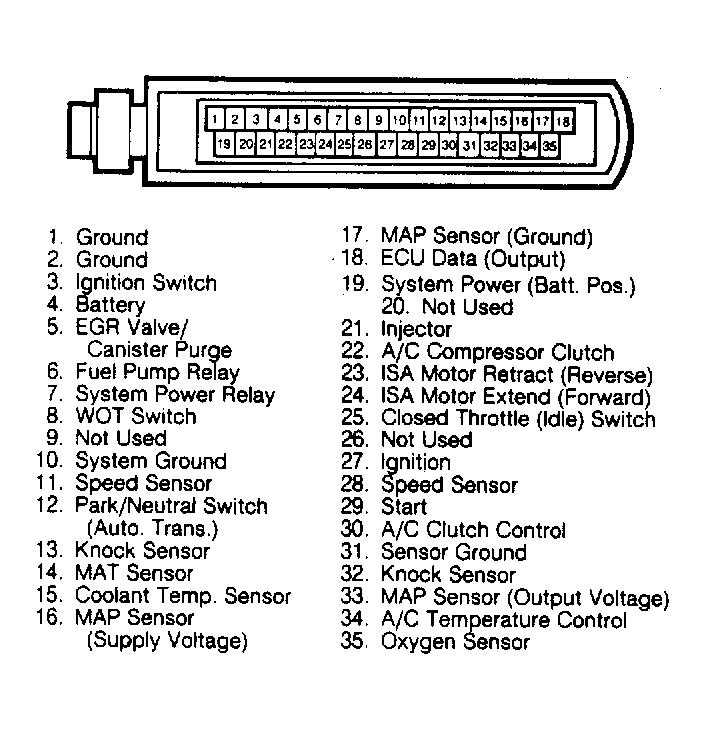

Fig 1: Renix/AMC Fuel Injection ECU Connector

G3280

Fig 2: Chart 1 - Ignition Switch Off

G2339

Fig 3: Chart 2-A - Ignition Switch On (1 of 3)

G2340

Fig 4: Chart 2-B - Ignition Switch On (2 of 3)

G3939

Fig 5: Chart 2-C - Ignition Switch On (3 of 3)

G2343

Fig 6: Chart 3-A - Closed Throttle Switch, WOT Switch & Sensor Test (1 of 6)

G5688

Fig 7: Chart 3-B - Closed Throttle Switch, WOT Switch & Sensor Test (2 of 6)

G5689

Fig 8: Chart 3-C - Closed Throttle Switch, WOT Switch & Sensor Test (3 of 6)

G2345

Fig 9: Chart 3-D - Closed Throttle Switch, WOT Switch & Sensor Test (4 of 6)

G2346

Fig 10: Chart 3-E - Closed Throttle Switch, WOT Switch & Sensor Test (5 of 6)

G2347

Fig 11: Chart 3-F - Closed Throttle Switch, WOT Switch & Sensor Test (6 of 6)

G2349

Fig 12: Chart 4-A - System Operational Test (1 of 11)

G2348

Fig 13: Chart 4-B - System Operational Test (2 of 11)

G2351

Fig 14: Chart 4-C - System Operational Test (3 of 11)

G2350

Fig 15: Chart 4-D - System Operational Test (4 of 11)

G2352

Fig 16: Chart 4-E - System Operational Test (5 of 11)

G2353

Fig 17: Chart 4-F - System Operational Test (6 of 11)

G5699

Fig 18: Chart 4-G - System Operational Test (7 of 11)

G2355

Fig 19: Chart 4-H - System Operational Test (8 of 11)

G2357

Fig 20: Chart 4-I - System Operational Test (9 of 11)

G5702

Fig 21: Chart 4-J - System Operational Test (10 of 11)

G2358

Fig 22: Chart 4-K - System Operational Test (11 of 11)

G2359

Fig 23: Chart 5 - Basic Engine Test

G2360

Fig 24: Chart 6-A - Man. Trans. Up-Shift Test (1 of 2)

G2361

Fig 25: Chart 6-B - Man. Trans. Up-Shift Test (2 of 2)

G2362
