Switch Test

  1. Connect jumper between Red and Yellow (or Violet) wires at switch connector. Connect a second jumper between Black and Orange (or Dark Green) wires. Motor should move window up or down.

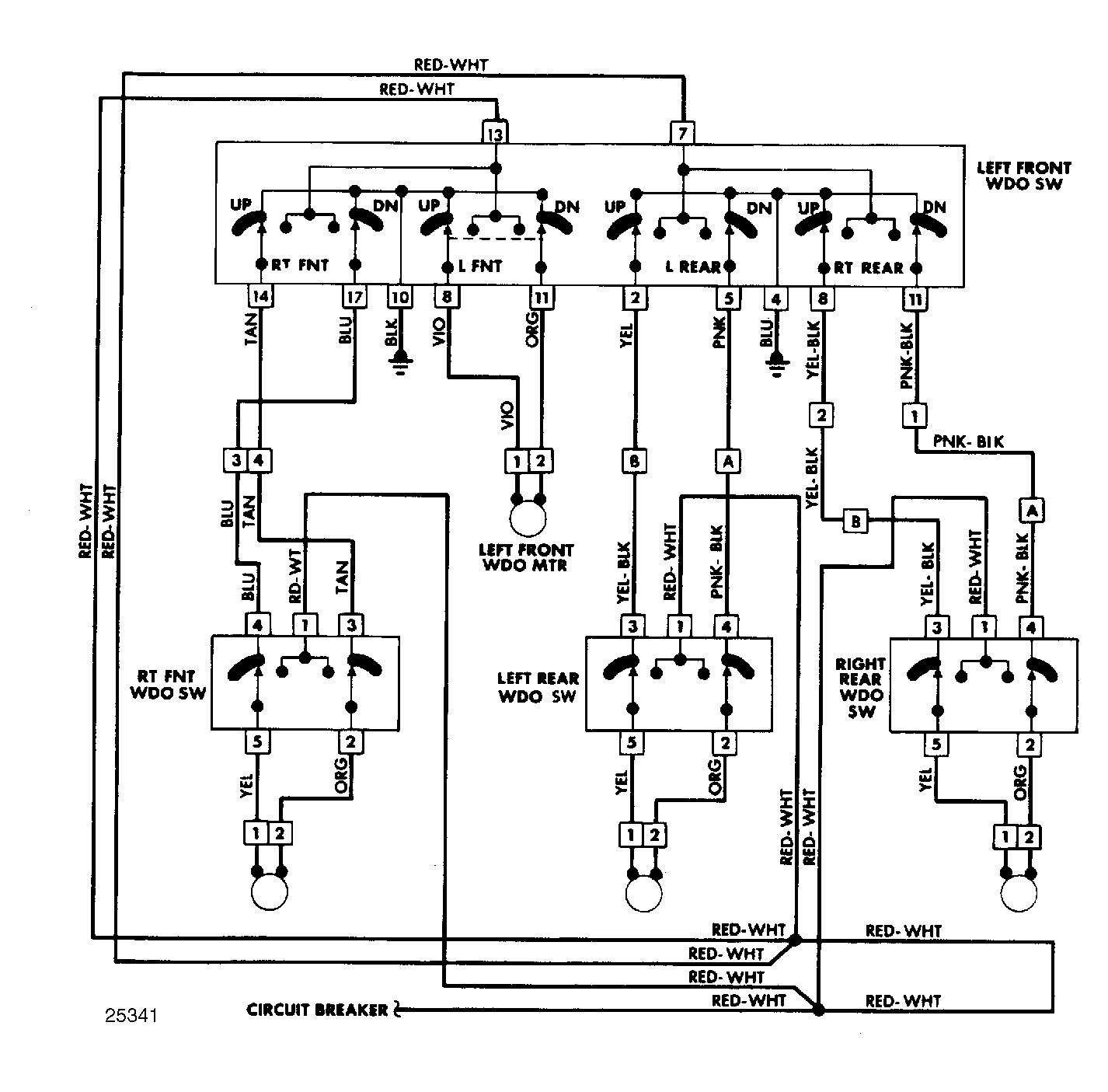

  2. Reverse jumper wire connections. Motor should move window in opposite direction from first test. See Figure . If motor operates properly, reconnect switch and test for correct operation. If not, perform motor test.
