Test No. 8
Fig 1: Test No. 8: Upstream Solenoid Test

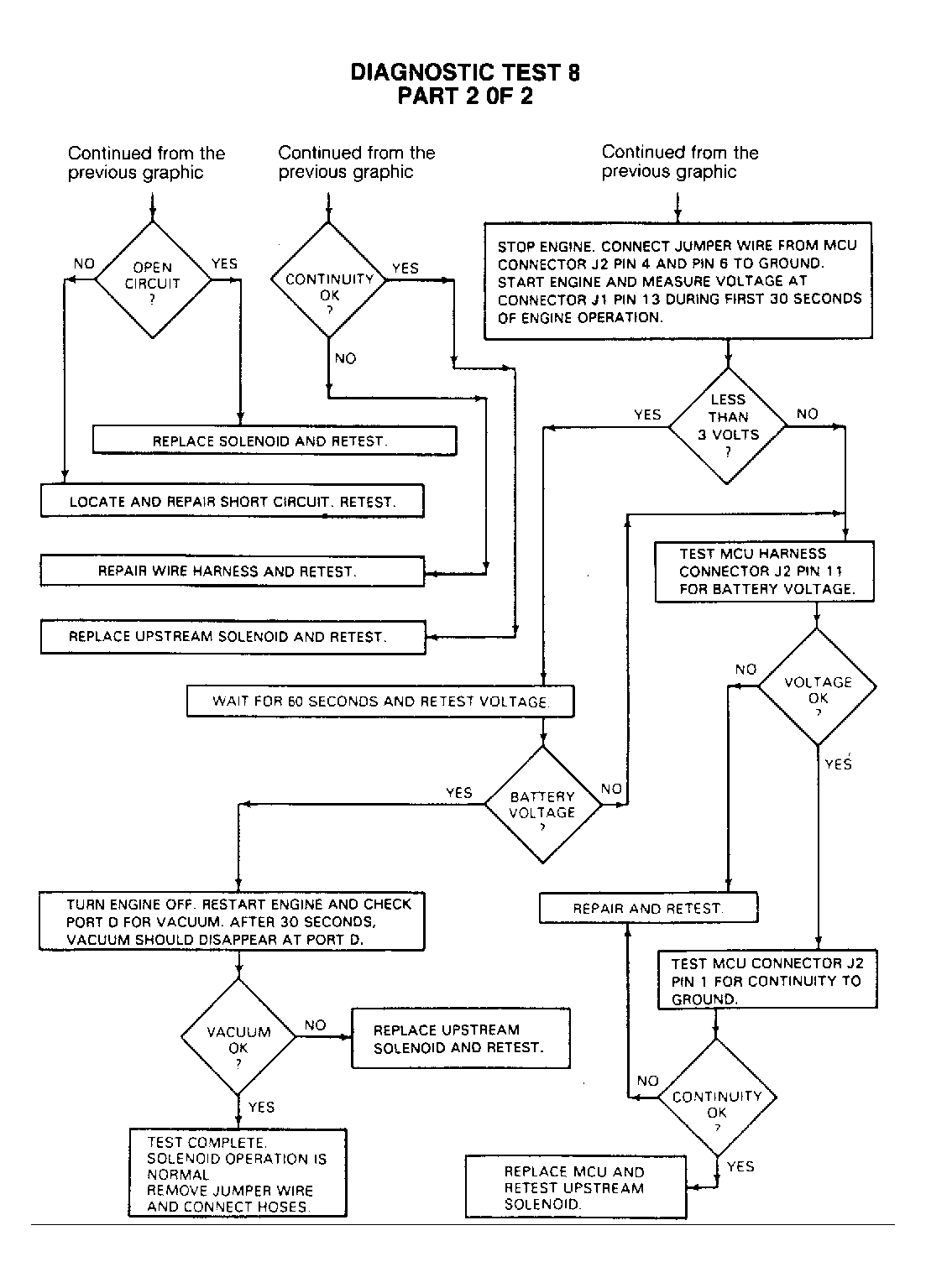

Fig 2: Test No. 8: Upstream Solenoid Test (Continued)
