Driver's Window Operating Switch
To test driver's window switch, see
Fig 1
and
Fig 2
.

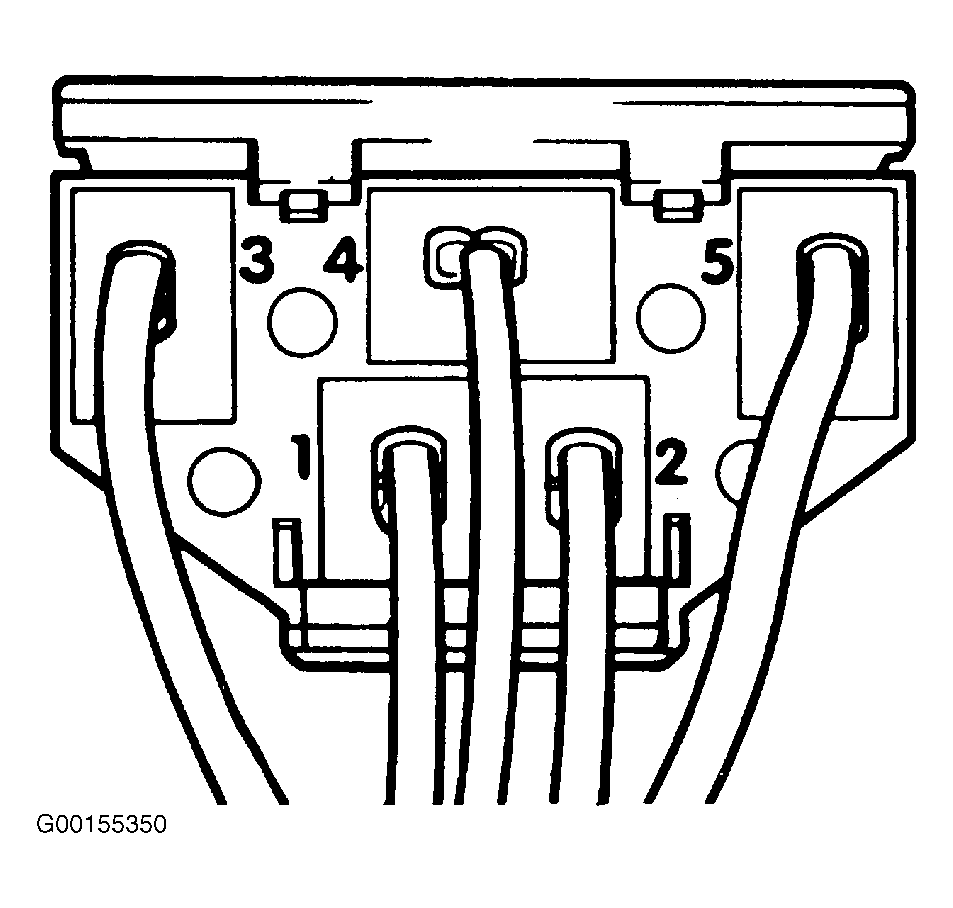

Fig 1: Locating Driver's Window Operating Switch Connector
Courtesy of AUDI OF AMERICA, INC.

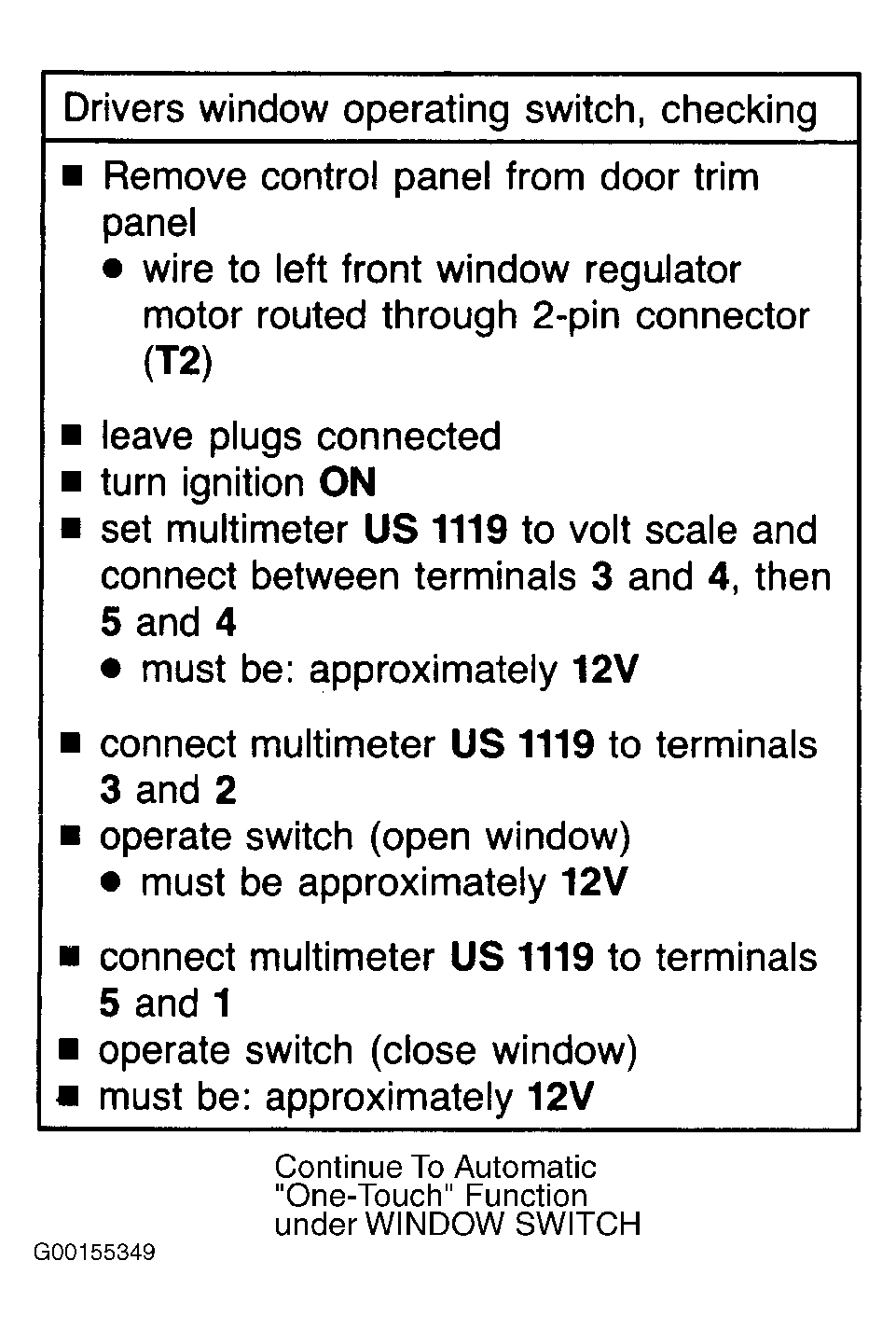

Fig 2: Testing Driver's Window Operating Switch
Courtesy of AUDI OF AMERICA, INC.
Courtesy of AUDI OF AMERICA, INC.
Courtesy of AUDI OF AMERICA, INC.
