Operation Test

For testing procedure, see Fig 1 and Fig 2 .

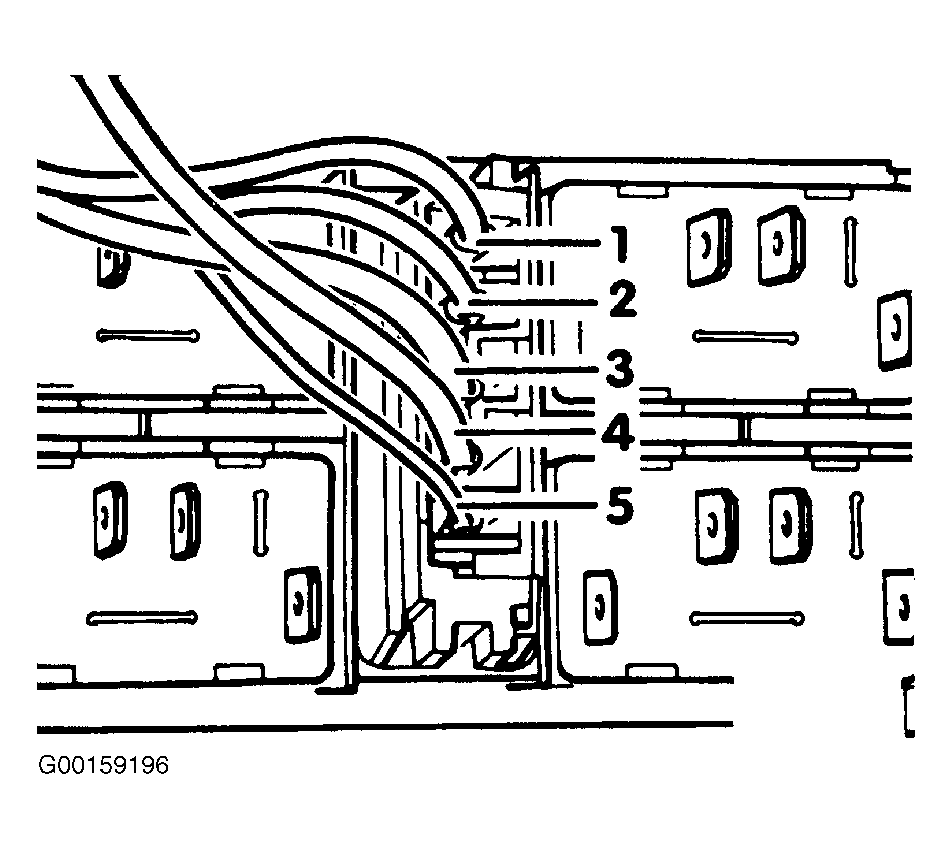

Fig 1: Identifying Rear Window Safety Switch Terminals
G00159196Courtesy of AUDI OF AMERICA, INC.

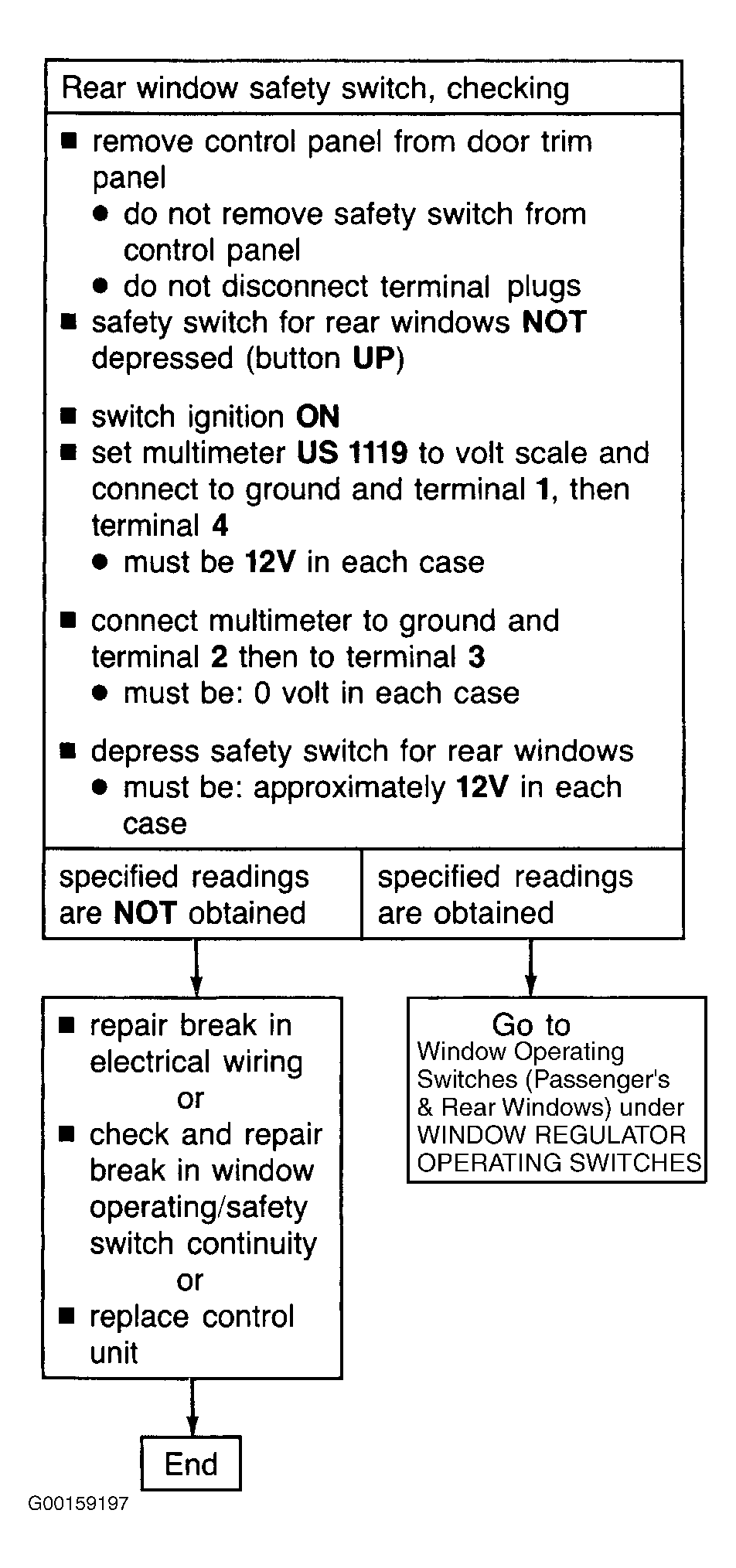

Fig 2: Testing Rear Window Safety Switch
G00159197Courtesy of AUDI OF AMERICA, INC.
