Data Link Connector: Locations

The Data Link Connectors are located in the Auxiliary Relay Station I which is in the engine compartment left side

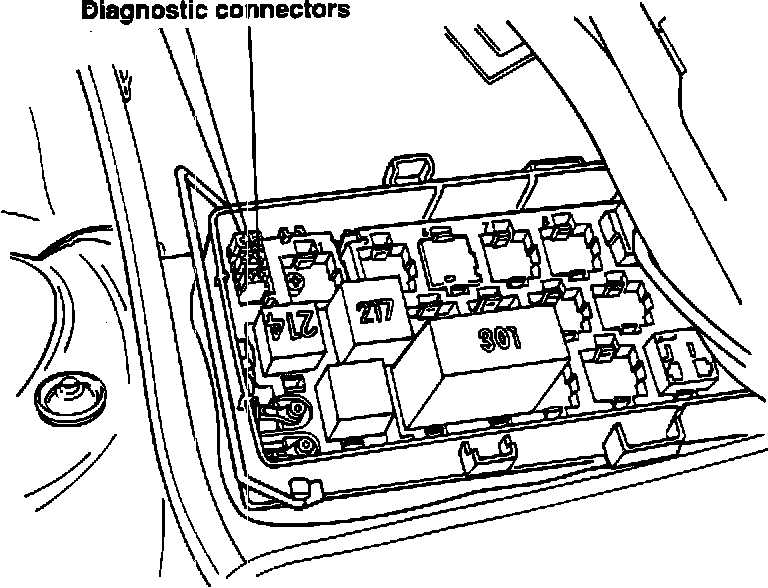

Data Link Connector Location:





The Data Link Connectors are mounted in the lower corner.
