Power Steering Pump Pressure Test

Fig 1: Checking Power Steering Pump Pressure (1 Of 3)

Courtesy of AUDI OF AMERICA, INC.

Fig 2: Checking Power Steering Pump Pressure (2 Of 3)

Courtesy of AUDI OF AMERICA, INC.

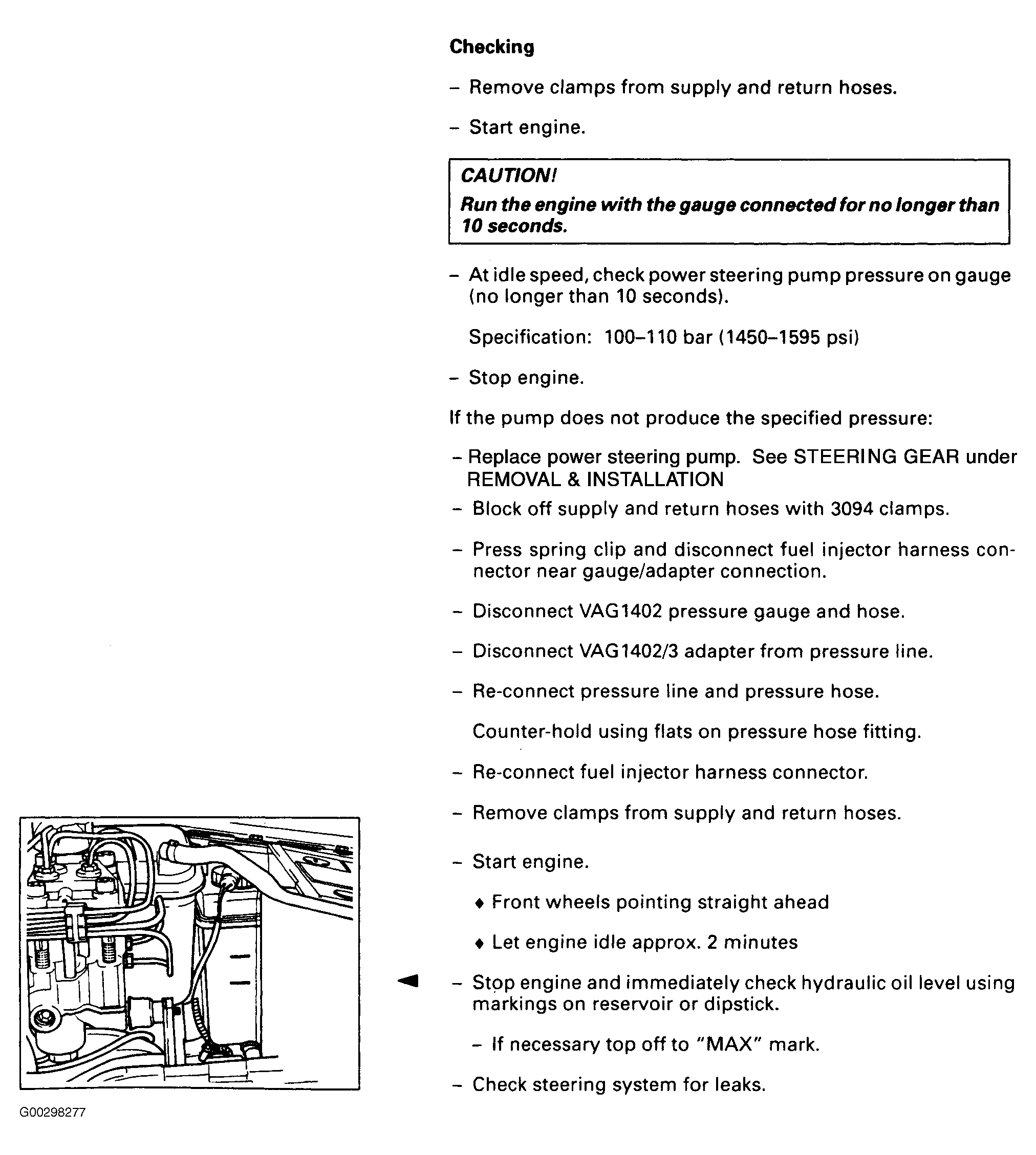

Fig 3: Checking Power Steering Pump Pressure (3 Of 3)

Courtesy of AUDI OF AMERICA, INC.
