Oxygen Sensor: Locations

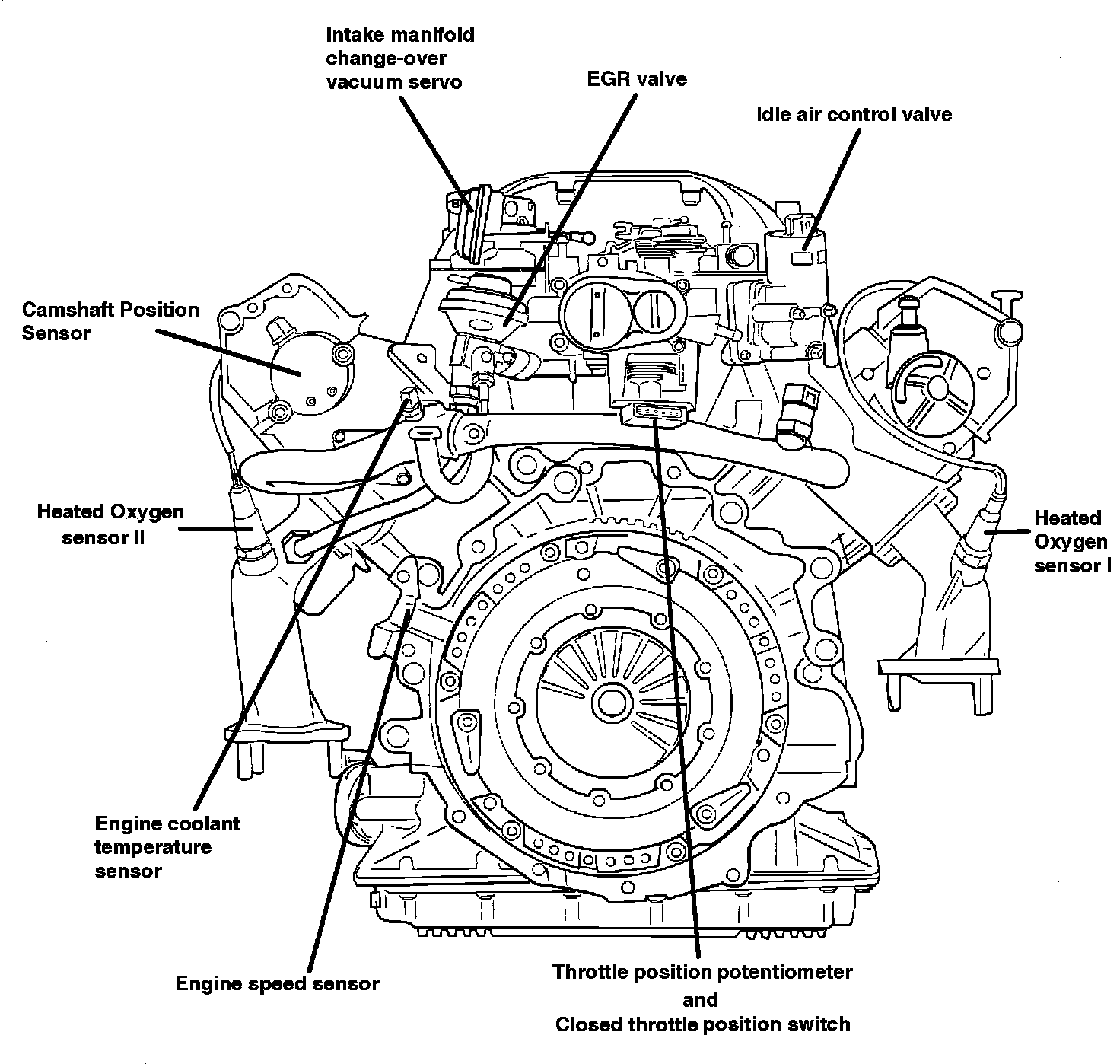

Component Location Engine Rear View:





The Heated Oxygen Sensors are located at the rear of each exhaust manifold.
