55-Pin Transmission Control Module (1995)
Turn ignition switch to OFF position. Remove TCM. Disconnect TCM harness connector. Connect VAG 1598A text box to TCM harness connector, and VAG 1598/5 adapter cable to TCM.
Carry out only appropriate test steps for components or wiring connections to be tested. See TRANSMISSION CONTROL TESTS (1995)
table. Given specified values are valid for an ambient temperature of 32-104°F (0-40°C). If values deviate from specified values, determine malfunction per wiring diagram. See WIRING DIAGRAMS
. If measured values deviate slightly from specified values, clean terminals and connections of test unit and adapters, repeat test. Before replacing respective component, check wires and connections, repeat resistance checks, especially on components with a specified values of less than 10,000 ohms.
TRANSMISSION CONTROL MODULE 55-PIN TERMINAL ASSIGNMENT
| TCM Connector Terminal No. |
Terminal Assignment |
| 1 |
Supply Voltage |
| 2 |
Transmission Vehicle Speed Sensor |
| 3 |
Engine Speed Signal |
| 4 |
Shift Lock Solenoid & Shift Lock Control Solenoid |
| 5 |
Solenoid Valve No. 1 |
| 6 |
Solenoid Valve No. 4 (Pressure Regulator) |
| 7 |
Ground (GND) |
| 8 |
Not Used |
| 9 |
Not Used |
| 10 |
Not Used |
| 11 |
Left Front ABS Wheel Speed Sensor |
| 12 |
Right Rear ABS Wheel Speed Sensor |
| 13 |
Shut Off A/C At Kick Down |
| 14 |
Multi-Function Transmission Range Switch |
| 15 |
Not Used |
| 16 |
Not Used |
| 17 |
Supply Voltage (Cruise Control Only) |
| 18 |
Not Used |
| 19 |
Supply Voltage For Solenoid Valves |
| 20 |
Transmission Vehicle Speed Sensor (Shield) |
| 21 |
Fuel Consumption Signal |
| 22 |
Not Used |
| 23 |
Not Used |
| 24 |
Solenoid Valve No. 2 |
| 25 |
Not Used |
| 26 |
Not Used |
| 27 |
Not Used |
| 28 |
Not Used |
| 29 |
Not Used |
| 30 |
Right Front ABS Wheel Speed Sensor |
| 31 |
Transmission Range Selector Display |
| 32 |
Ignition Timing Angle Retarding/Injection Amount Decrease |
| 33 |
Multi-Finction Transmission Range Switch |
| 34 |
Not Used |
| 35 |
Not Used |
| 36 |
Not Used |
| 37 |
Not Used |
| 38 |
Transmission Vehicle Speed Sensor |
| 39 |
Supply Voltage |
| 40 |
Input Signal From ABS Control Module |
| 41 |
Kick Down Signal |
| 42 |
Solenoid Valve No. 3 |
| 43 |
Not Used |
| 44 |
Transmission Fluid Temperature Sensor |
| 45 |
Not Used |
| 46 |
Transmission Fluid Temperature Sensor |
| 47 |
Accelerator Pedal Value From ECM |
| 48 |
Left Rear ABS Wheel Speed Signal |
| 49 |
Not Used |
| 50 |
Multi-Function Transmission Range Switch |
| 51 |
K-Wire For Diagnostics |
| 52 |
Not Used |
| 53 |
Not Used |
| 54 |
Output Signal for Cruise Control |
| 55 |
Not Used |
TRANSMISSION CONTROL TESTS (1995)
| Component To Be Tested |
Test Step |

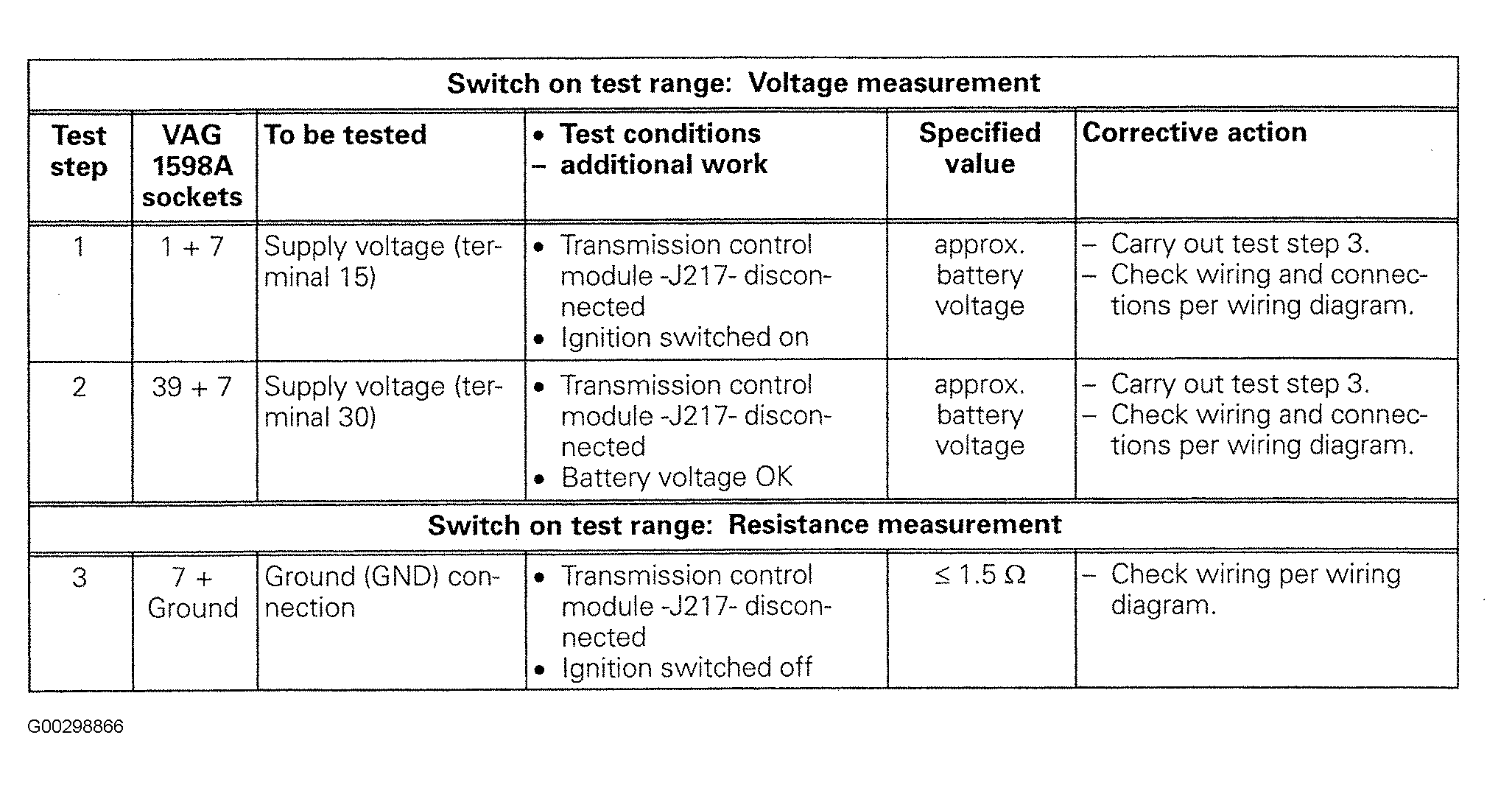

| Supply Voltage From TCM |
1, 2 & 3. See Fig 2 |

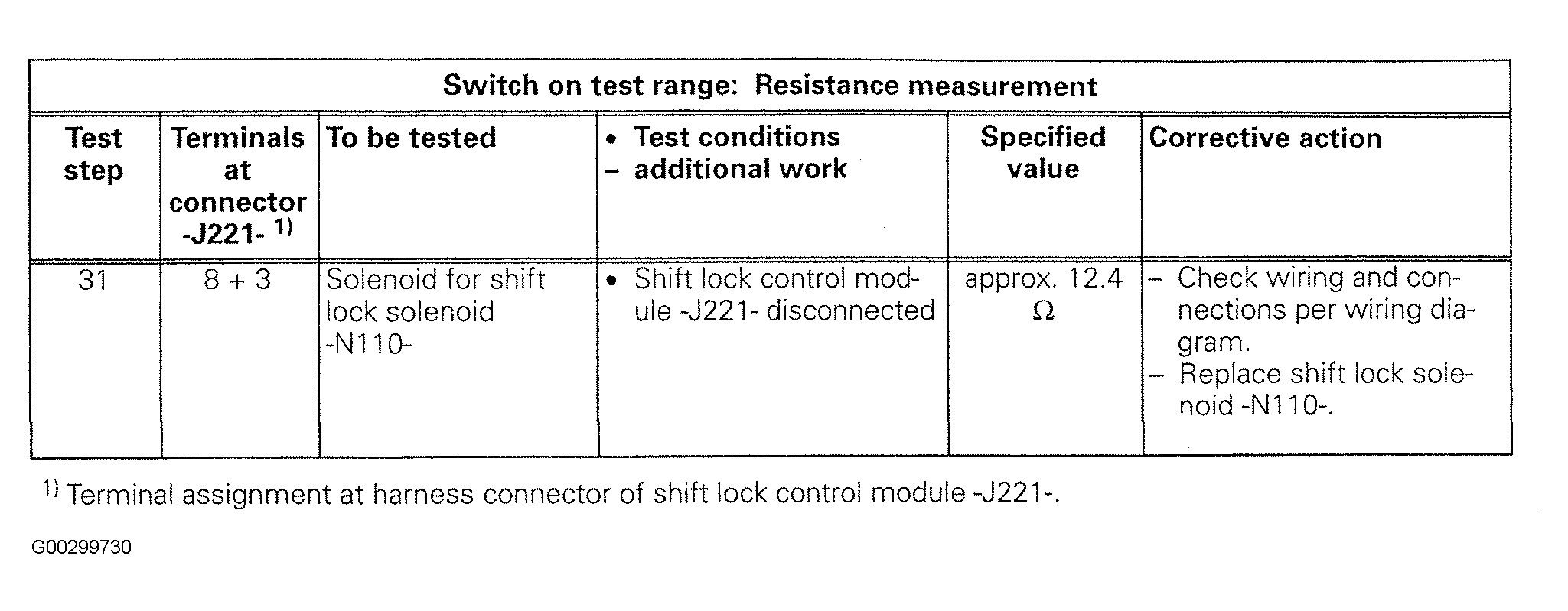

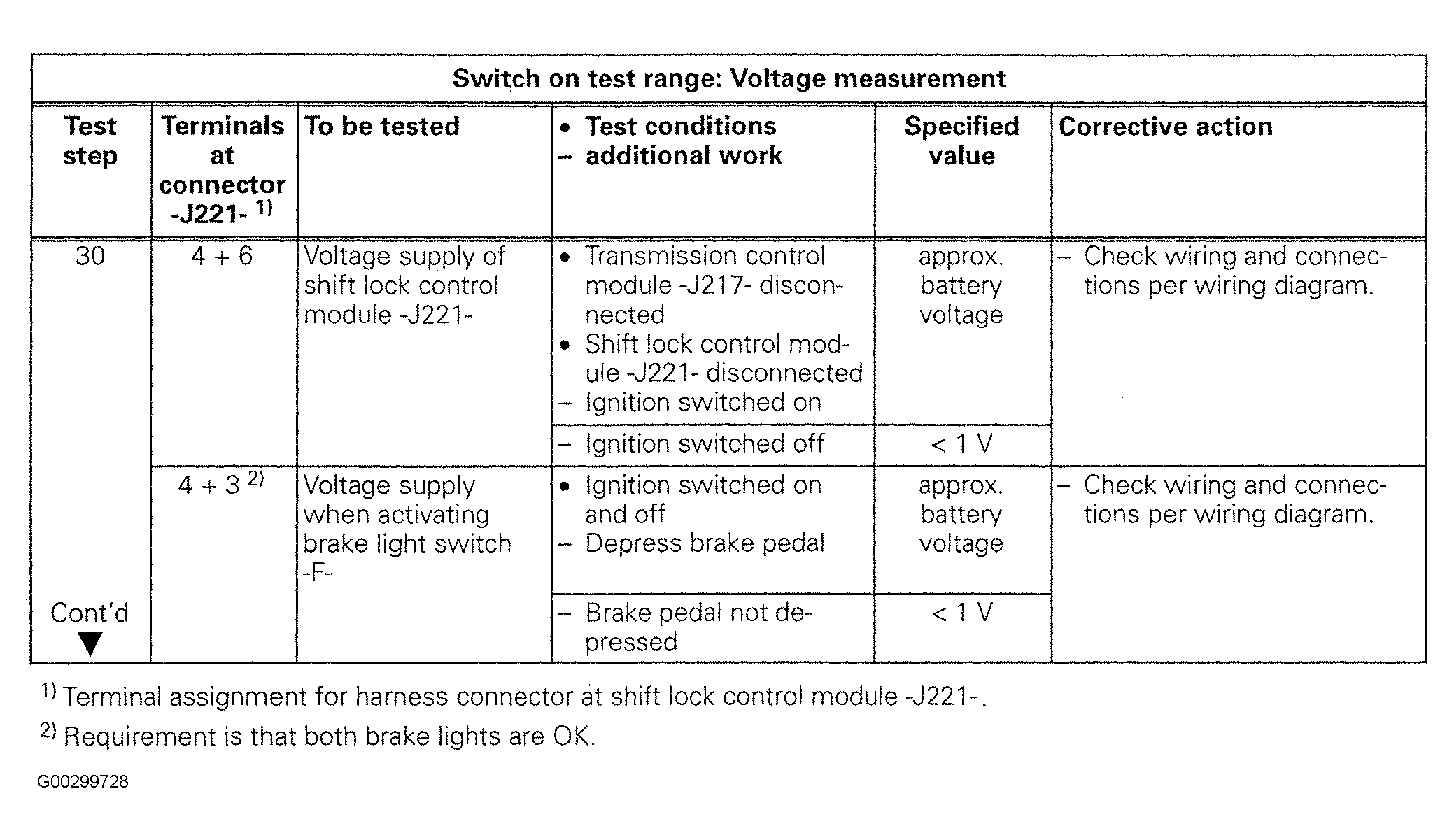

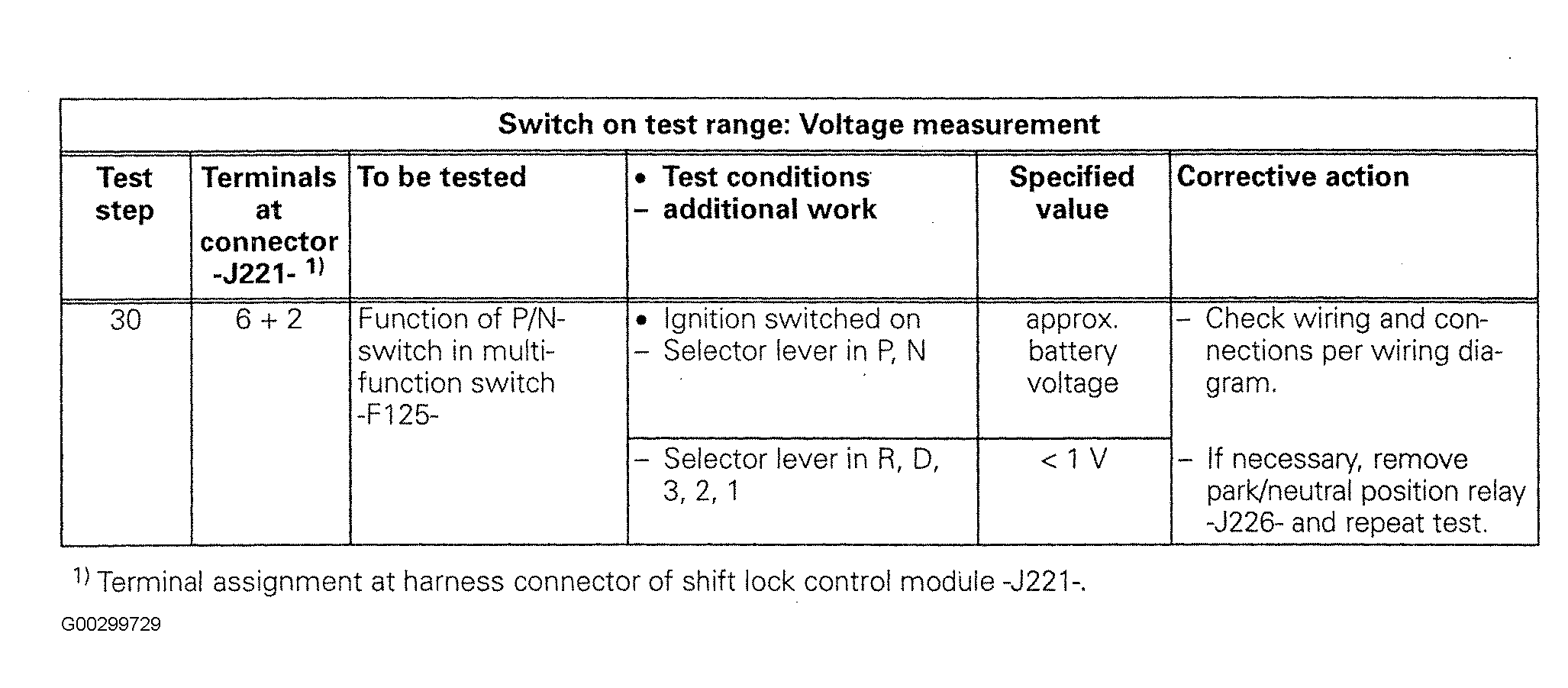

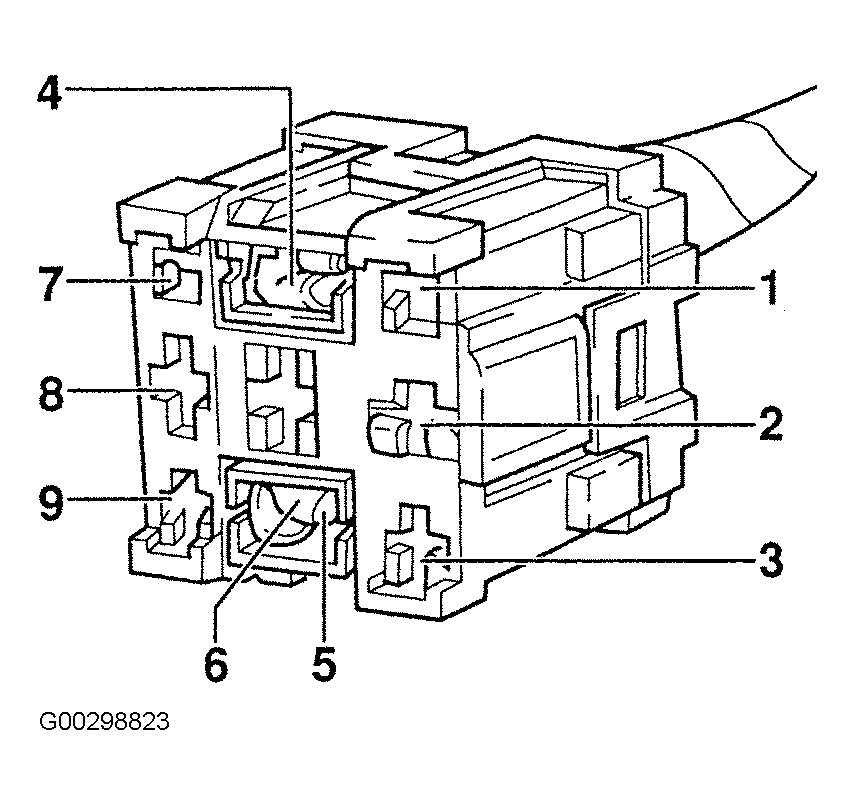

| Shift Lock Solenoid |
30 & 31. See Fig 29
-Fig 32 |

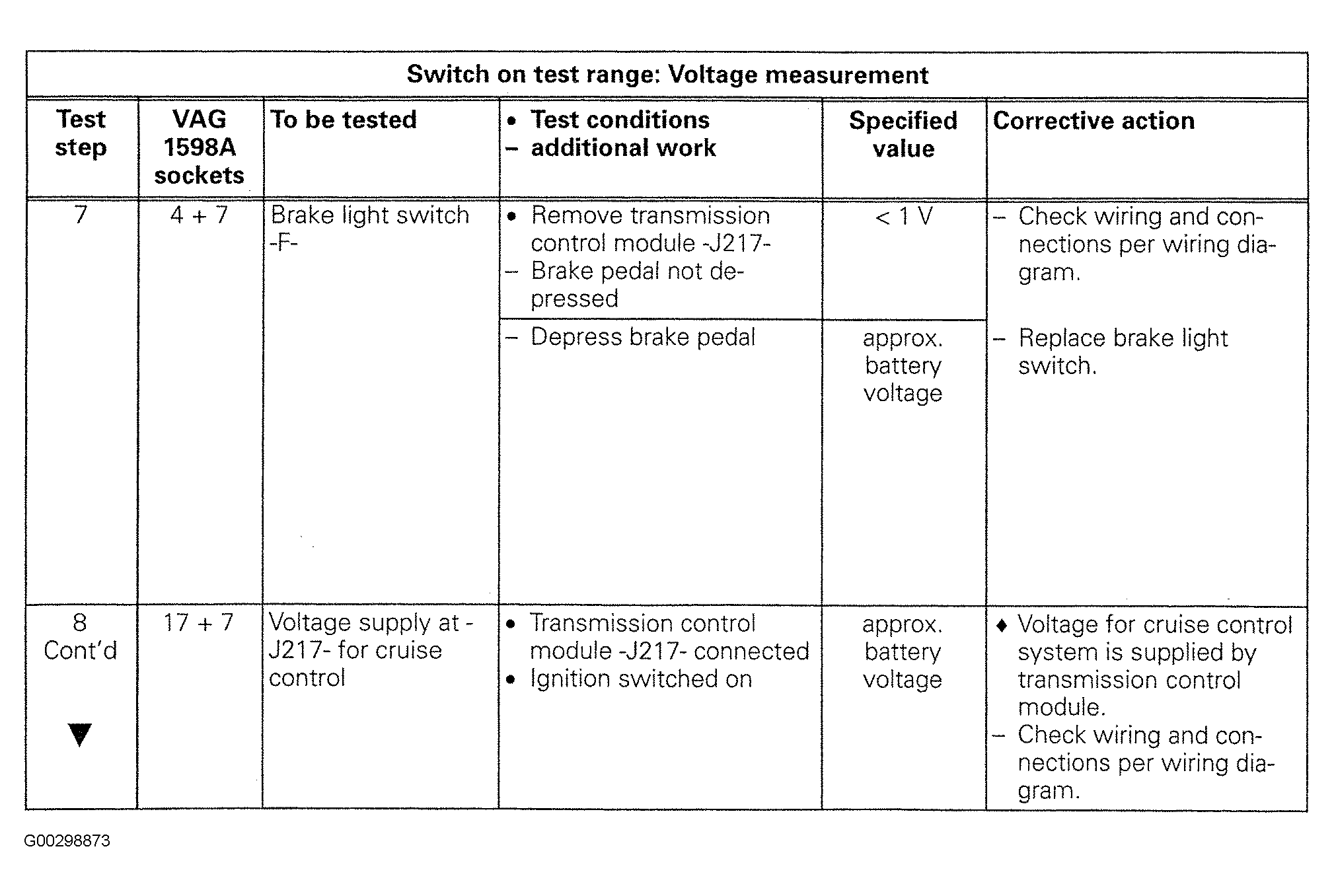

| Brake Light Switch |
7. See Fig 10 |

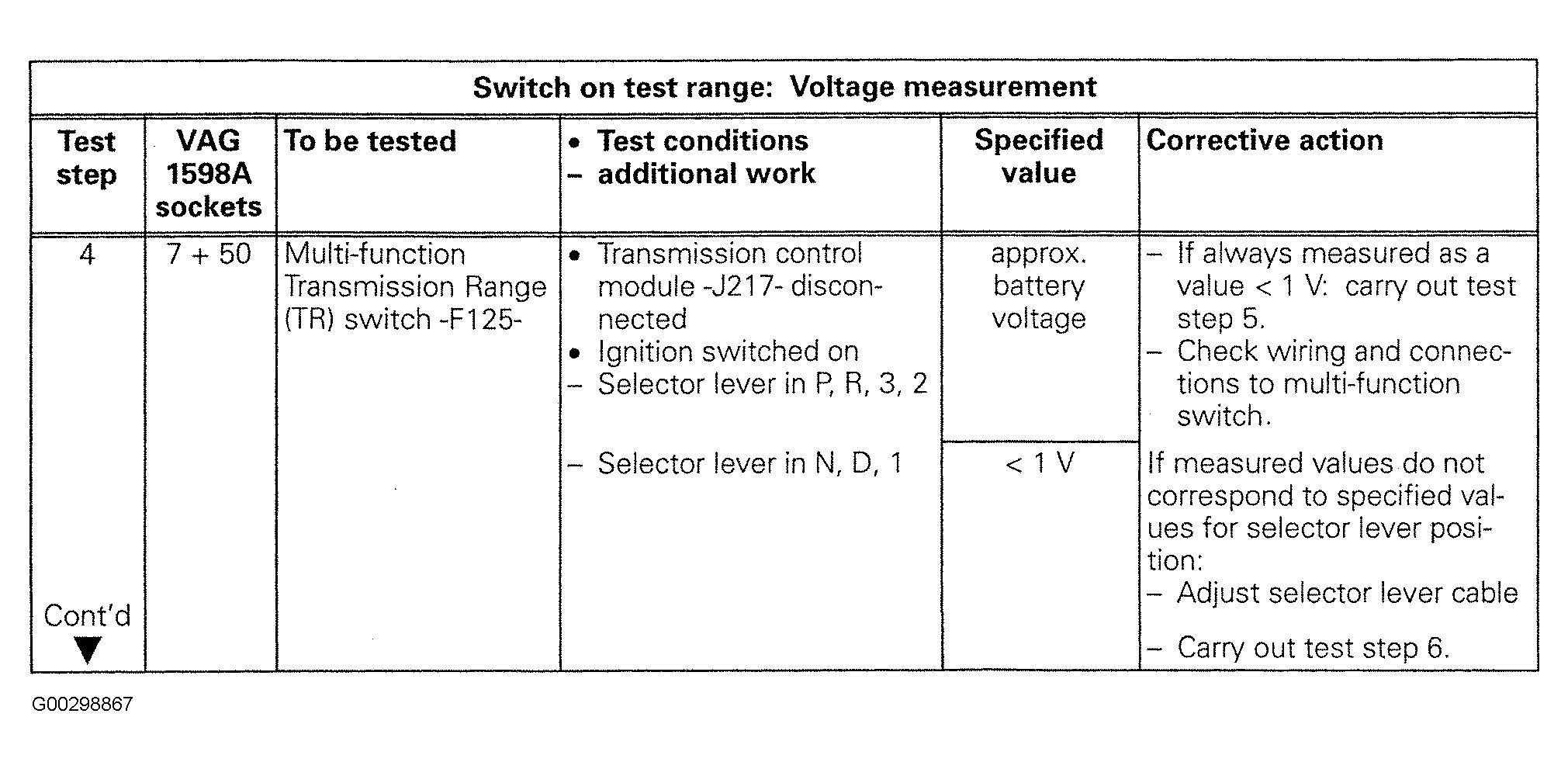

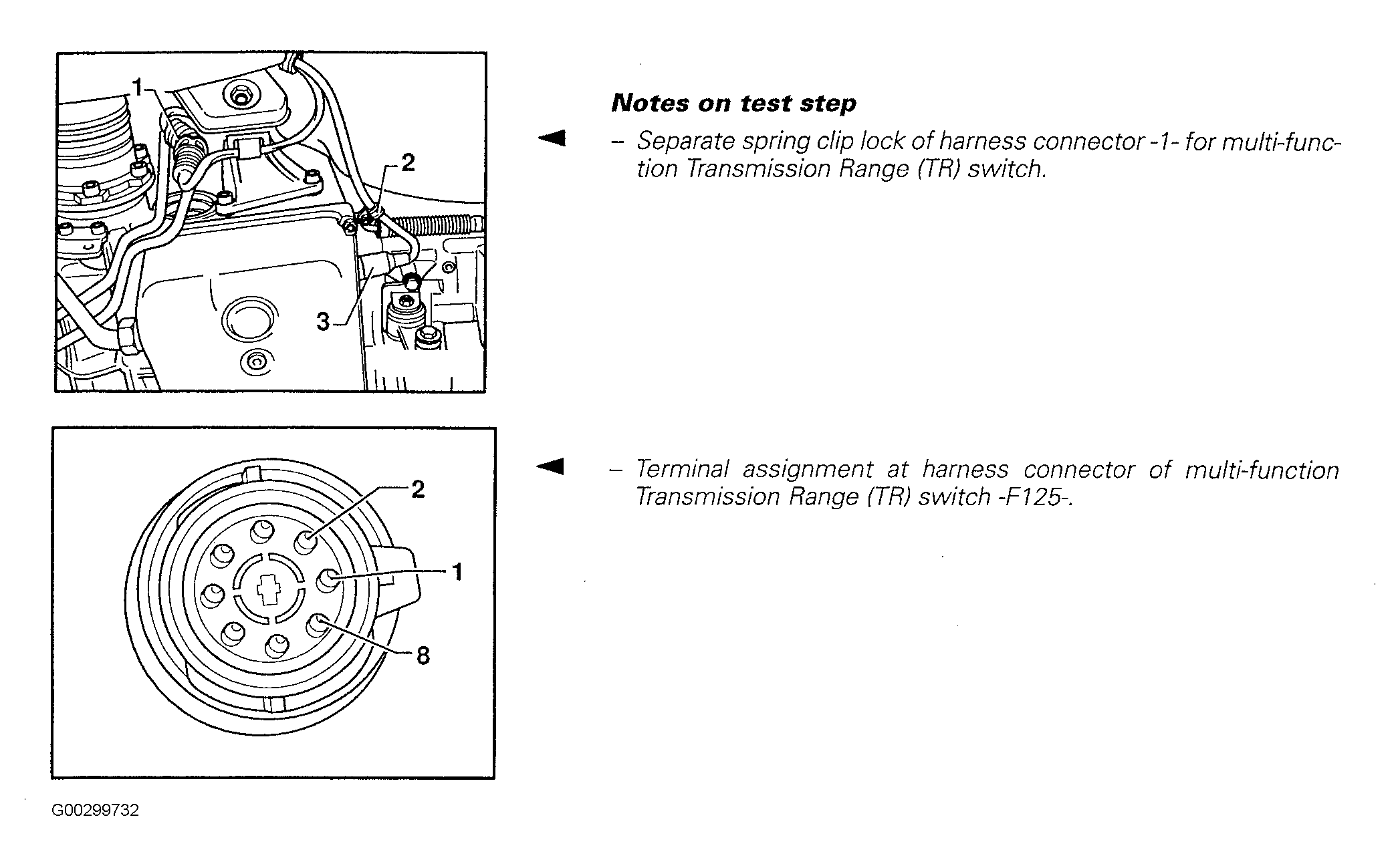

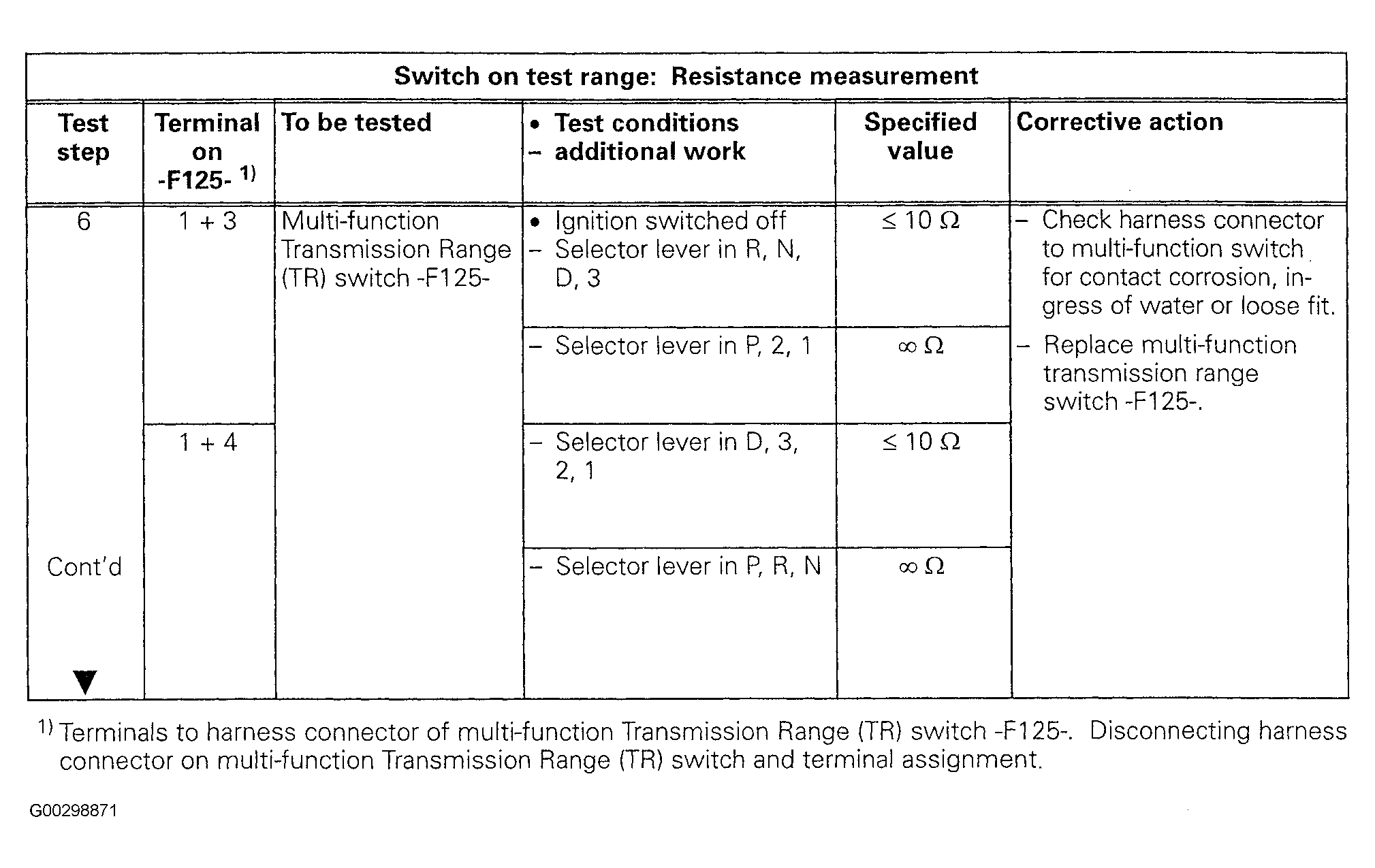

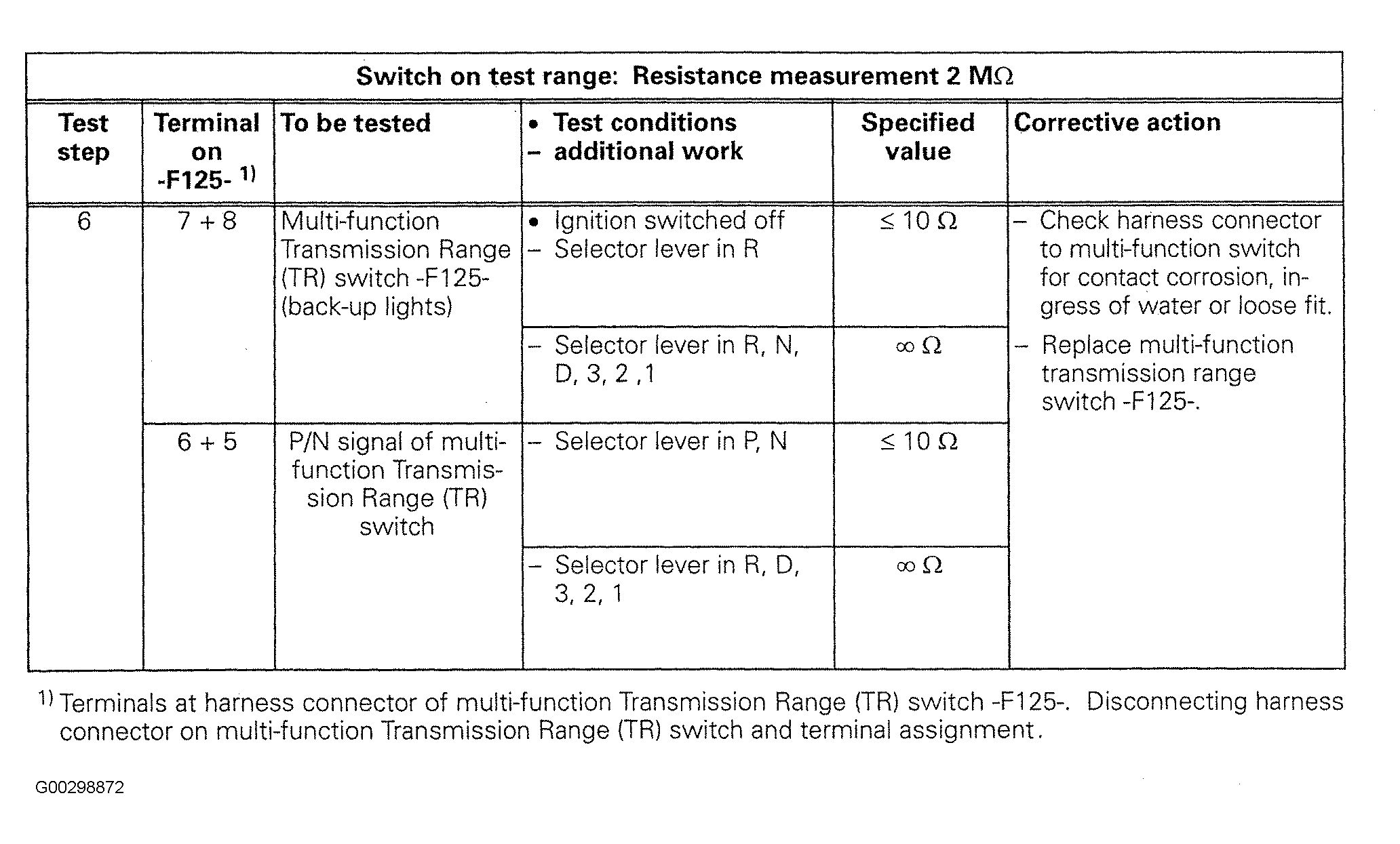

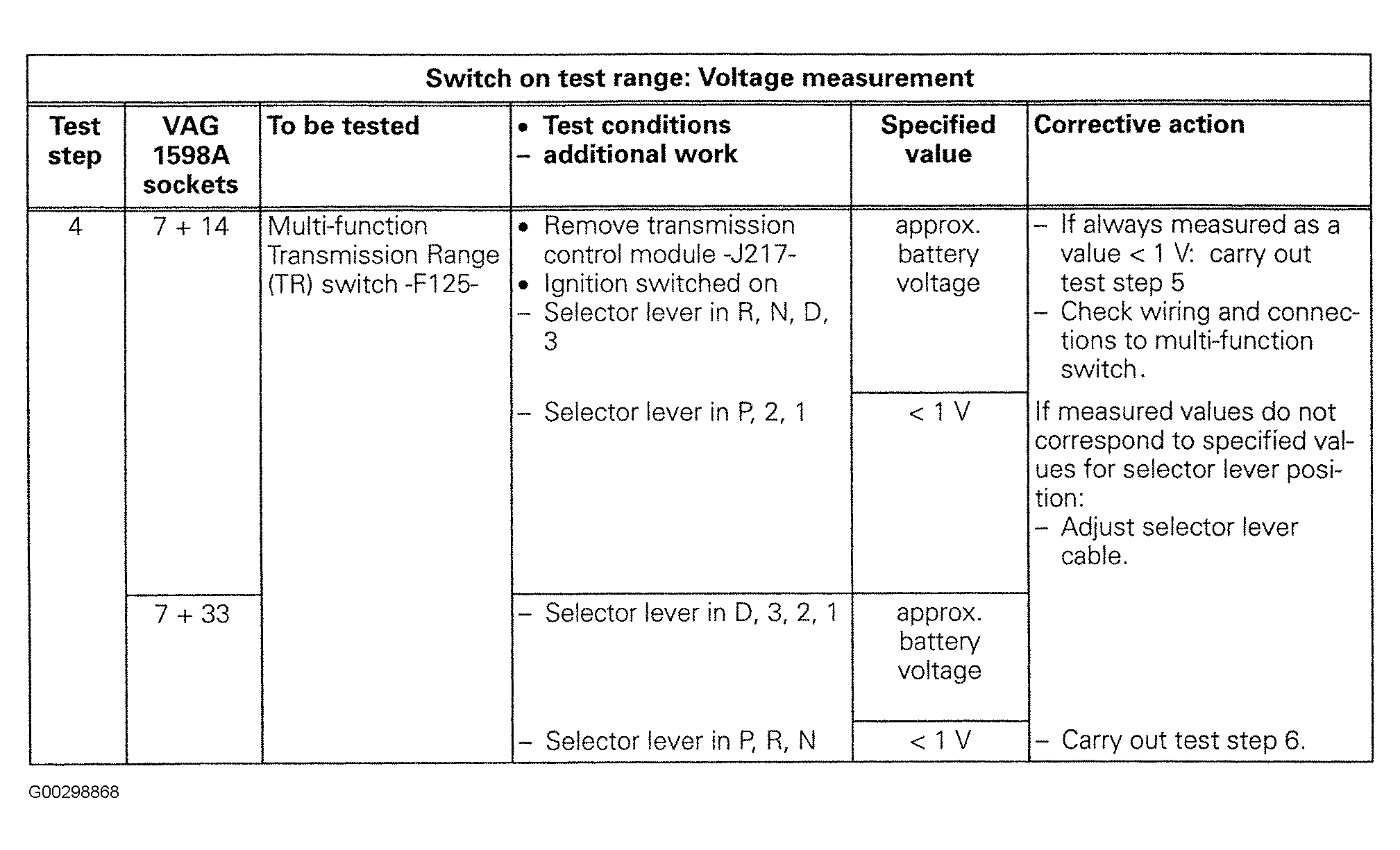

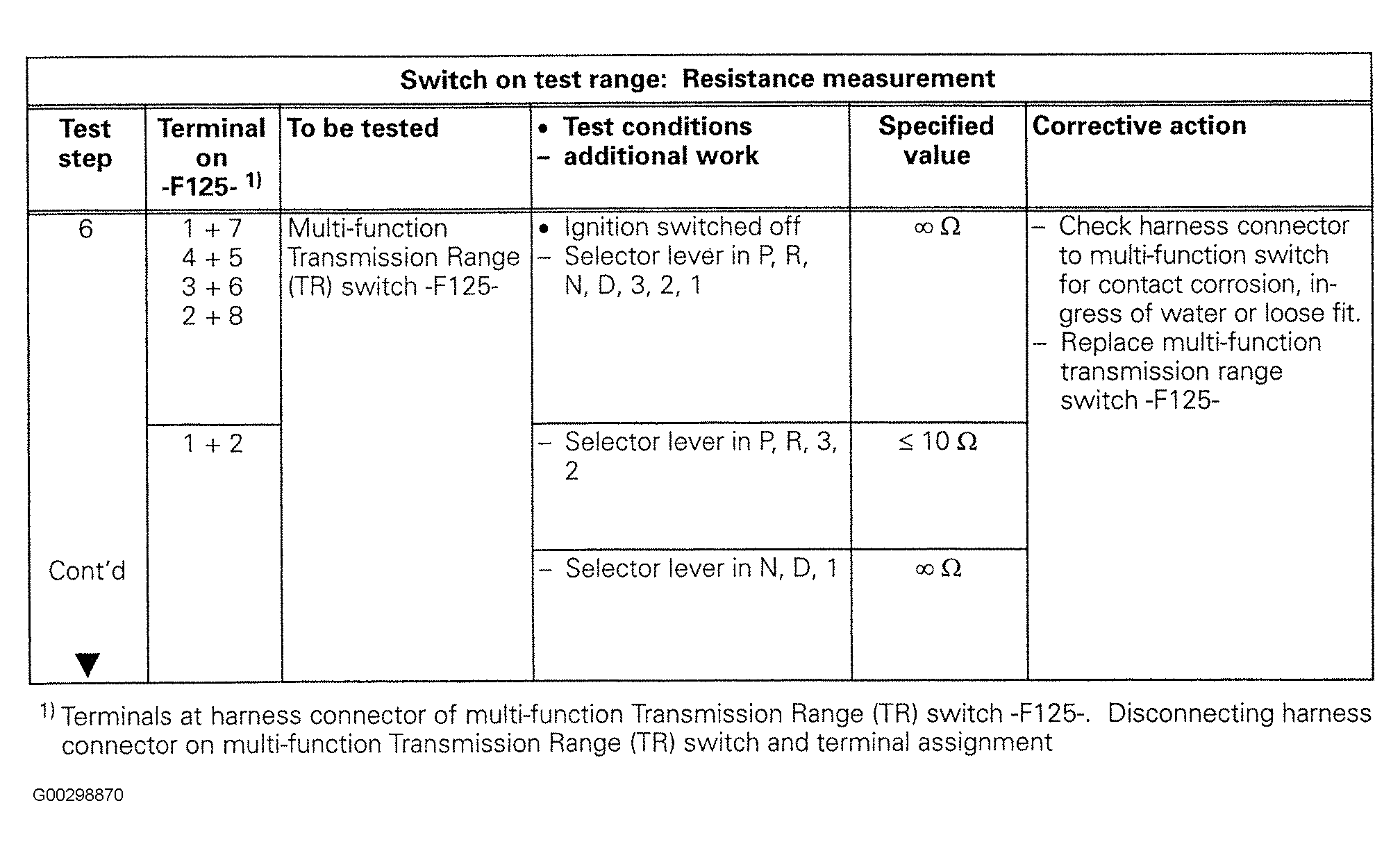

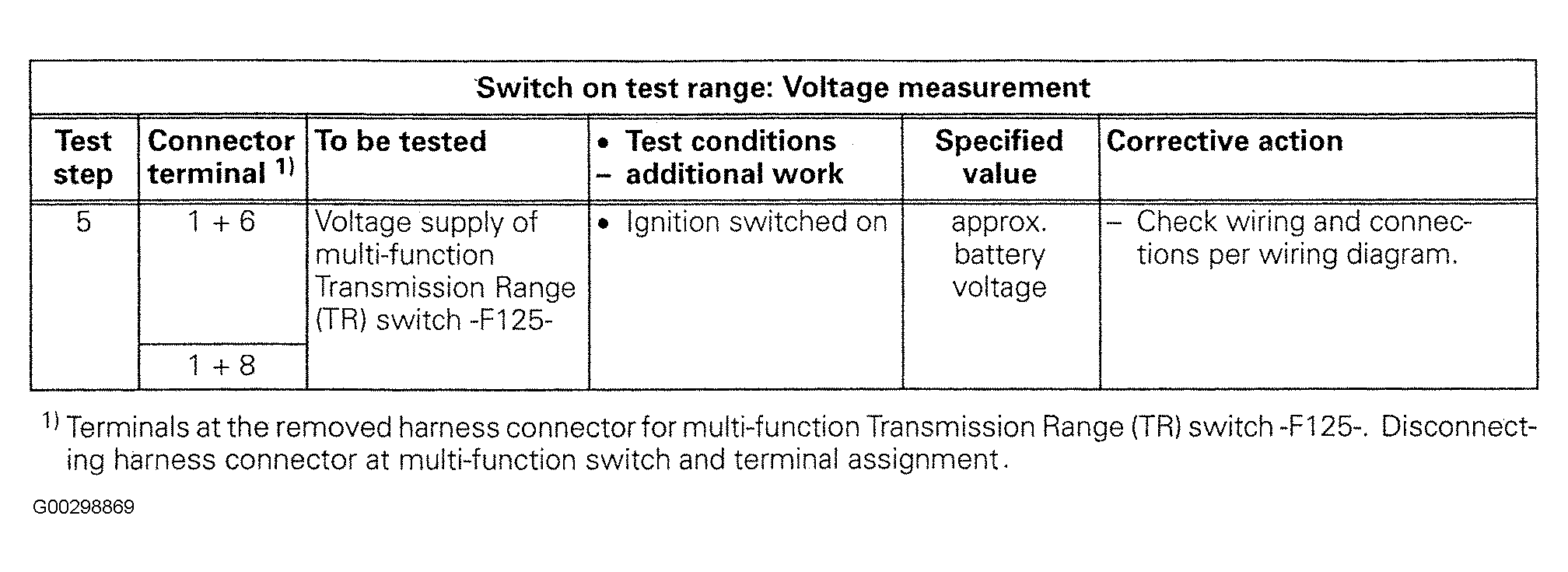

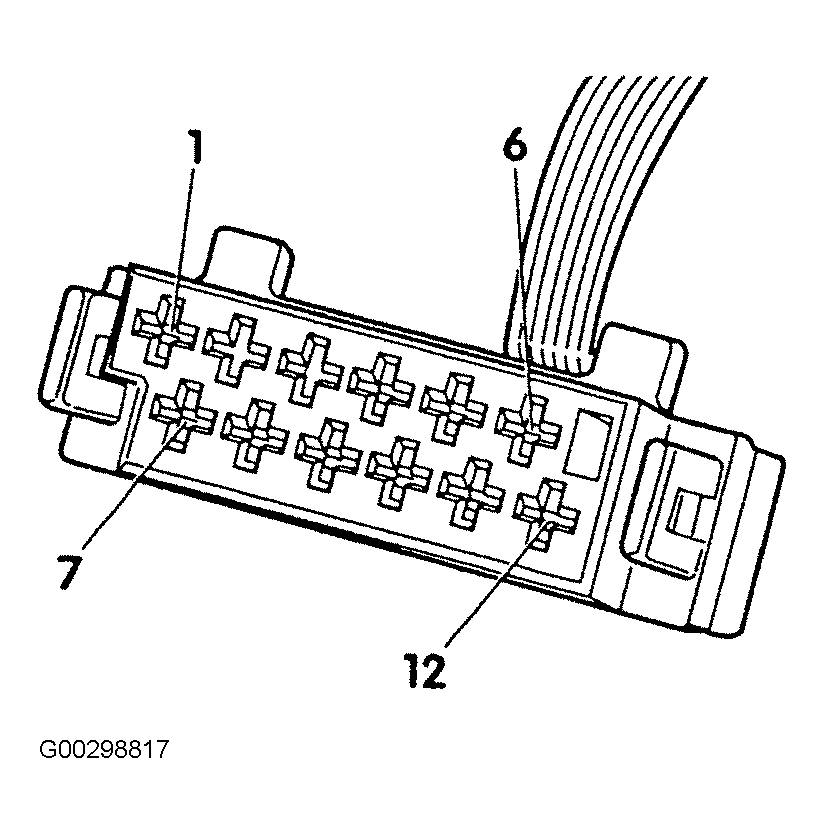

| Multi-Function Transmission Range Switch |
4, 5 & 6. See Fig 3
- Fig 9 |

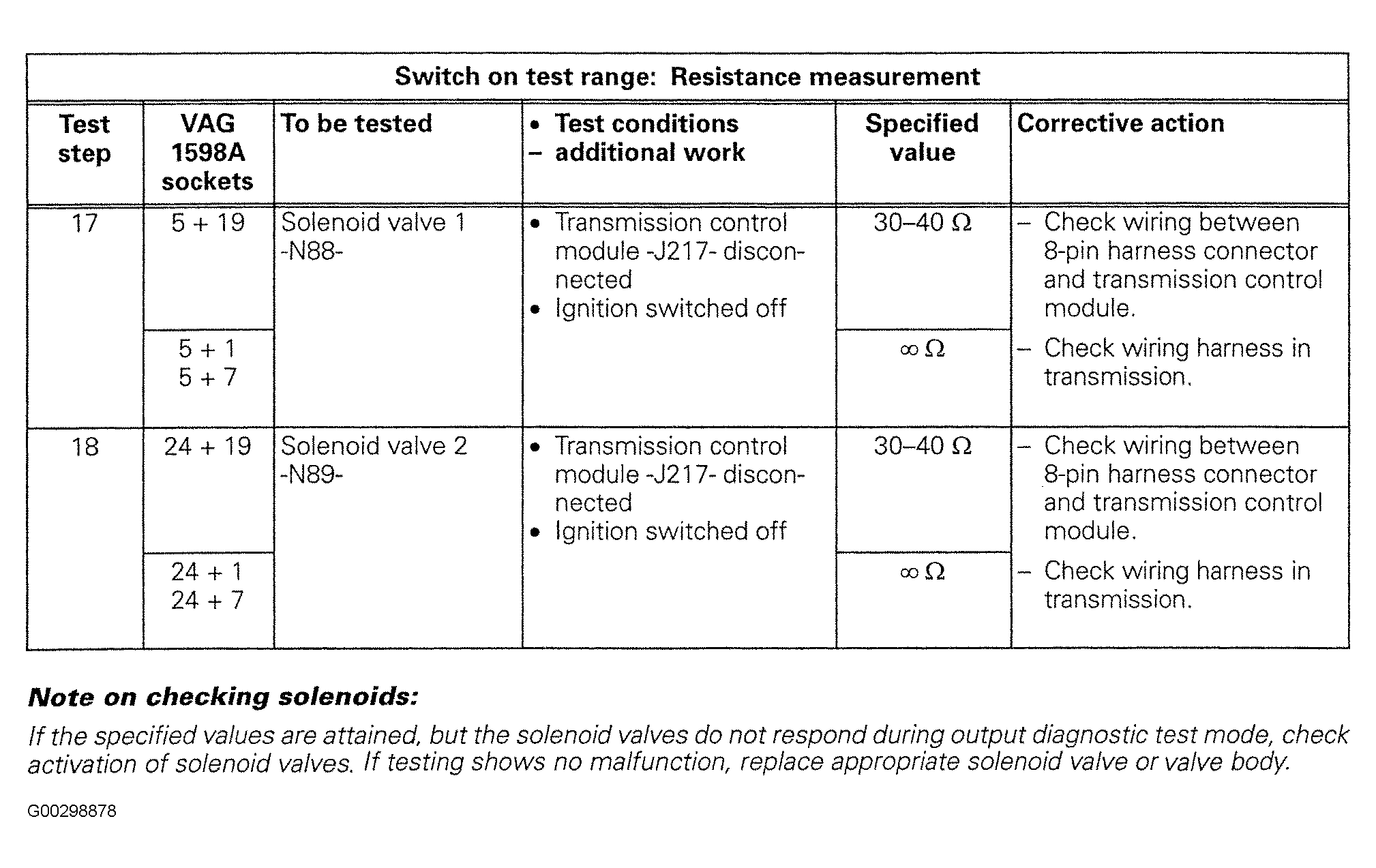

| Solenoid Valve No. 1 |
17. See Fig 17 |
| Solenoid Valve No. 2 |
18. See Fig 17 |

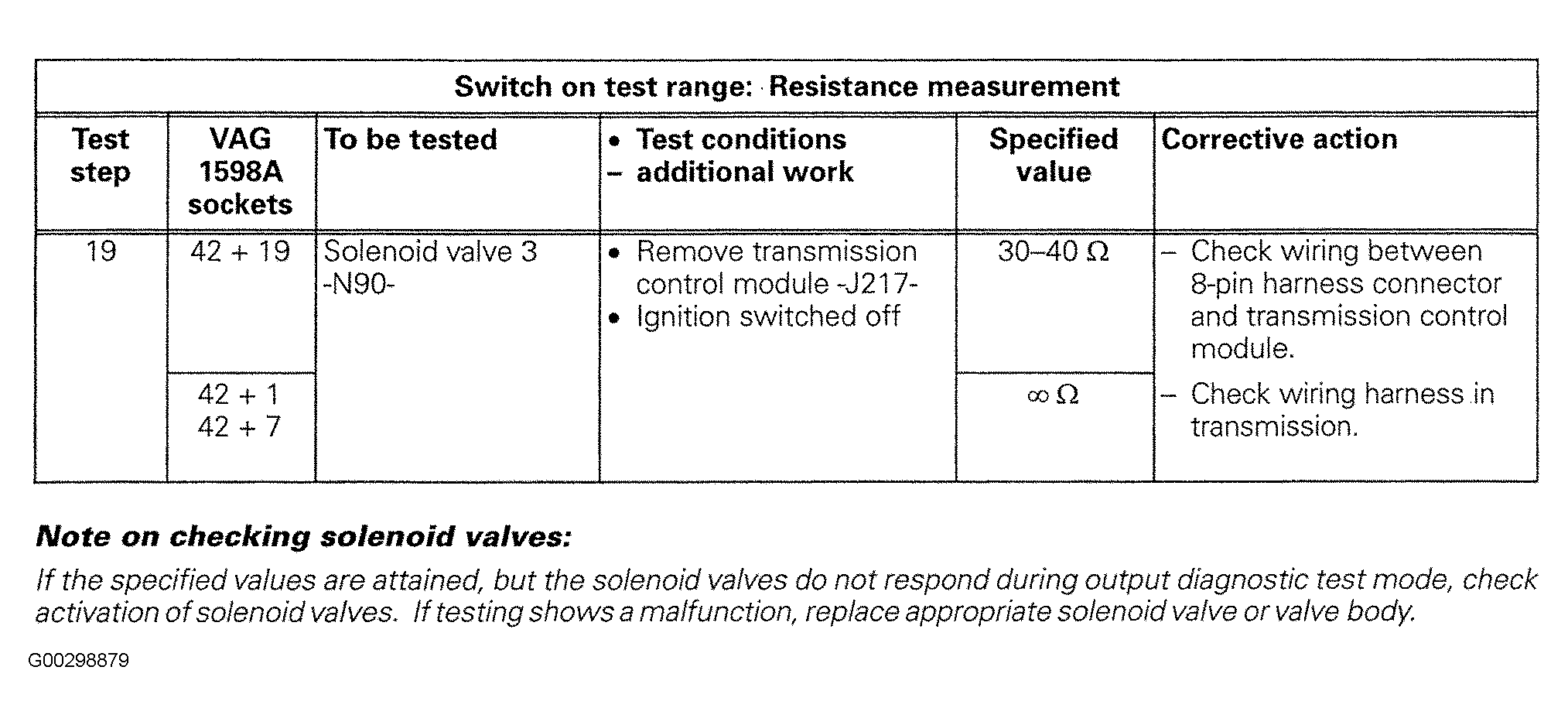

| Solenoid Valve No. 3 |
19. See Fig 18 |

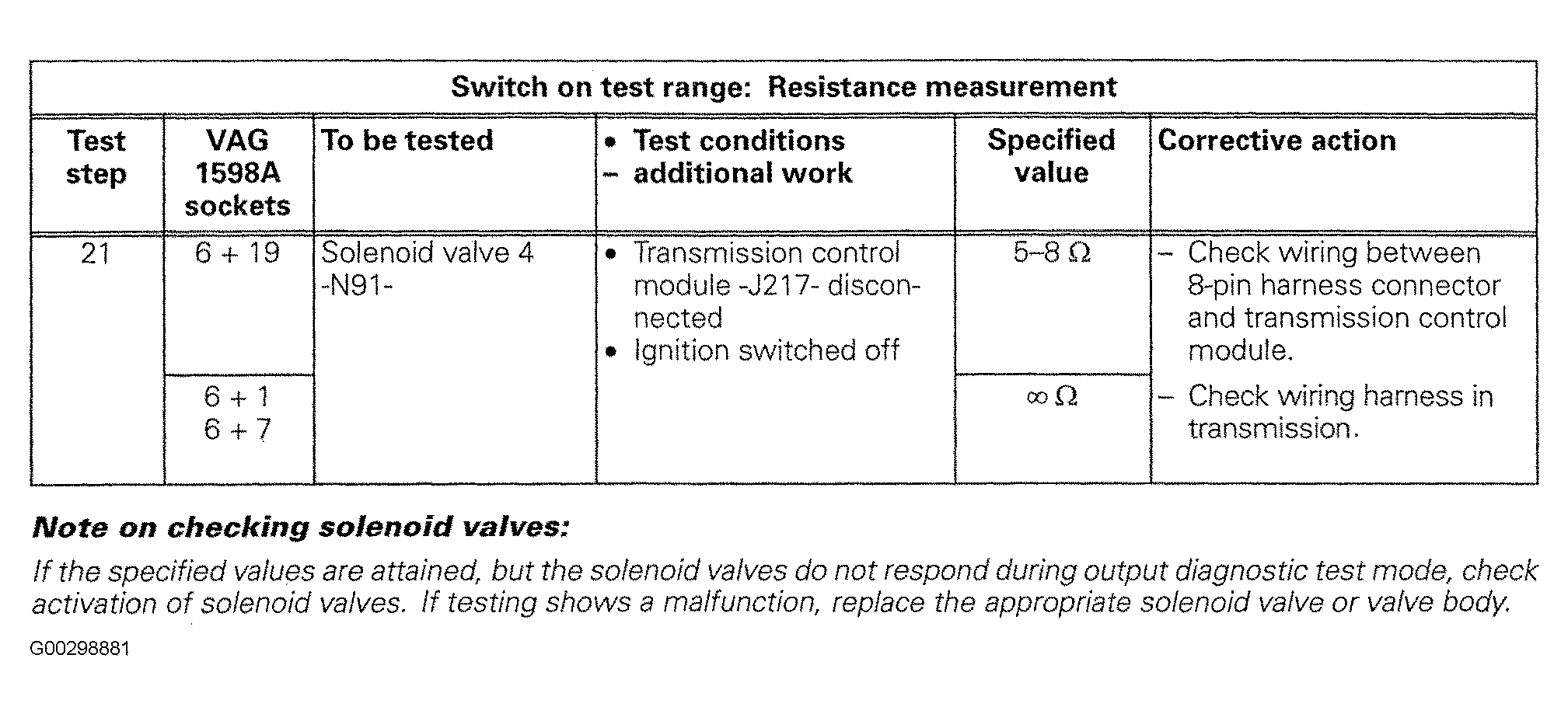

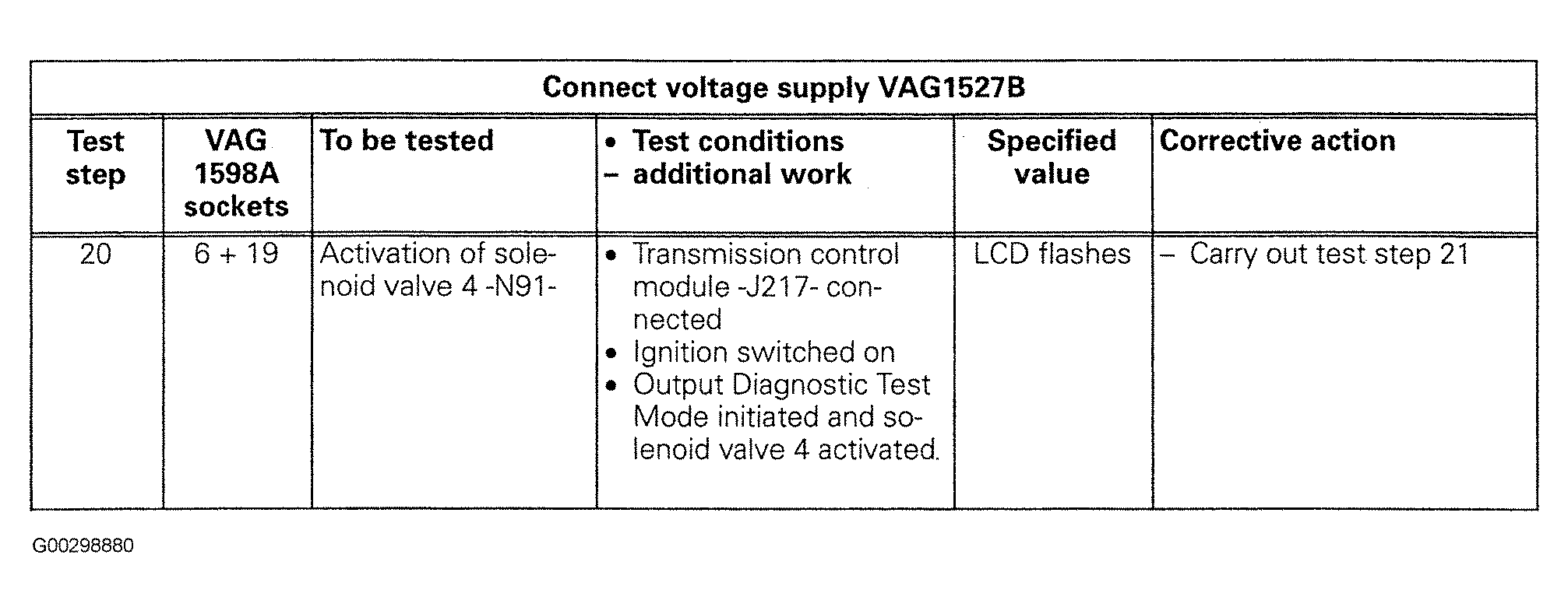

| Solenoid Valve No. 4 |
20 & 21. See Fig 19
and Fig 20 |

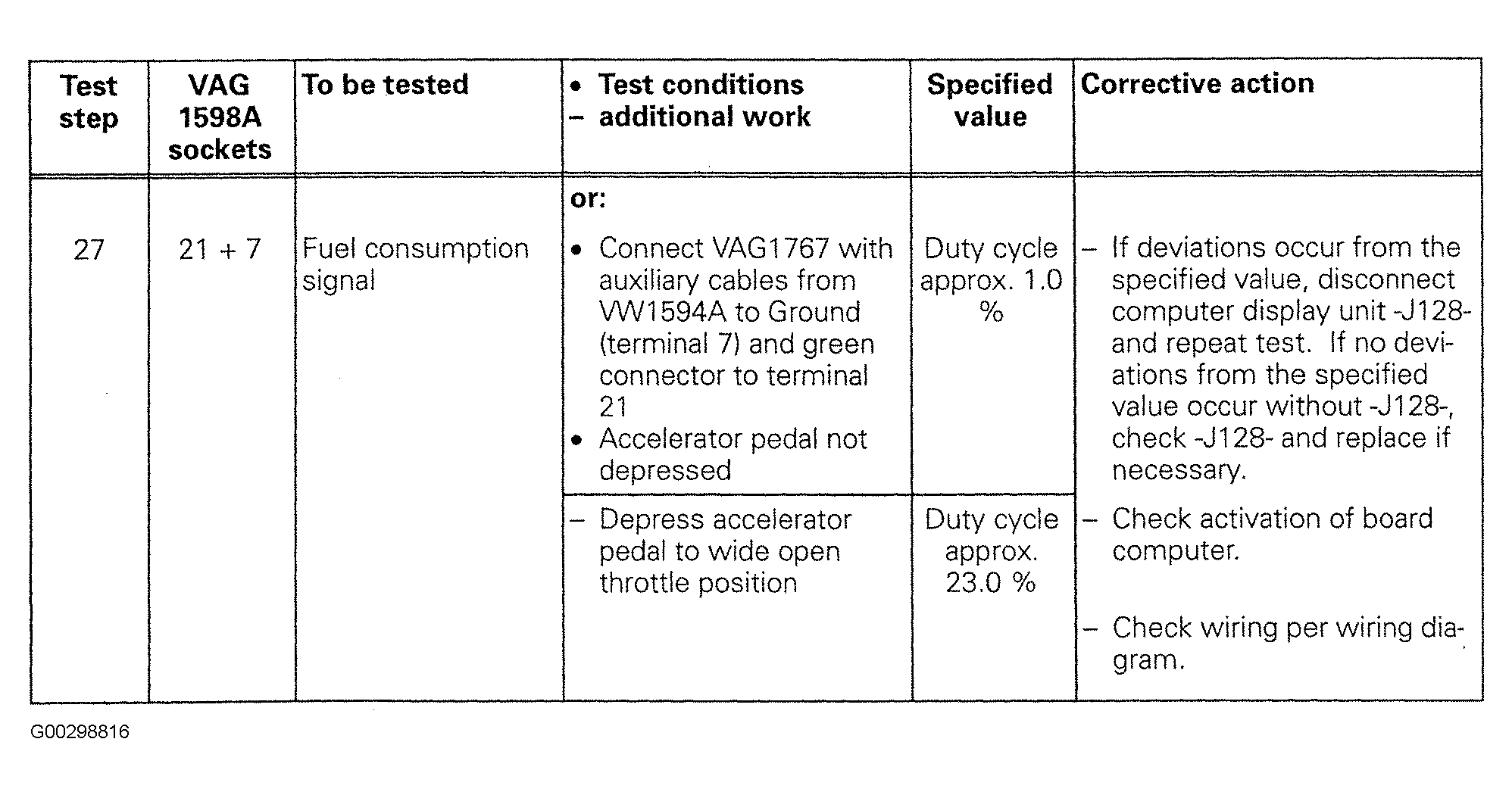

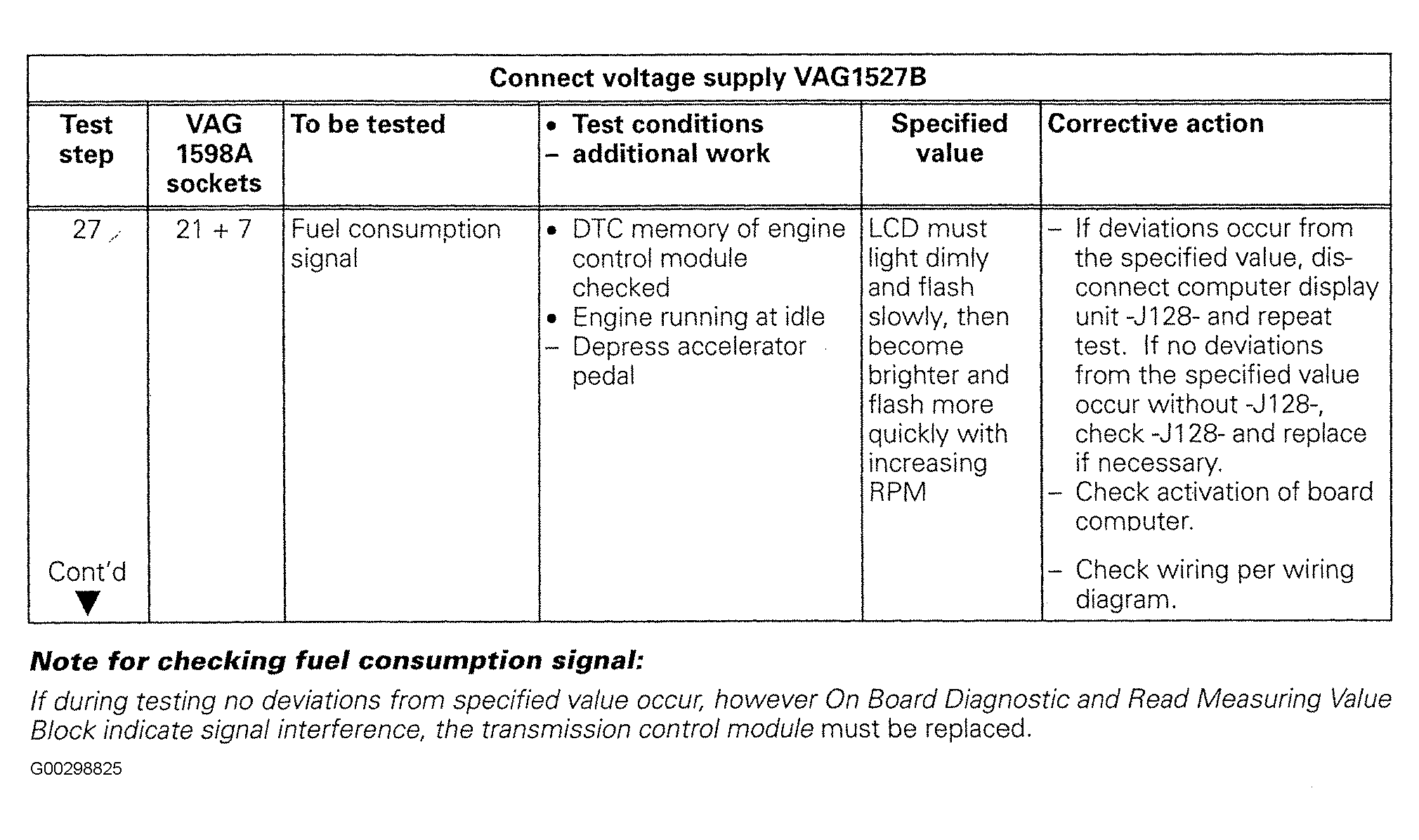

| Fuel Consumption Signal |
27. See Fig 25
and Fig 26 |

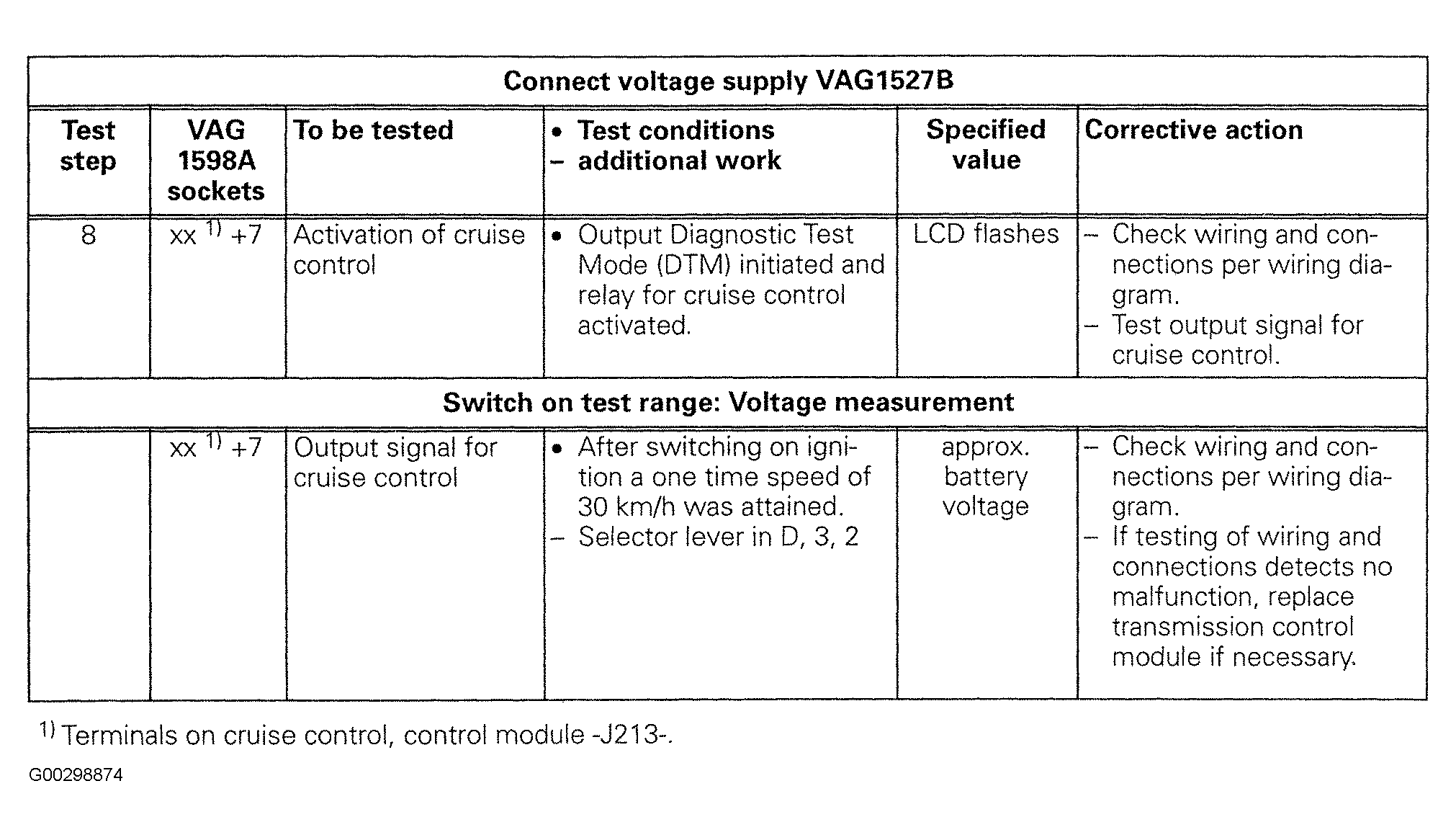

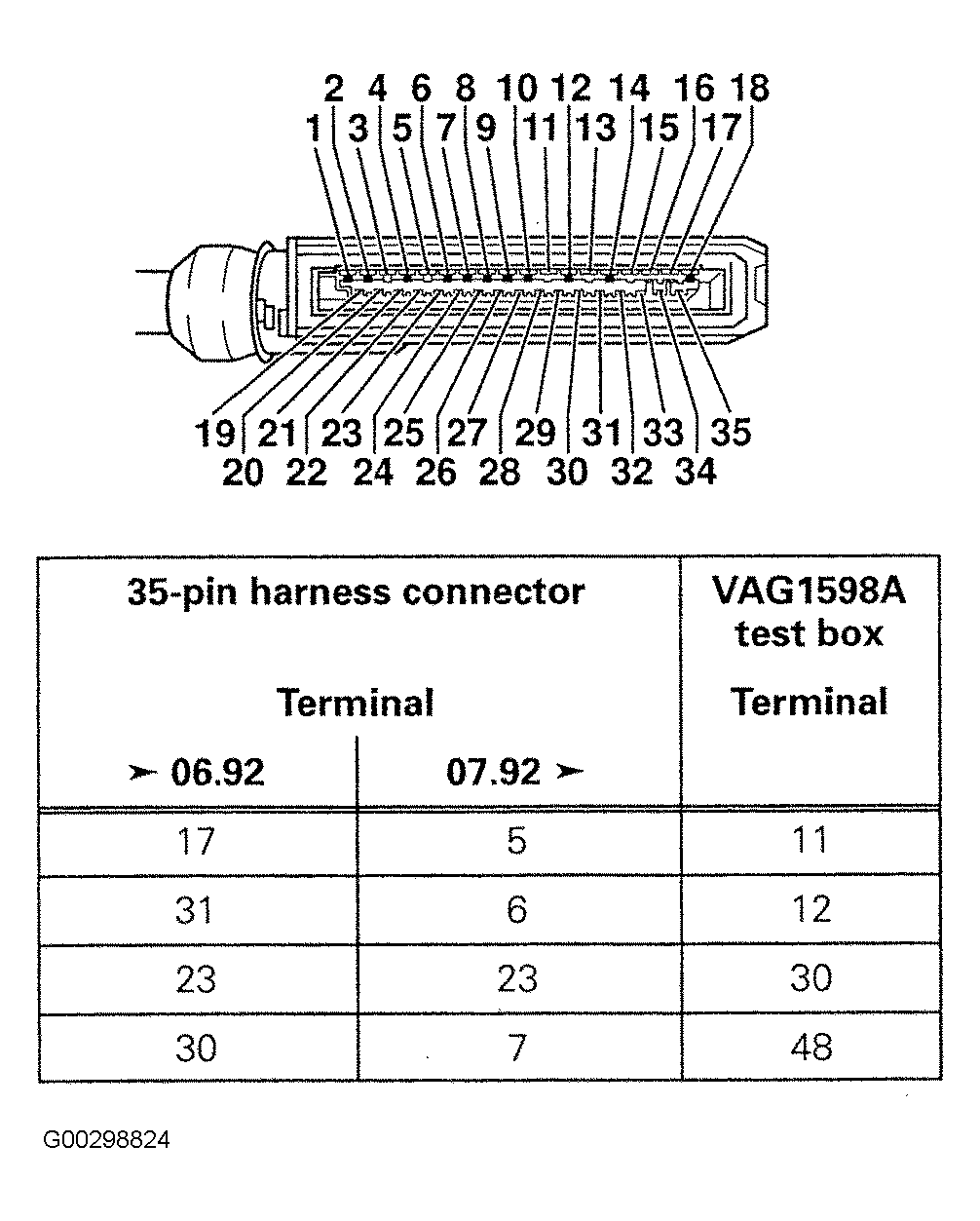

| Cruise Control |
8. See Fig 10
, Fig 11
and Fig 12 |
| Input Signal From ABS Control Module |
16. See Fig 15
and Fig 16 |

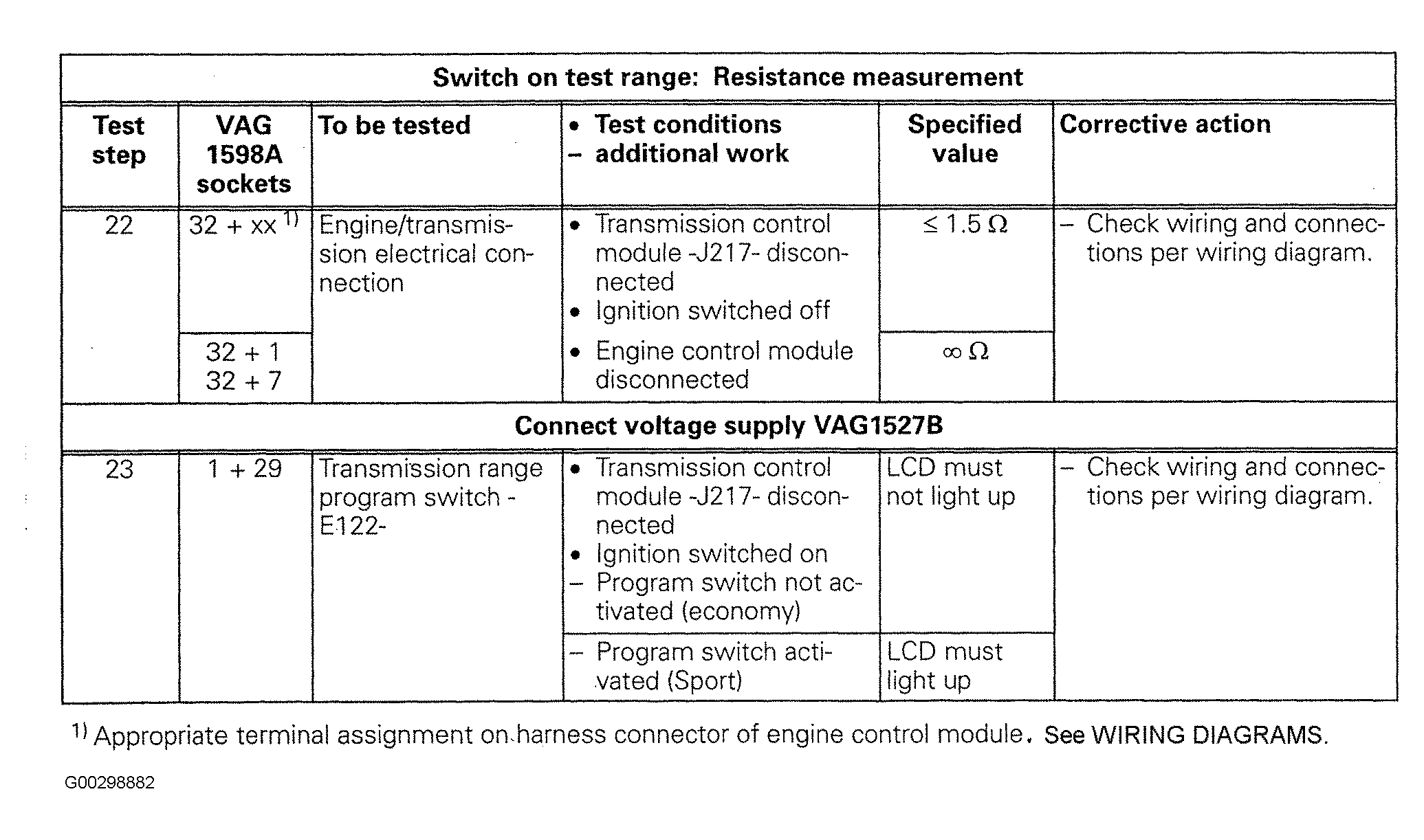

| Transmission Range Program Switch |
23. See Fig 21 |

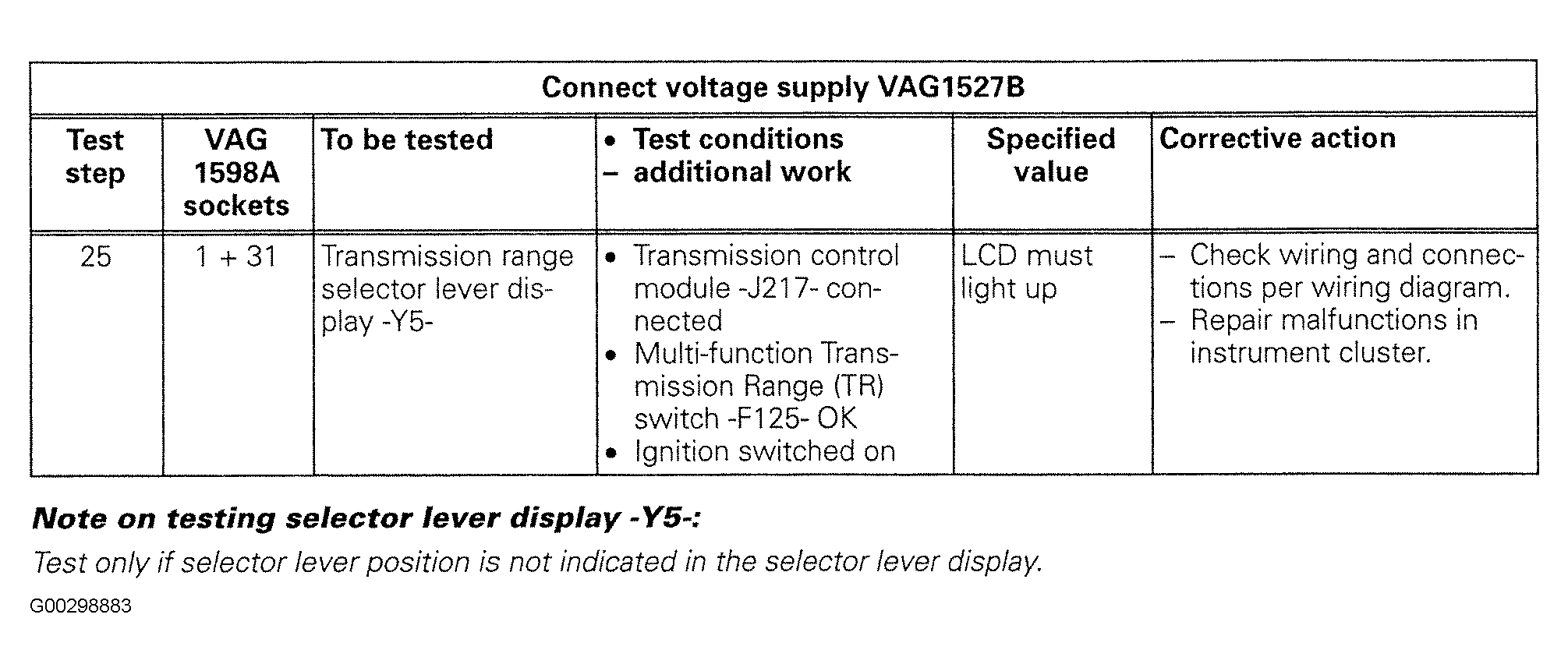

| Transmission Range Selector Lever Display |
25. See Fig 22 |

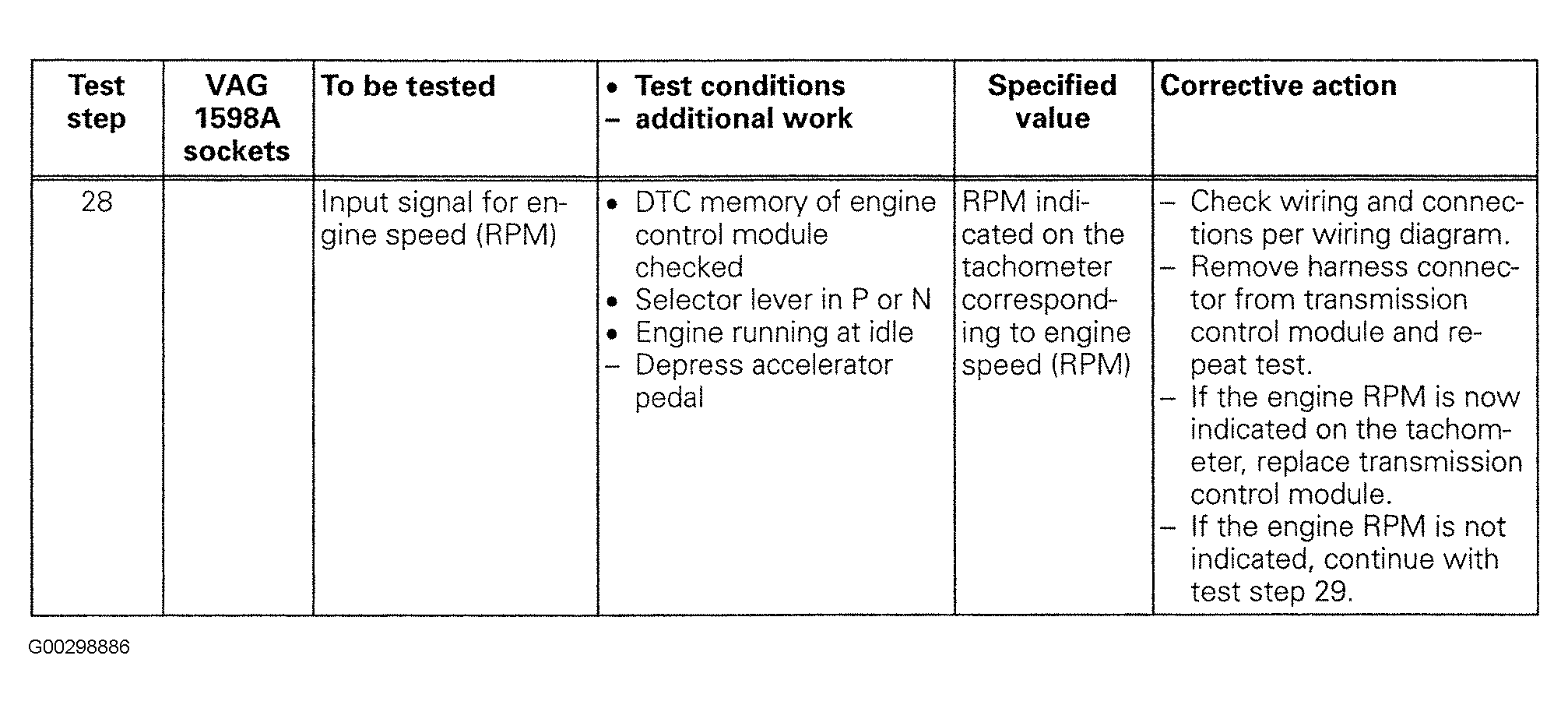

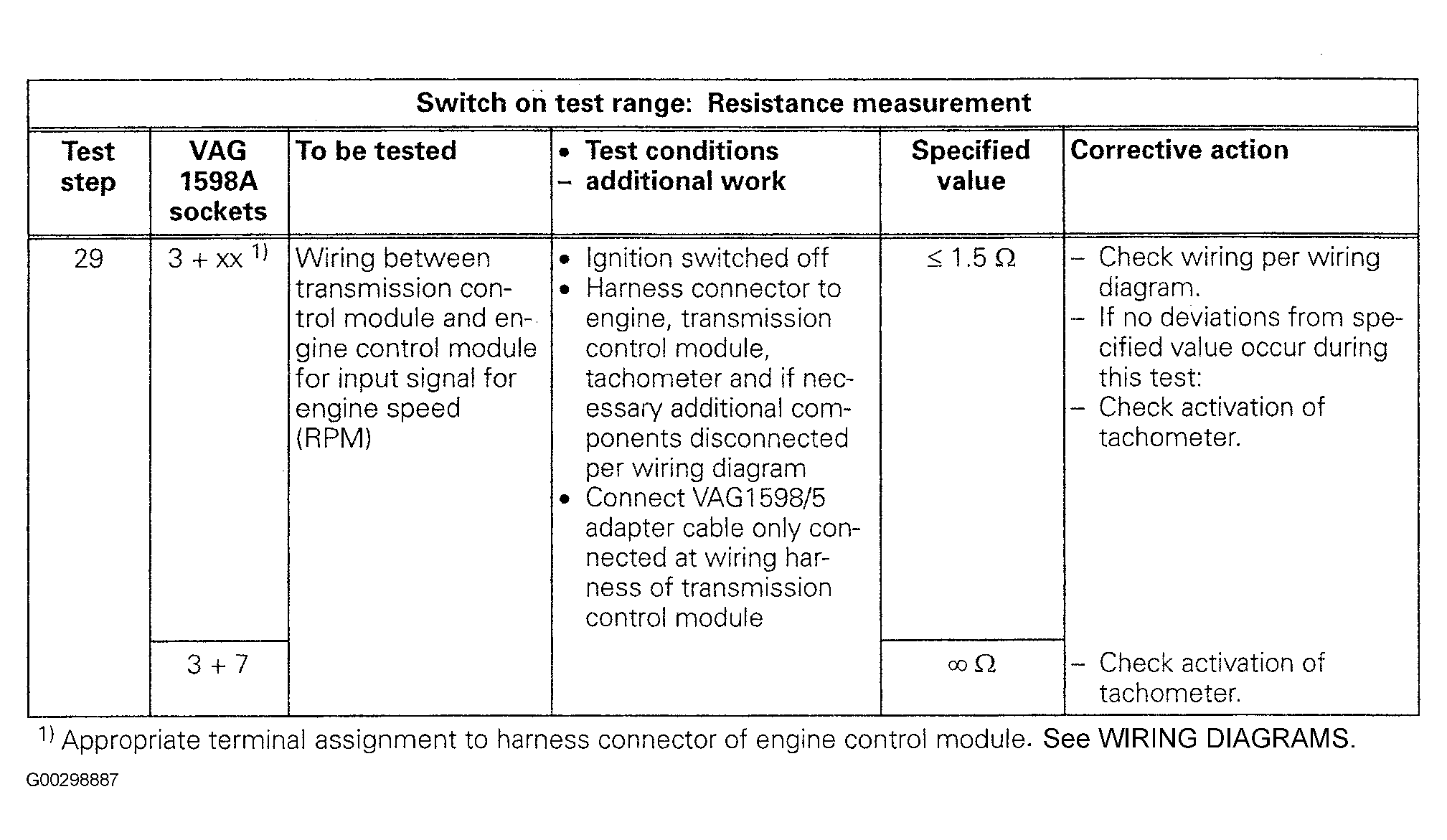

| Engine Speed (RPM) |
28 & 29. See Fig 27
and Fig 28 |

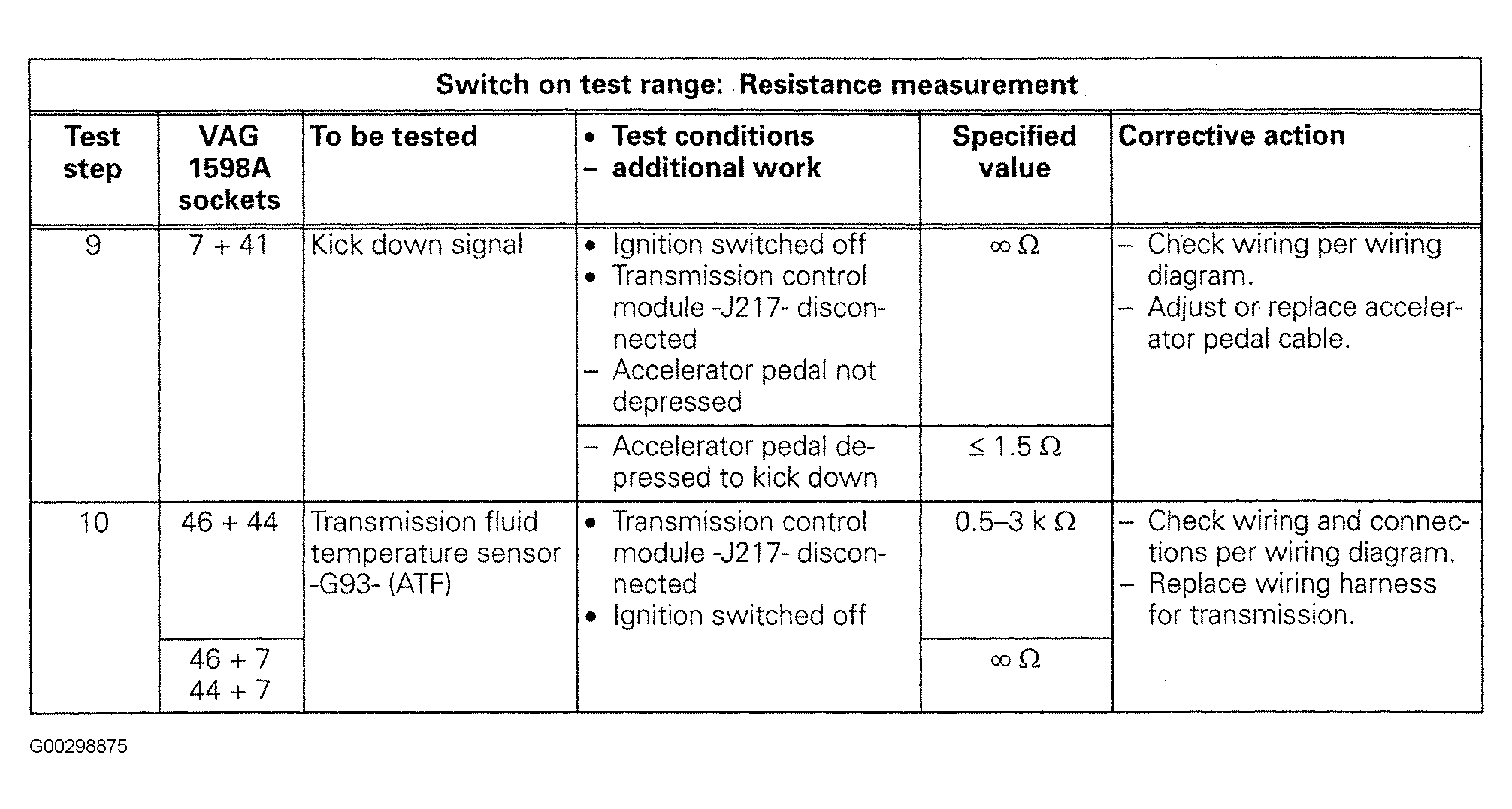

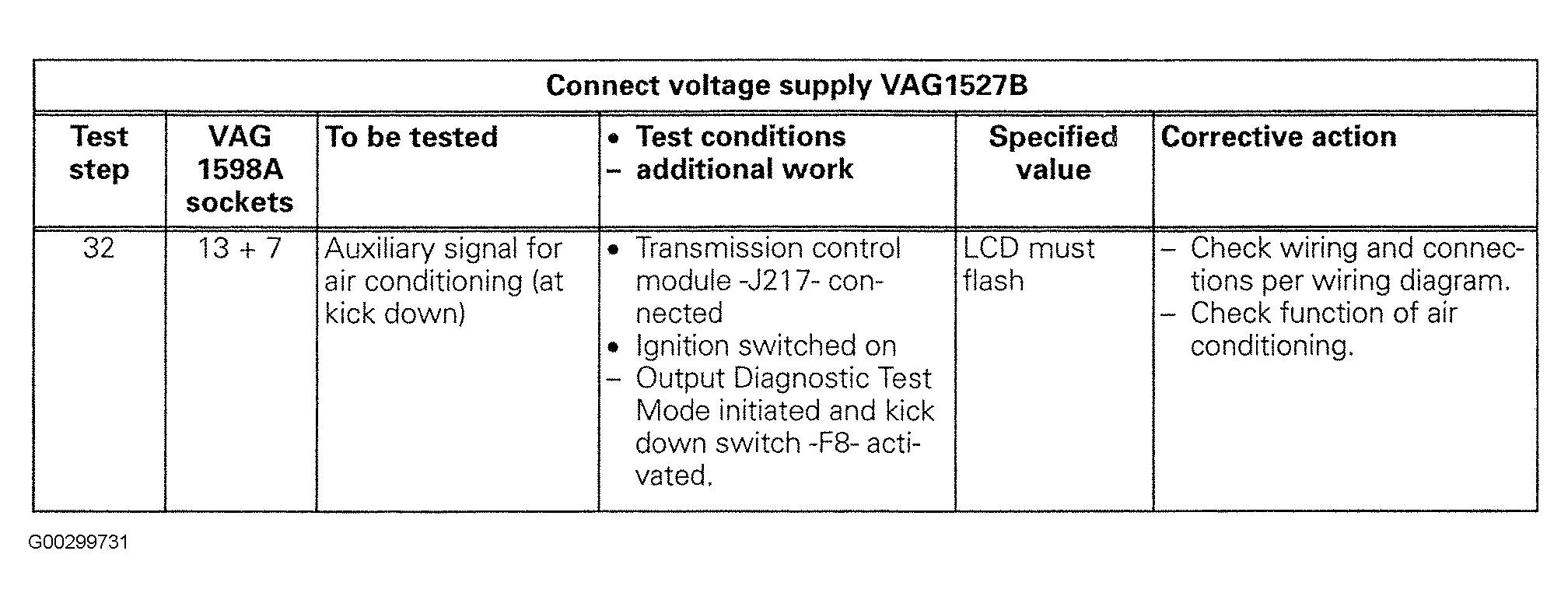

| Kick Down Switch |
9 & 32. See Fig 13
and Fig 33 |

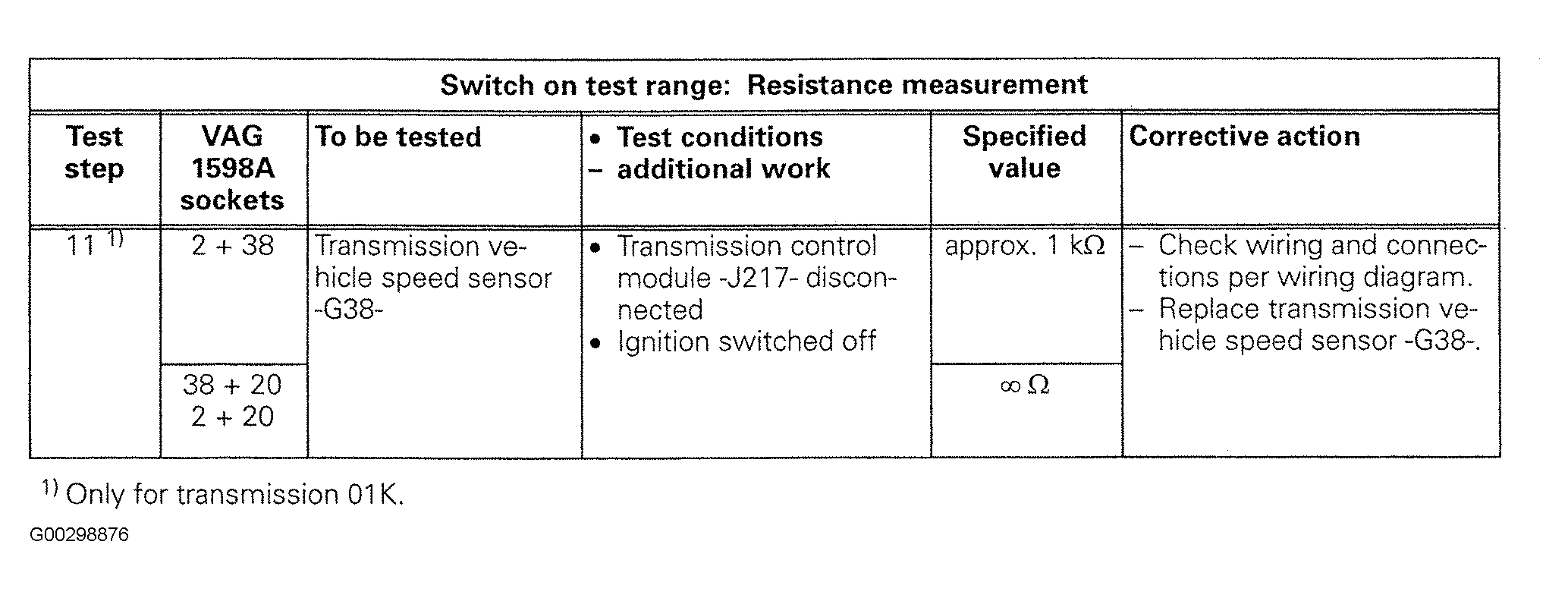

| Transmission Vehicle Speed Sensor |
11. See Fig 14 |

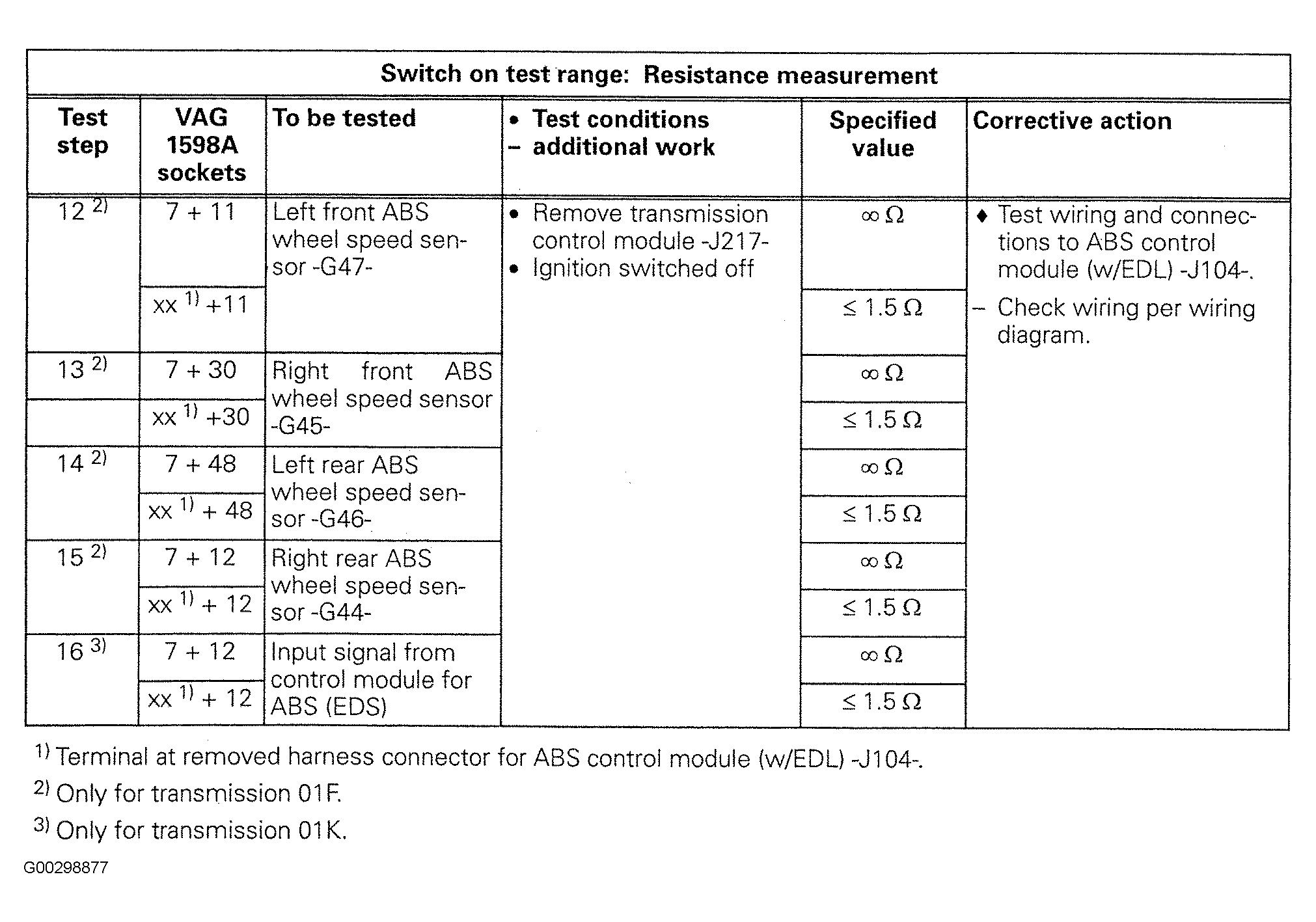

| ABS Wheel Speed Sensors |
12, 13, 14 & 15. See Fig 15
and Fig 16 |
| Transmission Fluid Temperature Sensor |
10. See Fig 13 |
| Engine/Transmission Electrical Connection |
22. See Fig 21 |

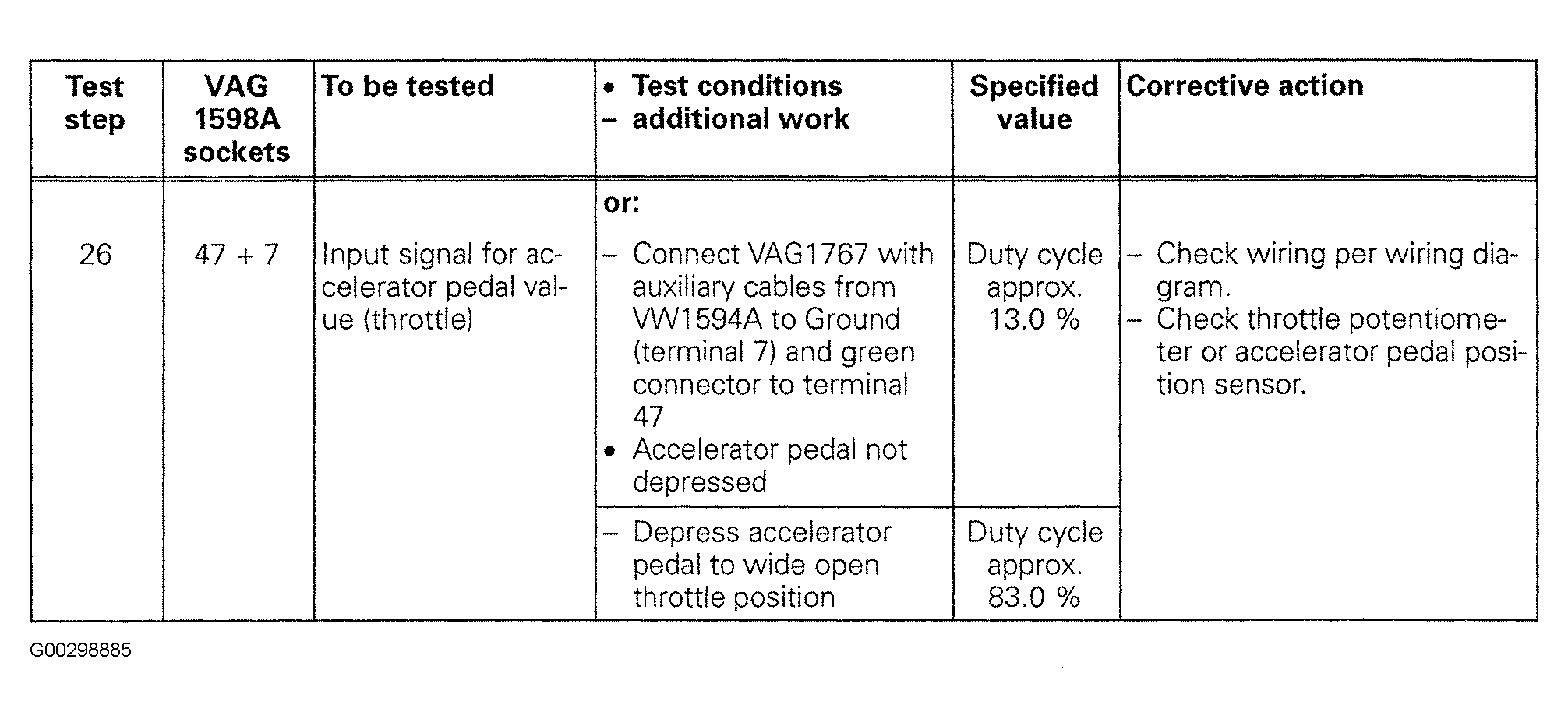

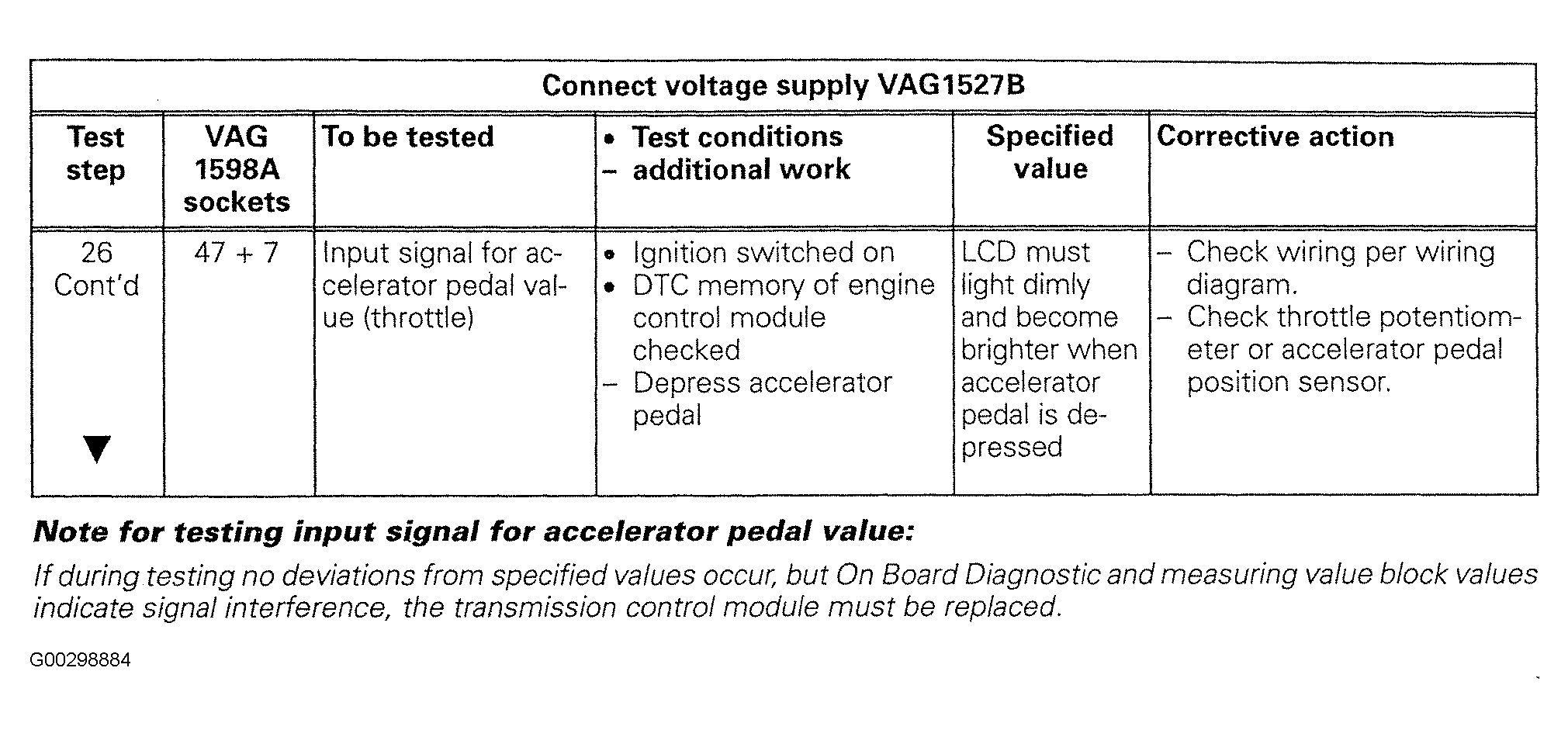

| Input Signal For Accelerator Pedal Value (Throttle) |
26. See Fig 23
and Fig 24 |
