Adjusting Using Installation Aid

  1. Remove left-side transmission support. See LEFT-SIDE TRANSMISSION SUPPORT  under REMOVAL & INSTALLATION.
  2. Disconnect selector lever cable from transmission selector lever.
  3. Completely unscrew clamping screw (arrow 1) and disconnect transmission selector lever from shaft (1). See Fig 2 .
  4. Remove multi-function switch mounting screw (arrows 2) and pull multi-function switch off of shaft. Move selector shaft (1) back out of this position two detents to position "N".
  5. Place installation aid on shaft. See Fig 3 .
  6. Loosen multi-function switch mounting screws (arrows 2). See Fig 2 .
  7. Turn multi-function switch until it aligns with hole in installation aid and secure using pin or 4 mm drill bit. See Fig 3 .
  8. Tighten multi-function switch mounting screws to specifications. See TORQUE SPECIFICATIONS  .
  9. Remove installation aid and pin or drill bit.
Fig 1: Identifying Special Tool 3338 Adjusting Device
G00300373Courtesy of AUDI OF AMERICA, INC.
Fig 2: Locating Multi-Function Switch Components
G00300374Courtesy of AUDI OF AMERICA, INC.

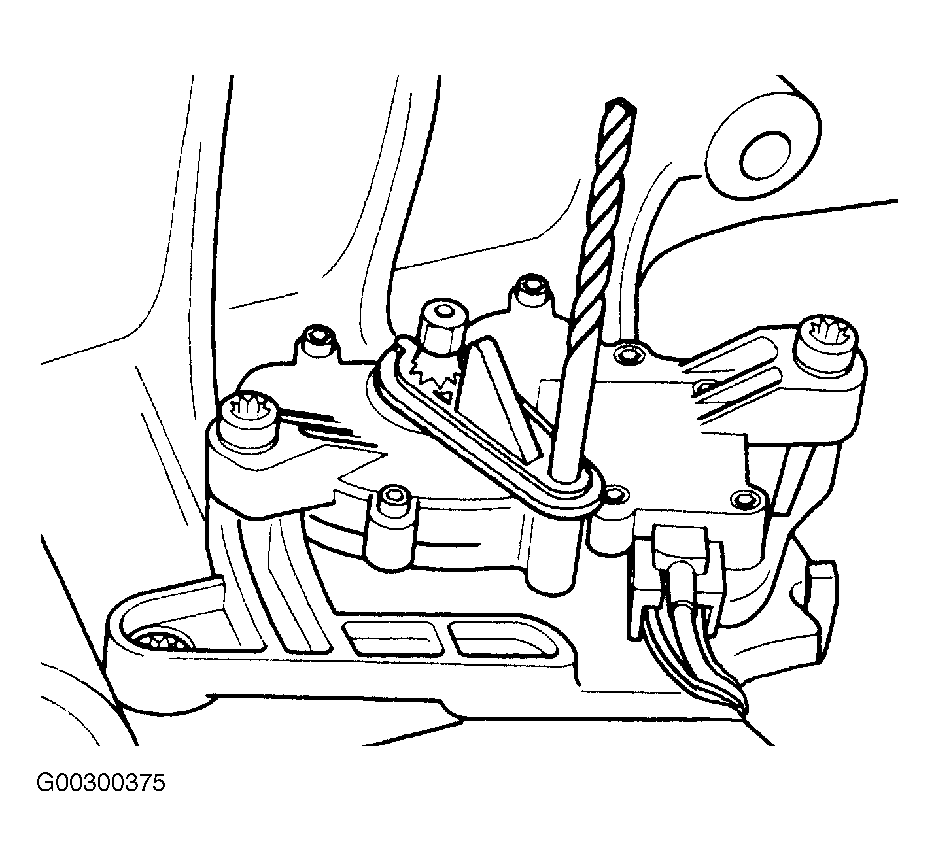

Fig 3: Identifying Installation Aid Position With Drill Bit
G00300375Courtesy of AUDI OF AMERICA, INC.
