Door handle, removing: Procedure
- Remove door trim panel.
- Run door window up to top position.

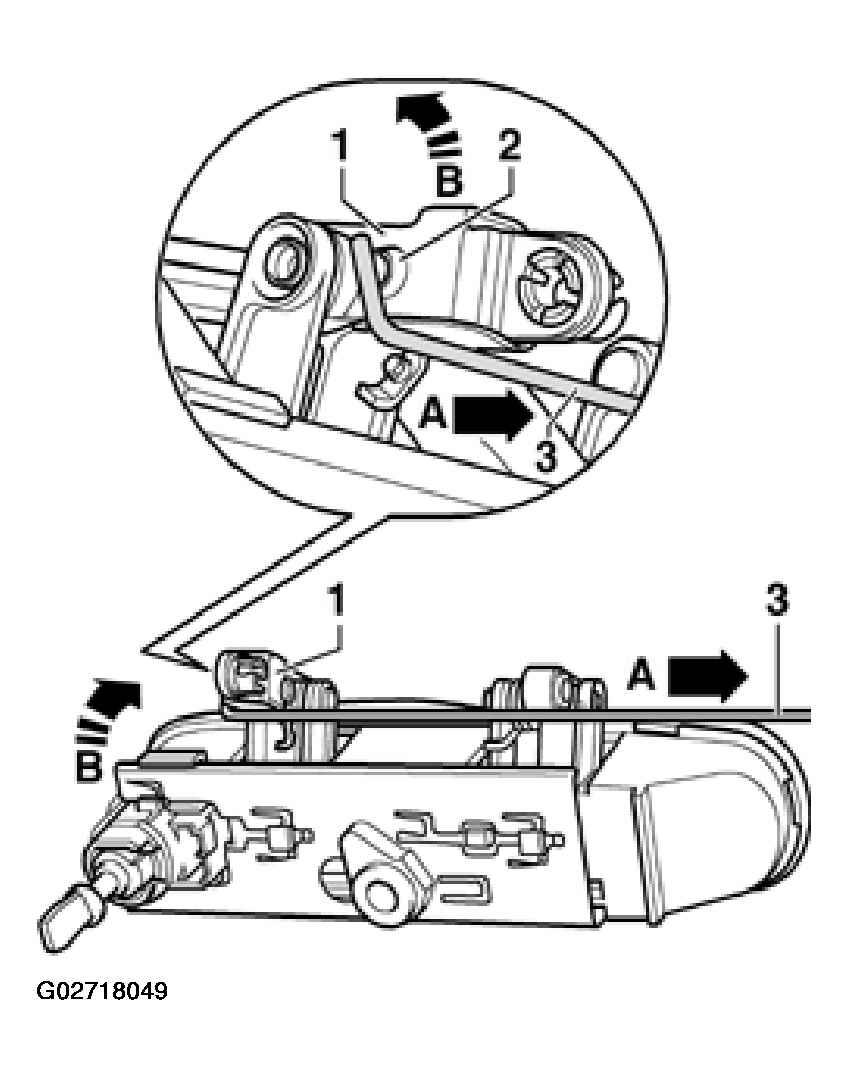

- Hook auxiliary tool -3- around fulcrum lever -1- as shown and partially pull out locking pin -2- in direction of arrow -A-.

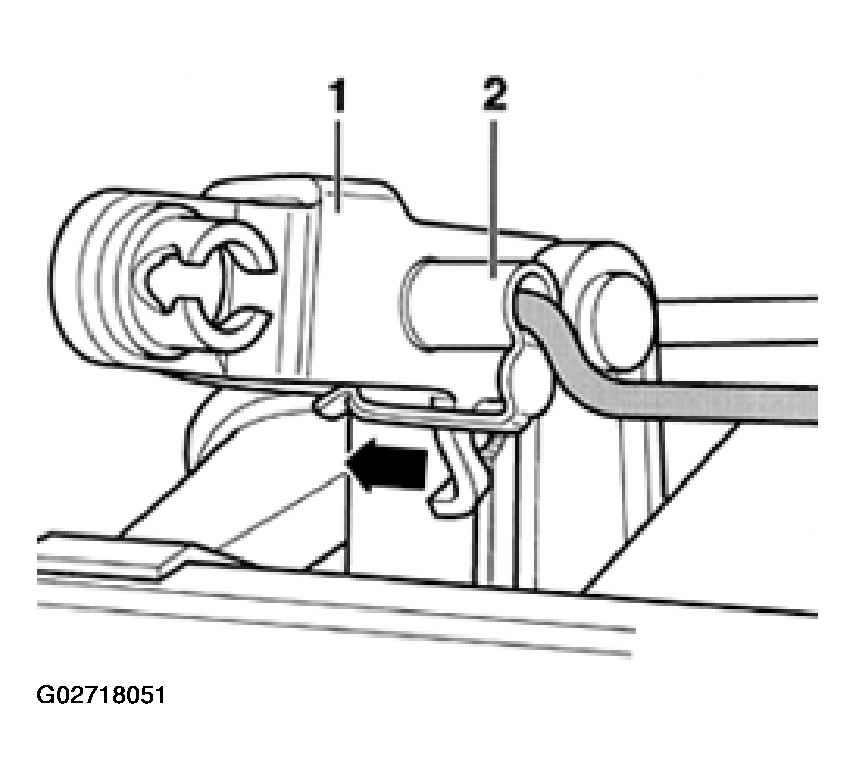

- Using auxiliary tool -3-, pull locking pin -2- completely out of fulcrum lever -1- in direction of arrow -A-. See Fig 2.
- Pivot fulcrum lever -1- upward.

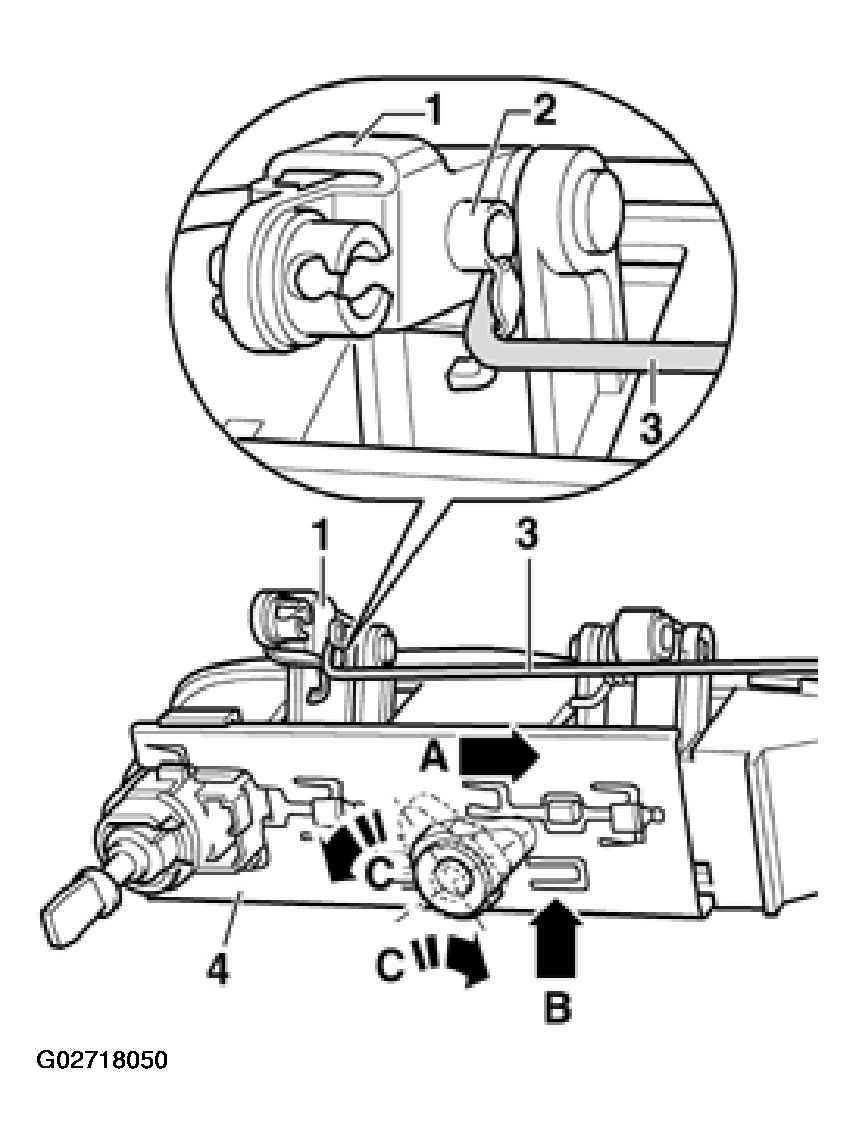

- Using small screwdriver, disengage retainer for slide (arrow -B-) by lifting it slightly.
- Disengage slide -4- in direction of arrow -C-. See .Fig 2.
- Remove door handle together with lock cylinder outward.
- Remove door handle mount inward.
- Install in reverse order of removal.

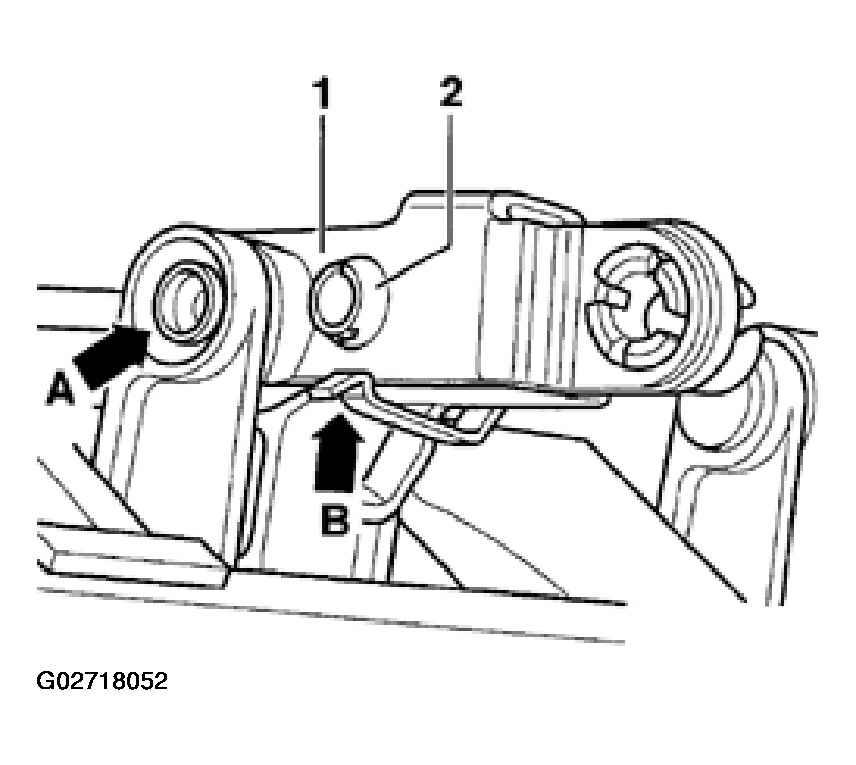

- Once door handle is inserted and locked in place in mount, use auxiliary tool to push in locking pin -2- in direction of arrow.
- Spring clip (arrow -B-) on locking pin -2- must fully lock home around fulcrum lever -1-.
Peened rivet (arrow -A-).
