Panel gap dimensions

Dimension -A- = 3 mm ⁺¹ /_-0 mm (0.118 in. ^+0.039 /_-0 in.)

Dimension -B- = 4.5 mm +/- 0.5 mm (0.177 in. +/- 0.019 in.)

Dimension -C- = 3.5 mm +/- 0.5 mm (0.138 in. +/-0.019 in.)

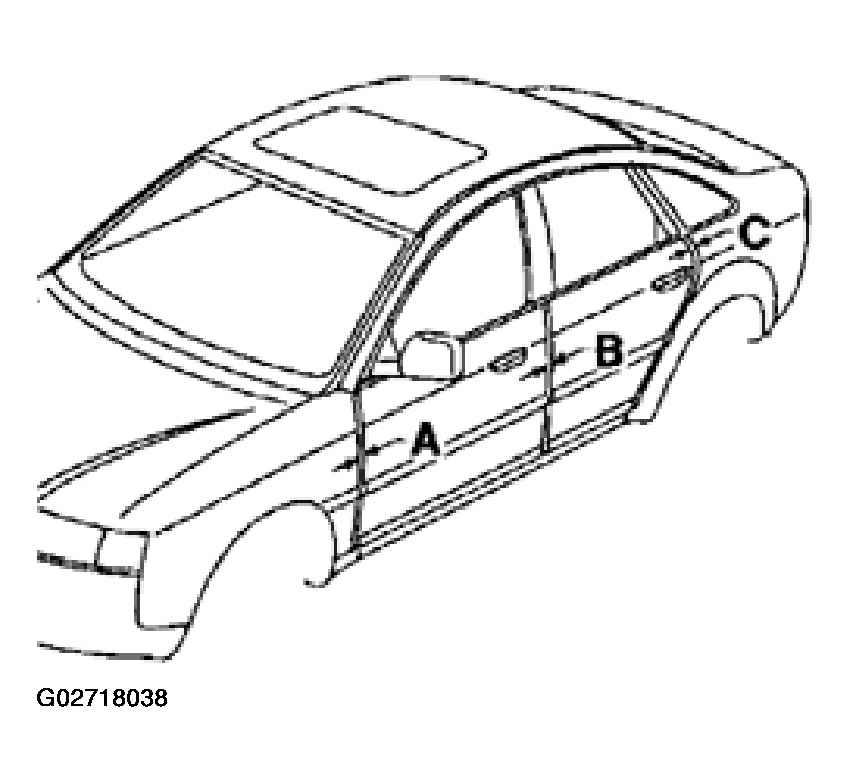

Fig 1: Identifying Front Door Panel Gap Dimensions

Courtesy of AUDI OF AMERICA, INC.
