Repair and Diagnosis: Electrical: Starters: Description

NOTE: Only wiring diagrams for S4 are included in this article.

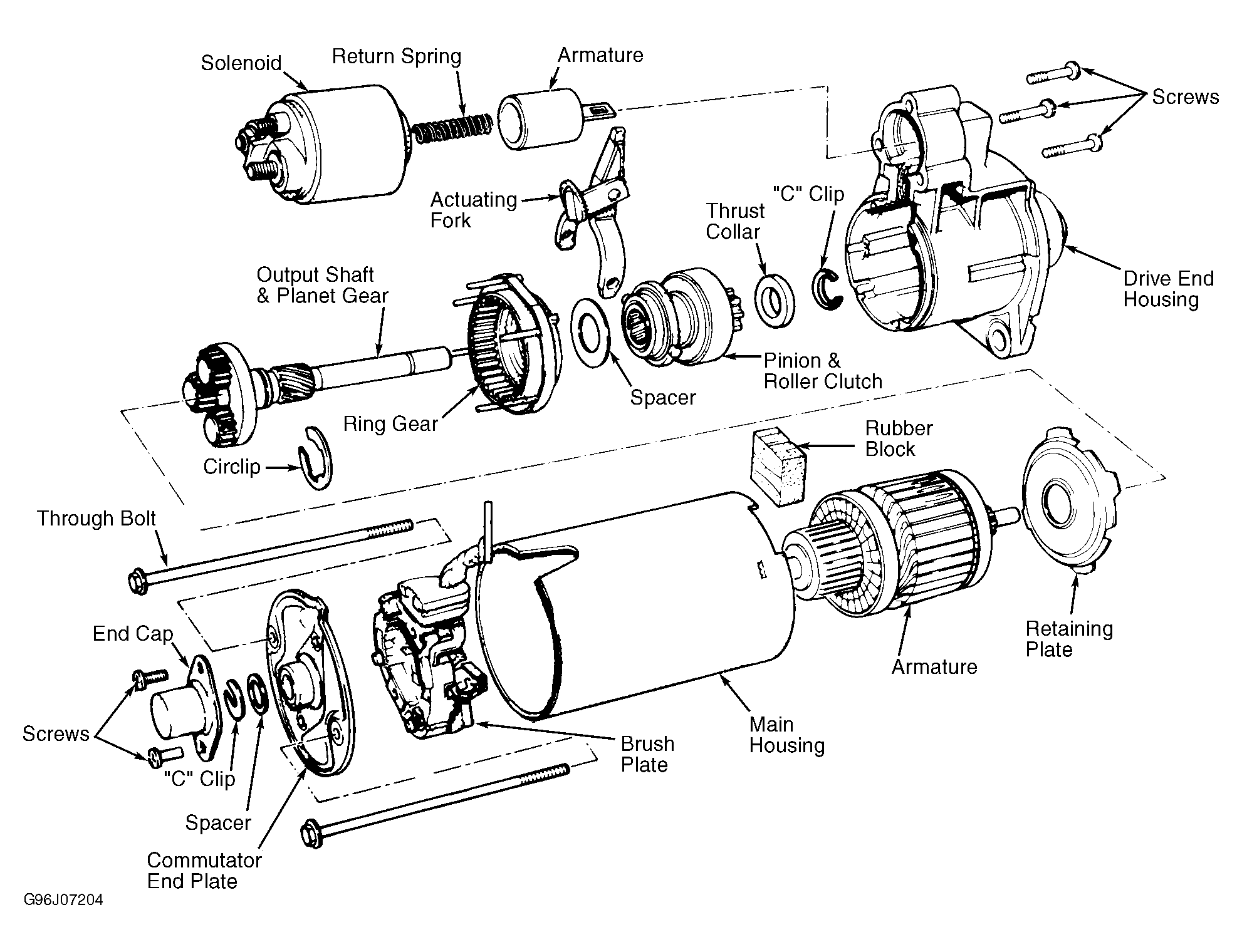

Starter is a brush-type, series-wound electric motor with an overrunning clutch and reduction gear. See Figure . Field frame is enclosed by commutator end frame and drive bushing. Field frame carries pole shoes and field coils. A splined armature shaft drive end carries drive assembly.
