Checking signal wire

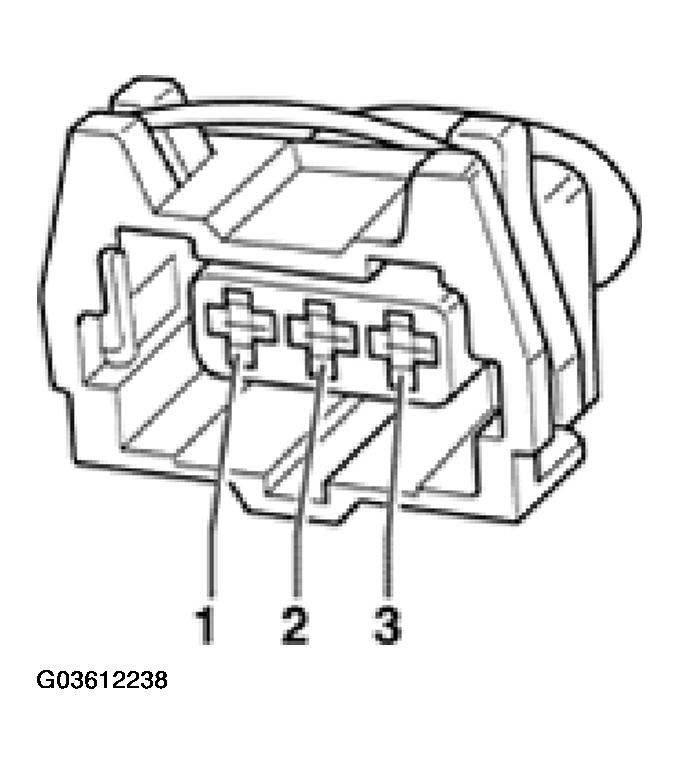

Fig 1: Identifying CMP Sensor 3-Pin Harness Connector Terminals

Connect multimeter for voltage measurement as follows:

CMP SENSOR CIRCUIT TEST: SIGNAL WIRE

Harness connector Terminal	Measure to
2	Engine Ground (GND)
