Troubleshooting table

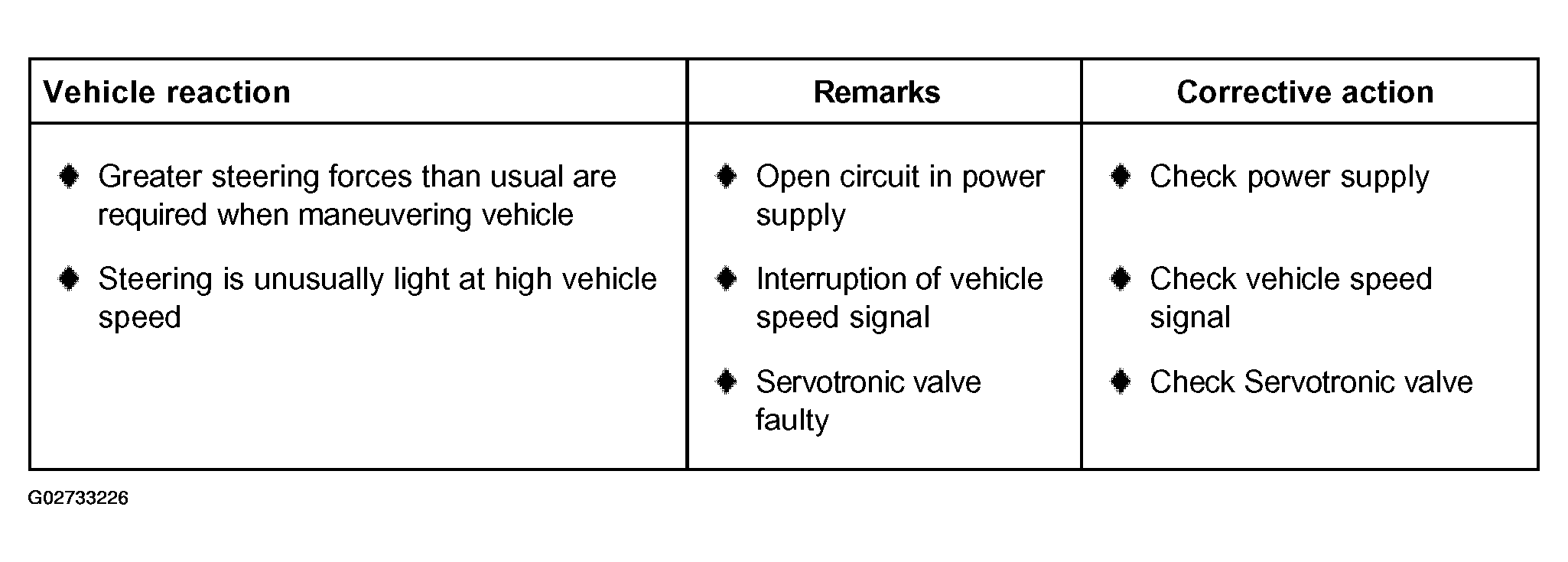

Fig 1: Line Leaking - Troubleshooting Table (RS6)

G02733226

Courtesy of AUDI OF AMERICA, INC.

To check power supply, see SERVOTRONIC, CHECKING VOLTAGE SUPPLY .
To check vehicle speed signal, see SPEED SIGNAL, CHECKING .
To check Servotronic valve, see SERVOTRONIC VALVE, CHECKING .
