Level sensor (front wheel drive), assembly overview

  1. Hex-nut, tighten to 3 Nm.

    See LEVEL SENSOR (FRONT WHEEL DRIVE), REMOVING AND INSTALLING .

  2. Level sensor
  3. Coupling link
  4. Level sensor bracket
  5. Double hex bolt, 25 Nm
  6. Hex-nut, tighten to 10 Nm.
  7. Socket-head bolt,4 Nm
  8. Hex-nut, tighten to 5 Nm.
  9. Cable ties
  10. Hex-nut, tighten to 10 Nm.

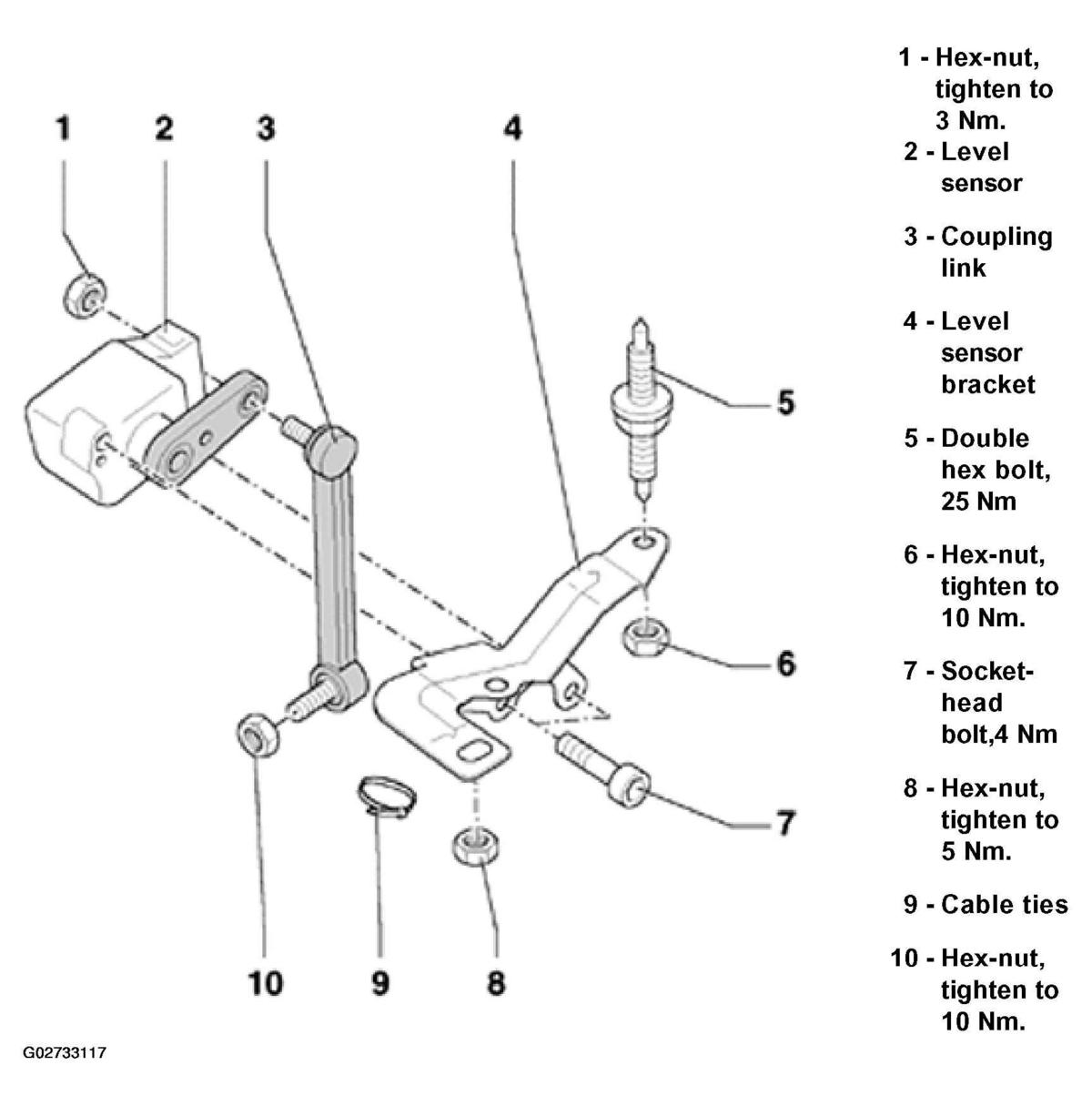

Fig 1: Identifying Level Sensor Components (Front Wheel Drive)
G02733117Courtesy of AUDI OF AMERICA, INC.
