Function Mode 08: Reading Measured Value Block

When RAPID DATA TRANSFER SELECT FUNCTION XX is displayed, press 08 keys. RAPID DATA TRANSFER 08 - READ MEASURING VALUE BLOCK will be displayed. Press "Q" key to confirm input. READ MEASURING VALUE BLOCK ENTER DISPLAY GROUP NUMBER XX will be displayed. Enter desired display group number. See Fig 1 -Fig 14 . Press "Q" to confirm input. Display will show actual values transmitted from sensors.

Fig 1: Display Group 001 Character Identification

Courtesy of AUDI OF AMERICA, INC.

Fig 2: Display Group 002 Character Identification

Courtesy of AUDI OF AMERICA, INC.

Fig 3: Display Group 003 Character Identification

Courtesy of AUDI OF AMERICA, INC.

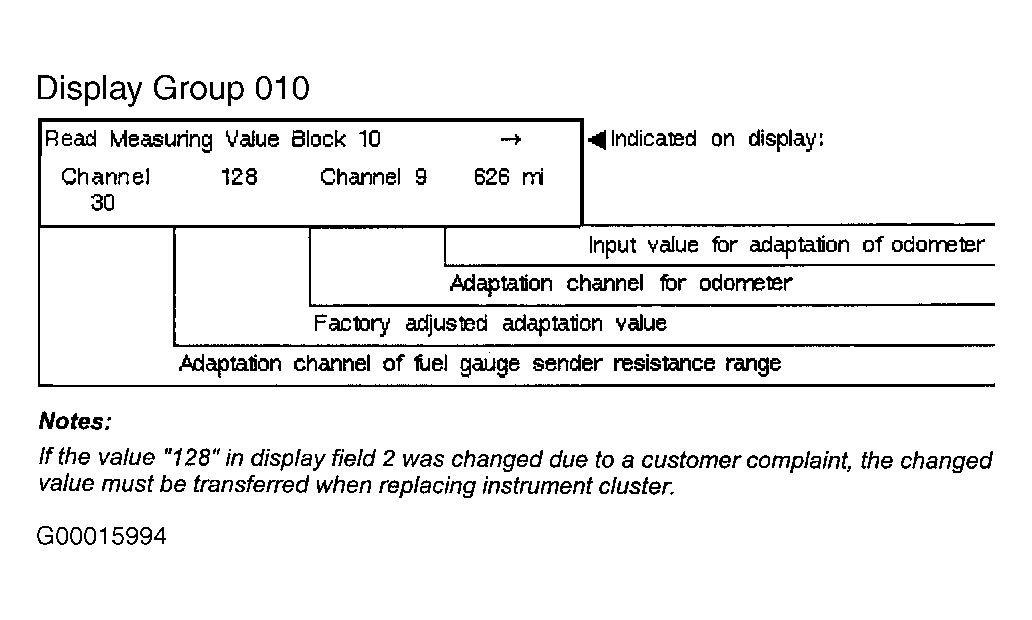

Fig 4: Display Group 010 Character Identification

Courtesy of AUDI OF AMERICA, INC.

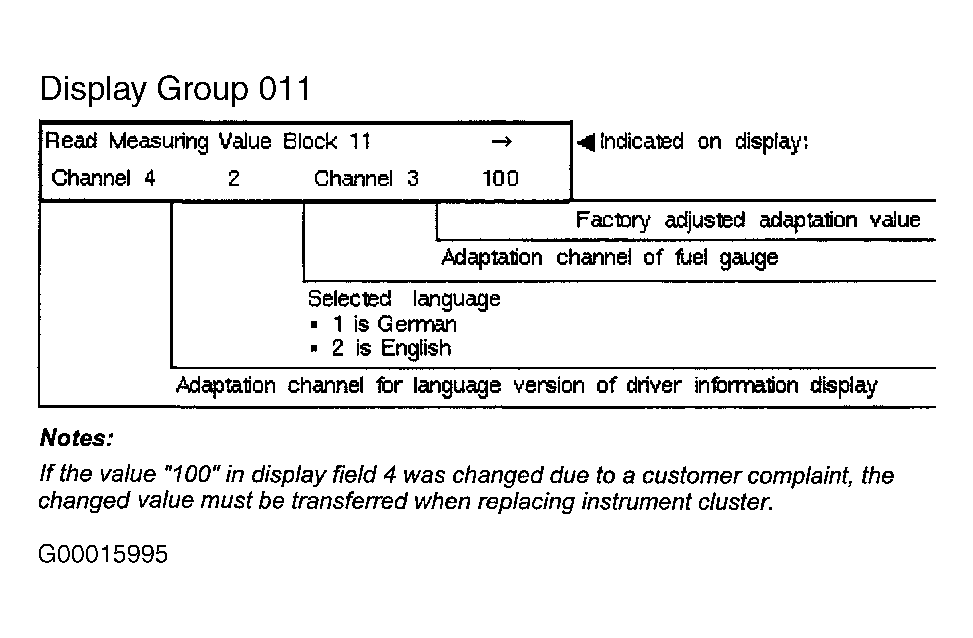

Fig 5: Display Group 011 Character Identification

Courtesy of AUDI OF AMERICA, INC.

Fig 6: Display Group 012 Character Identification

Courtesy of AUDI OF AMERICA, INC.

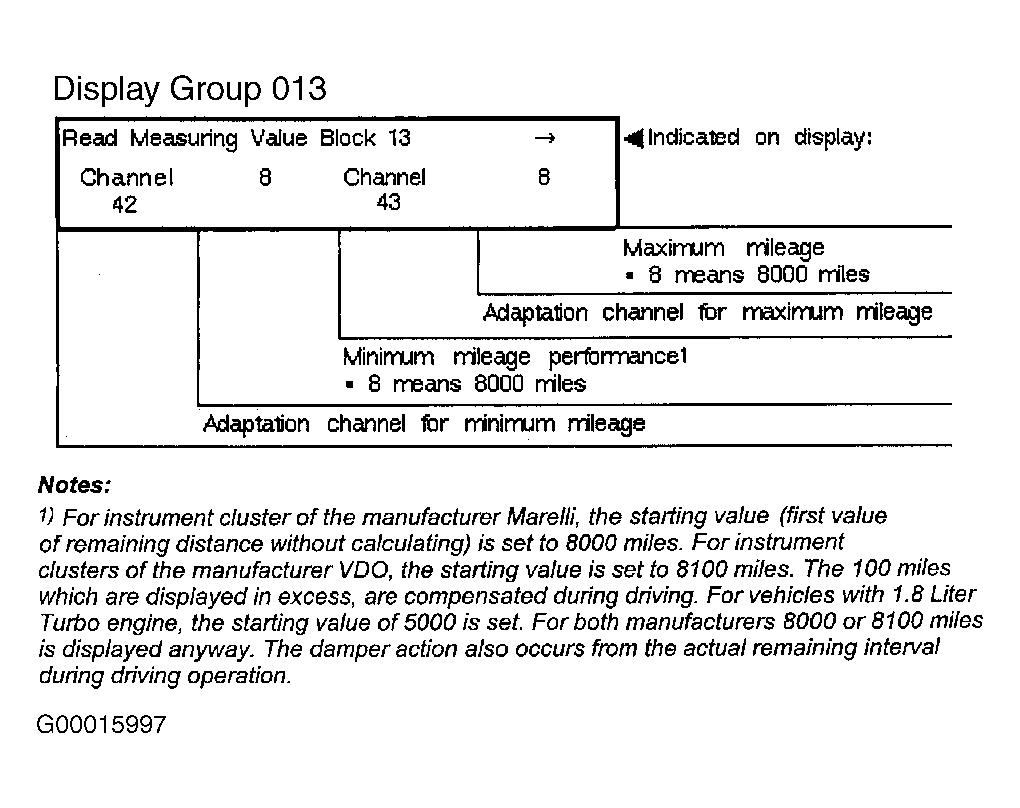

Fig 7: Display Group 013 Character Identification

Courtesy of AUDI OF AMERICA, INC.

Fig 8: Display Group 014 Character Identification

Courtesy of AUDI OF AMERICA, INC.

Fig 9: Display Group 015 Character Identification

Courtesy of AUDI OF AMERICA, INC.

Fig 10: Display Group 050 Character Identification

Courtesy of AUDI OF AMERICA, INC.

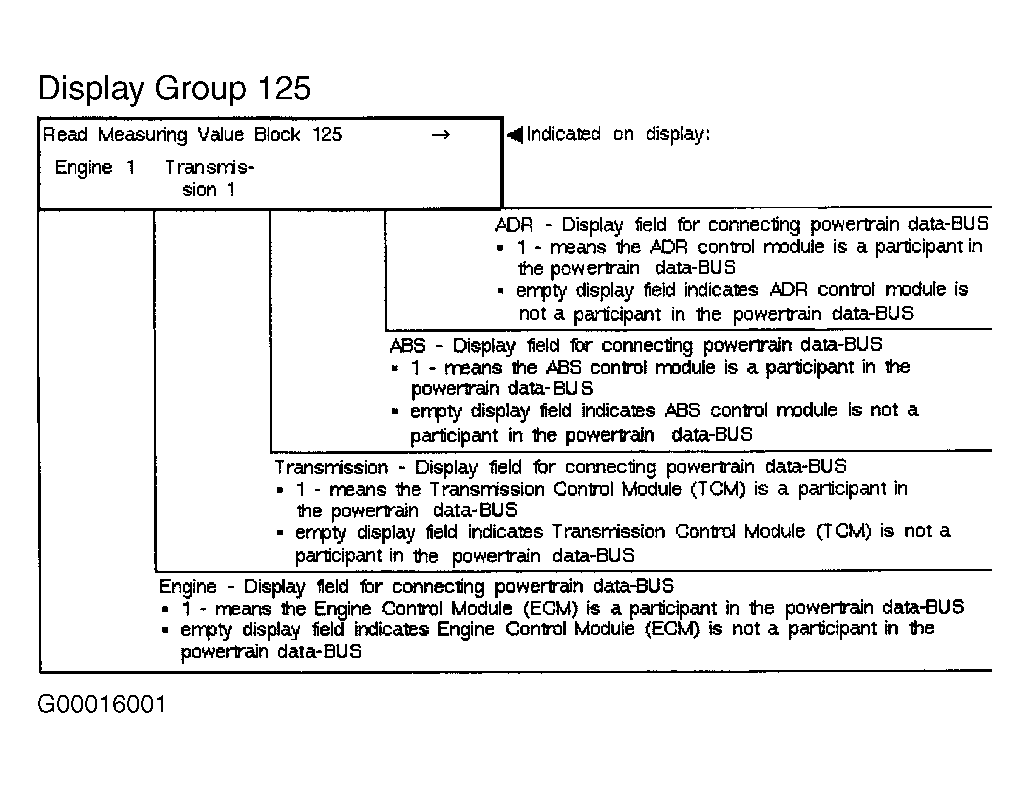

Fig 11: Display Group 125 Character Identification

Courtesy of AUDI OF AMERICA, INC.

Fig 12: Display Group 126 Character Identification

Courtesy of AUDI OF AMERICA, INC.

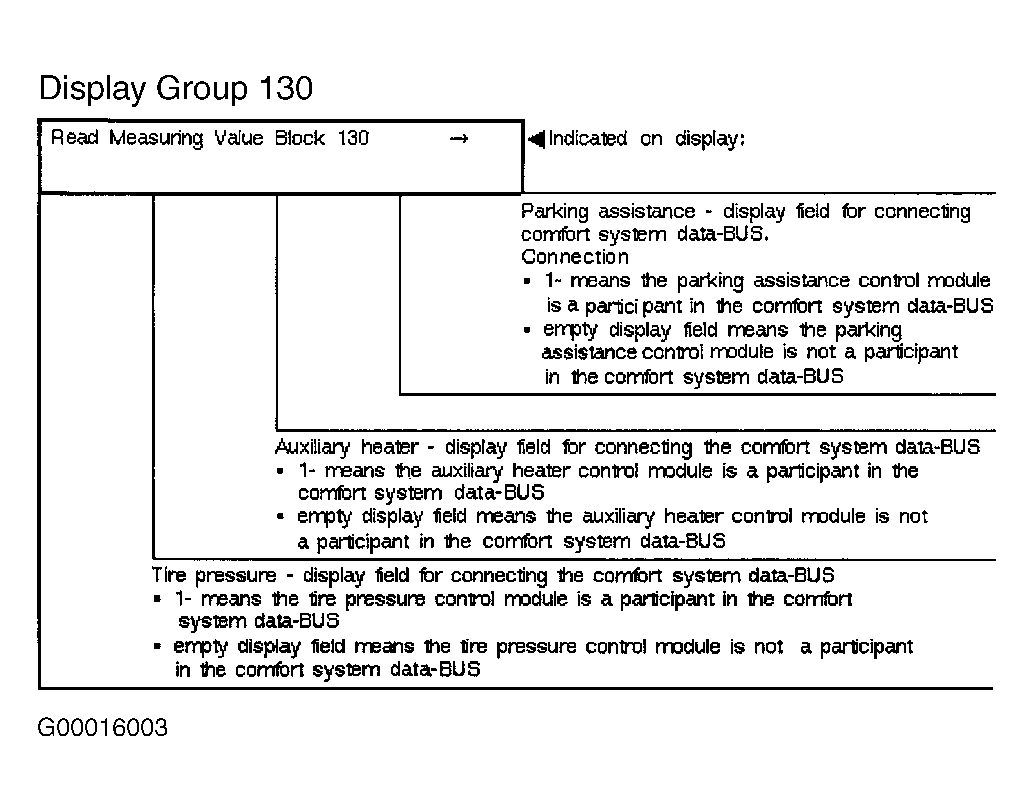

Fig 13: Display Group 130 Character Identification

Courtesy of AUDI OF AMERICA, INC.

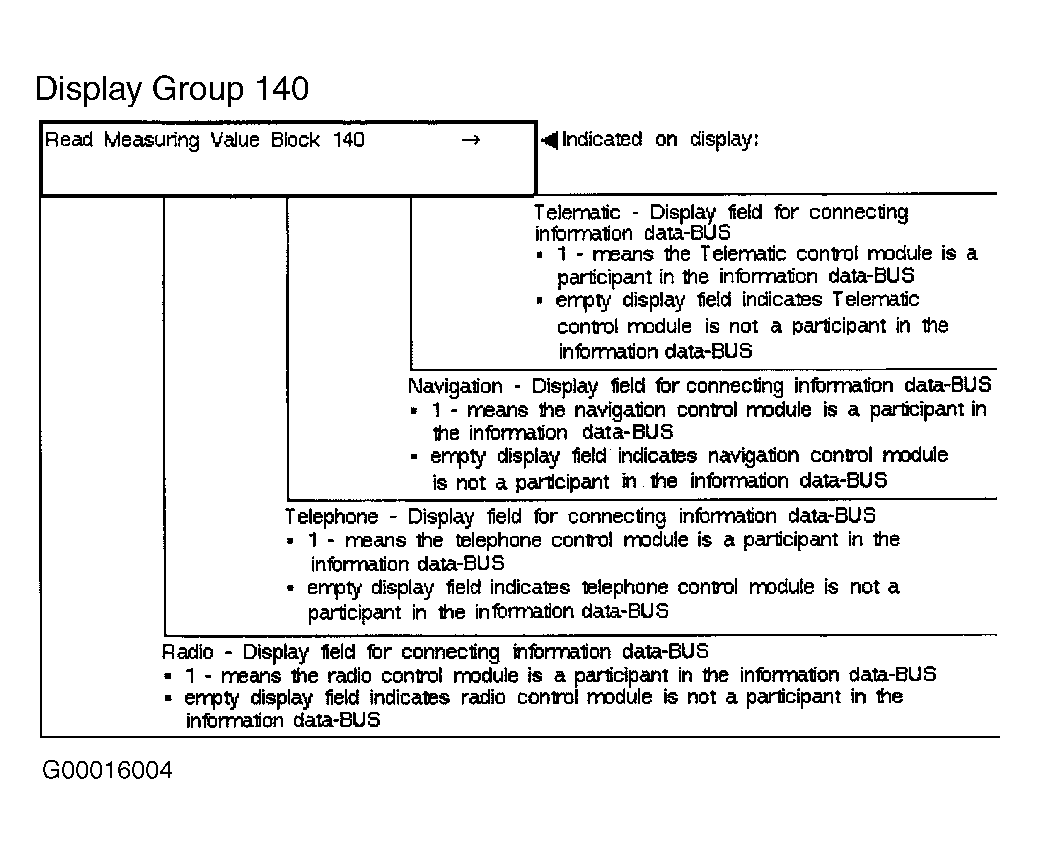

Fig 14: Display Group 140 Character Identification

Courtesy of AUDI OF AMERICA, INC.
