Component Locations

Use following illustrations to located steering column related components.

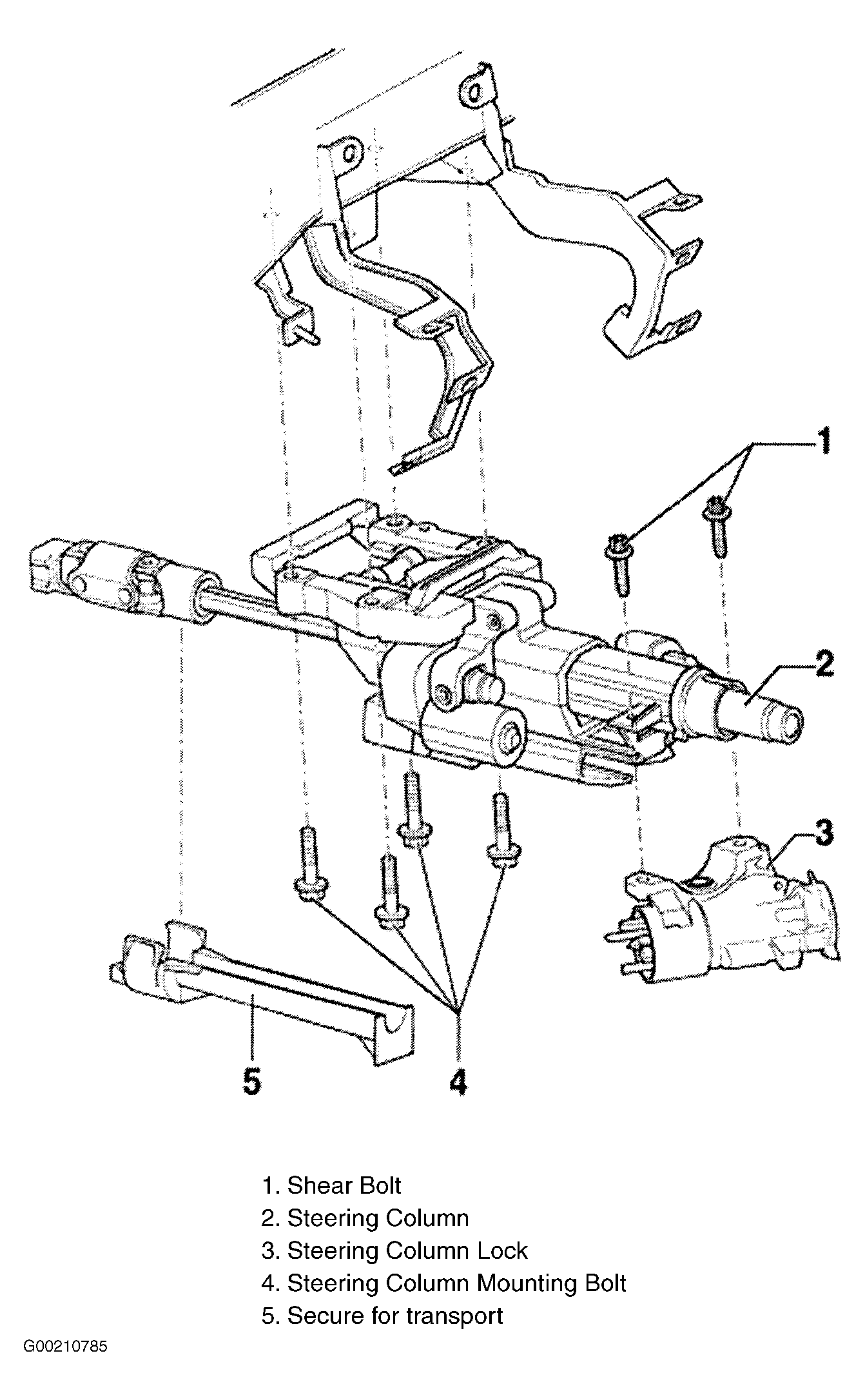

Fig 1: Exploded View Of Steering Column Assembly (S4, 2001 A4)
G00210785Courtesy of AUDI OF AMERICA, INC.
