Accelerator linkage, servicing: Notes

The following list pertains to Fig 1.

1. Accelerator pedal module
   • With Throttle Position (TP) Sensor -G79- and Sender -2- for accelerator pedal position -G185-
   • Removing and installing, see ACCELERATOR PEDAL MODULE WITH ACCELERATOR POSITION SENDER, REMOVING AND INSTALLING
2. 10 Nm
3. 6 pin connector
4. 10 Nm

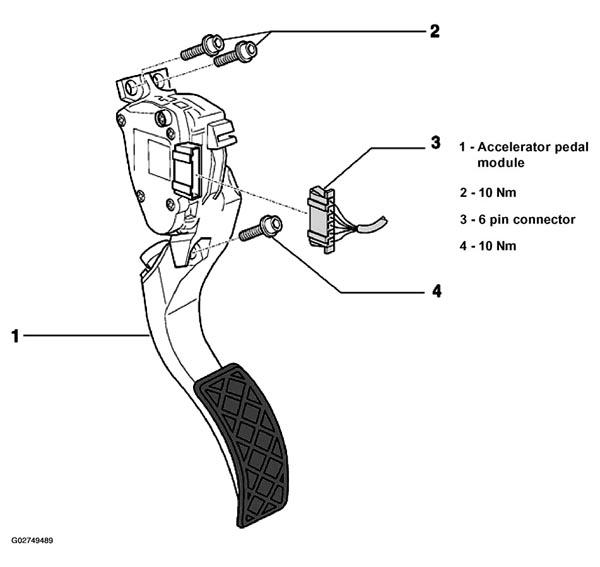

Fig 1: Exploded View Of Accelerator Pedal Module
Courtesy of AUDI OF AMERICA, INC.
