Air unit mount, assembly overiew: Notes
Tightening torque for all air lines on Audi A6: 2 Nm
NOTE:

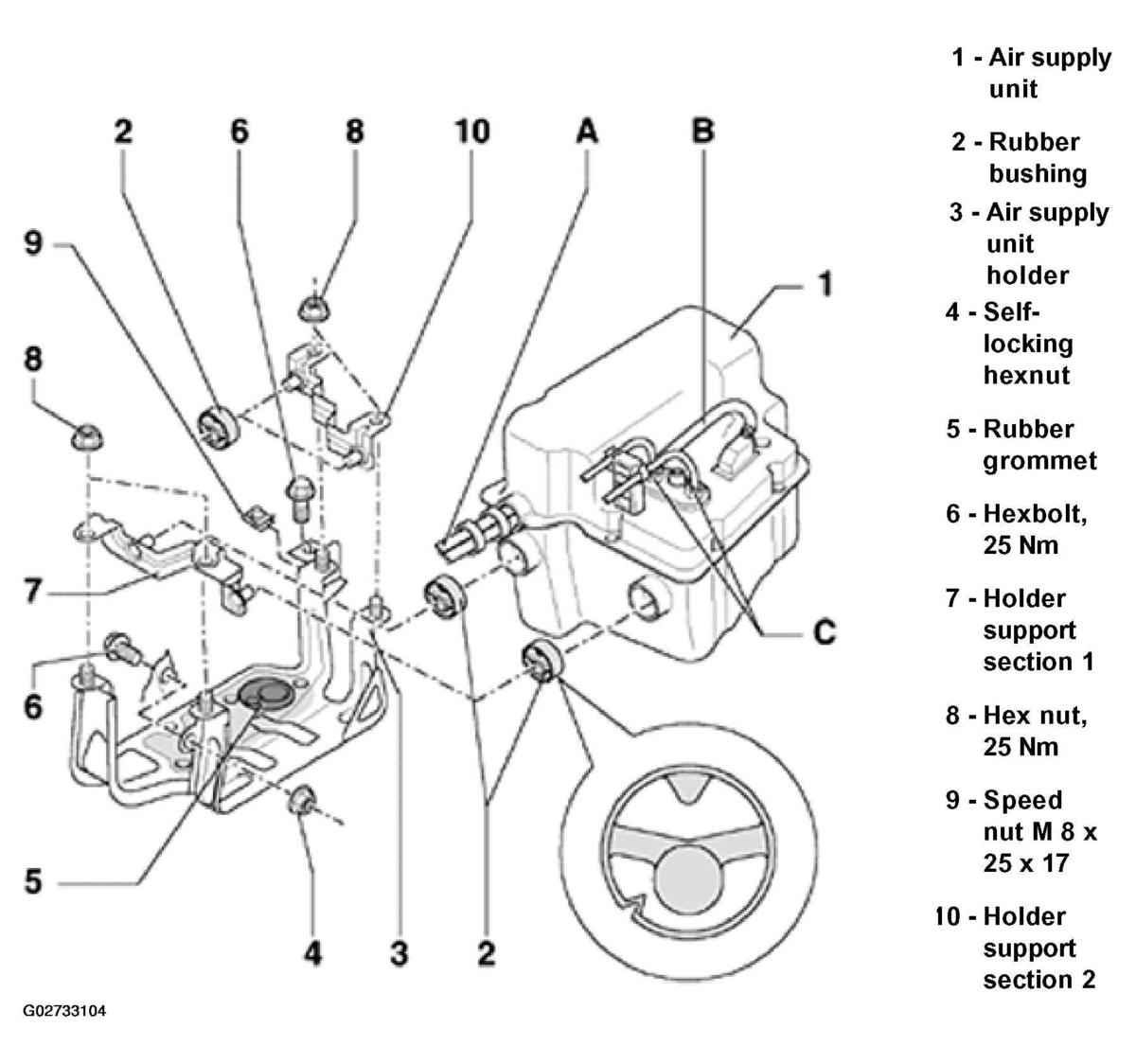

The following list refers to items in Fig 1.
- Air supply unit
- Rubber bushing
- Kidney-shaped recess faces upwards
- Air supply unit holder
- See INSTALLING .
- Self-locking hexnut
- Rubber grommet
- Hexbolt, 25 Nm
- Holder support section 1
- Hex nut, 25 Nm
- Speed nut M 8 x 25 x 17
- Holder support section 2
