Checking power supply
- Connect multimeter as follows to measure voltage.ECM POWER SUPPLY RELAY CIRCUIT TEST: POWER SUPPLY

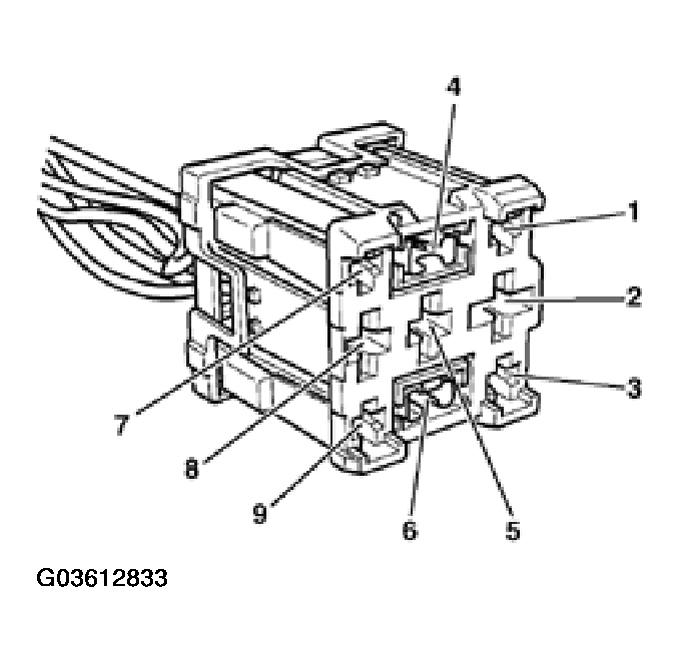

Relay carrier in electronics box, plenum chamber, position 2 terminal Measure to 1 Engine ground 2 Engine ground - Specified value: approx. battery voltage
If specified value is not obtained:
- Check wiring connections.
